ImageSegmentation

My Frame work for SemanticSegmentation

Overview

I organizize the object detection algorithms proposed in recent years, and focused on Cityscapes, COCO , lane and Pascal VOC Dataset. This frame work also include EarlyStopping mechanism.

Datasets:

I used 5 different datases: Cityscapes, COCO, Pascal VOC, ICME2022 and LANEdevkit . Statistics of datasets I used for experiments is shown below

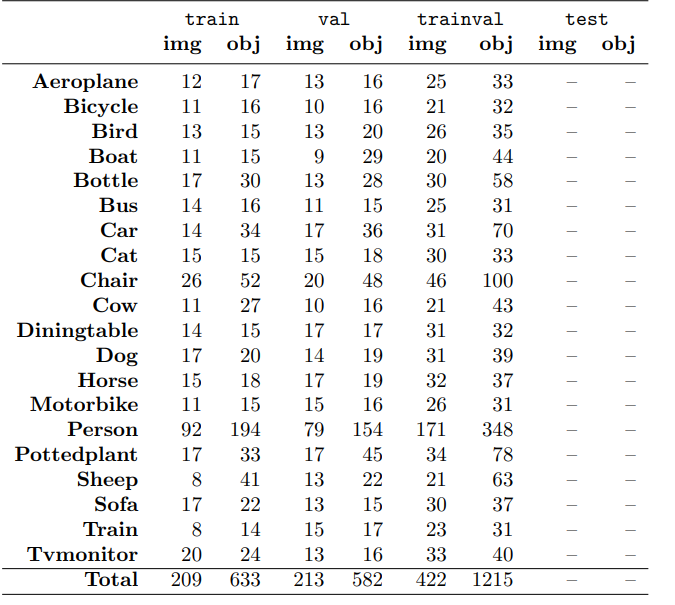

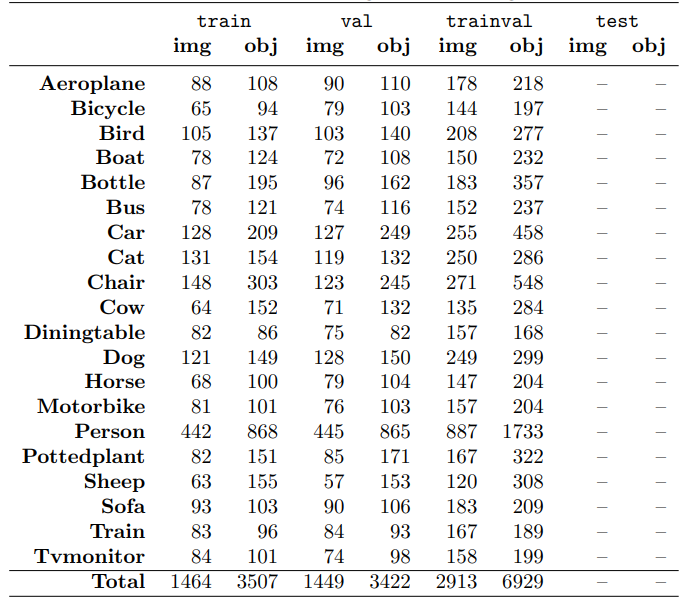

• VOC: Download the voc images and annotations from VOC2007 or VOC2012. Make sure to put the files as the following structure:

  Dataset	Classes	#Train images/objects	#Validation images/objects
  VOC2007	20	5011/12608	4952/-
  VOC2012	20	5717/13609	5823/13841

  -- VOC2007

  •

  -- VOC2012

  •

  VOCDevkit
  ├── VOC2007
  │   ├── Annotations
  │   ├── ImageSets
  │   ├── JPEGImages
  │   └── ...
  └── VOC2012
      ├── Annotations
      ├── ImageSets
      ├── JPEGImages
      └── ...


  Processed File: download link

• COCO: Download the coco images and annotations from coco website. Make sure to put the files as the following structure:

  Dataset	Classes	#Train images/objects	#Validation images/objects
  COCO2014	21	64k/-	31k/-
  COCO2017	21	92k/-	3k/-

    COCO
    ├── annotations
    │   ├── instances_train2014.json
    │   ├── instances_train2017.json
    │   ├── instances_val2014.json
    │   └── instances_val2017.json
    │── images
    │   ├── train2014
    │   ├── train2017
    │   ├── val2014
    │   └── val2017
    └── mask
        ├── train2014
        ├── train2017
        ├── val2014
        └── val2017


  Processed File: download link

• Cityscapes: The Cityscapes Dataset focuses on semantic understanding of urban street scenes. In the following, we give an overview on the design choices that were made to target the dataset’s focus.

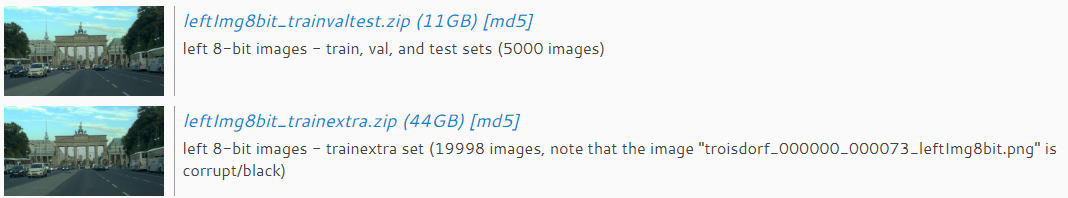

  • Download the container images and annotations from cityscapes. Make sure to put the files as the following structure:

    Cityscapes
    ├── leftImg8bit
    │   ├── train
    │   ├── val
    │   ├── test
    │

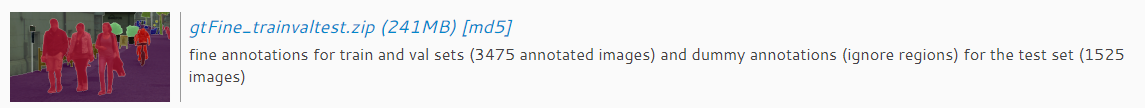

    │── gtFine_trainvaltest
        ├── gtFine
            ├── train
            ├── val
            ├── test


  Processed File: download link

Methods

• FPN
• FCN
• DeConvNet
• UNet
• SegNet
• PSPNet
• DeepLabV3
• DeepLabv3_plus
• Segformer

Pretrain-Weights download link

Prerequisites

• Windows 10
• CUDA 10.1 (lower versions may work but were not tested)
• NVIDIA GPU 1660 + CuDNN v7.3
• python 3.6.9
• pytorch 1.10
• opencv (cv2)
• numpy
• torchvision 0.4

Requirenents

pip install -r requirements.txt -f https://download.pytorch.org/whl/torch_stable.html

Usage

1. Prepare the dataset

• Create your own annotation.{dataset}.py then create Segmentation/train.txt , Segmentation/val.txt let data to load.
• Prepare pretrain download weight to model_data .
• Add new data in helps/choose_data.py.

2. Create own model

• Copy seg_model directory and write self required function, like dataset_collate, Dataset, freeze_backbone, unfreeze_backbone... etc.
• Maintaion self directory like nets, utils.
• Maintaion self detection configuration file like model.py.
• Add new data in helps/choose_model.py.

3. Train (Freeze backbone + UnFreeze backbone)

• setup your root_path , choose DataType and switch segmentation model library import.

python train.py

4. Evaluate (get_miou)

• setup your root_path , choose DataType and switch detection model library import.
• setup your model_path and classes_path in model/model.py

python get_miou.py

5. predict

• Can switch predict mode to detection image or viedo mode to detection video
• setup your model_path and classes_path in model/model.py

python predict.py

6. export

• Can switch your saved model export to ONNX format

python export.py --config "configs.yolact_base"

Demo

Reference

• U-Net : https://github.com/bubbliiiing/unet-pytorch
• SegNet : https://github.com/yassouali/pytorch-segmentation/blob/4c51ae43c791a37b0fb80c536b6614ff971c74e8/models/segnet.py
• DeconvNet: https://github.com/Jasonlee1995/DeconvNet/blob/main/Implementation/model.py
• FCN: https://github.com/yassouali/pytorch-segmentation/blob/4c51ae43c791a37b0fb80c536b6614ff971c74e8/models/fcn.py
• PSPNet: https://github.com/bubbliiiing/pspnet-pytorch
• FPN : https://github.com/Andy-zhujunwen/FPN-Semantic-segmentation/blob/master/FPN-Seg/model/FPN.py
• DeepLabV3: https://github.com/jfzhang95/pytorch-deeplab-xception/blob/master/modeling/deeplab.py
• DeepLabv3_plus : https://github.com/bubbliiiing/deeplabv3-plus-pytorch
• cityscapes: https://www.cityscapes-dataset.com/dataset-overview/#features
• VOC2007: https://pjreddie.com/media/files/VOC2007_doc.pdf
• VOC2012: https://pjreddie.com/media/files/VOC2012_doc.pdf
• Onnx convert reference: https://github.com/WongKinYiu/yolov7/blob/main/export.py
