Image Segmentation Tool (MATLAB)

A professional MATLAB-based GUI application for advanced image segmentation, featuring both basic thresholding and multi-threshold techniques. This tool provides real-time visualization, interactive controls, and comprehensive analysis capabilities.

Table of Contents

• Features
• Technical Overview
• Requirements
• Installation
• Usage Guide
• Implementation Details

Features

Core Functionality

• Interactive GUI Interface
  • Dark theme professional design
  • Real-time parameter adjustment
  • Side-by-side result preview
  • Dynamic histogram visualization

Segmentation Methods

1. Basic Threshold

   • Single threshold value segmentation
   • Real-time threshold line visualization
   • Binary output (foreground/background)

2. Multi-threshold

   • Support for 2-5 regions
   • Color-coded region visualization
   • Multiple threshold lines
   • Automatic region distribution

Analysis Tools

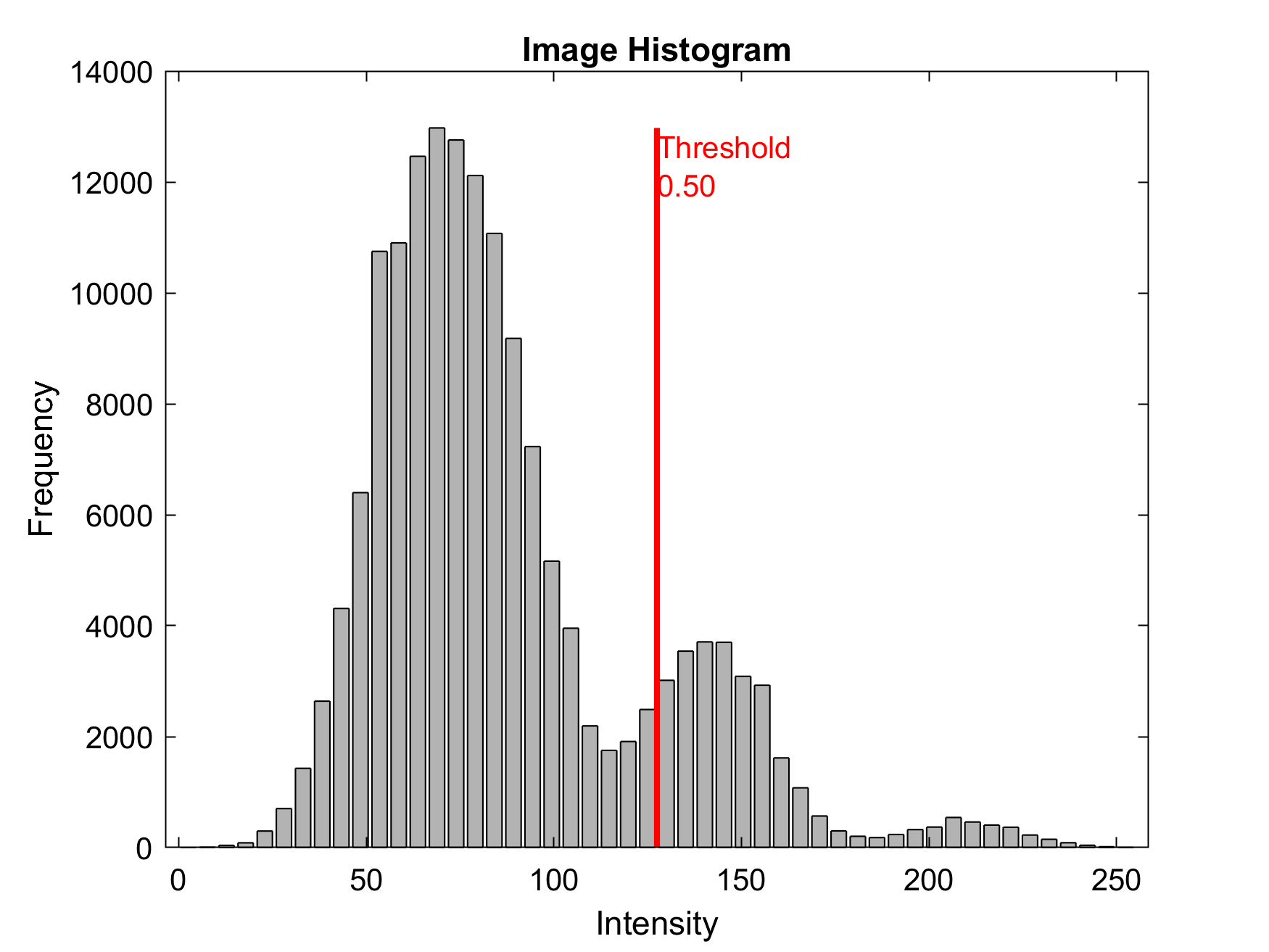

• Real-time Histogram Analysis
  • Dynamic intensity distribution
  • Interactive threshold markers
  • Color-coded threshold lines
  • Region boundary visualization

Data Management

• Image Support

  • Load custom images (JPG, PNG, BMP, TIF)
  • Built-in test pattern generation
  • Grayscale conversion for color images
  • Multiple region visualization

• Export Capabilities

  • Save segmented results
  • Export histogram analysis
  • Multiple format support (PNG, JPG, TIF)
  • MATLAB figure export

Technical Overview

Key Terms

• Image Segmentation: Process of partitioning an image into multiple segments
• Thresholding: Technique to separate pixels based on intensity values
• Histogram Analysis: Visual representation of pixel intensity distribution
• Multi-region Segmentation: Division of image into multiple distinct regions
• Region Coloring: Assignment of unique colors to different segments

Requirements

Software Dependencies

• MATLAB R2019b or newer
• Image Processing Toolbox

System Requirements

• Operating System: Windows/Mac/Linux
• RAM: 4GB minimum (8GB recommended)
• Display: 1280x720 or higher resolution
• Storage: 500MB free space

Installation

1. Clone the repository

git clone https://github.com/yourusername/image-segmentation-tool.git

2. Add to MATLAB path

addpath(genpath('path/to/image-segmentation-tool'))

3. Run the application

region_segmentation_gui

Usage Guide

Basic Operation

1. Starting the Tool

   region_segmentation_gui

2. Loading Images

   •
   • Click "Load Image" for custom images
   • Use "Reset to Test Pattern" for synthetic test image
   • Supported formats: JPG, PNG, BMP, TIF

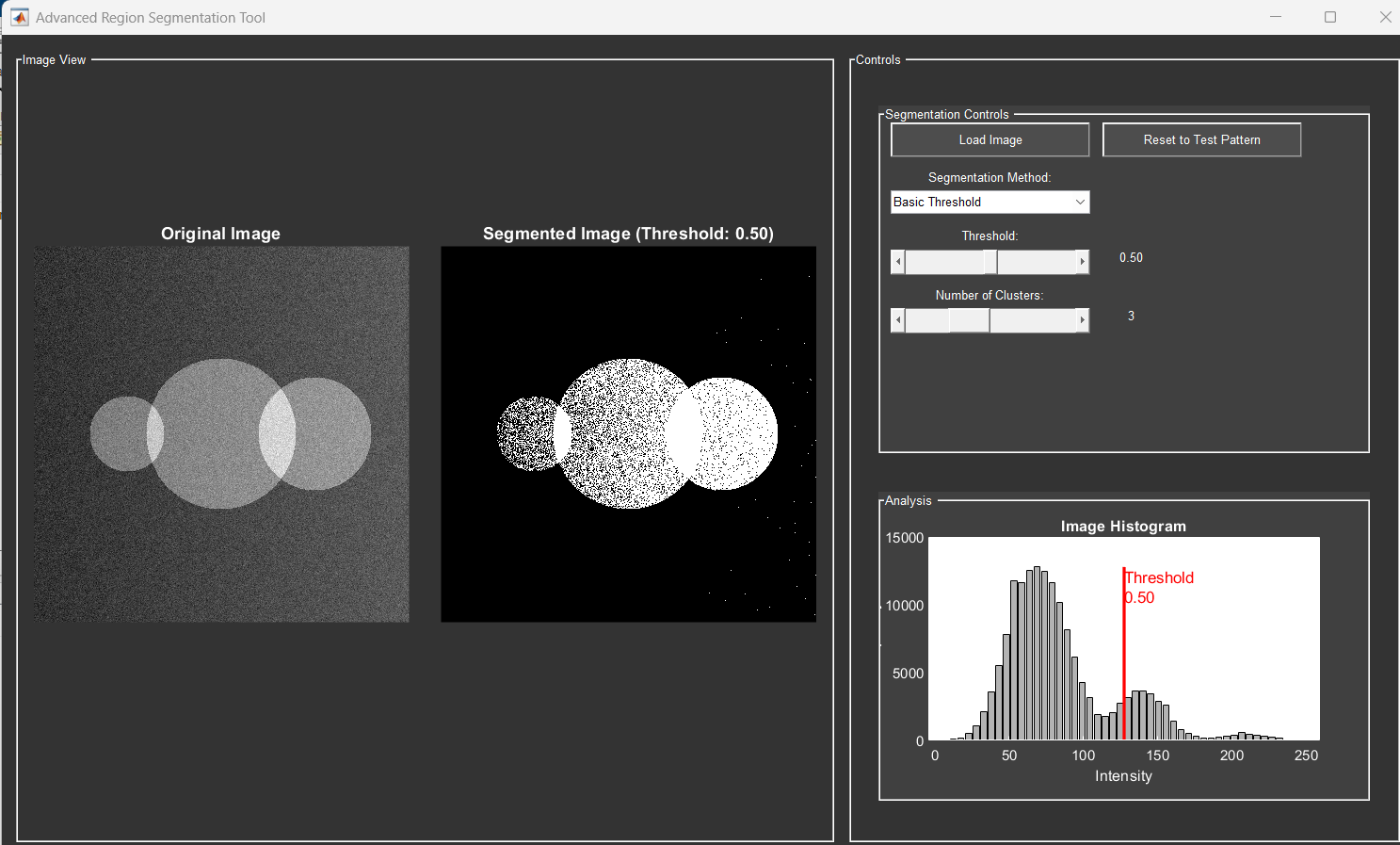

3. Basic Thresholding

   •
   • Select "Basic Threshold" mode
   • Adjust threshold using slider (0-1)
   • Observe real-time segmentation
   • View threshold line on histogram

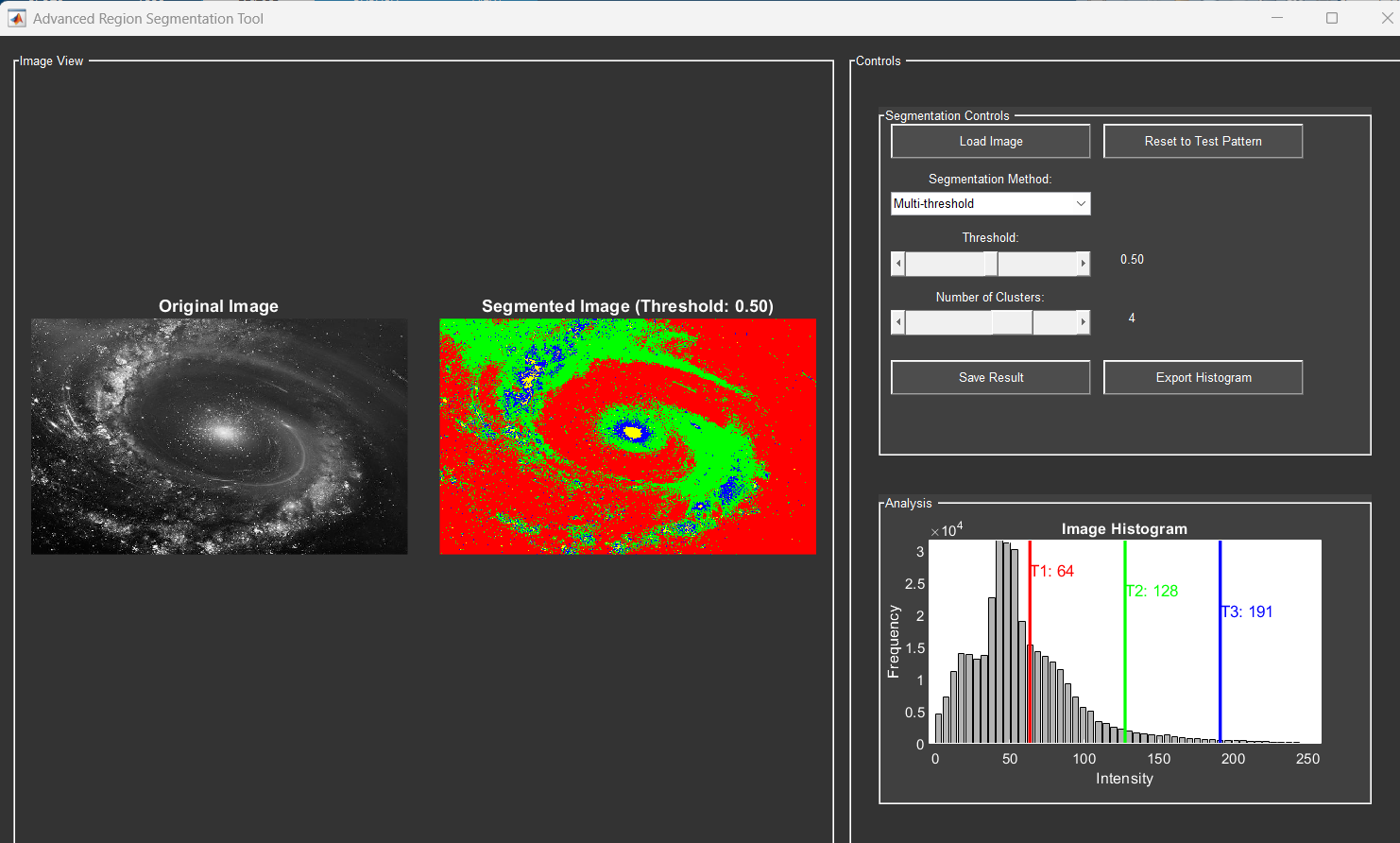

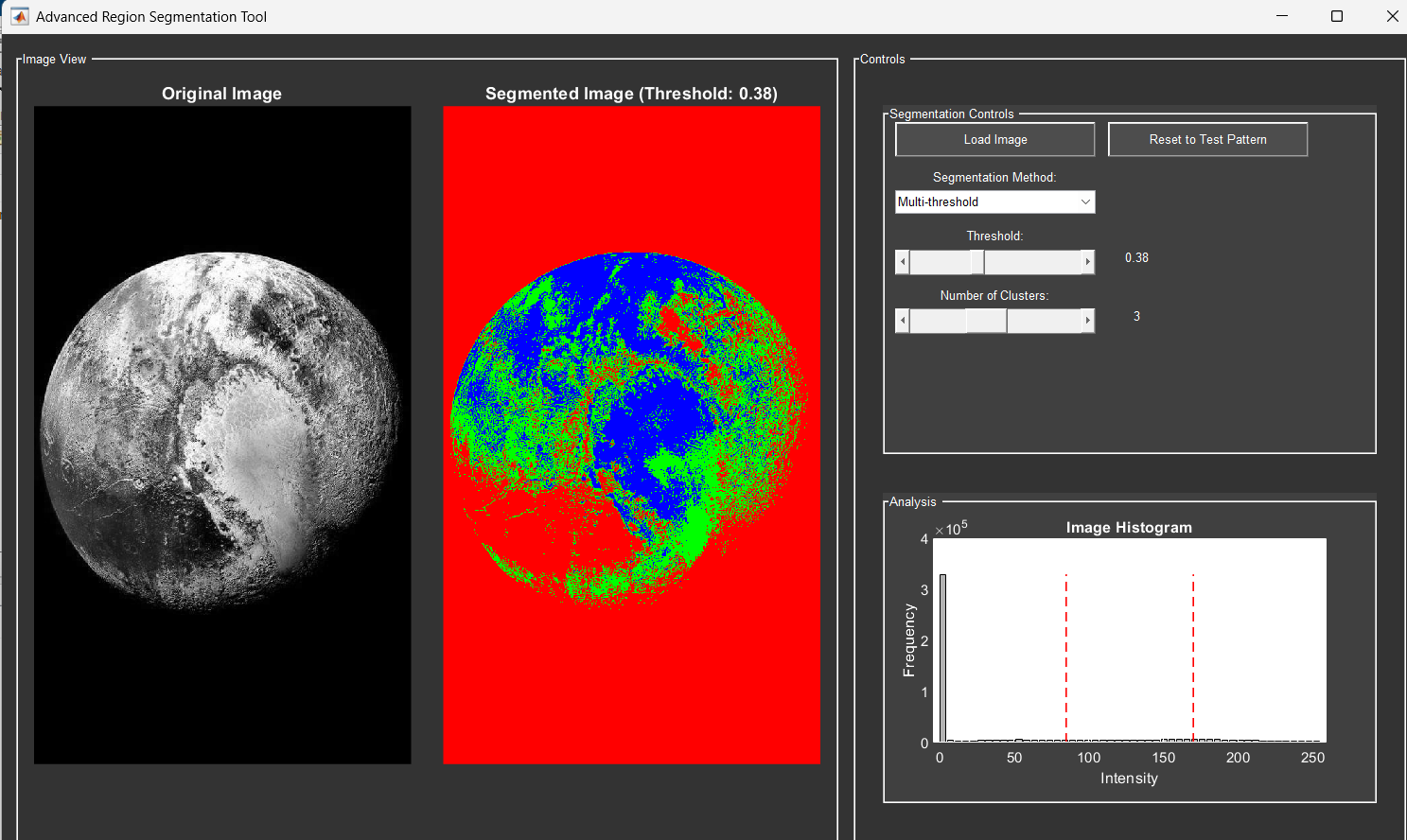

4. Multi-threshold Segmentation

   • Select "Multi-threshold" mode
   • Choose number of regions (2-5)
   • Observe color-coded regions
   • View multiple threshold lines

5. Saving Results

   •
   • Click "Save Result" for segmented image
   • Use "Export Histogram" for analysis data
   • Choose desired output format
   • Select save location

Advanced Features

1. Histogram Analysis

   •
   • Real-time intensity distribution
   • Interactive threshold markers
   • Region boundary visualization
   • Color-coded threshold lines

2. Parameter Adjustment

   •
   • Threshold value (0-1)
   • Number of regions (2-5)
   • Real-time visual feedback
   • Confirmation dialogs

Implementation Details

Core Components

1. GUI Layout

   • Left panel: Image display
   • Right panel: Controls and analysis
   • Dark theme interface

2. Image Processing

   • Grayscale conversion
   • Intensity normalization
   • Region labeling
   • Color mapping

3. Visualization

   • Real-time updates
   • Side-by-side comparison
   • Dynamic histogram
   • Interactive controls

Examples

Basic Threshold Example

% Load and segment an image
region_segmentation_gui
% 1. Load image
% 2. Select Basic Threshold
% 3. Adjust threshold to 0.5
% 4. Save result

Multi-threshold Example

% Segment image into multiple regions
region_segmentation_gui
% 1. Load image
% 2. Select Multi-threshold
% 3. Set regions to 3
% 4. Export histogram
