A scalable and role-based full-stack web application designed to streamline the management of parcel delivery, rider allocation, tracking, and customer administration.
The platform provides a centralized digital ecosystem where users, delivery riders, and administrators can efficiently manage and monitor parcel shipments through a modern, secure, and responsive web interface.
🚀 Experience ProFast Live Here!
The ProFast - Parcel Delivery Management System was developed to solve the limitations of manual or disjointed parcel booking systems conventionally used in logistics.
Traditional delivery management systems often suffer from:
- Difficult tracking and updates
- Inefficient rider allocation
- Lack of centralized administration
- Poor scalability
- Weak role-based access control
- Insecure or slow payment processing
To overcome these challenges, this system introduces a dynamic and scalable architecture that supports:
- Real-time parcel tracking
- Role-based administration
- Secure Stripe payment integration
- Dynamic rider assignments
- Profile and earnings management for riders
- Administrative dashboard for system governance
- Interactive map-based tracking
The system is designed with modular architecture principles to ensure maintainability, scalability, and future extensibility.
- Full Stack MERN-Based Architecture
- Role-Based Access Control (RBAC)
- JWT Authentication via Firebase
- Secure Password Encryption
- Dynamic CRUD Operations
- Real-Time Data Synchronization
- Responsive User Interface
- Parcel Booking & Management
- Delivery Rider Allocation System
- Real-Time Event Tracking & Logging
- Secure Stripe Integration
- Administrative Dashboard
- Scalable Modular Structure
- Optimized Database Operations
- Cloudinary Image Upload Support
The platform provides three different access levels to ensure secure and structured management of logistic resources.
Users are regular customers looking to book parcels, track them, and make payments.

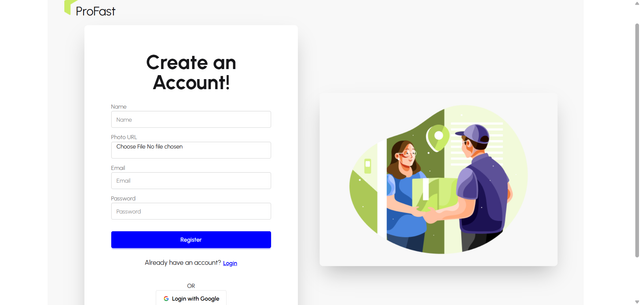

- Register and Login securely

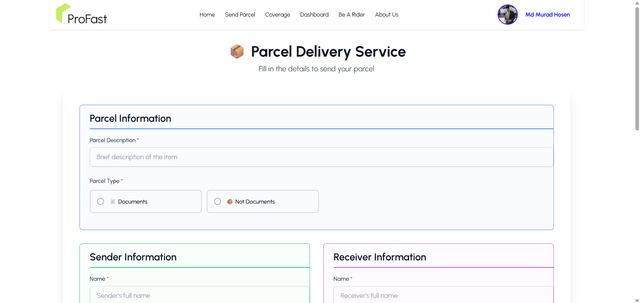

- Create and schedule new parcels

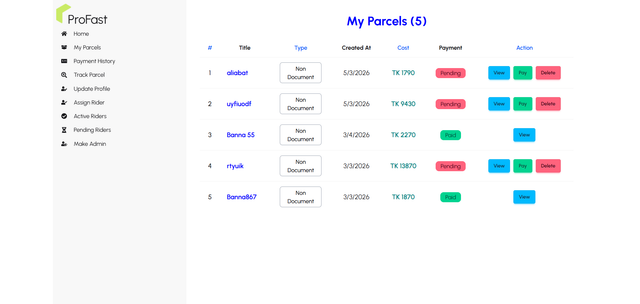

- View parcel history and current statuses
- Process secure payments using Stripe
- Track assigned delivery riders
- Update profile and request to become a rider

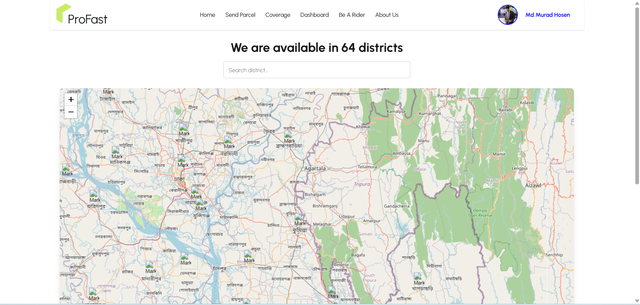

- Access coverage and service metrics
Riders act as the on-ground delivery personnel managing assigned logistical tasks.
- Access a personalized Rider Dashboard

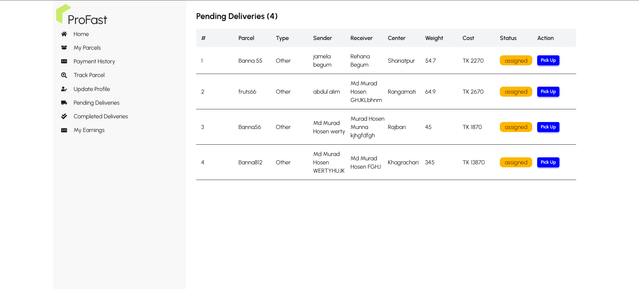

- View pending and assigned deliveries
- Update parcel statuses (Picked Up, Delivered, etc.)
- View detailed delivery routes

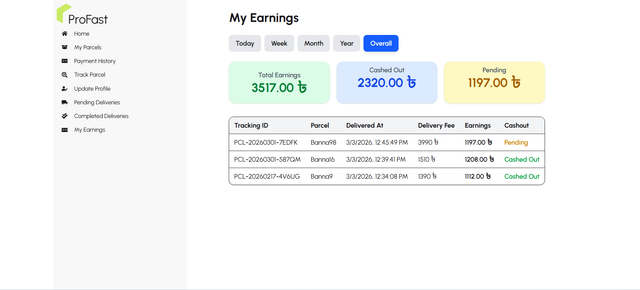

- Track personal delivery earnings and history

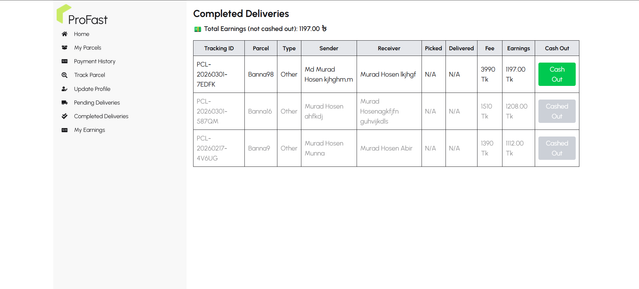

- Oversee completed deliveries
- Request cashouts from administrators
Admins have complete authority over the entirety of the system's operational flow and workforce governance.
- Oversee all system parcels

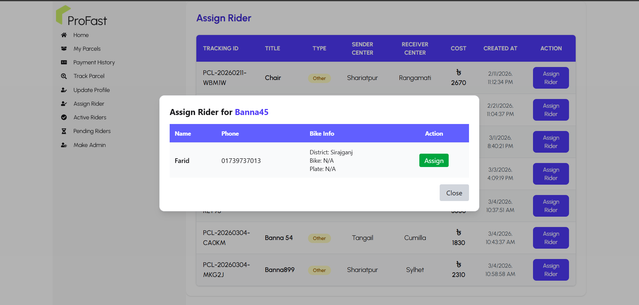

- Manually assign unallocated parcels to riders based on districts
- Update systemic parcel statuses

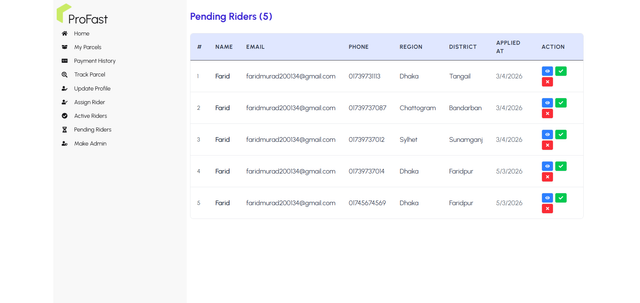

- Review and approve new Rider requests

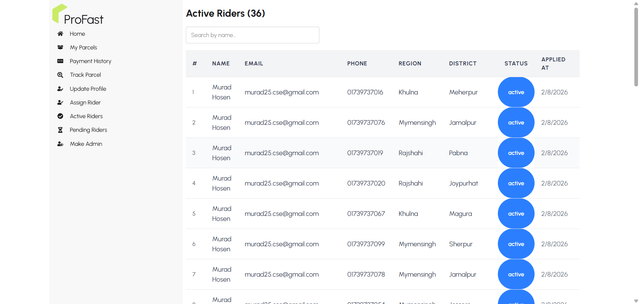

- View active riders and track their performance

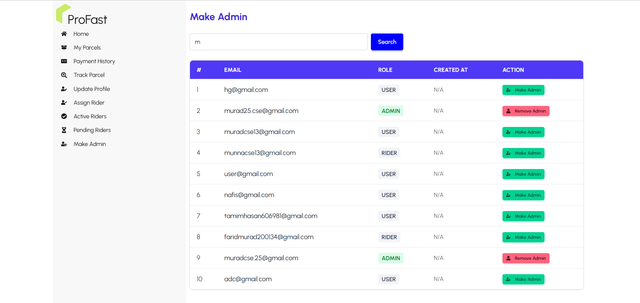

- Manage platform users and assign roles (Promote to Admin)
- Track and manage rider payouts
- Centralized performance dashboard
- Access aggregate delivery and revenue metrics
- Full System Monitoring & Control
| Technology | Purpose |
|---|---|
| React.js (v19) | Interactive UI Development |
| Tailwind CSS | Responsive Styling |
| TanStack Query | Data Fetching & Caching |
| React-Leaflet | Map & Geolocation Tracking |
| Stripe React | Payment Gateway UI |
| Technology | Purpose |
|---|---|
| Node.js | Server-Side Runtime |
| Express.js | REST API Development |
| MongoDB | NoSQL Database |
| Firebase Admin | Authentication Verification |
| Stripe Node | Secure Payment Processing |
- Visual Studio Code
- Git & GitHub
- Vercel (Deployment)
- Firebase Console
- MongoDB Atlas
The project follows a modern multi-tier architecture for scalability and maintainability.
Handles user interaction, map rendering, API polling, and responsive UI using React.js and Vite.
Provides RESTful APIs, Firebase token verification, role-based authorization, and business logic using Node.js and Express.js.
Stores structured logistic objects, user profiles, financial logs, and tracking states using MongoDB and Mongoose.
Before running the project locally, make sure you have:
- Node.js 18 or later
- npm or yarn
- MongoDB Atlas account or local MongoDB instance
- Firebase project (for Auth)
- Stripe account (for payments)
- Cloudinary account (for imagery)
- Clone the repository.
git clone https://github.com/Murad134/E_Commerce_Platform.git
cd E_Commerse_Project- Install backend dependencies.
cd Backend
npm install- Install frontend dependencies.
cd ../Frontend/E-commerce
npm install- Create the backend environment file.
Create a .env file inside the Backend folder and add the required values.
PORT=3050
DB_URI=YOUR_MONGODB_URI
STRIPE_SECRET_KEY=YOUR_STRIPE_SECRET
CLOUDINARY_CLOUD_NAME=YOUR_CLOUDINARY_CLOUD_NAME
CLOUDINARY_API_KEY=YOUR_CLOUDINARY_API_KEY
CLOUDINARY_API_SECRET=YOUR_CLOUDINARY_API_SECRET
FIREBASE_PROJECT_ID=YOUR_FIREBASE_PROJECT_ID
FIREBASE_CLIENT_EMAIL=YOUR_FIREBASE_CLIENT_EMAIL
FIREBASE_PRIVATE_KEY="YOUR_FIREBASE_PRIVATE_KEY"- Create the frontend environment file.
Create a .env.local file inside Frontend/E-commerce.
VITE_backend_url=http://localhost:3050
VITE_FIREBASE_API_KEY=YOUR_FIREBASE_API_KEY
VITE_FIREBASE_AUTH_DOMAIN=YOUR_FIREBASE_AUTH_DOMAIN
VITE_FIREBASE_PROJECT_ID=YOUR_FIREBASE_PROJECT_ID
VITE_STRIPE_PUBLIC_KEY=YOUR_STRIPE_PUBLIC_KEYStart the backend server.
cd Backend
npm run devStart the frontend application.
cd Frontend/E-commerce
npm run devVisit:
http://localhost:5173
Build the frontend.
cd Frontend/E-commerce
npm run build├── Backend/
│ ├── config/
│ │ ├── cloudinary.js
│ │ ├── db.js
│ │ ├── firebase.js
│ │ └── stripe.js
│ ├── controllers/
│ │ ├── parcelController.js
│ │ ├── paymentController.js
│ │ ├── riderController.js
│ │ ├── trackingController.js
│ │ ├── uploadController.js
│ │ └── userController.js
│ ├── middleware/
│ │ ├── verifyAdmin.js
│ │ ├── verifyFBToken.js
│ │ └── verifyRider.js
│ ├── models/
│ │ ├── parcelModel.js
│ │ ├── paymentModel.js
│ │ ├── riderModel.js
│ │ ├── trackingModel.js
│ │ └── userModel.js
│ ├── routes/
│ │ ├── parcelRoutes.js
│ │ ├── paymentRoutes.js
│ │ ├── riderRoutes.js
│ │ ├── trackingRoutes.js
│ │ ├── uploadRoutes.js
│ │ └── userRoutes.js
│ ├── utility/
│ │ └── initModels.js
│ ├── app.js
│ ├── server.js
│ ├── package.json
│ └── vercel.json
│
├── Frontend/
│ └── E-commerce/
│ ├── public/
│ │ └── districtsData.json
│ ├── src/
│ │ ├── assets/
│ │ ├── Components/
│ │ ├── Contexts/
│ │ ├── Firebase/
│ │ ├── hooks/
│ │ ├── Layouts/
│ │ ├── Pages/
│ │ ├── Router/
│ │ ├── routes/
│ │ ├── App.css
│ │ ├── App.jsx
│ │ ├── index.css
│ │ └── main.jsx
│ ├── eslint.config.js
│ ├── firebase.json
│ ├── index.html
│ ├── package.json
│ ├── README.md
│ └── vite.config.js
│
└── README.md
- Authentication via Firebase Identity
- Role-Based Authorization Guards (Admin/Rider/User)
- Protected API Routes via verifyFBToken Middleware
- Dynamic Payload Validation for Requests
- Secure Gateway Interfacing (Stripe API)
- Dynamic Data Synchronization via TanStack Query
- Live Parcel Tracking visually synced onto Leaflet Maps
- Real-Time Dashboard Analytics (Recharts)
- Automated status transitions based on Rider input
The platform is divided into multiple independent and scalable modules to ensure maintainability, flexibility, and efficient governance of logistics.
Acts as the entry layer for all roles, facilitating account safety.
- JWT Sign-ins and State persistence
- External Identity integrations (Google Login)
- Token validity checking and Role mapping
- Admin-backed Privilege Escalations
Enables the end user to handle their needs effectively.
- Dynamic Parcel Scheduling (District allocation)
- Weight-based price estimators
- Access tracked parcels mapping interfaces
- User Profile image updates
Manages the core delivery workflow directly affecting systemic logistics.
- Proximity-based parcel distribution viewing
- Delivery status patching logic
- Geo-spatial validation endpoints
- Payment ledger access and Cashout initiation
Provides panoramic oversight over the system’s lifecycle.
- District-specific Rider assignments
- Complete Parcel oversight
- Performance logging and Analytics reporting
- Payout management for delivery personnel
Safely arbitrates financial commitments and histories.
- Intent Generation for checkout procedures

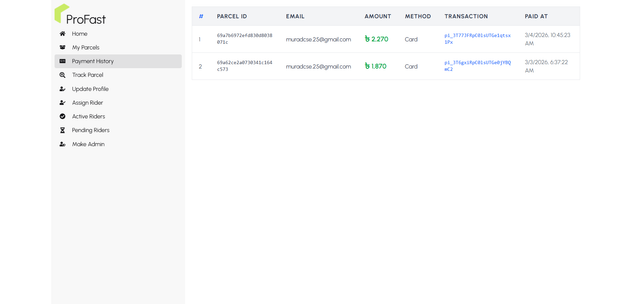

- Transaction history aggregation (User and Rider variants)
- Ledger syncing alongside backend
The platform uses MongoDB as the primary operational database via Mongoose ODMs for seamless aggregation logic.
- Scalable NoSQL Document Nodes
- Referential Integrity modeled in Mongoose schemas
- Efficient Tracking aggregations and Geo mapping capabilities
- Secure User Data Management
The backend architecture is designed using RESTful architecture.
- Comprehensive REST routes per system resource
- Express Middleware implementation (Token checking, Upload interceptions)
- Separation of Concerns (Routes -> Controllers -> Services/Models)
- Error Handling & Logging capabilities
The entire platform interface is carefully crafted entirely within TailwindCSS ensuring high adaptability across resolutions.
- Grid/Flex Mobile-First Fallbacks
- Adaptive Dashboard Sidebar and Drawers
- Scalable charts and Map canvases
- Unified Mobile and Desktop workflows

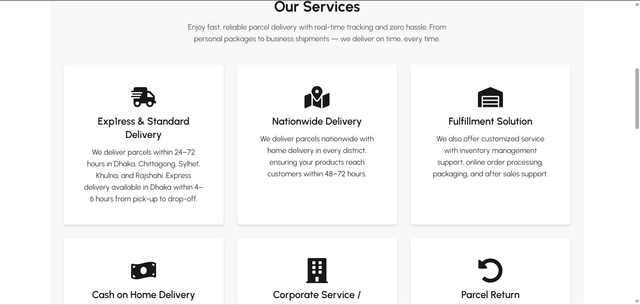

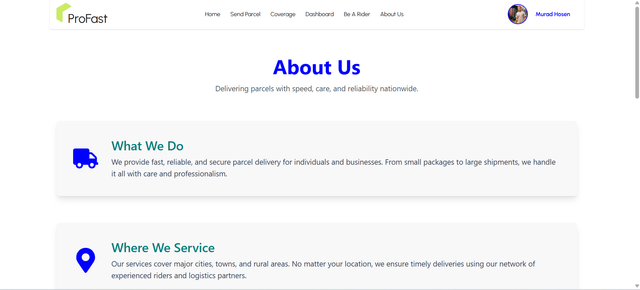

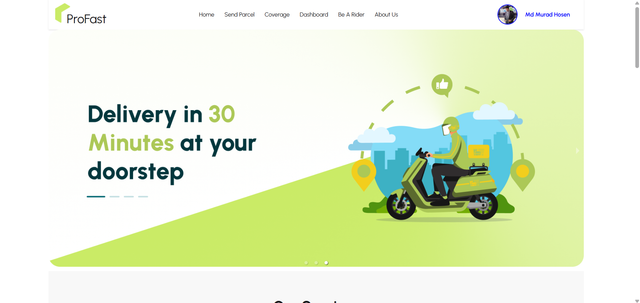

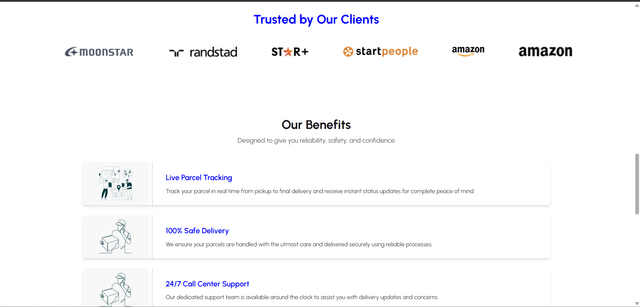

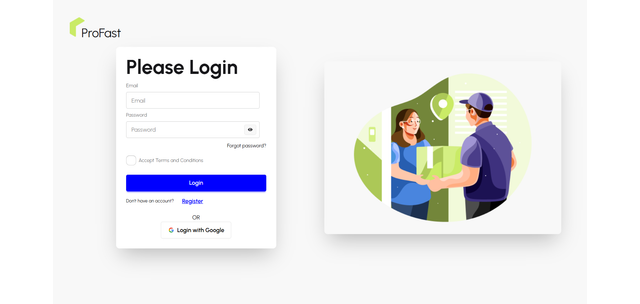

Here is a visual overview of the ProFast application interfaces, showcasing its various modules and features.
The platform is designed to effortlessly facilitate upgrades in logistics technology.
- OTP & SMS Integration (Twilio/Vonage)
- Route-Optimization AI for automatic Rider paths
- International Multi-language support (i18n)
- PWA / Native Mobile Application iteration
- In-app dispute and rating systems
The ProFast Parcel Delivery Management System successfully delivers a centralized, scalable, and secure solution for managing logistics networks and shipment handling.
By integrating modern cloud infrastructure, secure real-time workflows, and a refined interface accessible to varied roles, ProFast empowers all aspects of parcel transportation.
