This tutorial will detail and demonstrate 5 different random maze generators.
- Additional Resources
- Random Generator Algorithm
- Crawler Generator Algorithm
- Helper Class
- Recursive Generator Algorithm
- Wilsons Generator Algorithm
- Prims Generator Algorithm
- See a playable example at : 5 Random Maze Generator Algorithms WebGL Playable Example
- View the source code at : GitHub Source Code
- For more info on Maze Generation Algorithms see : Maze Generation Algorithms on Wikipedia

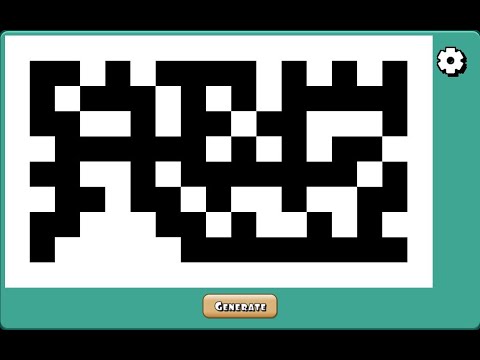

- View the video walkthrough at :
Back To Top
- For the first algorithm that I will introduce, I want to show a purely random option. I feel like this option isn't terribly maze like but I still feel it is important to include.
/// <summary>
/// Generate purely random values for the maze
///
/// - Assign a seed to have the same random values every time
/// </summary>
void RandomGenerator()
{
for (int x = 0; x < width; x++) for (int y = 0; y < height; y++) map[x, y] = (byte)random.Next(0, 2);
}

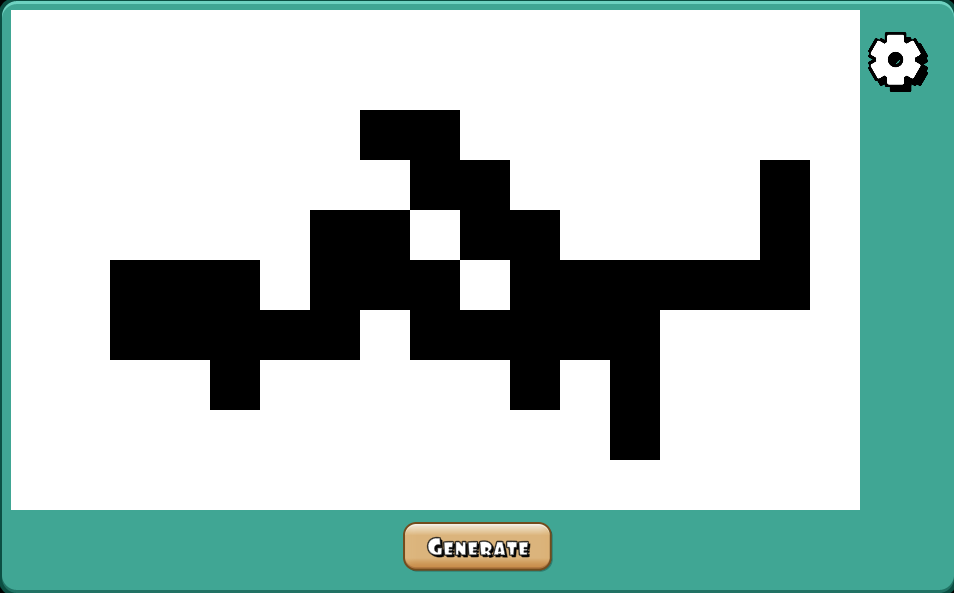

- For the second algorithm, I am providing a crawler. This algorithm steps through a grid picking a random direction after each step only ending after it reaches the edge of the grid or after it times out. It is very important to add a timeout to the while loop here otherwise, while very unlikely, you may receive a stack overflow exception.
/// <summary>
/// Generates a random maze by crawling through the maze horizontally and/or vertically verticalCrawlCount/horizontalCrawlCount times until a wall is reached.
///
/// - Assign verticalCrawlCount/horizontalCrawlCount in the inspector
/// </summary>
void CrawlerGenerator()
{
int currV = verticalCrawlCount,
currH = horizontalCrawlCount;
while (currH > 0 || currV > 0)
{
if (currV-- > 0) CrawlVertically();
if (currH-- > 0) CrawlHorizontally();
}
void CrawlVertically()
{
Crawl(random.Next(1, width), -1, 2, 1, 0, 2);
}
void CrawlHorizontally()
{
Crawl(1, 0, 2, random.Next(1, height), -1, 2);
}
void Crawl(int x, int xMinMove, int xMaxMove, int y, int yMinMove, int yMaxMove)
{
while (true)
{
map[x, y] = 0;
if (random.Next(0, 2) == 0)
{
x += random.Next(xMinMove, xMaxMove);
}
else
{
y += random.Next(yMinMove, yMaxMove);
}
if (x < 0 || x > width - 1 || y < 0 || y > height - 1) break;
}
}
}
- In the following 3 examples, I use a helper class caleed CountSquareNeighbors which counts the number of paths to the top, bottom, left and right of a given cell in a maze.
int CountSquareNeighbors(byte[,] rMap, int x, int y)
{
int count = 0;
if (x <= 0 || x >= width + 1 || y <= 0 || y >= height + 1) return 5;
if (rMap[x - 1, y] == 0) count++;
if (rMap[x + 1, y] == 0) count++;
if (rMap[x, y - 1] == 0) count++;
if (rMap[x, y + 1] == 0) count++;
return count;
}

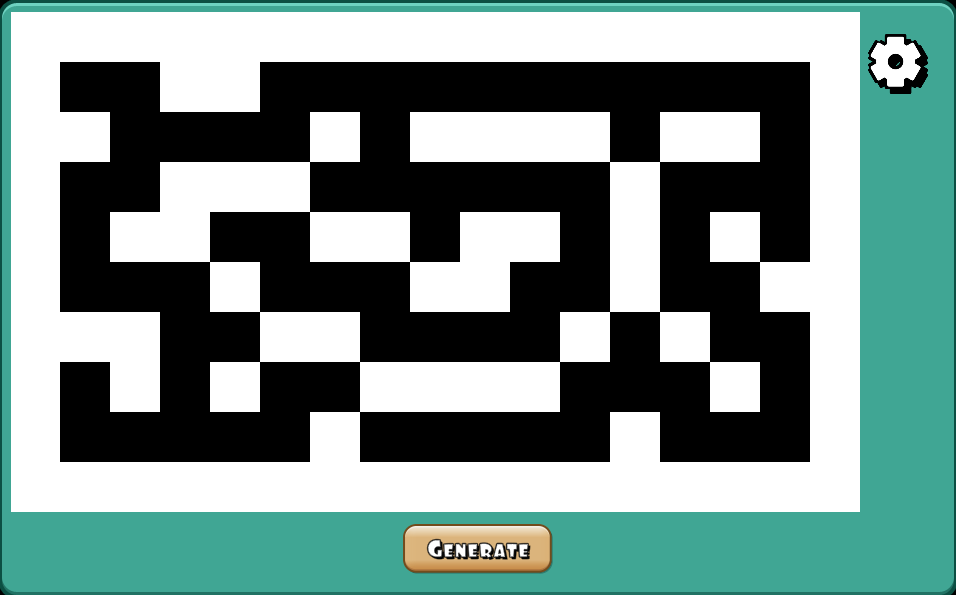

- For my third example, I provide an example of a recursive algorithm which will crawl in random directions saving the path that it travels. Once a path cannot be followed further, it looks back at the steps taken previously for another path to follow. This runs until all possible steps have been made.
/// <summary>
/// Recursively run through the maze until almost all parts of the maze have been filled
///
/// - Only creates a non-connected path
/// </summary>
void RecursiveGenerator()
{
byte[,] rMap = new byte[width + 2, height + 2];
for (int i = 0; i < width + 2; i++) for (int j = 0; j < height + 2; j++) rMap[i, j] = 1;
InnerGenerate(random.Next(1, width + 1), random.Next(1, height + 1));
//assign rMap to map
for (int i = 0; i < width; i++) for (int j = 0; j < height; j++) map[i, j] = rMap[i + 1, j + 1];
void InnerGenerate(int x, int y)
{
if (CountSquareNeighbors(rMap, x, y) > 1) return;
rMap[x, y] = 0;
List<MapLocation> mapLocations = new List<MapLocation>()
{
new MapLocation(1,0),
new MapLocation(0,1),
new MapLocation(-1,0),
new MapLocation(0, -1)
};
Shuffle();
foreach (MapLocation mapLocation in mapLocations) InnerGenerate(x + mapLocation.x, y + mapLocation.y);
//shuffles the directions to look in
void Shuffle()
{
List<MapLocation> newLocs = new List<MapLocation>();
while (mapLocations.Count > 0)
{
int rand = random.Next(0, mapLocations.Count);
newLocs.Add(mapLocations[rand]);
mapLocations.RemoveAt(rand);
}
mapLocations.AddRange(newLocs);
}
}
}
- For my second to last example, I use the Wilsons Algorithm which uses random crawls to generate the tree.
/// <summary>
/// Generate a random maze following the Wilson algorithm
///
/// Wikipedia Link : https://en.wikipedia.org/wiki/Loop-erased_random_walk
/// obtained March 9, 2023
/// </summary>
void WilsonsGenerator()
{
byte[,] rMap = new byte[width + 2, height + 2];
for (int i = 0; i < width + 2; i++) for (int j = 0; j < height + 2; j++) rMap[i, j] = 1;
List<MapLocation> mapLocations = new List<MapLocation>()
{
new MapLocation(1,0),
new MapLocation(0,1),
new MapLocation(-1,0),
new MapLocation(0, -1)
};
List<MapLocation> unusedMapLocations = new List<MapLocation>();
int startX = random.Next(1, width + 1),
startY = random.Next(1, height + 1);
rMap[startX, startY] = 2;
//prevent excesive looping
int limit = 0;
int lastCount = -1;
int currentCount = GetAvailableCells();
while (currentCount > 1 && (limit++ < 5000 || lastCount != currentCount))
{
lastCount = currentCount;
RandomWalk();
currentCount = GetAvailableCells();
}
//assign rMap to map
for (int i = 0; i < width; i++) for (int j = 0; j < height; j++) map[i, j] = rMap[i + 1, j + 1];
int GetAvailableCells()
{
unusedMapLocations.Clear();
for (int x = 1; x < width; x++) for (int y = 1; y < height; y++) if (CountSquareMazeNeighbors(x, y) == 0) unusedMapLocations.Add(new MapLocation(x, y));
return unusedMapLocations.Count;
}
int CountSquareMazeNeighbors(int x, int y)
{
int count = 0;
for (int i = 0; i < mapLocations.Count; i++)
{
int nextX = x + mapLocations[i].x,
nextY = y + mapLocations[i].y;
if (rMap[nextX, nextY] == 2) count++;
}
return count;
}
void RandomWalk()
{
MapLocation mapLocation = unusedMapLocations[random.Next(0, unusedMapLocations.Count)];
List<MapLocation> locationsInWalk = new List<MapLocation>()
{
mapLocation
};
//prevent excesive looping
int loop = 0;
bool validPath = false;
while (mapLocation.x > 0 && mapLocation.x < width + 1 && mapLocation.y < height + 1 && mapLocation.y > 0 && !validPath && loop++ < 5000)
{
rMap[mapLocation.x, mapLocation.y] = 0;
int cSMNCount = CountSquareMazeNeighbors(mapLocation.x, mapLocation.y);
validPath = cSMNCount == 1;
if (cSMNCount > 1) break;
int randLocation = random.Next(0, mapLocations.Count);
MapLocation newMapLocation = new MapLocation(
mapLocation.x + mapLocations[randLocation].x,
mapLocation.y + mapLocations[randLocation].y
);
if (CountSquareNeighbors(rMap, newMapLocation.x, newMapLocation.y) < 2)
{
locationsInWalk.Add(mapLocation);
mapLocation = newMapLocation;
}
}
if (validPath)
{
rMap[mapLocation.x, mapLocation.y] = 0;
foreach (MapLocation m in locationsInWalk) rMap[m.x, m.y] = 2;
}
else
{
foreach (MapLocation m in locationsInWalk) rMap[m.x, m.y] = 1;
}
locationsInWalk.Clear();
}
}

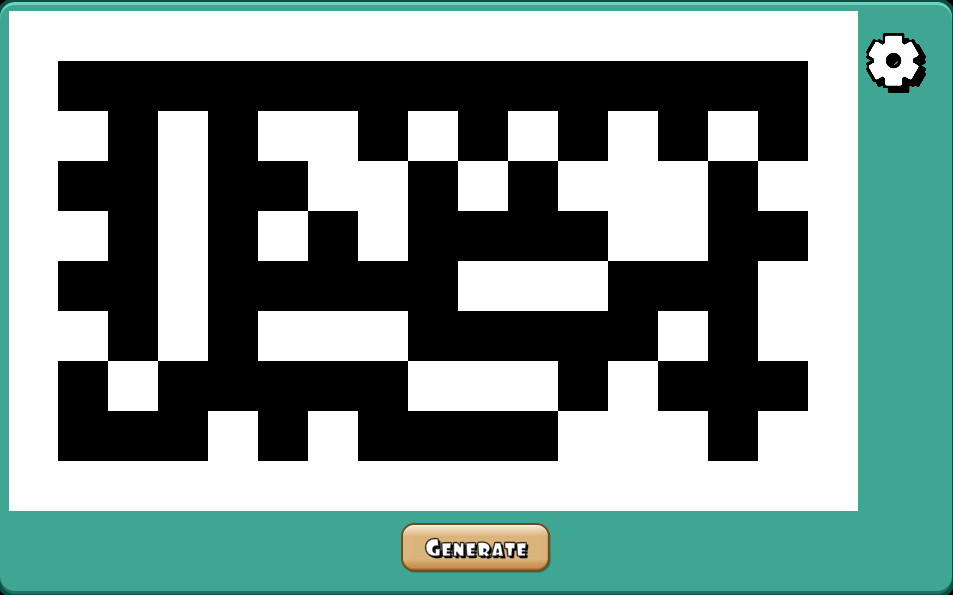

- For my final example, I present my interpretation of the Prims Algorithm which also provides my favorite results.
/// <summary>
/// Generate a random maze following the Prims algorithm
///
/// Wikipedia Link : https://en.wikipedia.org/wiki/Prim%27s_algorithm
/// obtained March 9, 2023
/// </summary>
void PrimsGenerator()
{
byte[,] rMap = new byte[width + 2, height + 2];
for (int i = 0; i < width + 2; i++) for (int j = 0; j < height + 2; j++) rMap[i, j] = 1;
int x = 1,
y = 1,
countLoops = 0;
rMap[x, y] = 0;
List<MapLocation> mapLocations = new List<MapLocation>()
{
new MapLocation(x+1,y),
new MapLocation(x-1,y),
new MapLocation(x,y-1),
new MapLocation(x, y+1)
};
while (mapLocations.Count > 0 && countLoops++ < 5000)
{
int rLoc = random.Next(0, mapLocations.Count);
x = mapLocations[rLoc].x;
y = mapLocations[rLoc].y;
mapLocations.RemoveAt(rLoc);
if (CountSquareNeighbors(rMap, x, y) == 1)
{
rMap[x, y] = 0;
mapLocations.Add(new MapLocation(x + 1, y));
mapLocations.Add(new MapLocation(x - 1, y));
mapLocations.Add(new MapLocation(x, y - 1));
mapLocations.Add(new MapLocation(x, y + 1));
}
}
//assign rMap to map
for (int i = 0; i < width; i++) for (int j = 0; j < height; j++) map[i, j] = rMap[i + 1, j + 1];
}
