LAYERED

Modern Python image & game-asset editor

Real-time canvas · Non-destructive layers · Plugin-powered workflow

---

📖 Table of Contents

🖼 What is Layered?	🧩 Blend Modes
✨ Features	🪵 Logging & Crash Reports
🚀 Quick Start	📦 Building a Standalone EXE
🔌 Bundled Plugins	🤝 Contributing
🗂 Project Structure	📄 License
✍️ Writing a Plugin	🖌 Brush Presets & Custom Tools

---

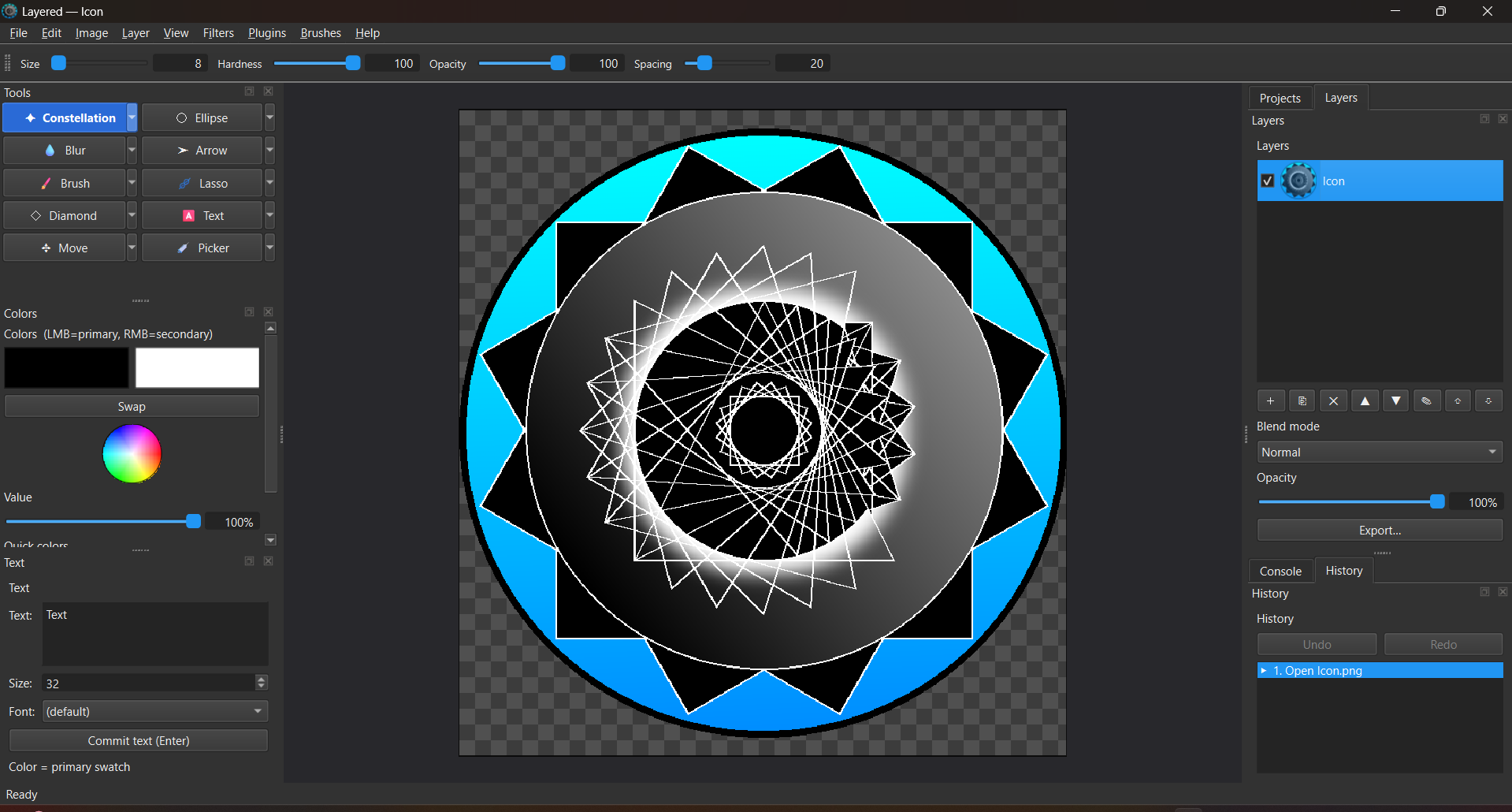

🖼 What is Layered?

Layered is an open-source image and game-asset editor built in Python with PyQt6, inspired by Paint.NET. It delivers a familiar non-destructive workflow — draw, stack layers, blend, export — without ever leaving your Python toolchain.

Built for game developers. Export every layer as its own PNG alongside a manifest.json carrying offsets, blend modes, and visibility — so your engine can reassemble the scene at runtime.

---

✨ Features

🎨 Drawing Toolkit

Brush · Eraser · Fill Bucket · Line · Rectangle · Ellipse · Color Picker · Text

Paint assets from scratch or retouch imports with a full suite of drawing primitives.

🗂 Non-Destructive Layers

• Per-layer opacity and visibility toggle
• 12 blend modes — Normal, Multiply, Screen, Overlay, Soft Light, Darken, Lighten, Add, Subtract, Difference, Color, Saturation
• Reorder, rename, duplicate, and group layers
• Original pixel data is never destroyed — every operation is fully reversible

↶ Full Undo / History

Every brush stroke, filter, and layer operation is tracked. Browse the history panel and jump to any prior state instantly.

📦 Export Formats

Format	Description
PNG / JPEG / WEBP	Flattened composite export
Per-layer PNG + manifest.json	Offsets, blend modes, visibility, opacity — game-engine ready
Multi-tab Projects	Work on several files simultaneously

🔌 Plugin System

Drop a .py file into Plugins/ and it's live. Plugins can register tools, filters, or menu actions, declare typed settings (auto-generated dialog), and run fully sandboxed — a crashing plugin gets logged and isolated while the editor keeps running.

📋 Logging & Diagnostics

• logs/layered.log — full session activity
• logs/errors/ — per-crash reports with stack trace + context
• In-app Console panel mirrors log output live

---

🚀 Quick Start

# 1. Clone the repo
git clone https://github.com/NightHawkHSI/Layered.git
cd Layered

# 2. Install dependencies
pip install -r requirements.txt

# 3. Launch
python main.py

Requirements: Python 3.9+ · PyQt6 >= 6.6 · Pillow >= 10.0 · numpy >= 1.26

💡 No Python? Grab the prebuilt Windows binary from the Releases page — no setup needed.

---

🔌 Bundled Plugins

Layered ships with 17+ working plugins in Plugins/ — ready to use or read as templates.

Plugin	Type	Description
grayscale	🔵 Filter	Desaturate to grayscale
invert	🔵 Filter	Invert RGB / per-channel
brightness_contrast	🔵 Filter	Brightness + contrast sliders
sharpen	🔵 Filter	Unsharp mask sharpening
posterize	🔵 Filter	Reduce color levels
gradient_map	🔵 Filter	Remap luminance to a gradient
color_replace	🔵 Filter	Swap one color for another
outline_filter	🔵 Filter	Edge outline effect
glow_filter	🔵 Filter	Soft outer glow
drop_shadow	🔵 Filter	Drop shadow with offset & blur
normal_map	🔵 Filter	Generate normal map from height
background_remove	🔵 Filter	Knock out flat / chroma background
tile_fix	🔵 Filter	Make textures seamless
pixel_art_resize	🔵 Filter	Nearest-neighbor upscale
crop_tool	🟠 Action	Crop canvas to selection
flip_tool	🟠 Action	Flip horizontal / vertical
grid_overlay	🟠 Action	Toggle grid overlay

---

🗂 Project Structure

Layered/
├── 📄 main.py                    # Entry point
├── 📄 requirements.txt
├── 📄 build.bat                  # PyInstaller one-file build (Windows)
├── 🖼 Icon.png / Icon.ico
│
├── 📁 app/
│   ├── main_window.py            # Menus, docks, plugin wiring
│   ├── 📁 core/                  # Domain model
│   │   ├── layer.py              #   Layer + LayerStack
│   │   ├── project.py            #   .layered project document
│   │   ├── history.py            #   Undo / redo stack
│   │   ├── blending.py           #   Blend-mode math (NumPy / numba)
│   │   ├── image_ops.py          #   Pixel ops (fill, transforms, etc.)
│   │   └── adjustments.py        #   Adjustment-layer math
│   ├── 📁 render/                # Compositing surfaces
│   │   ├── canvas.py             #   Interactive canvas widget
│   │   ├── gpu_renderer.py       #   moderngl GPU compositor (opt-in)
│   │   └── tile_renderer.py      #   Tiled CPU compositor
│   ├── 📁 io/                    # Persistence
│   │   ├── export.py             #   Composite + per-layer export
│   │   ├── project_io.py         #   .layered file save / load
│   │   ├── session.py            #   Multi-document session state
│   │   └── brush_loader.py       #   Brush-preset discovery from Brushes/
│   ├── 📁 plugins/               # Plugin system
│   │   ├── plugin_api.py         #   Public plugin API
│   │   ├── plugin_loader.py      #   Plugin discovery + sandbox
│   │   ├── tool_loader.py        #   Tool discovery from Plugins/Brushes/
│   │   └── tools.py              #   Tool base class + ToolContext + helpers
│   ├── 📁 app_ui/                # App-shell support
│   │   ├── theme.py              #   Dark / light theme engine
│   │   ├── preferences.py        #   User preferences (prefs.json)
│   │   └── logger.py             #   Logging + crash reporter
│   ├── 📁 controllers/           # History / paste / selection controllers
│   └── 📁 ui/                    # Qt panels (layers, tools, color, history,
│                                 #   text, console, project tabs, dialogs)
│
├── 📁 Plugins/                   # ← Drop your plugins here
│   ├── Brushes/                  #   Tool plugins, grouped by folder
│   │   ├── _shared.py            #   One-stop import for every brush
│   │   └── <Category>/<Tool>/    #   Each tool is a folder
│   │       ├── tool.py           #   Required — defines TOOL_CLASS = MyTool
│   │       └── tool.json         #   Optional — display name, id, icon, category override
│   └── *.py                      #   Filter / action plugins (flat .py files)
│
├── 📁 Brushes/                   # ← Brush presets (size/hardness/opacity/...)
├── 📁 docs/
│   ├── PLUGIN_API.md             # Full plugin API reference
│   └── build_brush.md            # How to build a brush (folder layout, lifecycle, helpers)
└── 📁 logs/                      # Generated at runtime

---

✍️ Writing a Plugin

Drop a .py file in Plugins/ and subclass Plugin — that's it.

# Plugins/my_filter.py
from PIL import Image, ImageOps
from app.plugins.plugin_api import Plugin, PluginContext


class GrayscalePlugin(Plugin):
    name    = "Grayscale"
    version = "1.0.0"

    def register(self, ctx: PluginContext) -> None:
        ctx.register_filter("Grayscale", self.apply)

    @staticmethod
    def apply(image: Image.Image) -> Image.Image:
        return ImageOps.grayscale(image.convert("RGB")).convert("RGBA")

Registration Surfaces

Kind	Where it appears	Method
Tool	Toolbox panel	ctx.register_tool(name, Tool)
Filter	Filters menu	ctx.register_filter(name, fn, settings=...)
Action	Plugins menu	ctx.register_action(name, fn, settings=...)

Filters and actions accept typed Setting specs — int, float, bool, choice, color, string — and the host auto-generates the settings dialog, passing values as keyword arguments.

📘 See docs/PLUGIN_API.md for the full API surface and invert.py for a complete settings example.

---

🖌 Brush Presets & Custom Tools

Tools and brush presets live in two separate trees:

Folder	Drives	Layout
Plugins/Brushes/	The Tools dock — every group folder becomes a split-button with its sub-tools in a dropdown	<Group>/<Tool>/tool.py
Brushes/	The brush preset picker — preset JSON files per category	<Category>/<preset>.json

Adding a brush preset

// Brushes/Inking/04_marker.json
{ "name": "Marker", "icon": "🖊", "size": 20, "hardness": 0.95, "opacity": 1.0, "spacing": 0.05 }

Adding a custom tool

Every brush is a folder under Plugins/Brushes/<Category>/<ToolName>/ with a tool.py (and optional tool.json). Each Tool subclass declares its own icon, shortcut, and build_ui() — settings render in the per-tool settings toolbar at the top of the window.

# Plugins/Brushes/Basic/Brush/tool.py
import importlib.util as _iu, sys as _sys
from pathlib import Path as _P
_KEY = "_layered_brushes_shared"
if _KEY not in _sys.modules:
    _spec = _iu.spec_from_file_location(_KEY, _P(__file__).resolve().parents[2] / "_shared.py")
    _mod = _iu.module_from_spec(_spec); _sys.modules[_KEY] = _mod; _spec.loader.exec_module(_mod)
_sh = _sys.modules[_KEY]

Tool = _sh.Tool; Layer = _sh.Layer
build_brush_settings_ui = _sh.build_brush_settings_ui


class BrushTool(Tool):
    name, tool_id = "Brush", "brush"
    icon, shortcut = "🖌", "B"
    is_default = True

    def __init__(self, ctx=None):
        super().__init__(ctx)
        self.brush_size, self.brush_hardness, self.brush_opacity = 20, 0.8, 1.0

    def build_ui(self, parent, ctx):
        return build_brush_settings_ui(self, parent,
            fields=("size", "hardness", "opacity"))

    def press(self, layer, x, y):   ...
    def move(self, layer, x, y):    ...
    def release(self, layer, x, y): self._last_pt = None


TOOL_CLASS = BrushTool

Plugins/Brushes/_shared.py re-exports stdlib, PIL, PyQt6, painting helpers, SliderField, build_brush_settings_ui, and the Tool/Layer/ToolPhase bases — one import covers every brush.

📘 Full guide with class-attr reference, lifecycle methods, painting helpers, and shape/selection bases: docs/build_brush.md.

---

🧩 Blend Modes

Mode	Effect	Best For
Normal	Standard alpha compositing	Everything
Multiply	Darkens — multiplies values	Shadows, tinting
Screen	Lightens — inverts multiply	Glows, highlights
Overlay	Contrast boost (multiply + screen)	Detail enhancement
Soft Light	Gentle dodge / burn driven by the top layer	Subtle shading
Darken	Keeps the darker pixel	Soft shadows
Lighten	Keeps the lighter pixel	Soft highlights
Add	Brightens additively (linear dodge)	Bloom, fire, neon
Subtract	Darkens subtractively	Dark burn effects
Difference	Highlights where layers differ	Masking, debug
Color	Hue + saturation of top, luma of base	Recoloring, tinting
Saturation	Saturation of top, hue + luma of base	Vibrance tweaks

All modes operate on premultiplied RGBA via NumPy in app/core/blending.py (numba-accelerated when available).

---

🪵 Logging & Crash Reports

Location	Contents
logs/layered.log	Full session activity, INFO+
logs/errors/<timestamp>.txt	Stack trace + context per crash
In-app Console panel	Live mirror of the log stream

Plugins get their own sandboxed logger (layered.plugin.<name>) — use ctx.logger instead of print so output lands in both the log file and the console panel.

---

📦 Building a Standalone EXE

Windows one-file build via PyInstaller:

build.bat

Output drops in GitHub/Release/. The bundled Plugins/, Brushes/, and Icon.ico folders are picked up automatically.

---

🤝 Contributing

1. Fork the repo and create a branch: git checkout -b feature/my-thing
2. Make changes — keep functions small, prefer Pillow / NumPy over hand-rolled loops
3. Test — run the app and verify nothing regressed
4. Open a PR with a clear description of what changed and why

Bug reports and feature requests live in Issues. All contributions are welcome!

---

📄 License

Distributed under the terms described in LICENSE.

---

Built with Python · Powered by PyQt6 & Pillow

If Layered saved you time, consider leaving a ⭐ — it helps others find the project!
