KeyOverlay

A simple key overlay for osu! streaming.

If you're interested in per-key colouring, or custom width for your keys, please check out Friedchiken-42's version, which is better suited for mania.

Options can be changed in the config.txt file.

Download Link

Note

If you're having trouble using the program with OBS when osu! is fullscreen, try "Game Capture" instead of "Window Capture" in OBS.

Setup

1. Unzip KeyOverlay-macos-latest.zip into a folder.

MacOS

2. Double-click the KeyOverlay file, or cd inside the unzipped folder and run the program in the terminal (./KeyOverlay).
3. Grant the terminal Input Monitoring permission in System Preferences.

Linux

2. cd into the unzipped folder
3. make KeyOverlay executable using chmod
4. run KeyOverlay in terminal (KeyOverlay)

Note

Warning

If you get an error similar to System.DllNotFoundException: Unable to load shared library 'csfml-system', install the packages you're missing using your distribution's package manager. Any issues created related to this issue will be automatically closed.

For example, using Homebrew (on macOS):

brew install csfml

Then, build the project using dotnet build. (This is to create the build directory, which we'll copy the csfml-system files into.)

Copy the csfml-system files installed into the build directory (/bin/Debug/net8.0/).

Warning

This project also uses the BASS audio library. You can download it from here.

config.txt properties

Key	Type	Description
keyAmount	int	Total number of keys to use (see the readme.txt for recommended widths for certain keyAmounts).
key1, key2, ...	string	Keycodes the program should use (UPPERCASE). For numbers and symbols, please refer to this table. To use mouse buttons, prefix with "m" (e.g. mLeft, mRight). If you need more keys, add more fields and adjust the keyAmount parameter accordingly.
displayKey1, displayKey2, ...	string	If the name of the key you are using is too large, or you'd like to use a different symbol, you can use this property to override the displayed key name.
keyCounter	yes/no	Adds a keycounter beneath each key that counts total clicks in a session.
windowHeight, windowWidth	integer	Resolution (in px) of the window
keySize	integer	Changes the size of the key (excluding border).
barSpeed	integer	Adjusts how fast the bars travel upwards.
margin	integer	Adjusts the margin of the keys from the sides.
outlineThickness	integer	Changes the thickness of the border around the keys.
fading	yes/no	Adds/removes the fading effect on top
backgroundColor	R,G,B,A	Colour of the background. You can set backgroundColor to 0,0,0,0, and then use "Additive" mode in OBS to achieve a transparency effect.
keyColor	R,G,B,A	Colour of keys that aren't pressed.
PressFontColor	R,G,B,A	Colour of pressed keys.
borderColor	R,G,B,A	Colour of the key border.
barColor	R,G,B,A	Colour of the bars and clicked keys.
fontColor	R,G,B,A	Colour of the text.
backgroundImage	path	Lets you set a background (not recommended). Put the image into the Resources directory and then put the filename into this property e.g. "bg.png" (without the quote symbols). Makes sure the background is the same resolution as your window and if you want transparency on your background you have to put the transparency on the image itself. You should use OBS to do this instead.
maxFPS	integer	Sets the target FPS for the program to run. Doesn't affect poll rate. (Poll rate is set as high as possible).

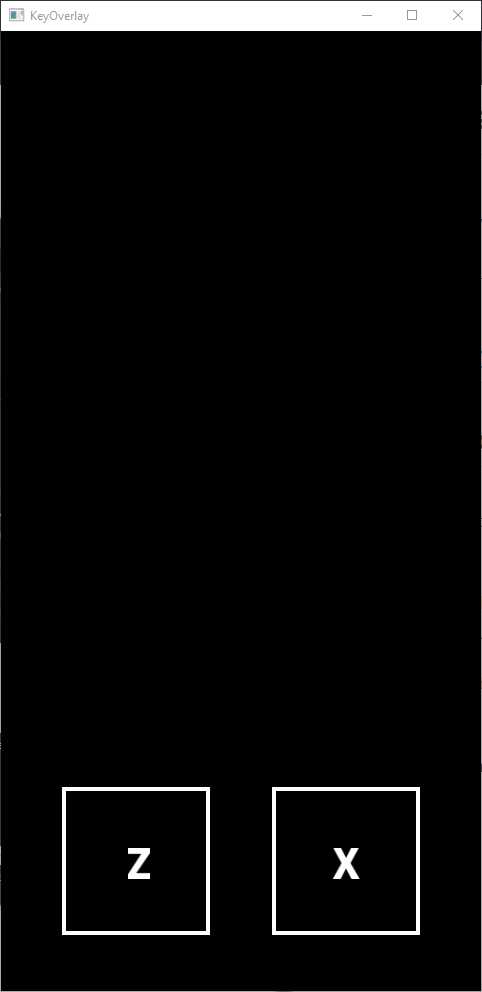

GIF Preview

Based on a similar app by an unknown author (if you are the author dm the original owner of this repo so we can credit you).
