NP1380 Emulation

NP1380-specific steps.

Create initial NAND image

Download upgrade.bin from official website:
https://downloads.youxuepai.com/source/list.shtml#80&name=NP1380

See: qemu/create_nand_image.sh

#!/bin/bash -x
src=$1 #upgrade.bin
pkg=upgrade.pkg
nand=nand_image.bin
qcow2=nand_image.qcow2

# Extract data sections from upgrade.bin
[ -f $pkg ] || ./mkpkg --type=np1000 --extract $src $pkg

# Create NAND image
# Ignore errors as it does not support ubifs file system format yet
rm -f $nand
./create_nand_image.py -s $((2*1024*1024*1024)) -p 4096 -o 128 $pkg $nand

# (Optional) Write fake serial number
./write_serial.py -p 4096 -o 128 0x00201000 "QEMU $(date -Iseconds)" $nand

# (Optional) Convert NAND image to qcow2 format
qemu-img convert -f raw -O qcow2 $nand $qcow2

Create qcow2 overlay files

Optionally create qcow2 overlay files, as snapshots, like this:

qemu-img create -f qcow2 -F qcow2 -b nand_image.qcow2 nand_overlay.qcow2

Keypad mapping file

Keypad is now supported.
The gpio-matrix-keypad device includes a very basic config parser for mapping keyboard input to matrix keypad.

Key names can be found in qemu/qapi/ui.json

Create a yaml mapping file named keymap_noah-np1380.yaml:

---
# For key names, check QKeyCode_lookup in qapi-types-ui.c
keymap:
  row-0:
    col-0: "right"  # RIGHT
    col-1: "left"   # LEFT
    col-2: "f2"     # SOUND
    col-3: "equal"  # VOL+
  row-1:
    col-0: "up"     # UP
    col-1: "down"   # DOWN
    col-2: "f1"     # MENU
    col-3: "minus"  # VOL-
  row-2:
    col-0: "ret"    # ENTER
    col-1: "esc"    # ESCAPE
    col-2: "pgdn"   # PAGE DOWN
    col-3: "pgup"   # PAGE UP
  pin-0: "f12"      # Power button
  pin-1: "f9"       # Charging not done
  pin-2: "f10"      # Disconnect USB device port
  pin-3: "f11"      # Disconnect SD card

Start QEMU

system_image=nand_overlay.qcow2
mmc_image=mmc_overlay.qcow2

./qemu-system-mipsel \
    -M noah_np1380 -cpu JZ4740 \
    -d guest_errors,unimp \
    -bios jz4740.bin \
    -parallel null \
    -serial mon:stdio \
    -global gpio-matrix-keypad.map-file=keymap_noah-np1380.yaml \
    -spice port=5910,disable-ticketing=on \
    -display none \
    -audio spice \
    \
    -blockdev driver=file,node-name=nand_qcow2,filename=$system_image \
    -blockdev qcow2,node-name=nand,file=nand_qcow2 \
    -global ingenic-emc-nand.drive=nand \
    \
    -blockdev driver=file,node-name=mmc_qcow2,filename=$mmc_image \
    -blockdev qcow2,node-name=mmc,file=mmc_qcow2 \
    -device sd-card,spec_version=3,drive=mmc \

This starts a SPICE server at port 5910.
SPICE is used instead of VNC for remote audio support.
Here is an example spice.vv file for SPICE connection using virt-viewer (also available on Windows):

[virt-viewer]
type=spice
host=localhost
port=5910
delete-this-file=0
fullscreen=0

Force PD1 to 0 in qemu/hw/mips/noah_np1380.c to flash firmware.
See FIRMWARE_UPGRADE in that file.

Gallery

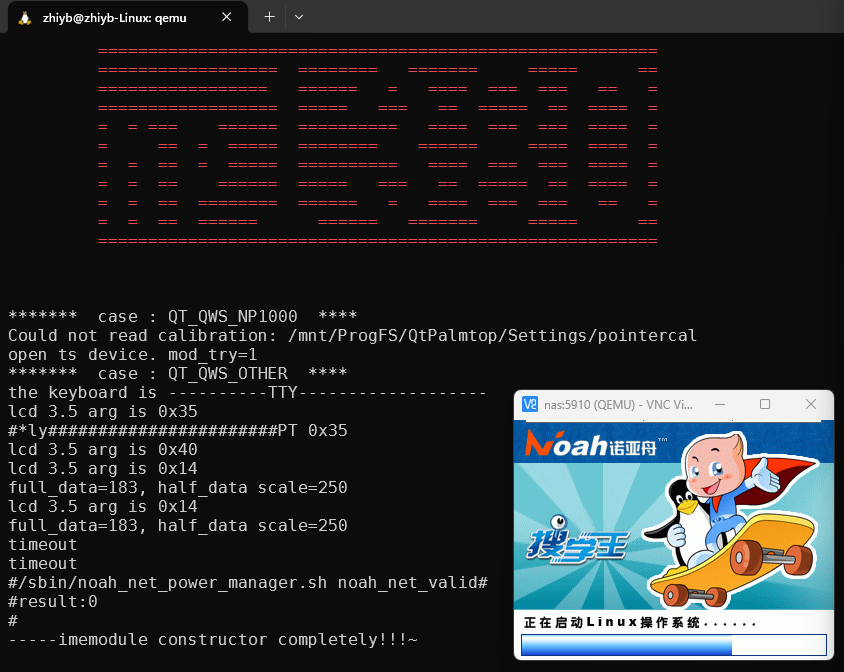

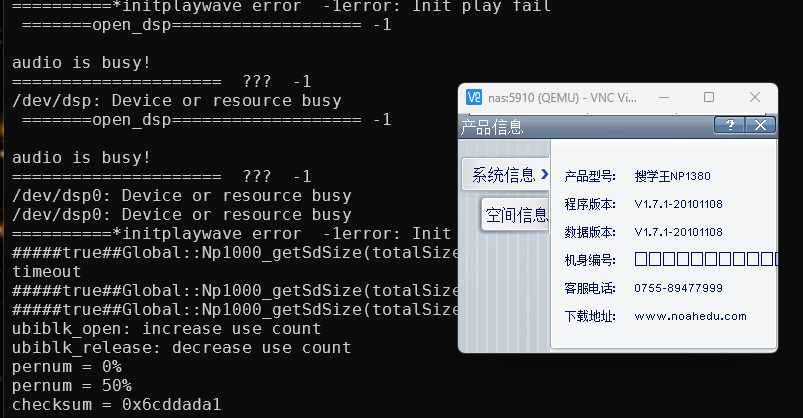

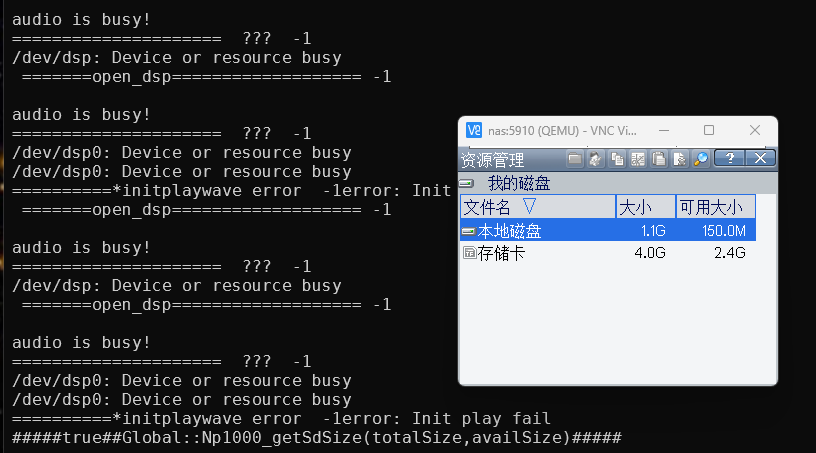

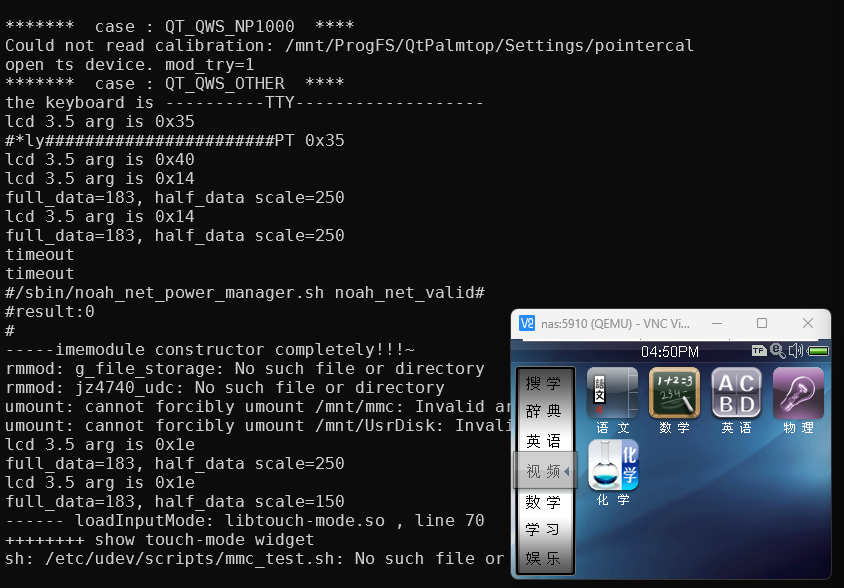

System

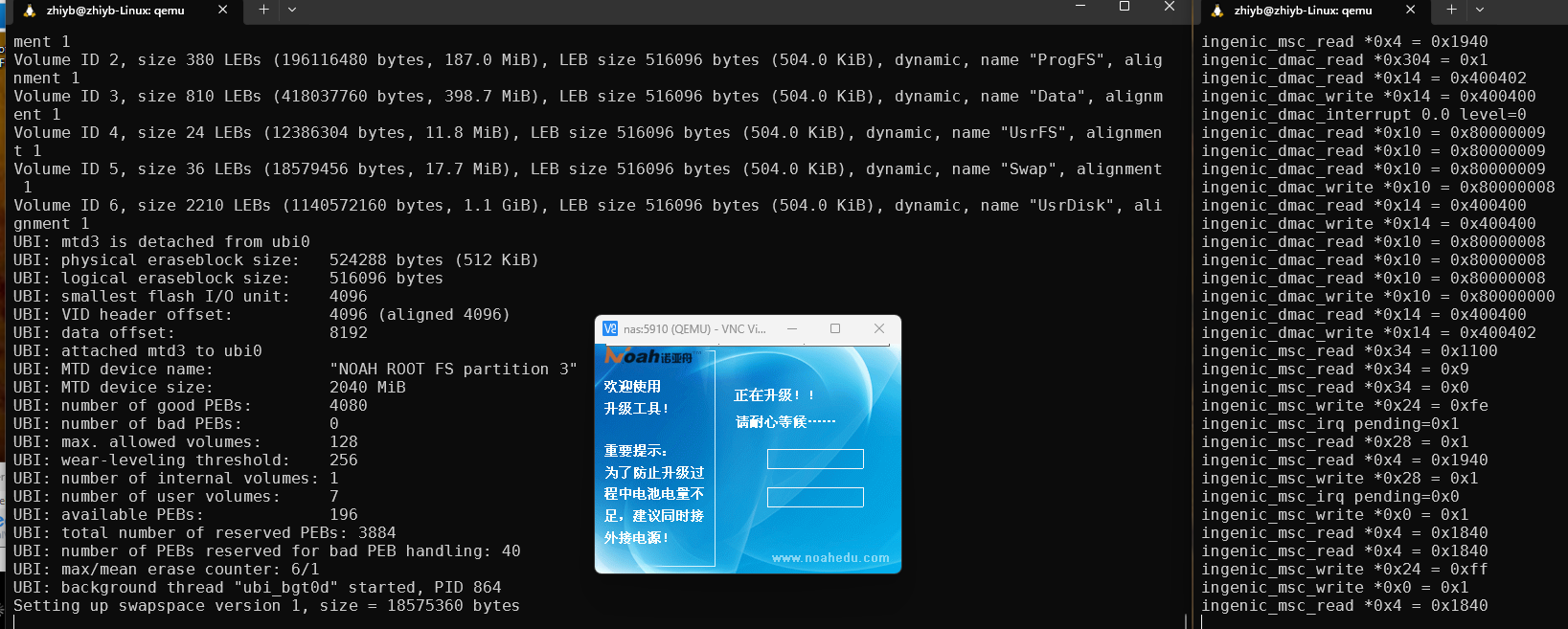

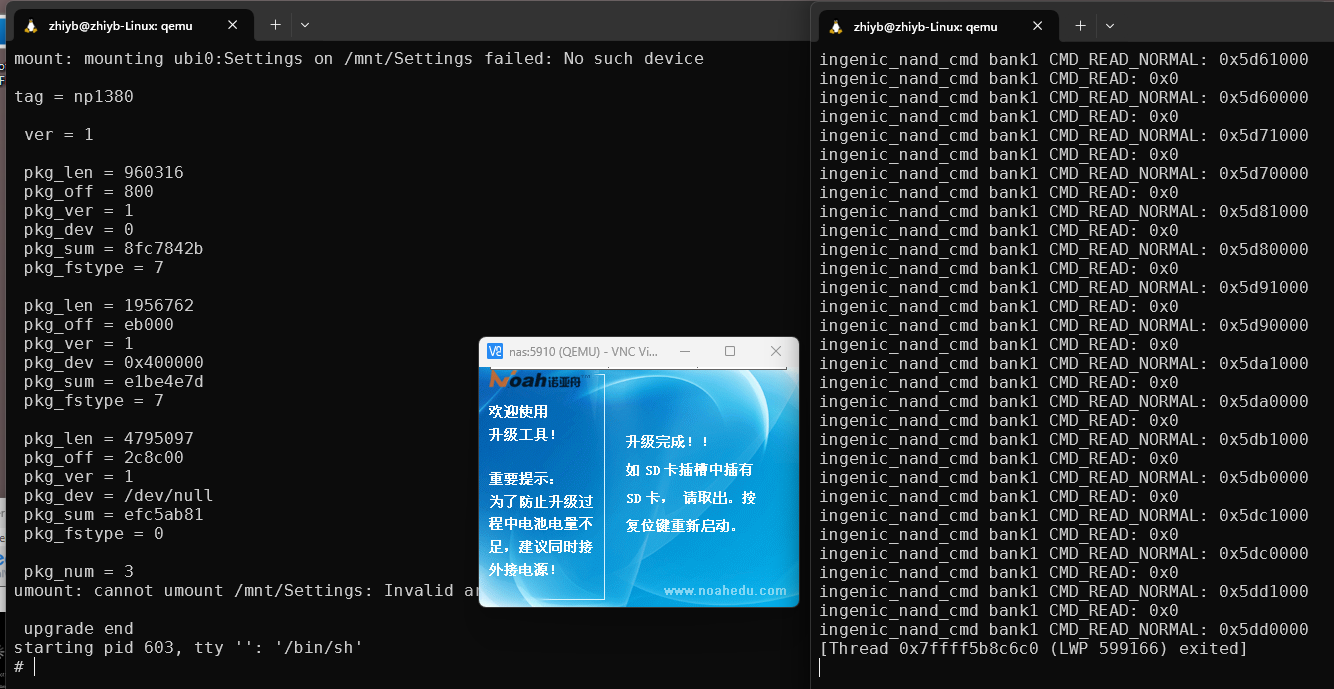

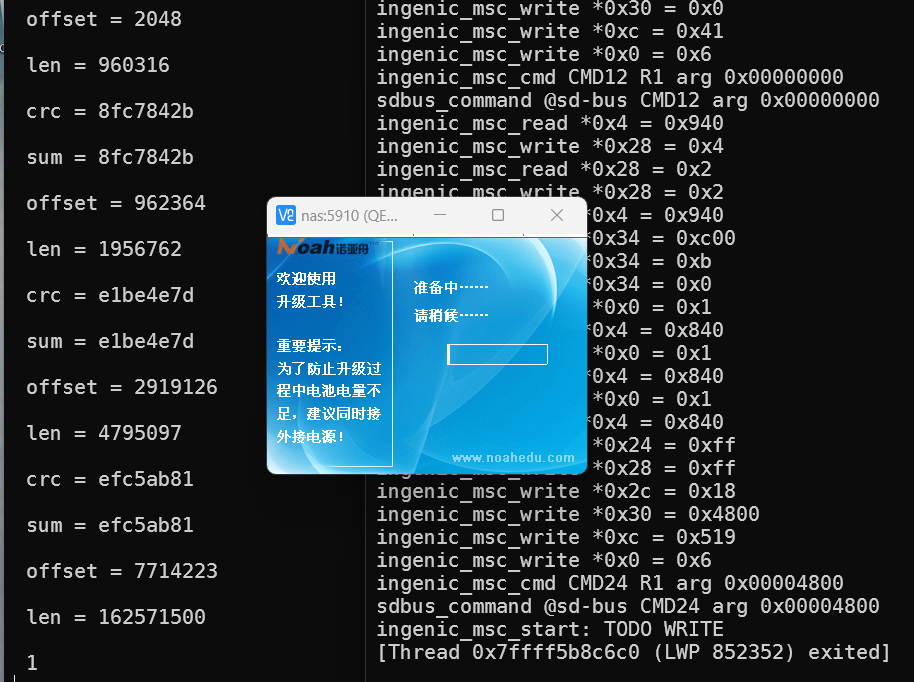

Firmware update

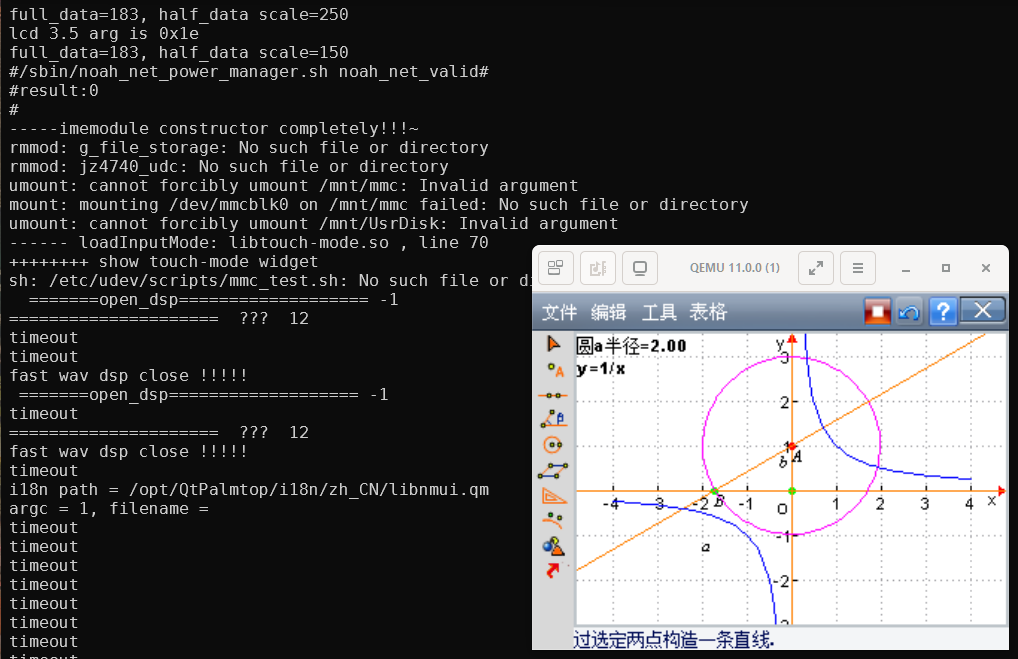

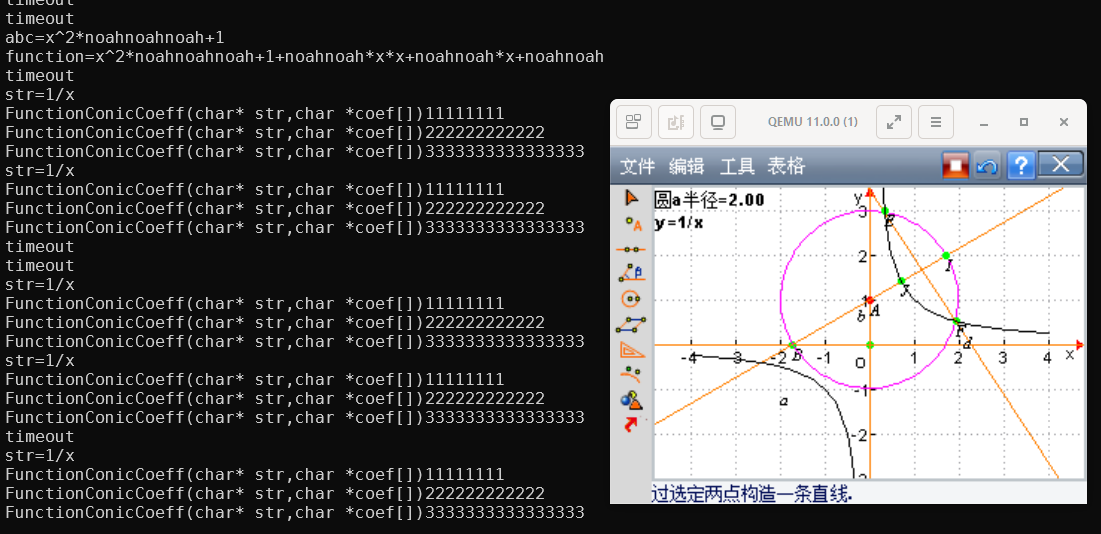

几何画板

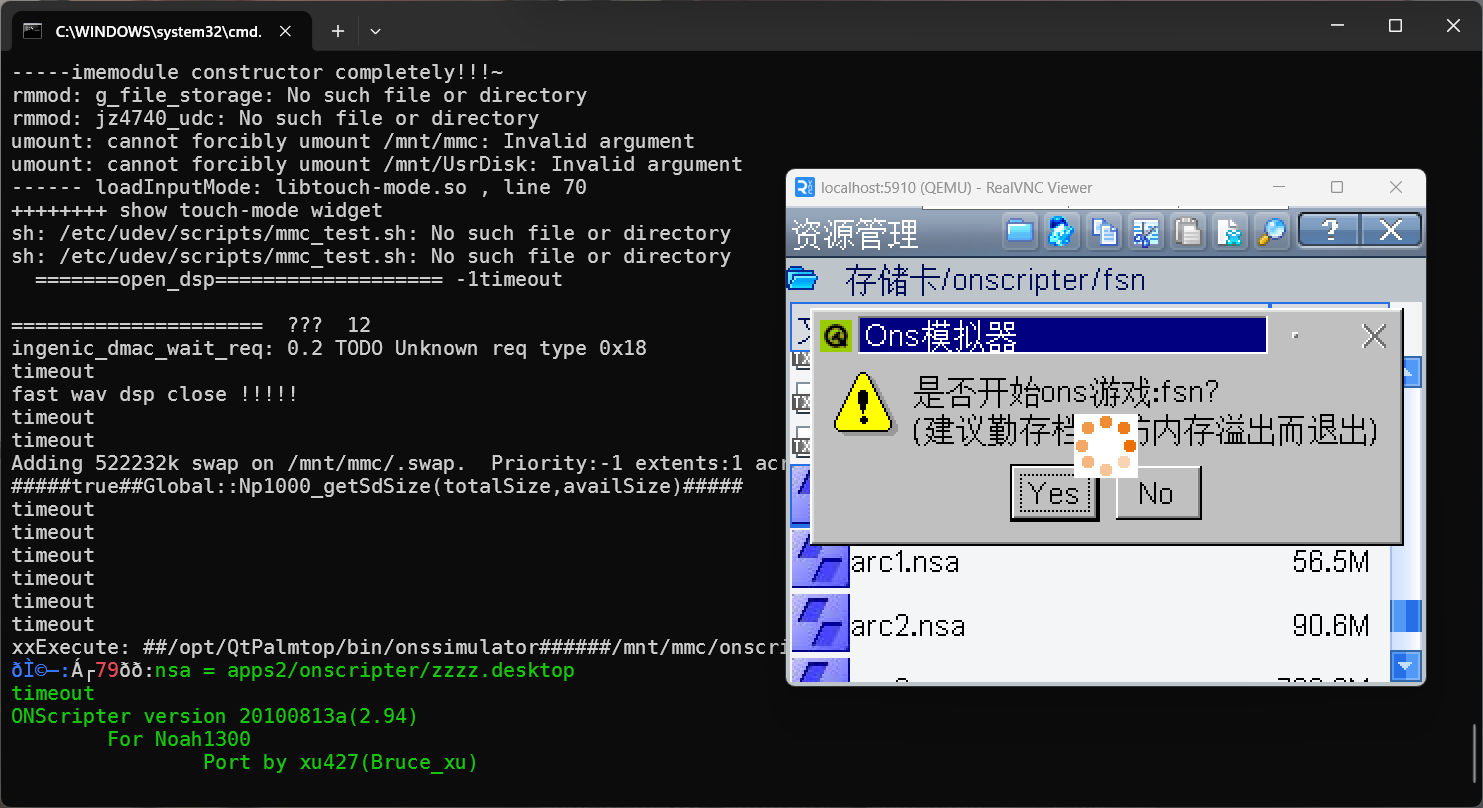

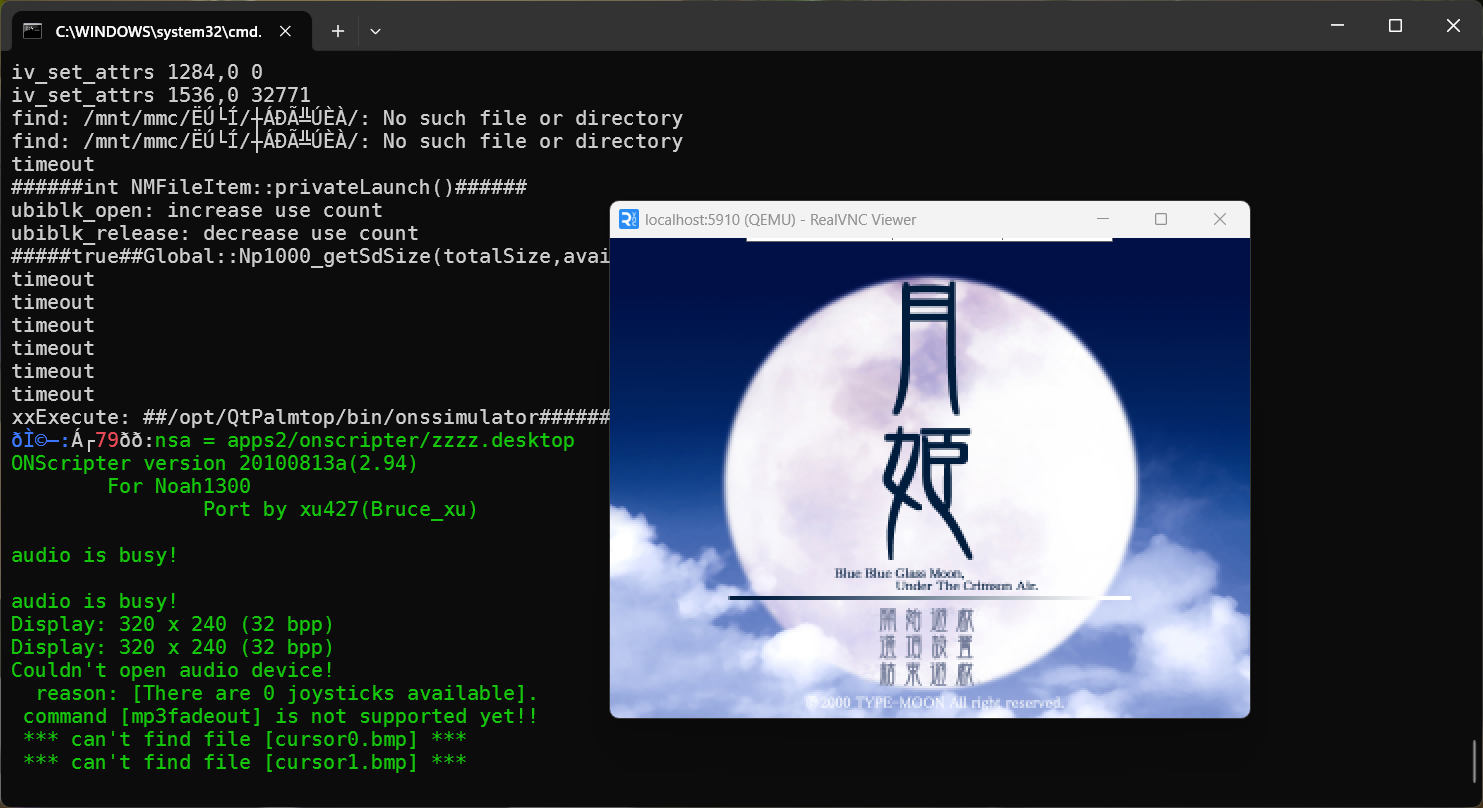

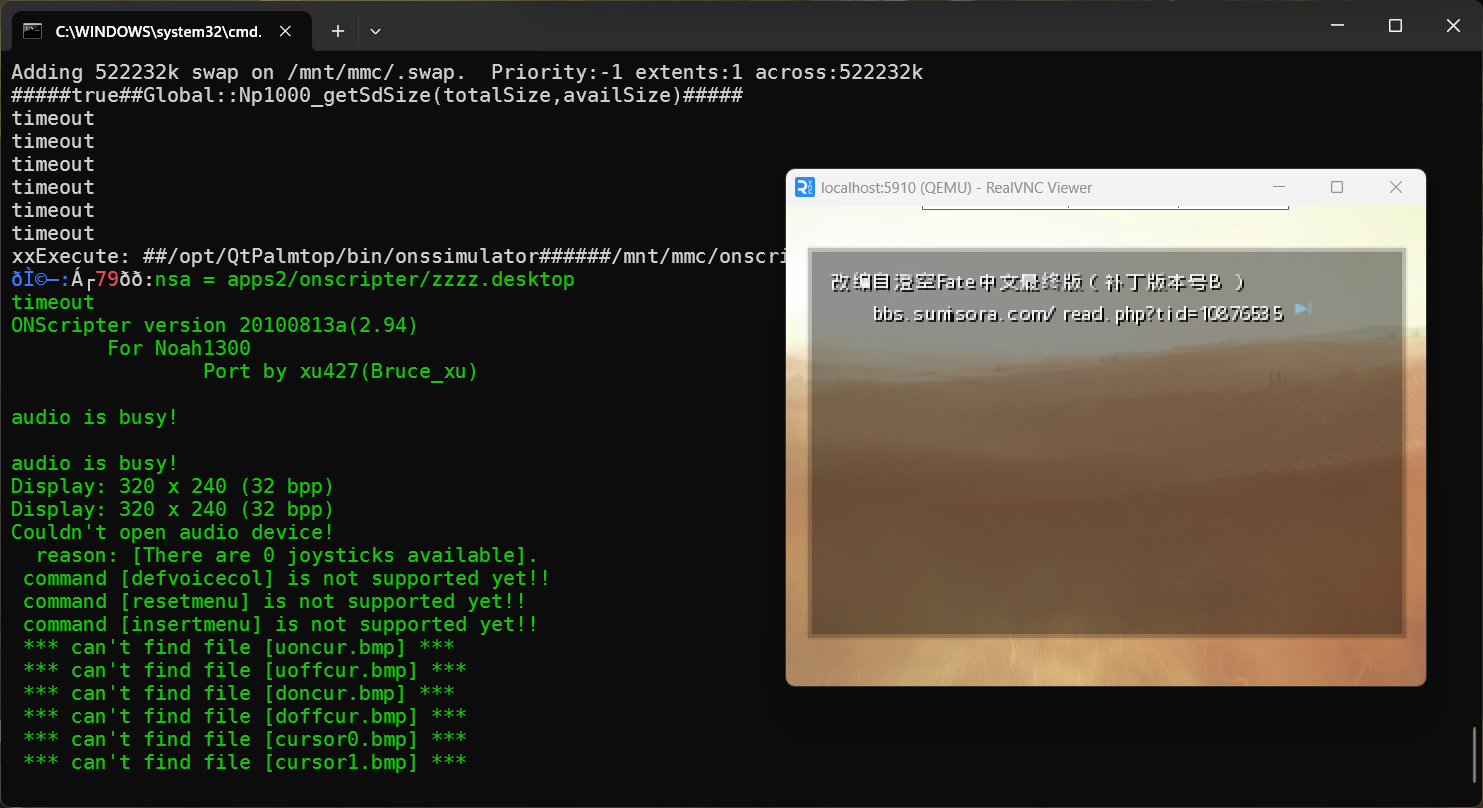

ONScripter

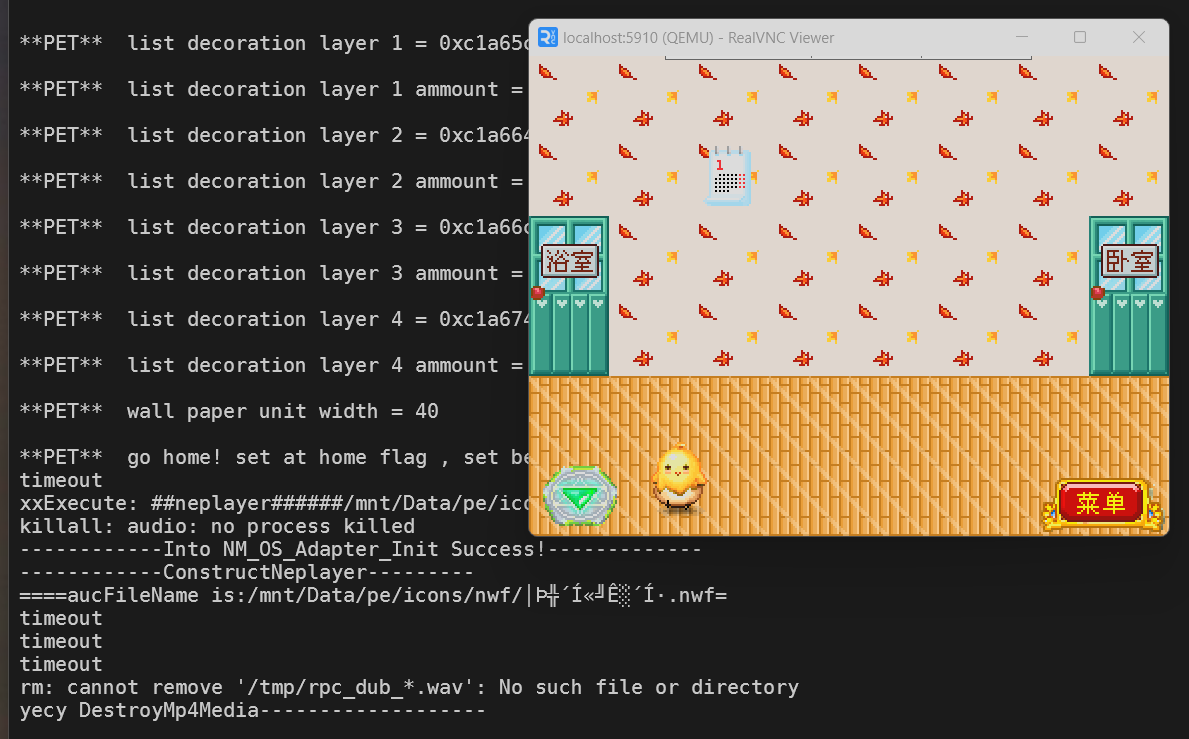

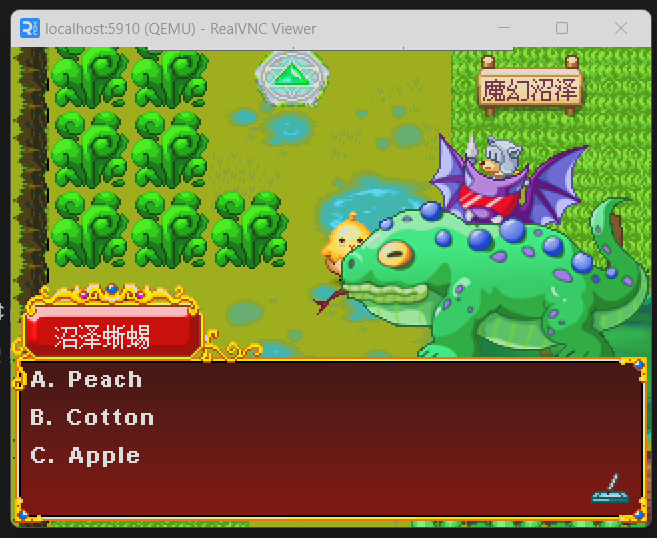

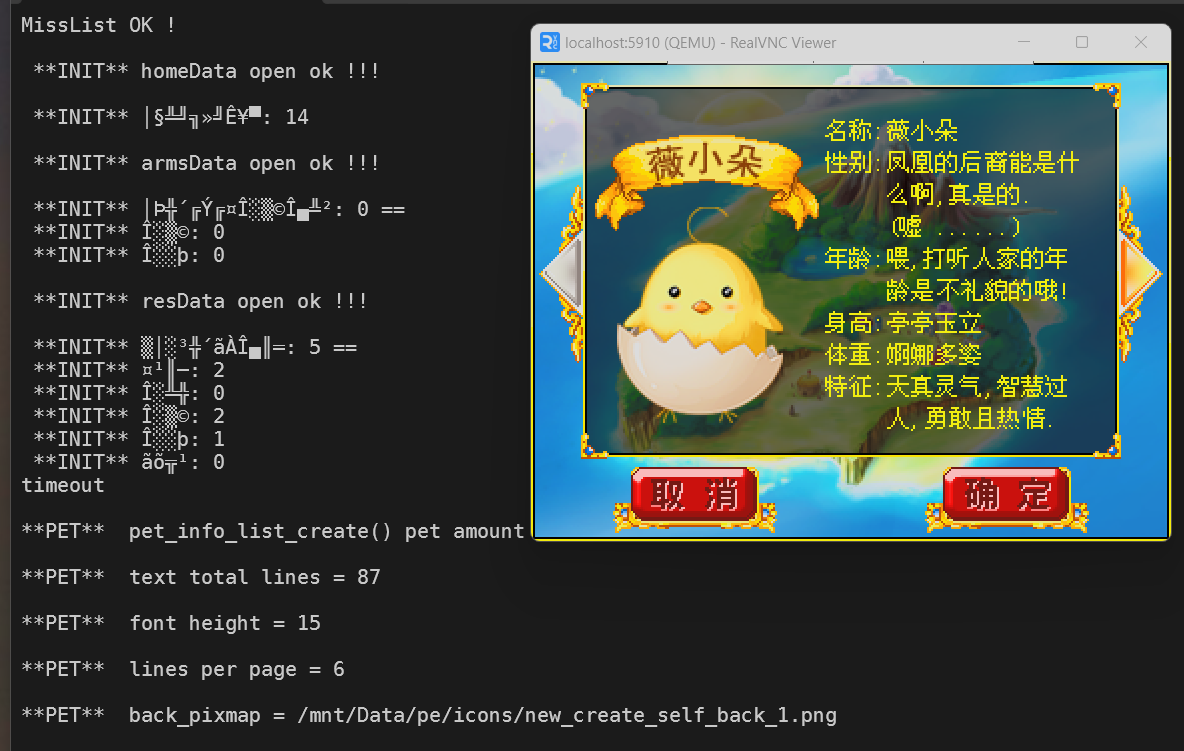

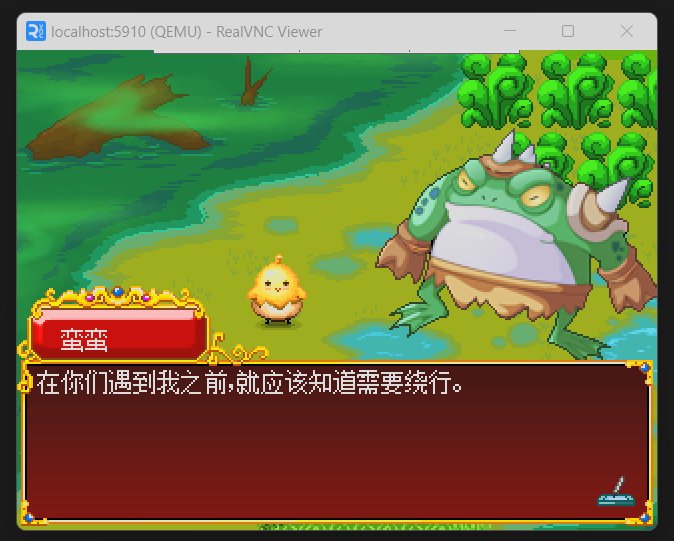

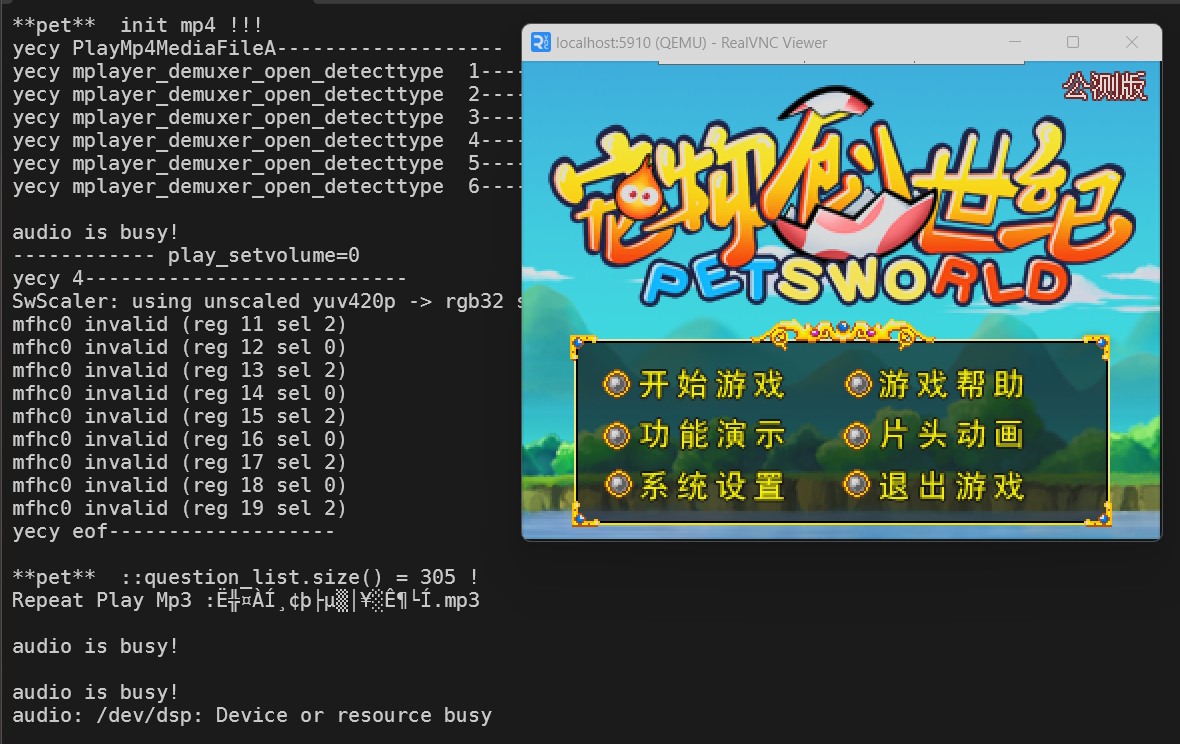

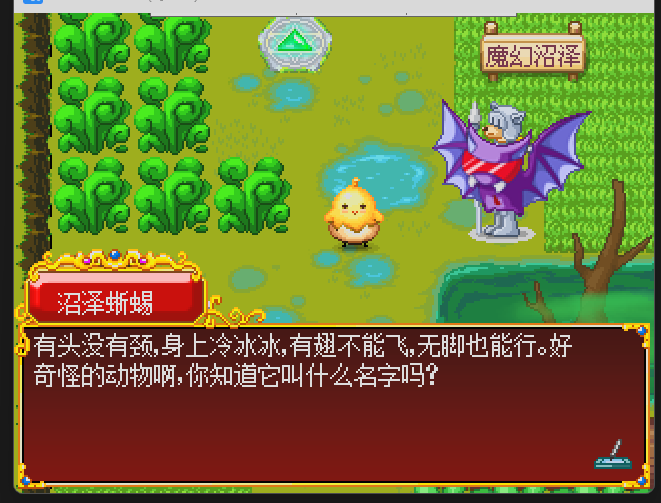

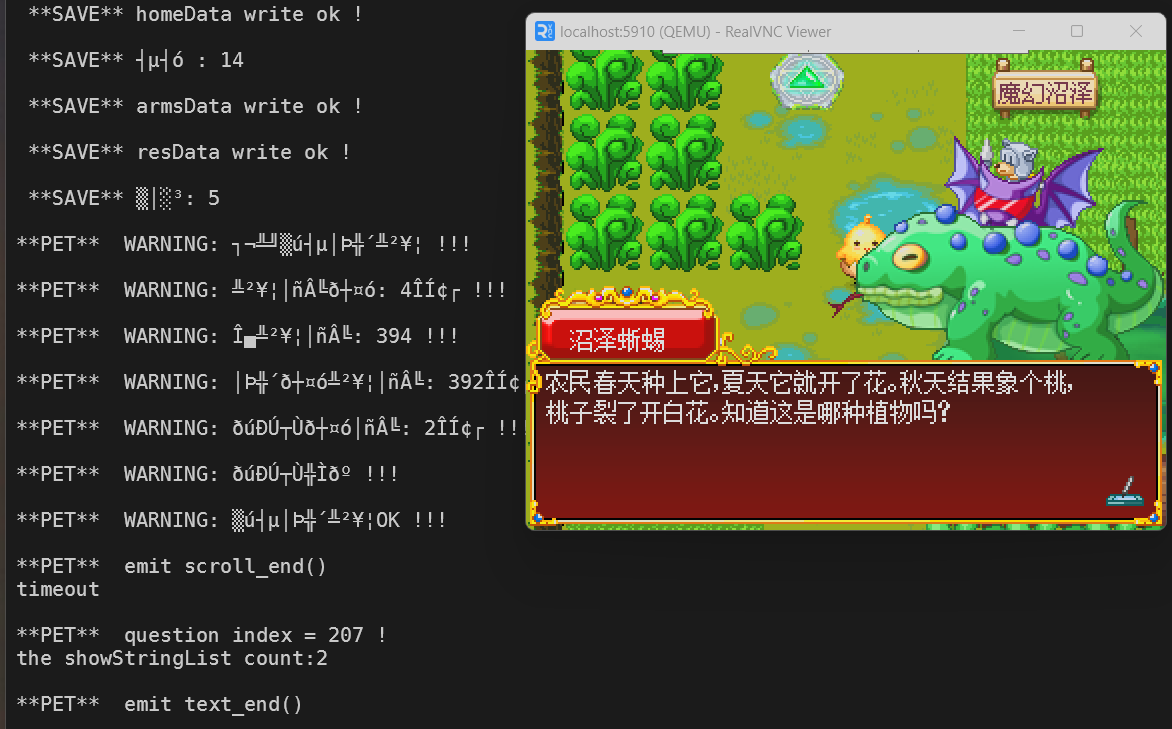

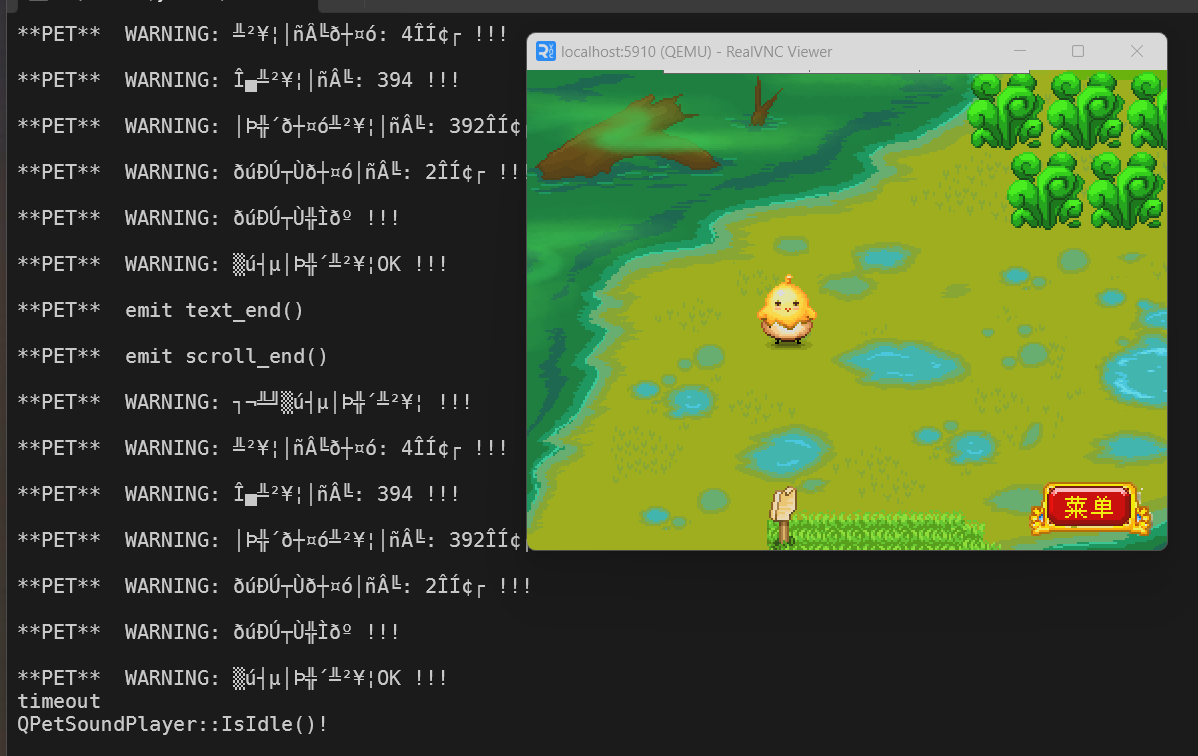

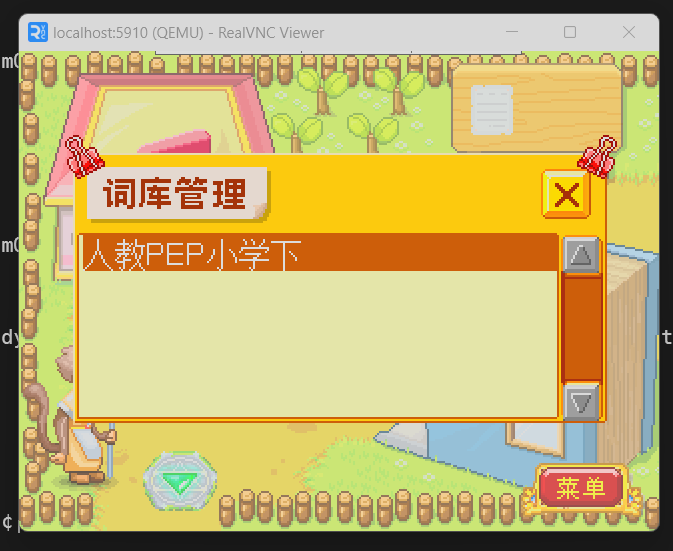

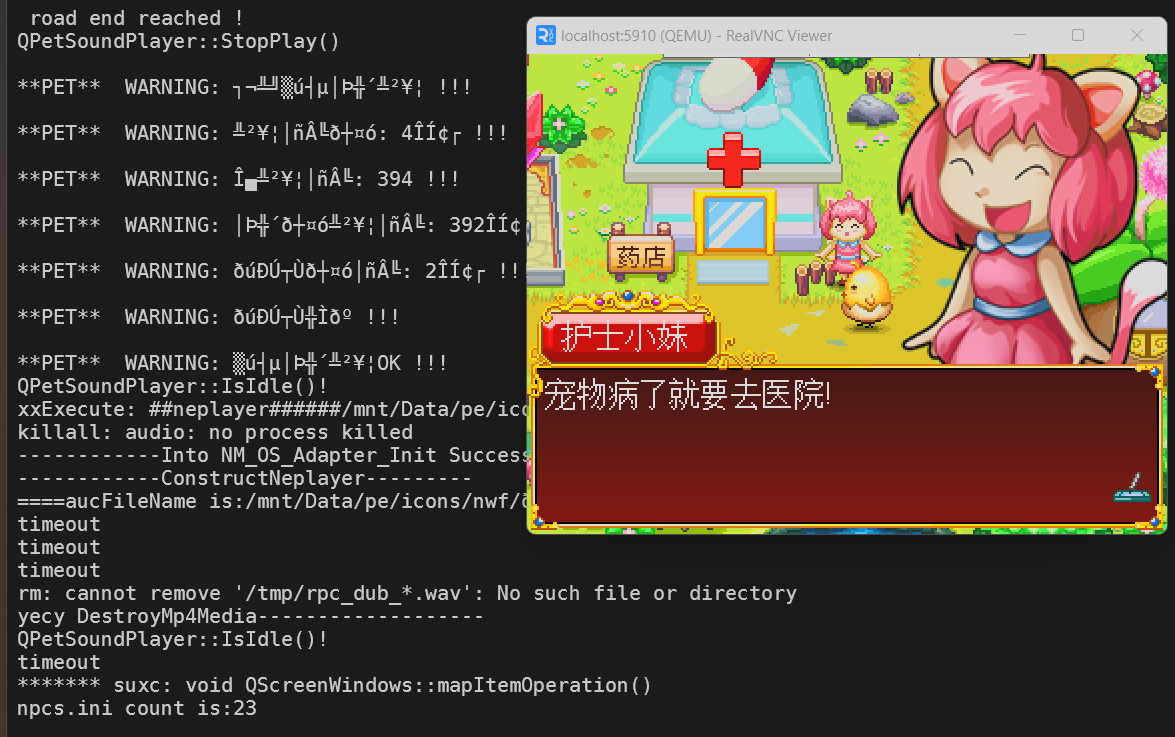

宠物创世纪

Video

Screen Recording 2025-11-08 013458.mp4
