RGRIDT-883: [Maps] Drawing Tools - Polyline Block

[tmbp95]

This PR is for RGRIDT-883: [Maps] Drawing Tools - Polyline Block

What was happening

• As an OS developer, I want to enable my end-users to draw polylines on a Map in my App, so that they can highlight relevant locations, roads, or terrain features.

What was done

• Added a new DrawPolyline block responsible for creating the new polylines on the map using the drawing tools.
• Added a new Config for the draw Basic shapes (polyline is included here) that extends the DrawConfig (general drawing tools configurations)
• Added the subscriber for the tool events as well as the unsubscriber
• Added the new drawing tool to the Factory
• Added the new method AddTool that is available as an API as well as the RemoveTool
• Added the ChangeToolProperty and the GetDrawingToolsByToolUniqueId which finds the closest drawingTool from a tool

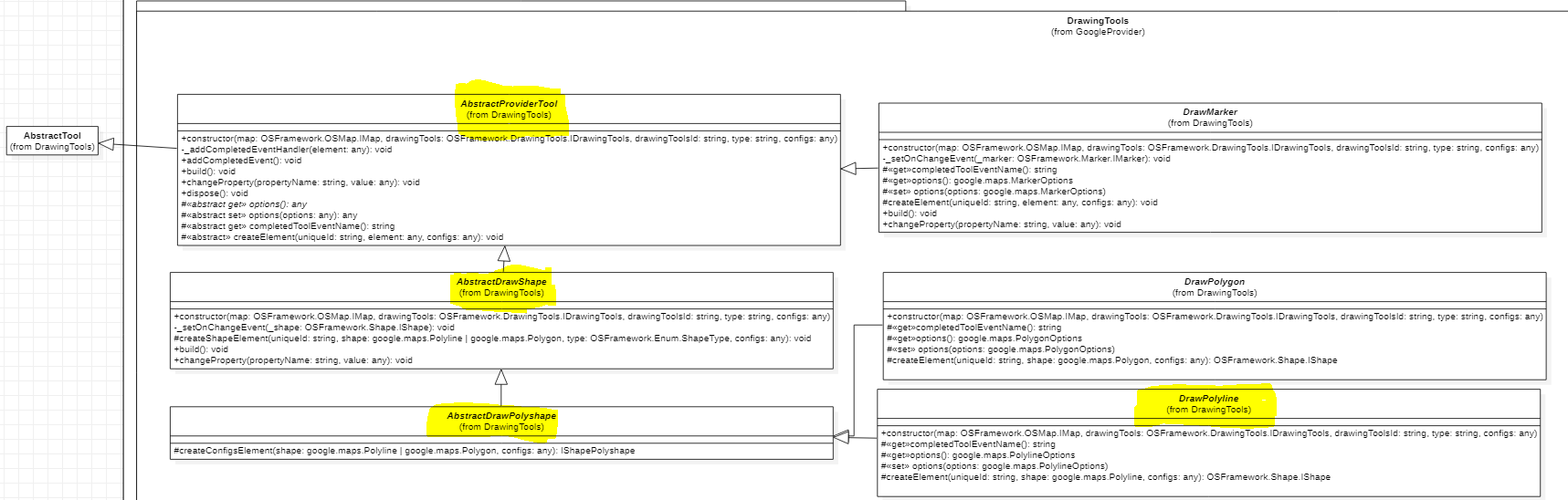

• Created a set of new abstract classes / classes:
  • AbstractTool - responsible for all the OSFramwork tools
  • AbstractProviderTool - responsible for all the GoogleProvider tools
  • DrawShape - responsible for all the GoogleProvider drawing shape tools
  • DrawPolyshape - responsible for all the GoogleProvider drawing polylines/polygons tools
  • DrawPolyline - responsible for the drawing polylines tool

• Added a new GenerateUniqueId method that allows generating new uniqueIds for the new shape elements that are going to be created by the drawingTools. We need this uniqueId to allow the developer to later use APIs over the element (shape/marker) that is the owner of that uniqueId.

Tests:

Test Cases	Test steps
Platform “if” false DrawPolyline	1. Select the "Polyline" Button 2. Toggle Off the "Show/Hide Tool" Expected: The drawPolyline block should not appear on the DrawingTools
Platform “if” true DrawPolyline	1. Select the "Polyline" Button 2.Toggle Off the "Show/Hide Tool" 3.Toggle On the "Show/Hide Tool" Expected: The drawPolyline block should appear on the DrawingTools
DrawPolyline StrokeColor	1. Change the StrokeColor input to the color "Red" 2. Select the DrawPolyline tool on the drawing tools (hover the map) 3. Draw a Polyline on the Map Expected: A new polyline should appear on the Map with the color "Red"
DrawPolyline StrokeOpacity	1. Change the StrokeOpacity input to "0.5" 2. Select the DrawPolyline tool on the drawing tools (hover the map) 3. Draw a Polyline on the Map Expected: A new polyline should appear on the Map with the color "Black" and opacity 0.5
DrawPolyline StrokeWeight	1. Change the StrokeWeight input to "20" 2. Select the DrawPolyline tool on the drawing tools (hover the map) 3. Draw a Polyline on the Map Expected: A new polyline should appear on the Map with a weight of 20

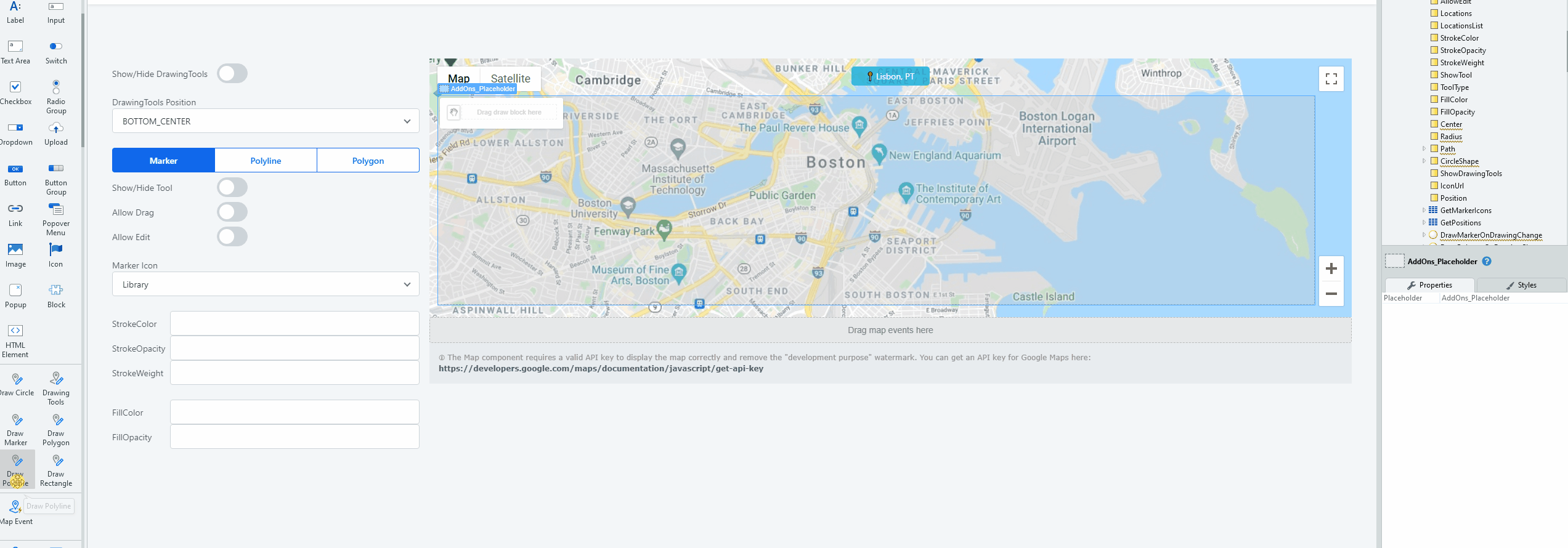

Screenshots

Checklist

• tested locally
• documented the code
• clean all warnings and errors of eslint
• requires changes in OutSystems (if so, provide a module with changes) - RGRIDT-882
• requires new sample page in OutSystems (if so, provide a module with changes) - TBD

[rugoncalves]

Just some minor comments! Good Job!
