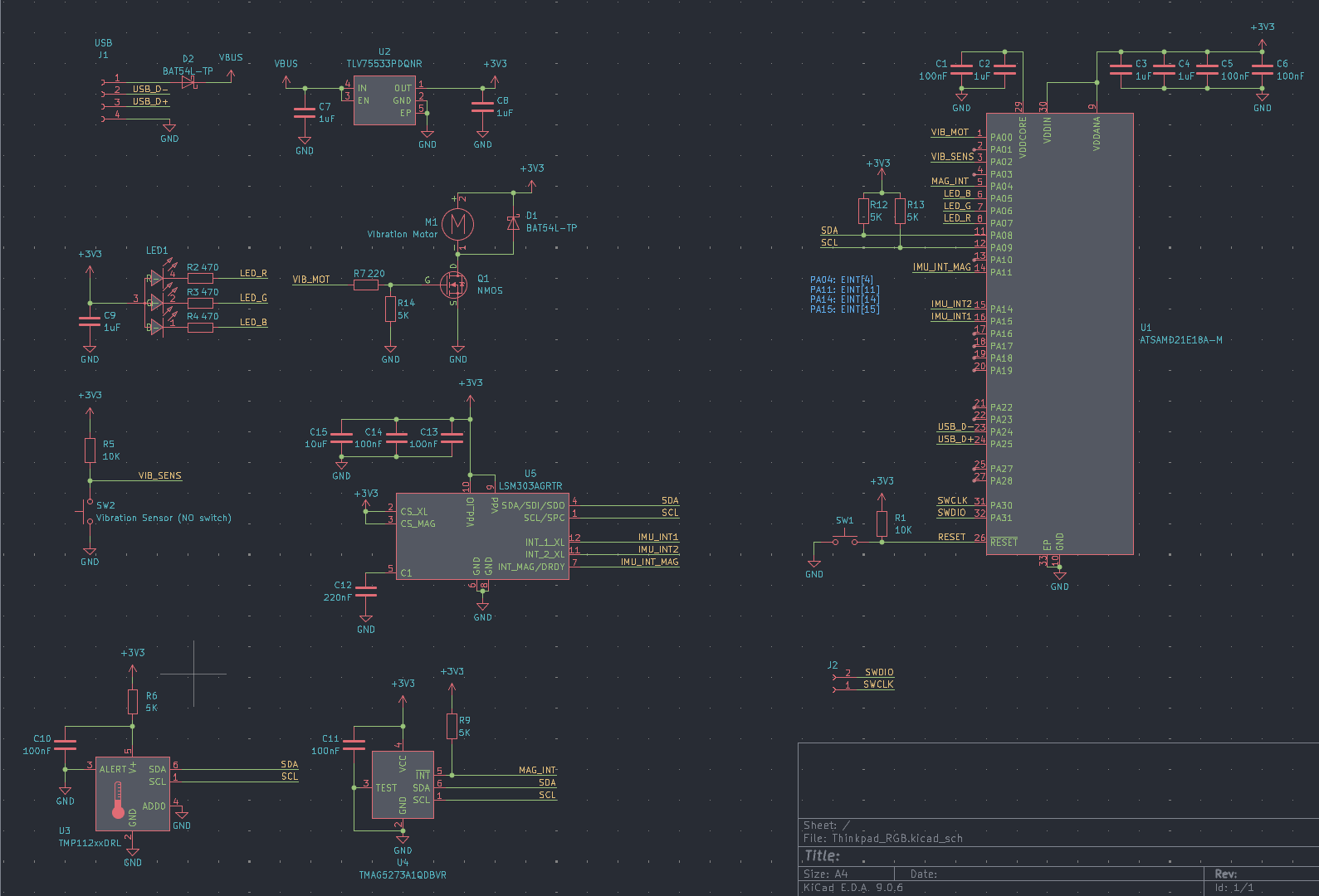

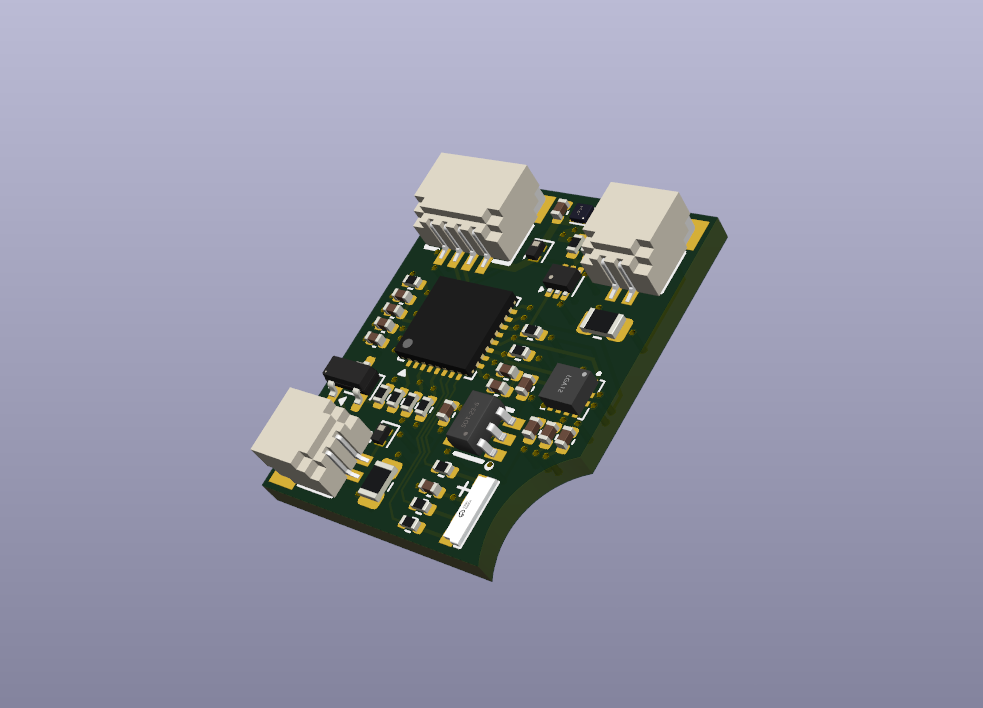

A small board that I designed to be embedded inside my Thinkpad X1 Carbon Gen 7 laptop. It features a MCU on board along with a ton of sensors for data logging and an RGB led placed to shine on the red dot that's on the Thinkpad Logo.
The project's KiCad files can be found under /PCB/kicad.
| Name | Description | Quantity | Price | Shipping |
|---|---|---|---|---|
| Componenets | Componenets from LCSC. detailed part breakdown here | - | $26.63 | $12.62 |
| PCB+Stencil | PCB and Stencil from JLCPCB | - | $5.10 | $8.35 |
| Sub Total | $31.73 | $20.97 | ||
| Total | $52.7 |
This project is licensed under the CERN Open Hardware Licence Version 2 Weakly Reciprocal (CERN OHL W)
