computer_vision_algorithm3

finding shapes based on the appearance change. my first attempt to analyze pictures at low level

Operating environment

Windows 10

Python 3.9.5 pillow 8.2.0

powershell 7.4.2

Note

Please note that I am not using any conventional computer vision algorithm! algorithm are entirely created by me! The advantages of my algorithm are straightforward and intuitive, because for one, I am not using heavy mathmatics.

execute the following and see how it works for yourself!!!

Caution: image format must NOT be JPG!!! JPG does not work! Use PNG instead.

recent update: this is still work in progress.

run sample video

just run the powershell script

./execute_scripts.ps1

when script asks for directory. input videos/street3/resized

at the another prumpt, min1

when execute_scripts.ps1 finishes. run

py recreate_shapes/trd_stage/obj_shapes.py

go to

shapes\videos\street3\resized\min1\trd_stage\obj_shapes\objects1

introducing algorithms

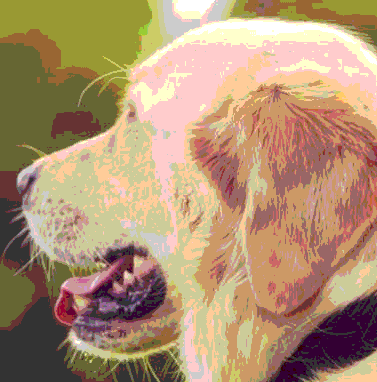

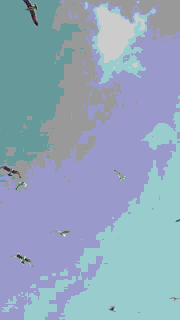

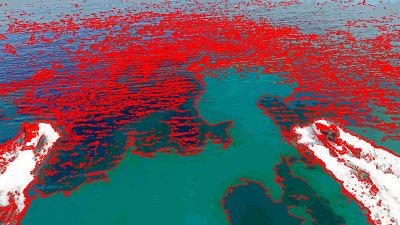

py  algorithms/fundamental/putpix_into_clgrp.py

original

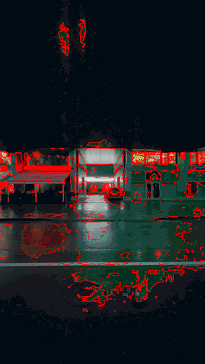

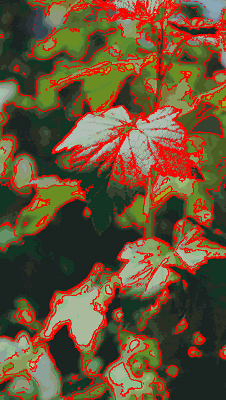

edge detection

find_edges.py

examples

-executing on the original produces such great results!

Repeating pattern shapes

Instructions

I'll update on this later on.

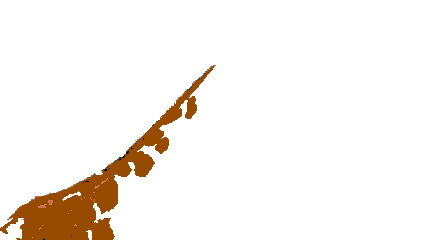

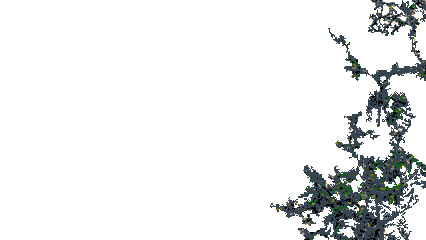

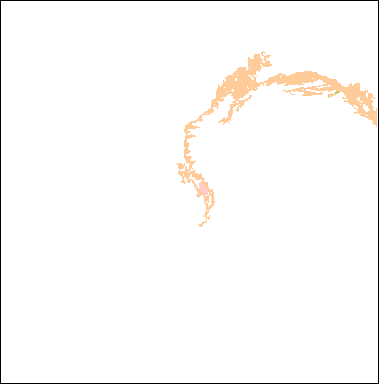

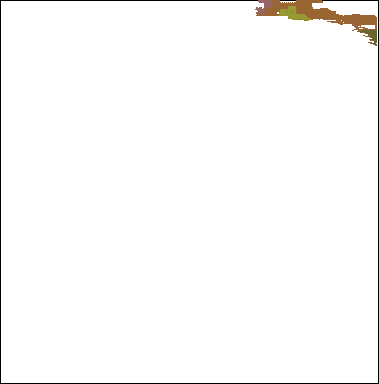

Execution Results examples

Original Image

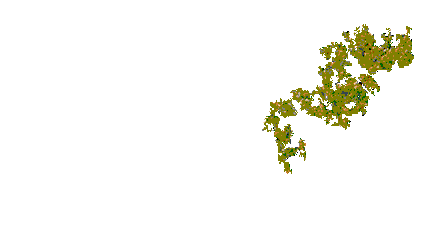

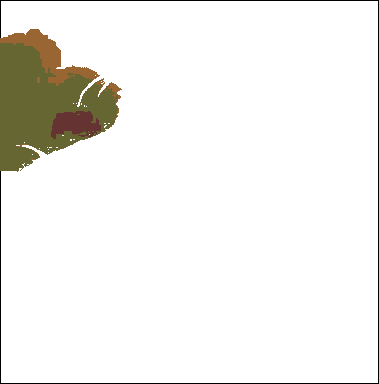

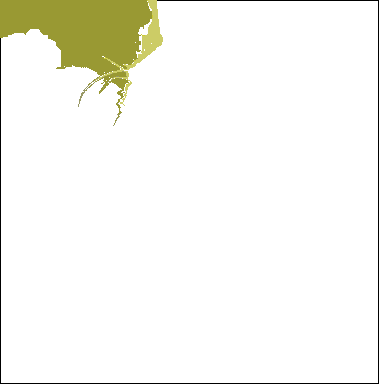

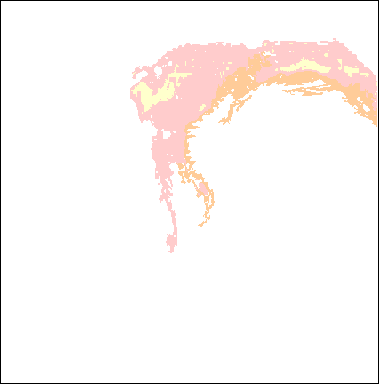

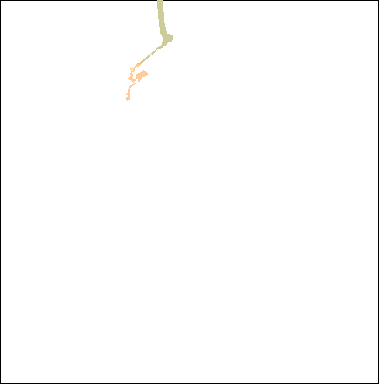

Combine repeating pattern shapes

combine_rpt_ptn_shapes.py

great result but big disadvantage is very very slow!!!!

I'll work on it to improve its speed.

Video Analysis

the video analysis is all about finding the same shape between frames! sounds boring and tiring which is it is... but I believe computer vision for video is all about that!

Requirement

• You need frames from video

At least two consecutive frames are needed.

you can use ffmpeg to get frames from the video

running example

example video

street6.mp4

frames of video

frames.mp4

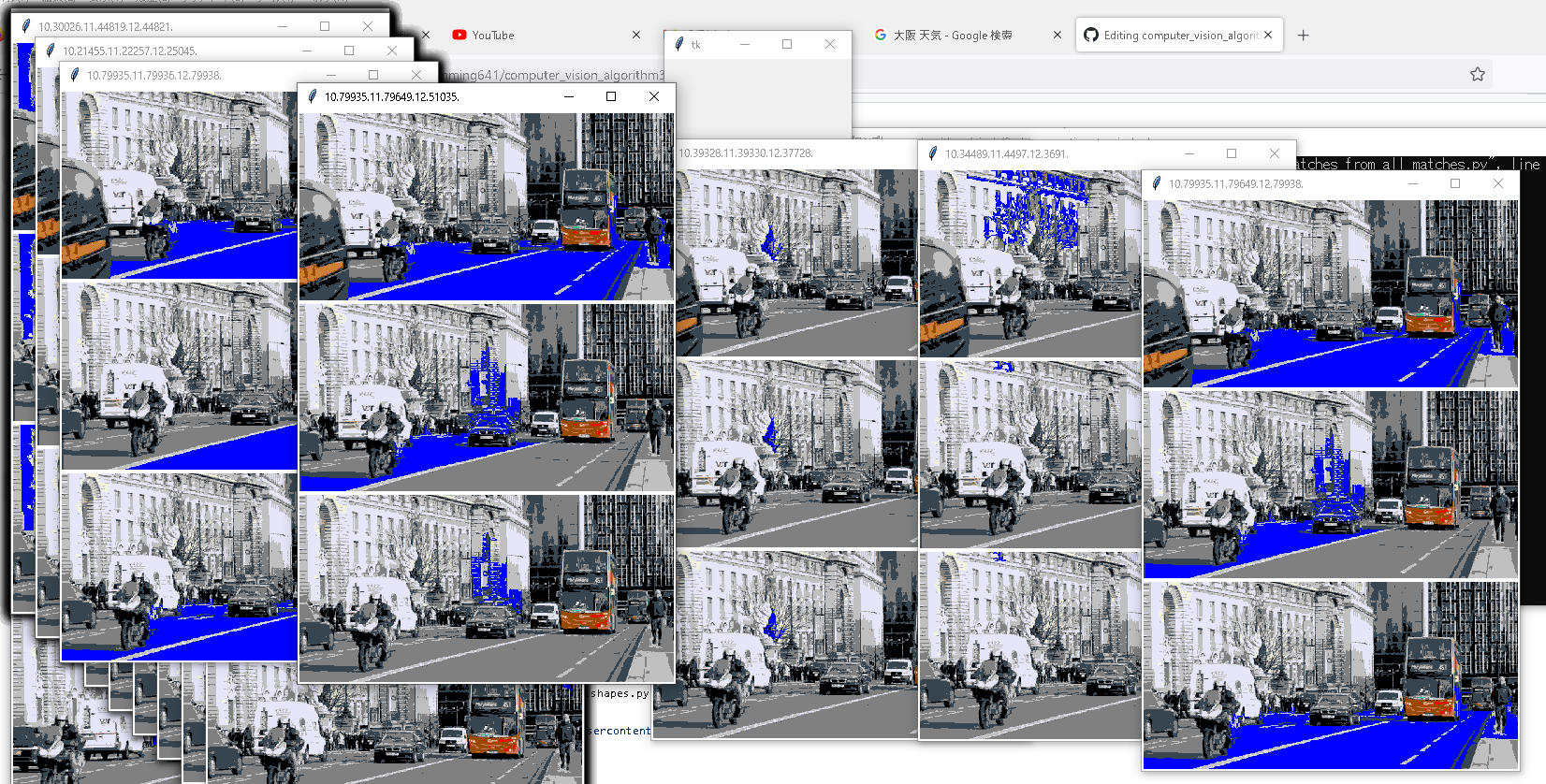

example of video analysis results. just very few example matches of about 200 to 250 matches. I checked every one of the entire matches and all were correct! but for this video only. video that I was previously working on was very difficult one and percentage of correct matches on that was about 97 to 99%. still very high but they have to be 100% because for example you don't want the part of the car to be a part of the wall.

matches.mp4

entire results video

https://www.youtube.com/watch?v=7xaMYHdiYwg

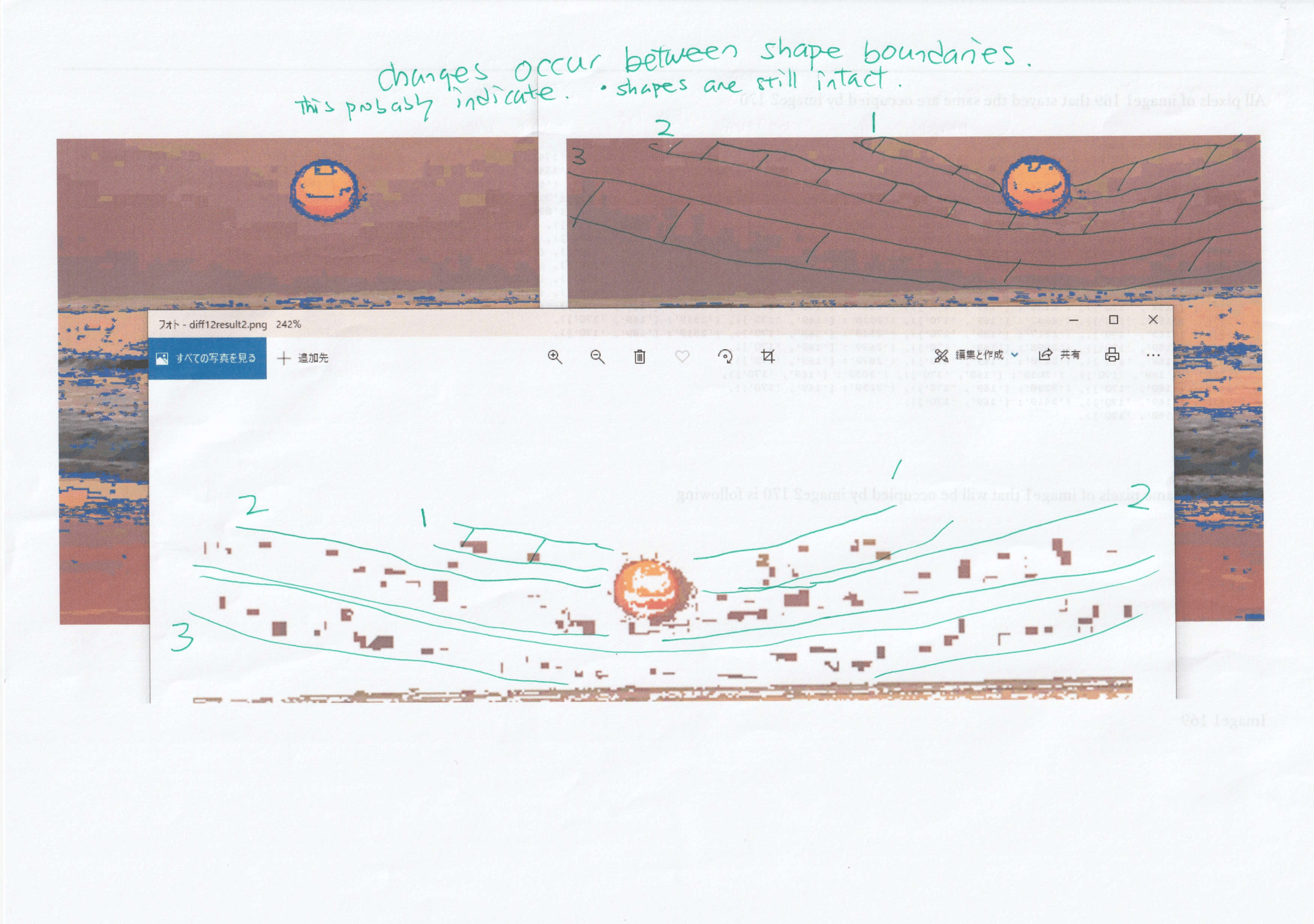

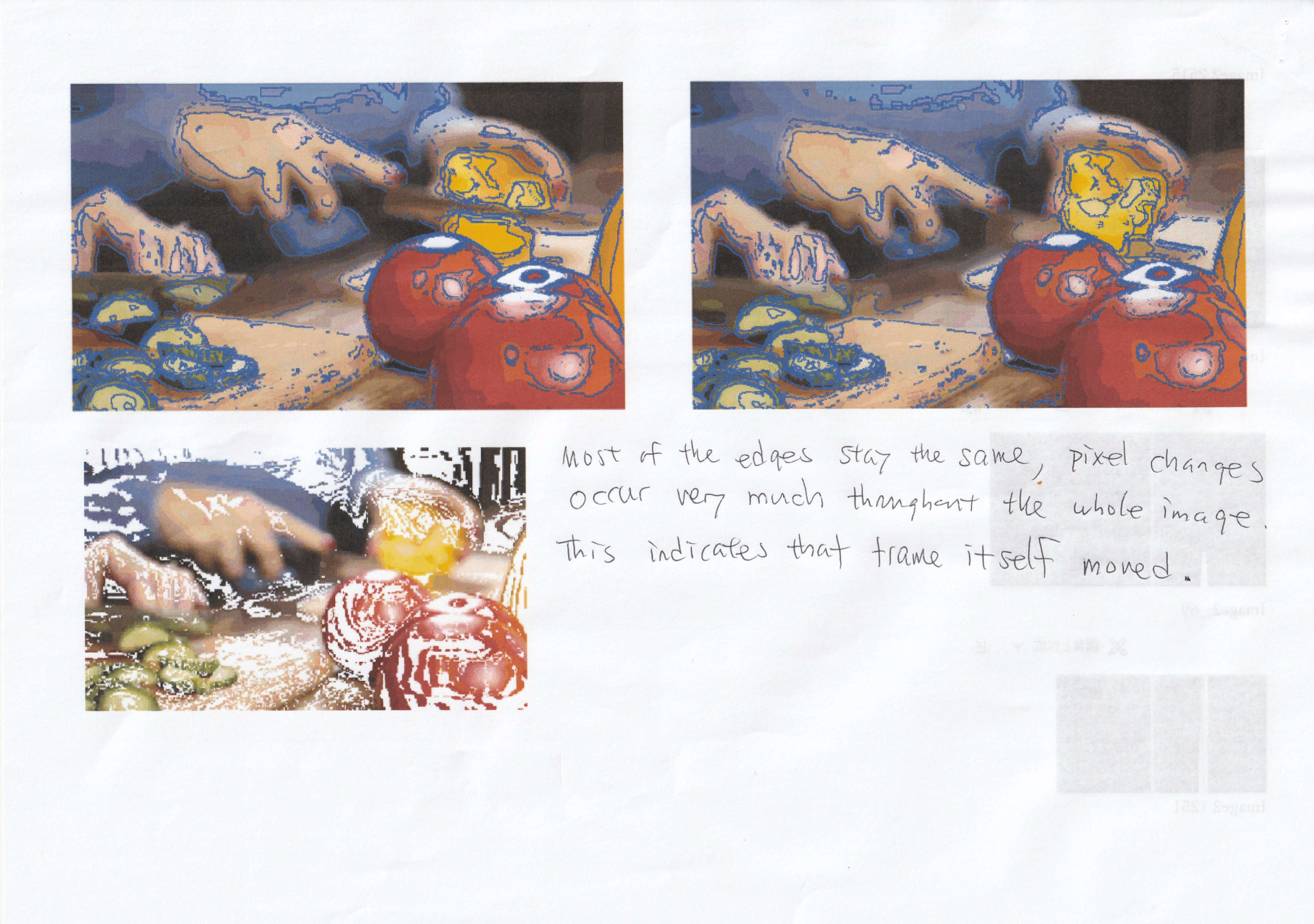

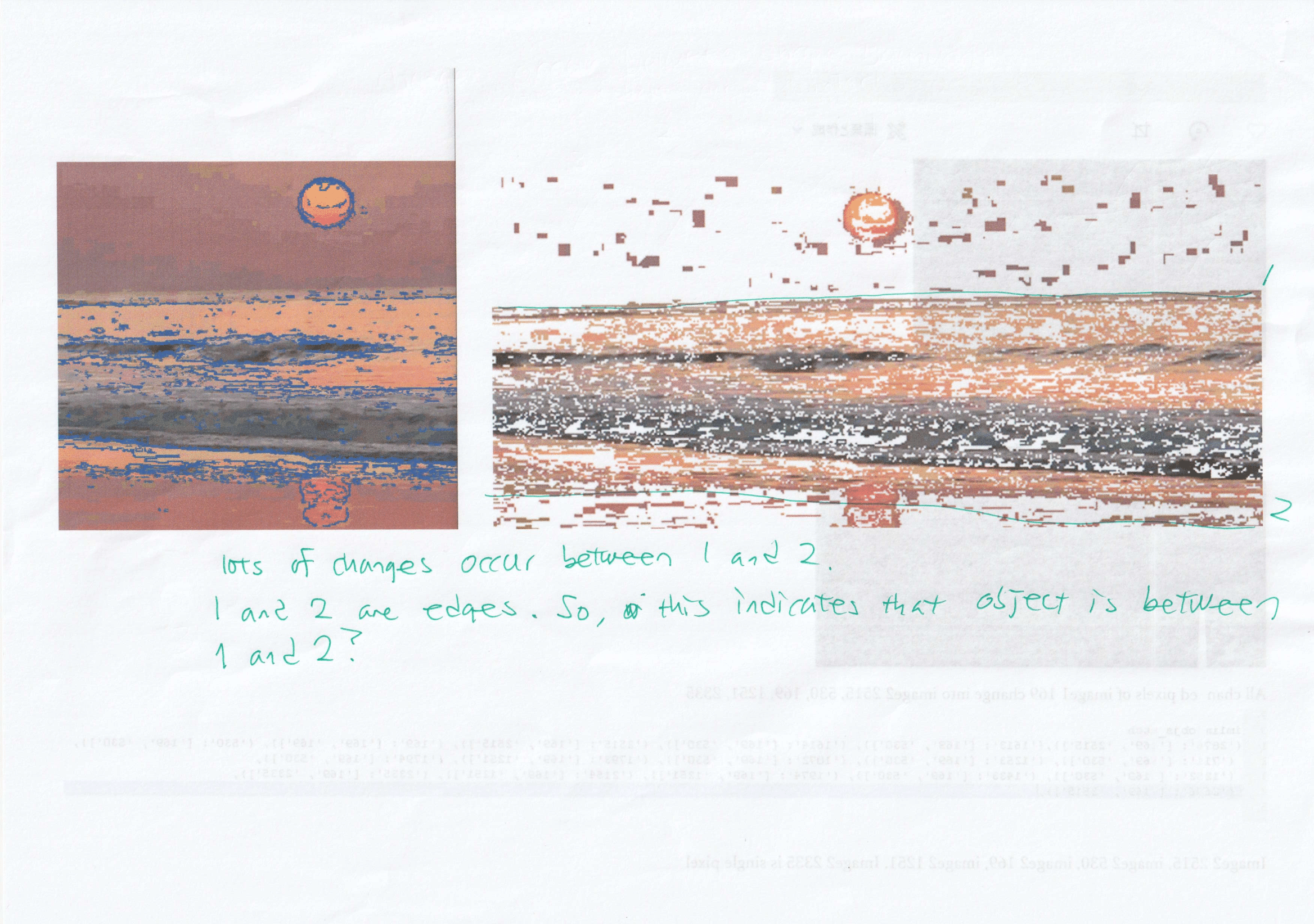

pixel change analysis between video frames ( usually between two consecutive frames from the same video )

running examples

original image1 original image2

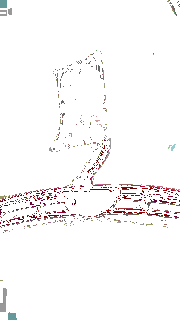

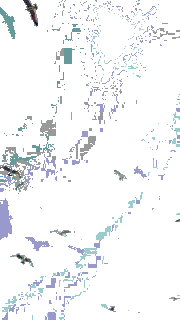

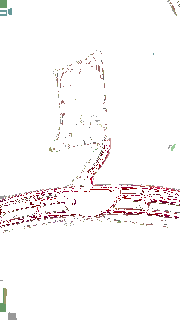

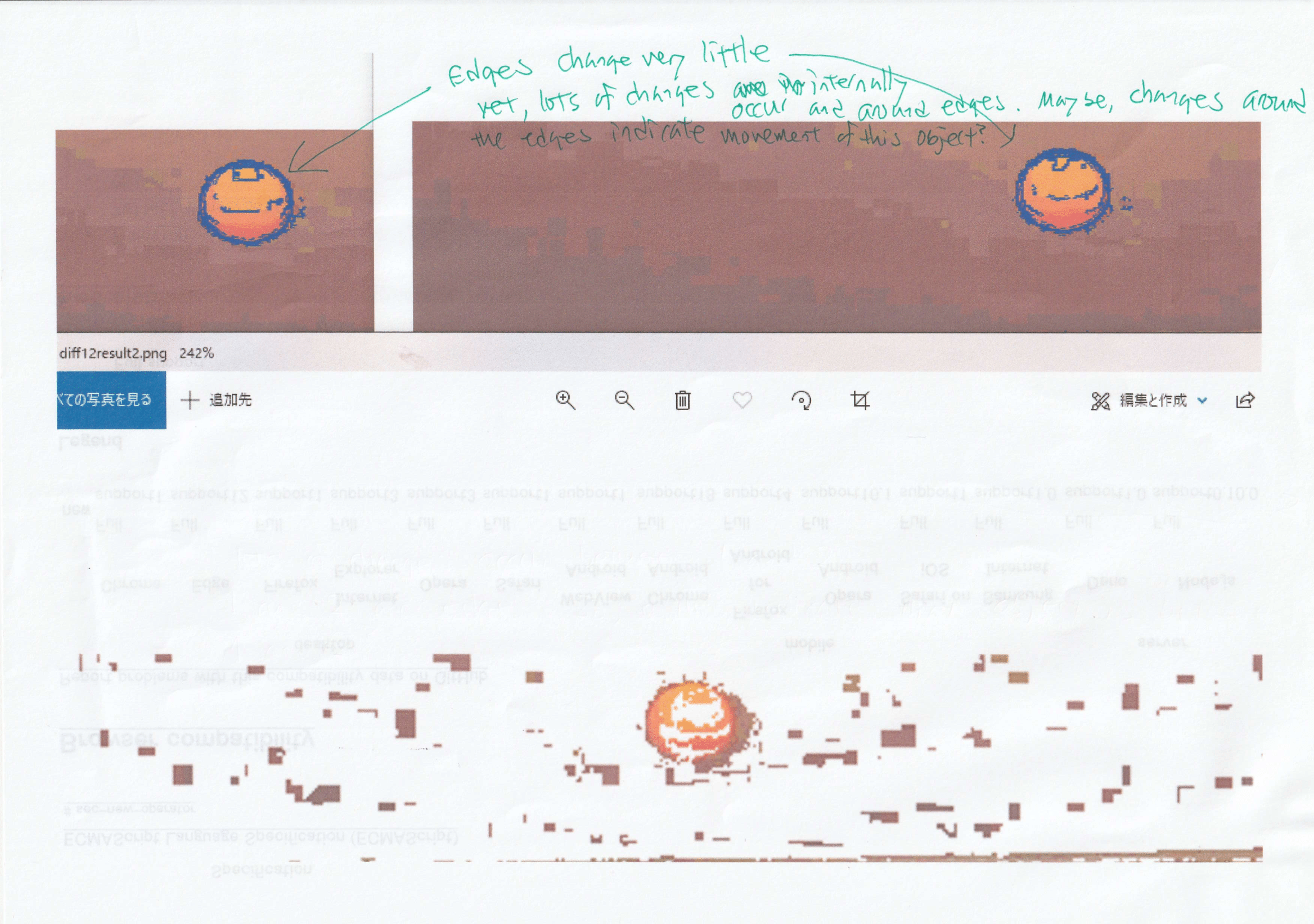

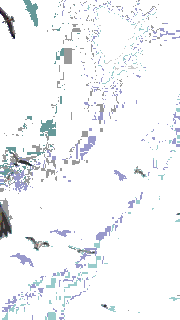

taking difference between frames above

another example

original image

original image

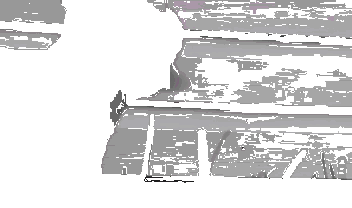

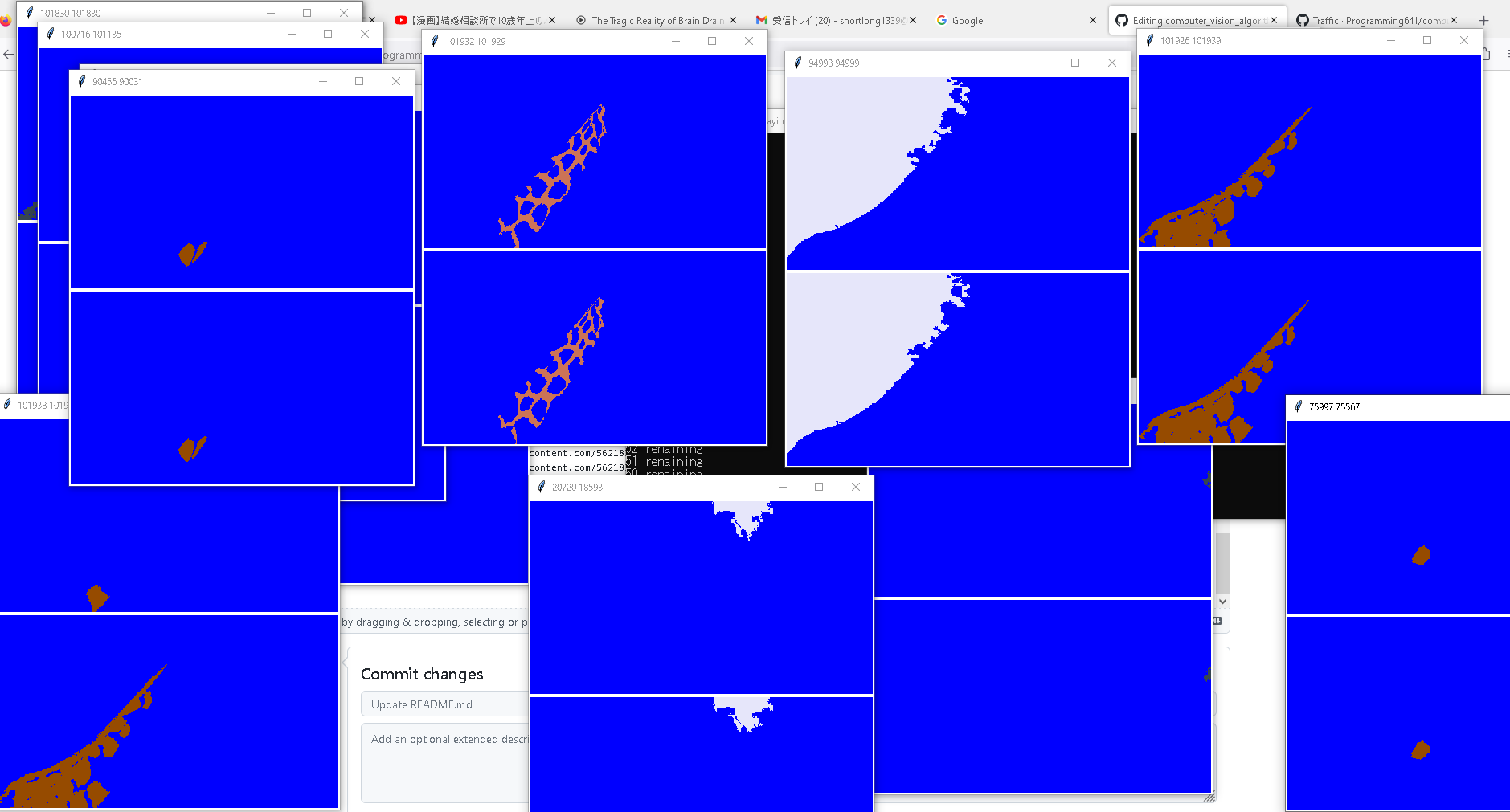

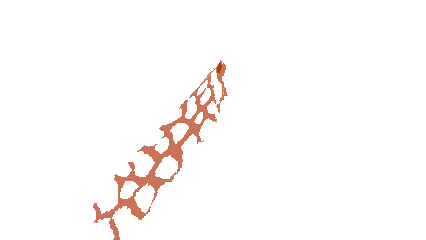

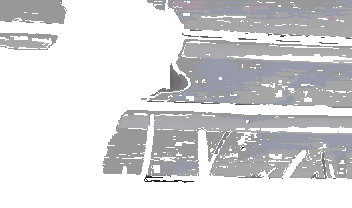

find_staying_Lshp_btwn_frames.py

this script finds large shapes ( shapes with more than 50 pixels ) that did not move to another locations but stayed or moved a little in the next frame.

execution examples

original images

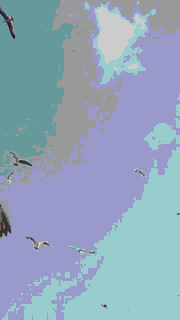

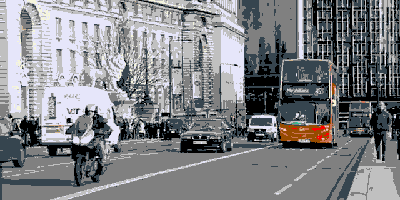

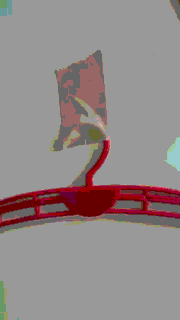

putpix_into_clrgrp.py --minimized colors version--

the results are perfect! works 100%!

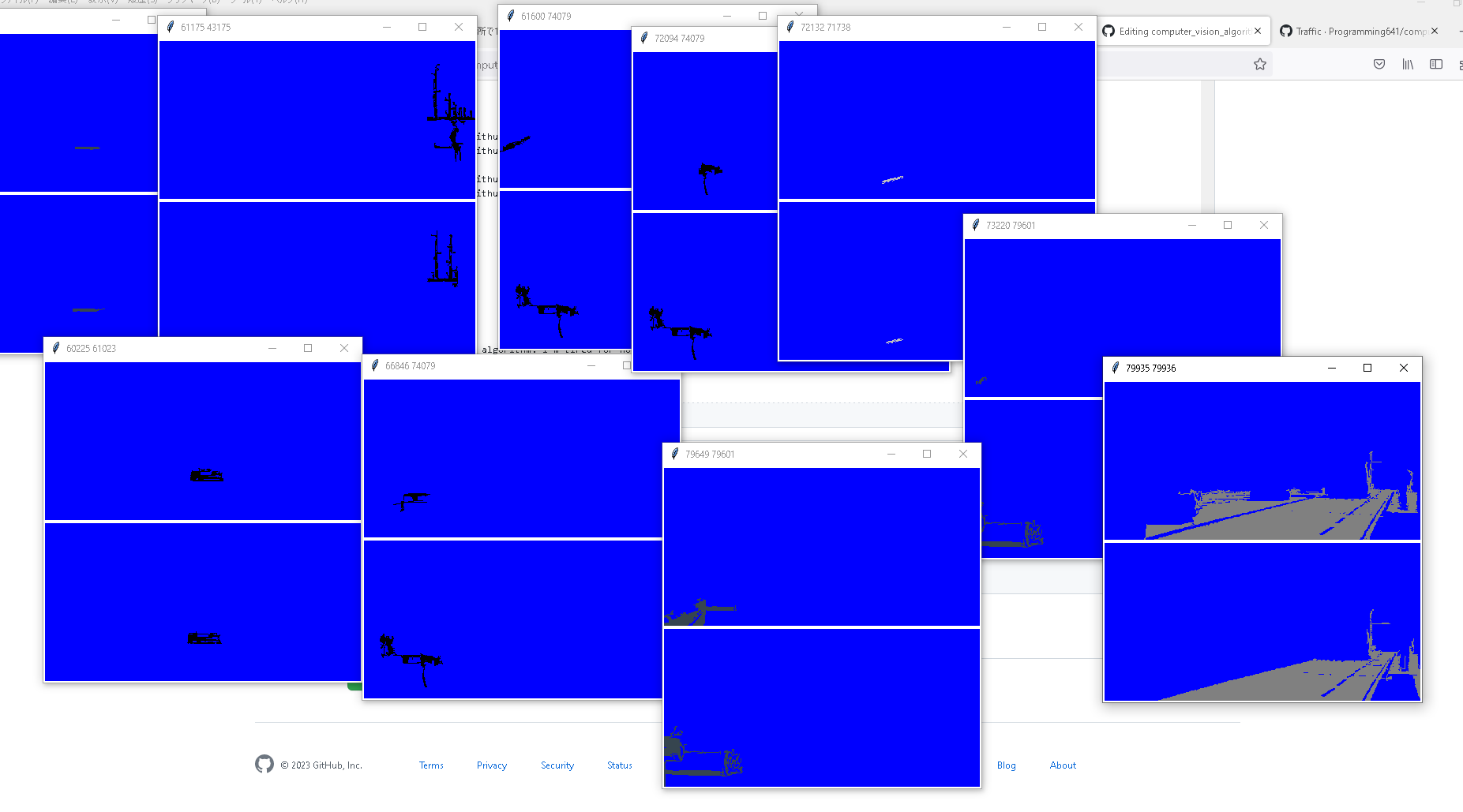

find_staying_Lshp_wo_pixch_btwn_frames.py

this is similar to find_staying_Lshp_btwn_frames.py but what is different is that this finds large shapes even if lots of pixel changes occurred.

execution examples

original images

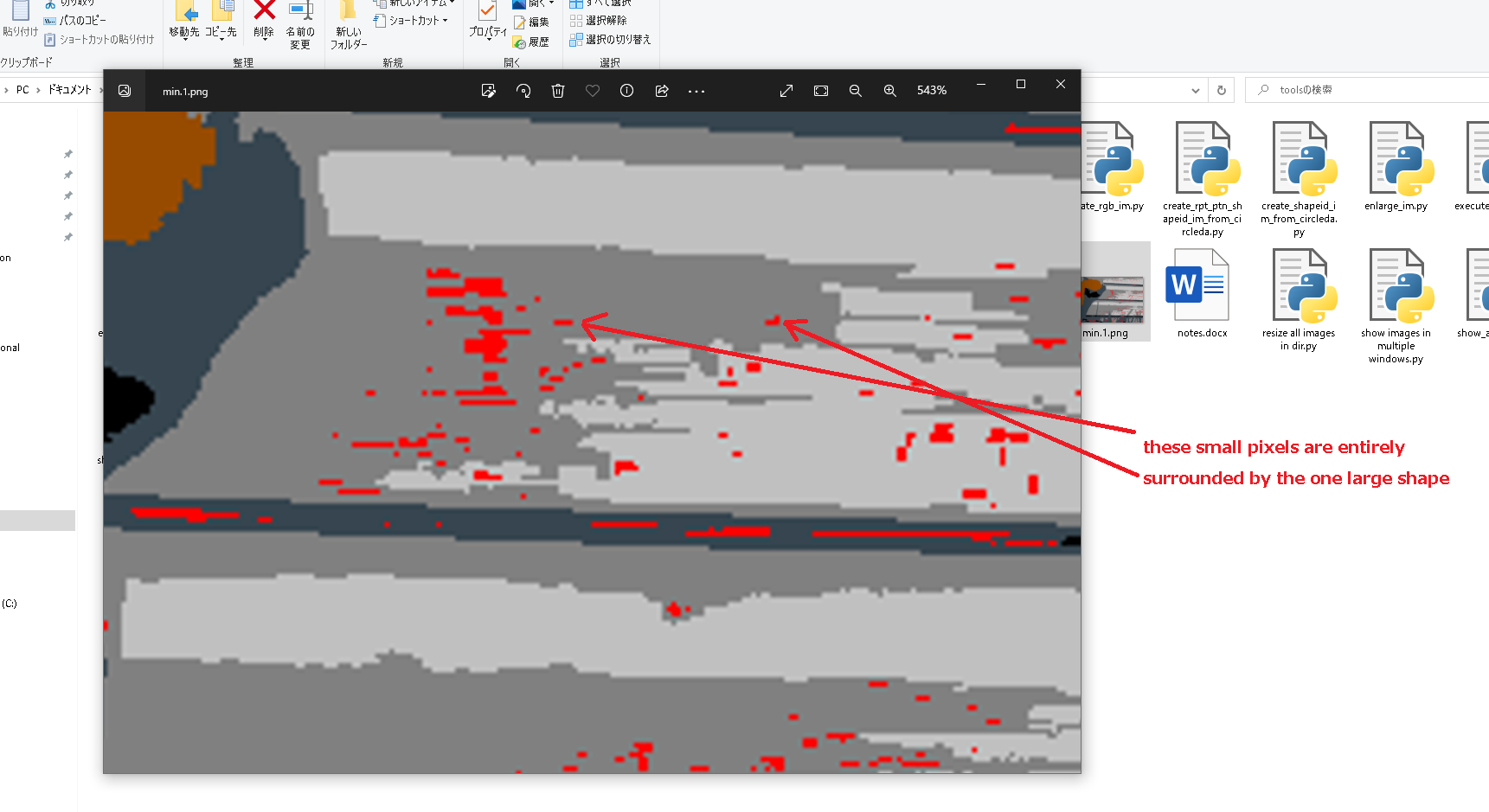

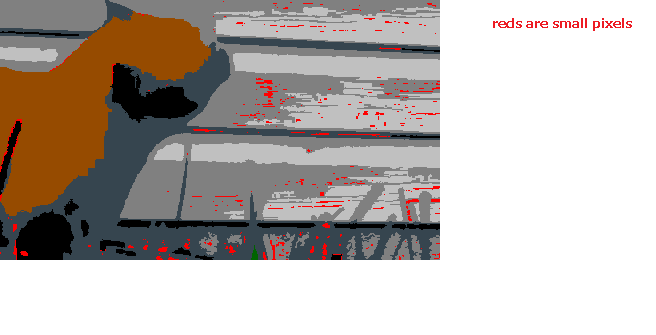

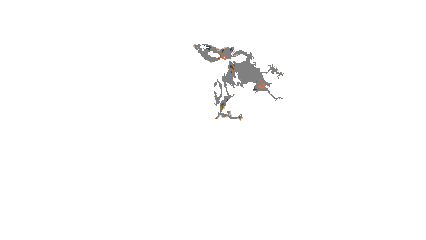

find_internal_s_pixc_shapes.py

this script finds small pixels shapes that entirely surrounded by the one large shape. entirely surronded by one large shape means that they are internal shapes within the one large shape.

example

original

execute recreate_internal_s_pixc_shapes.py to see the results

algorithms/pixch/find_consecutive_sty_pixch_shapes.py

required scripts

• algorithms/pixch/find_staying_shapes.py
• algorithms/pixch/verify_staying_shapes.py

other algorithms result look like the above but they find different shapes.

Note

this is not the end of the project! Now, I am getting closer to first milestone of object detection!
