Container Control Panel

What is CCP?

Container Control Panel is an open-source stack for monitoring and managing .NET Core applications running as Docker containers. It is stronly inspired (and much better) by the .NET Aspire platform. In addition to the handling OpenTelemetry, it also provides advanced features like managing Docker containers, swagger-like API documentation, capturing full details of the calls made to the API, and much more. Unlike .NET Aspire, CCP does not require to specify the projects orchestration.

Quick start

To get started, you can use the recommended Docker Compose file and run the application:

version: '3'

services:
    ccp-api:
        image: rafaau/ccp-api:latest
        ports:
            - 5121:8080
        depends_on:
            - mongodb
        networks:
            - ccp-network
        environment:
            - MongoDB__ConnectionString=mongodb://mongodb:27017
            - WebApp__Port=5069
            - WebApp__Host=localhost
            - ComposeDir=C:\\Users\\user\\Desktop\composes
            - ImagesDir=C:\\Users\\user\\Desktop\images
            - ExcludeByImage=ccp
        volumes:
            - /var/run/docker.sock:/var/run/docker.sock:rw
        privileged: true

    ccp-web:
        image: rafaau/ccp-web:latest
        ports:
            - 5069:80
        depends_on:
            - ccp-api
        networks:
            - ccp-network
        environment:
            - UserToken=Password
            - AdminToken=Password12345
            - AppName=NotAspire
            - WebAPIPort=5121
            - WebAPIHost=localhost
            - Realtime=true
            - LazyLoading=true

    mongodb:
        image: mongo:latest
        ports:
            - "27017:27017"
        networks:
            - ccp-network

networks:
    ccp-network:
        driver: bridge

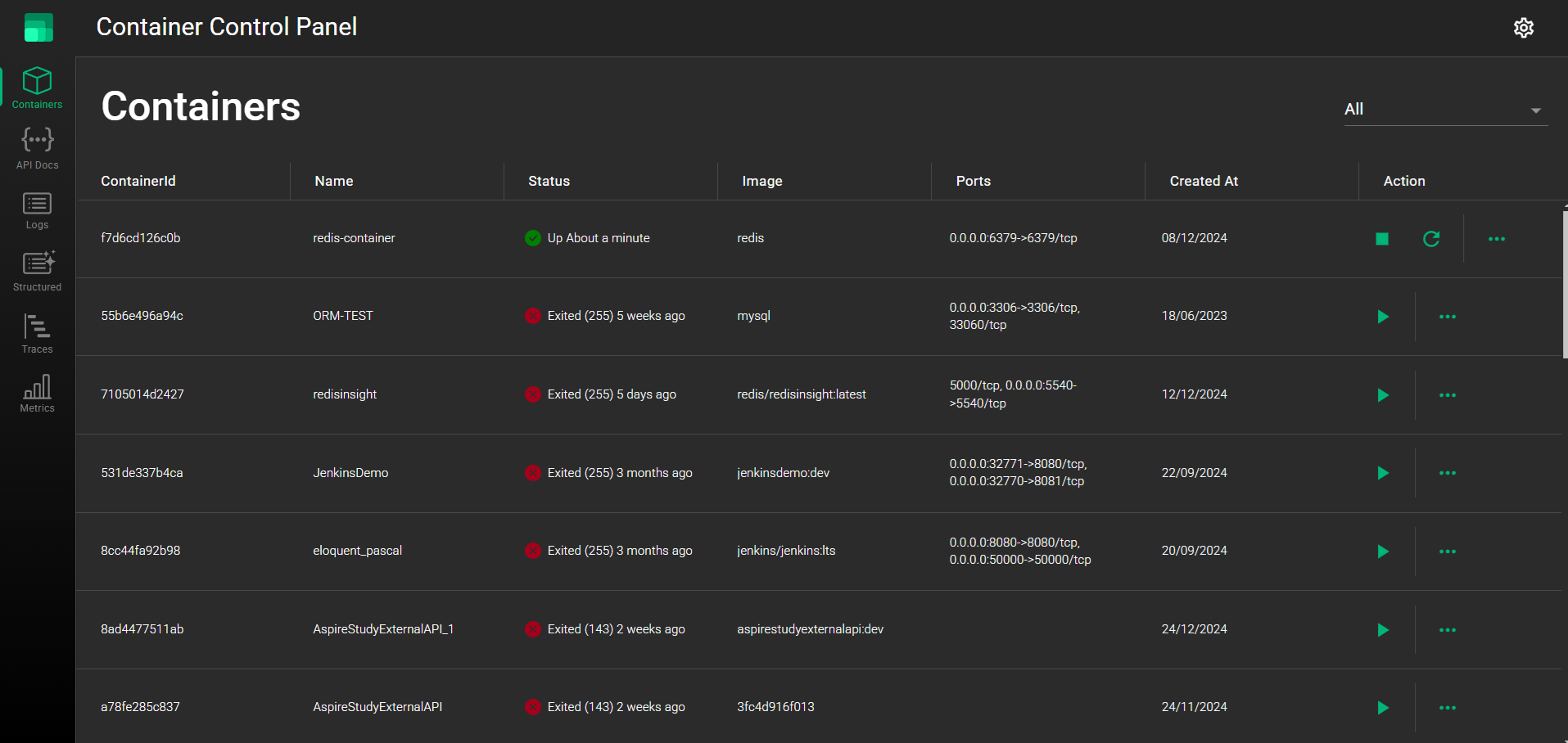

At this point, you can access the CCP application at http://localhost:5069. You will be redirected to Containers page, where you can see the list of containers running on your machine. To enable the full monitoring capabilities, you need to add ContainerControlPanel.Extensions and also ApiDocs NuGet packages to your project.

The sample implementation should look like this:

builder.AddOpenTelemetry(host: "host.docker.internal", port: 5121, resourceName: "WeatherForecastAPI");

And then to enable ApiDocs handling:

app.MapApiDocs();

Also to enable request and response logging (optional):

app.UseMiddleware<OpenTelemetryLoggingMiddleware>();

Note

There is a probability that Controller will return NotSupportedException due to logging requests. In that case you need to specify the additional middleware in your Program.cs as below:

app.Use(async (context, next) =>
    {
        context.Request.EnableBuffering();
        await next();
    });

Important

It is also recommended to specify CORS policy for the CCP API:

builder.Services.AddCors(options =>
{
    options.AddPolicy("AllowCCP", policy =>
    {
        policy.WithOrigins("http://host.docker.internal:5069")
              .SetIsOriginAllowed((host) => true)
              .AllowAnyHeader()
              .AllowAnyMethod()
              .AllowCredentials();
    });
});

And then:

app.UseCors("AllowCCP");

Configuration

You can configure your CCP stack by specifing following environment variables in your docker-compose file:

Service	ENV	DataType	Description
WebAPI	Redis__ConnectionString	String	Specifies the connection string for the Redis server.
WebAPI	MongoDB__ConnectionString	String	Specifies the connection string for the Mongo server (RECOMMENDED).
WebAPI	WebApp__Port	Int	Specifies the port number for the WebApp service.
WebAPI	WebApp__Host	String	Specifies the host address of the WebApp service.
WebAPI	ComposeDir	String	Specifies the path to Docker composes directory.
WebAPI	ImagesDir	String	Specifies the path to Docker images directory.
WebAPI	AuthToken	String	Specifies the authorization token.
WebAPI	ExcludeByName	String	Specifies the names of containers that will be hidden (separated by ;).
WebAPI	ExcludeByImage	String	Specifies the names of images that will be hidden (separated by ;).
WebApp	AppName	String	Specifies the name of the application.
WebApp	AdminToken	String	Specifies the token for the admin user.
WebApp	UserToken	String	Specifies the token for the regular user.
WebApp	WebAPIPort	Int	Specifies the port number for the WebAPI service.
WebApp	WebAPIHost	String	Specifies the host of the WebAPI service.
WebApp	Realtime	Boolean	Specifies whether the application should use real-time updates.
WebApp	AuthToken	String	Specifies the authorization token for WebAPI calls.
WebApp	Context	String	Specifies the project identificator for docker-compose (-p flag)
WebApp	LazyLoading	Boolean	Specifies whether the application should use lazy loading (MONGO CASE ONLY)

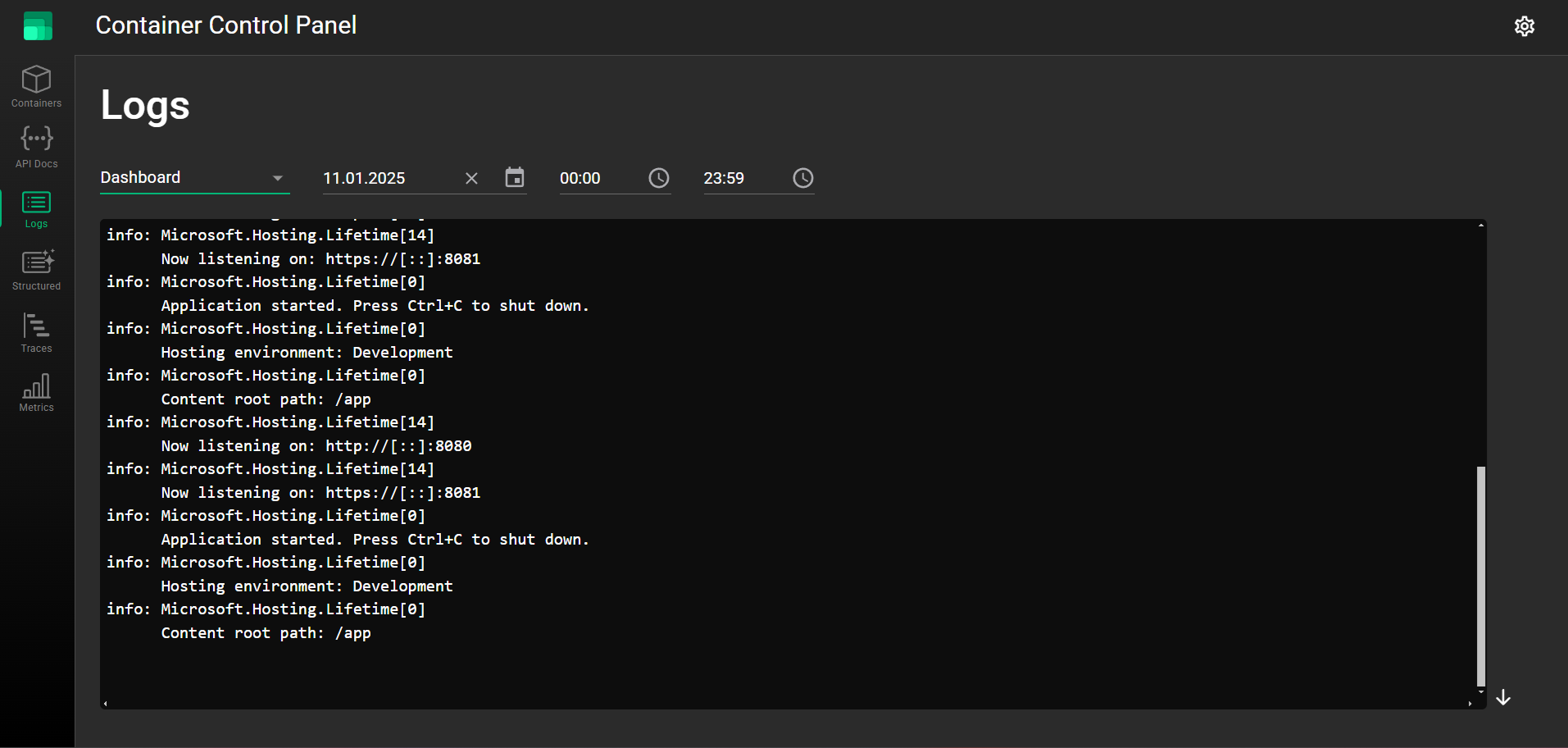

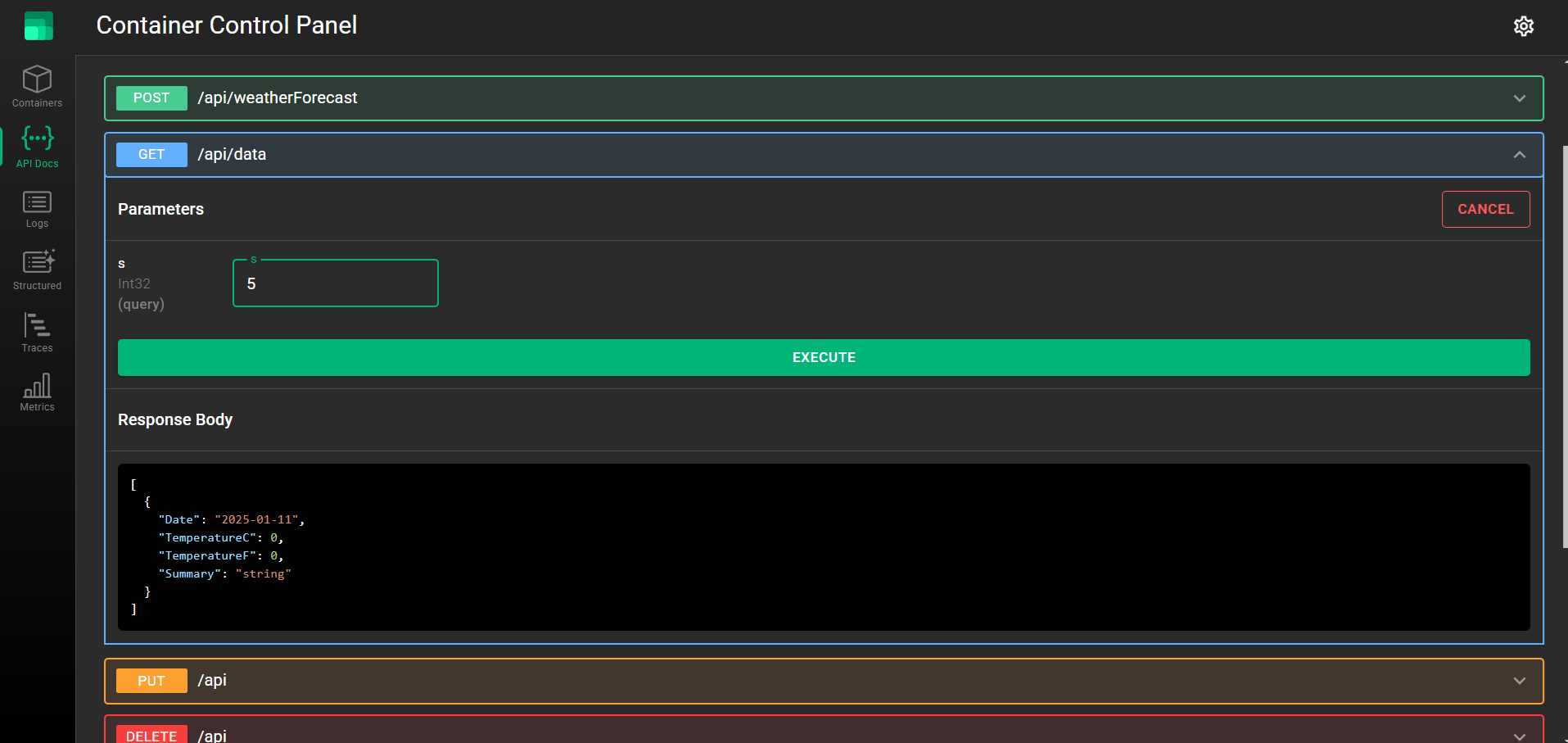

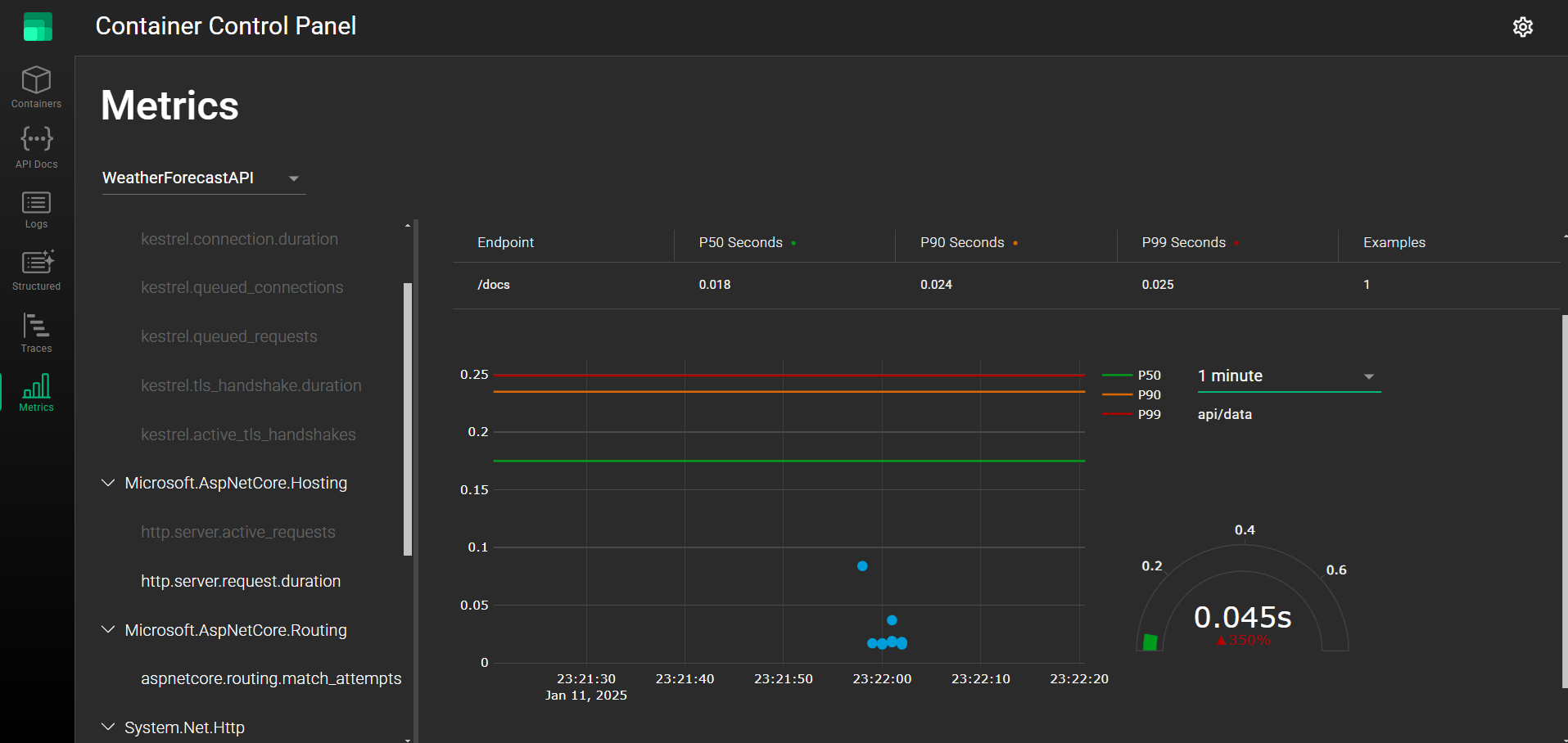

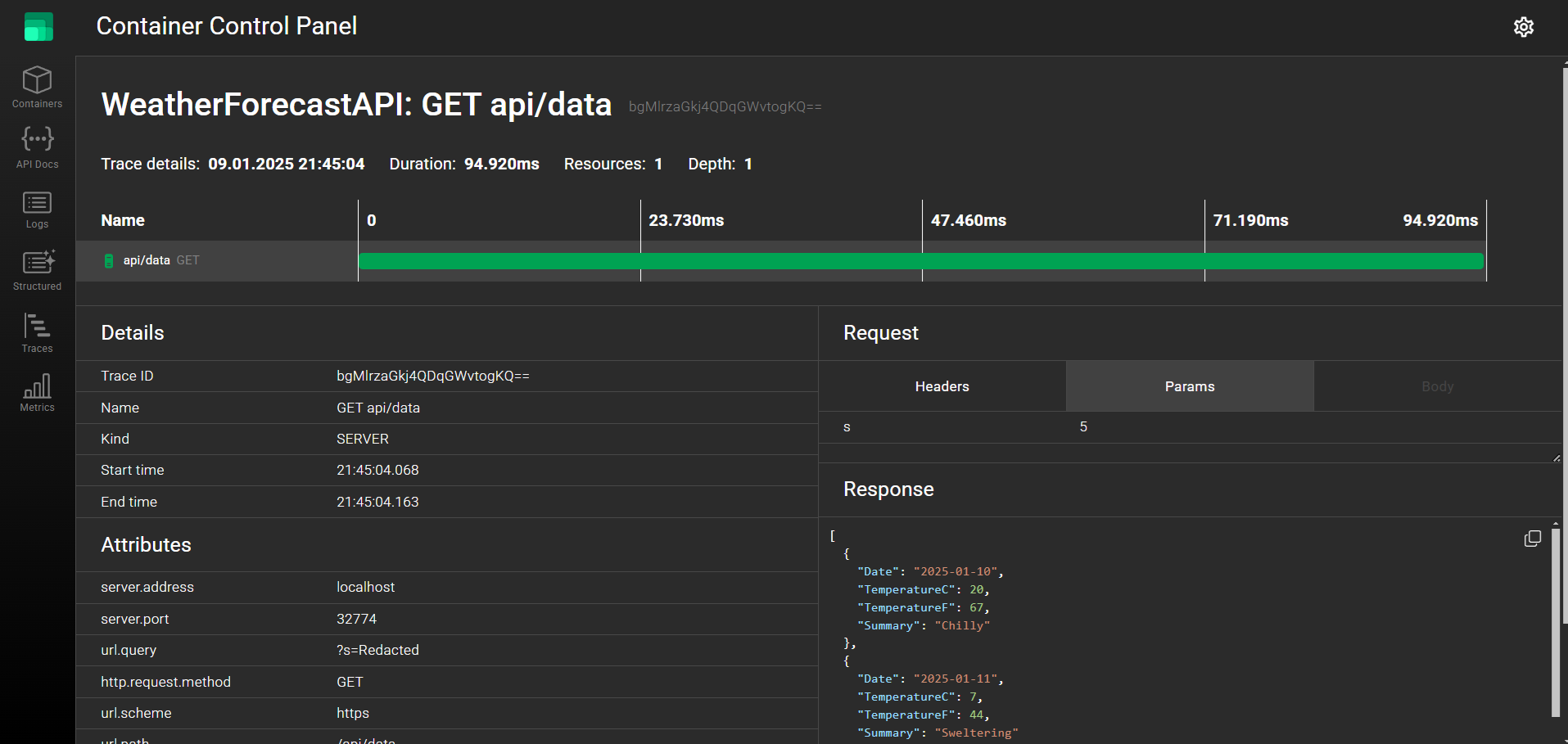

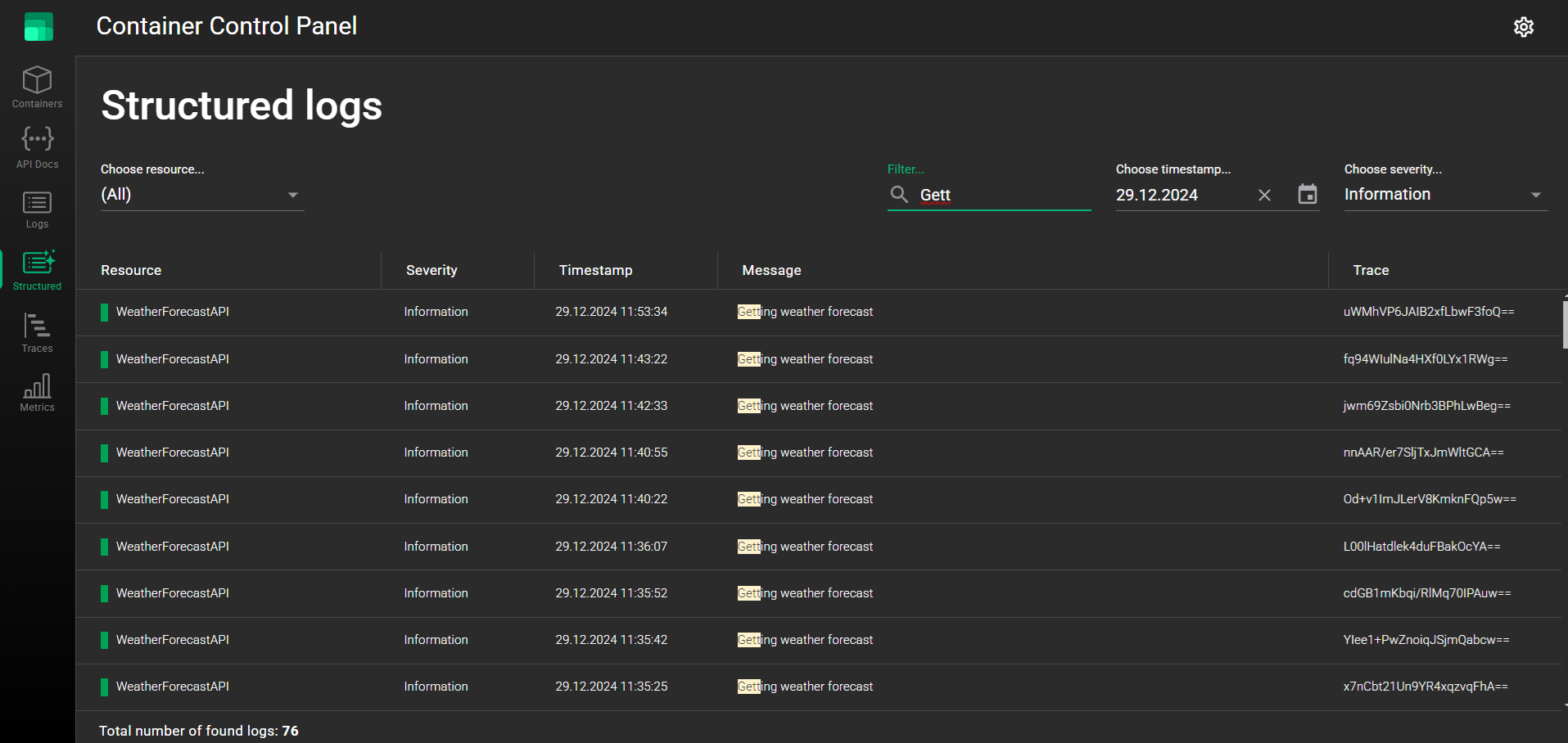

Screenshots
