Release 1.0

Triquetra V1.0

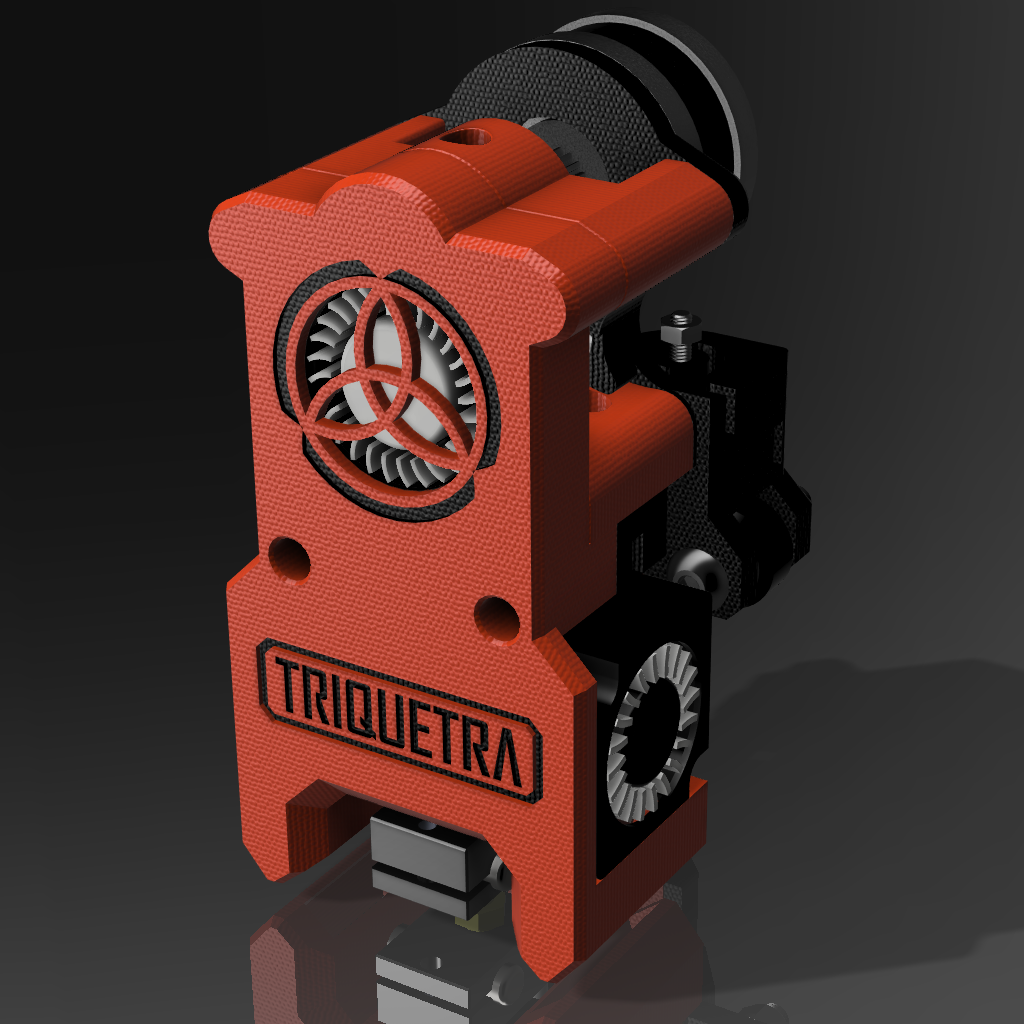

Version 1.0 of the Triquetra tool head.

Currently for V-Wheels on V-Slots for MGN version to come

Beta Release 1.1

Beta Release 1.1

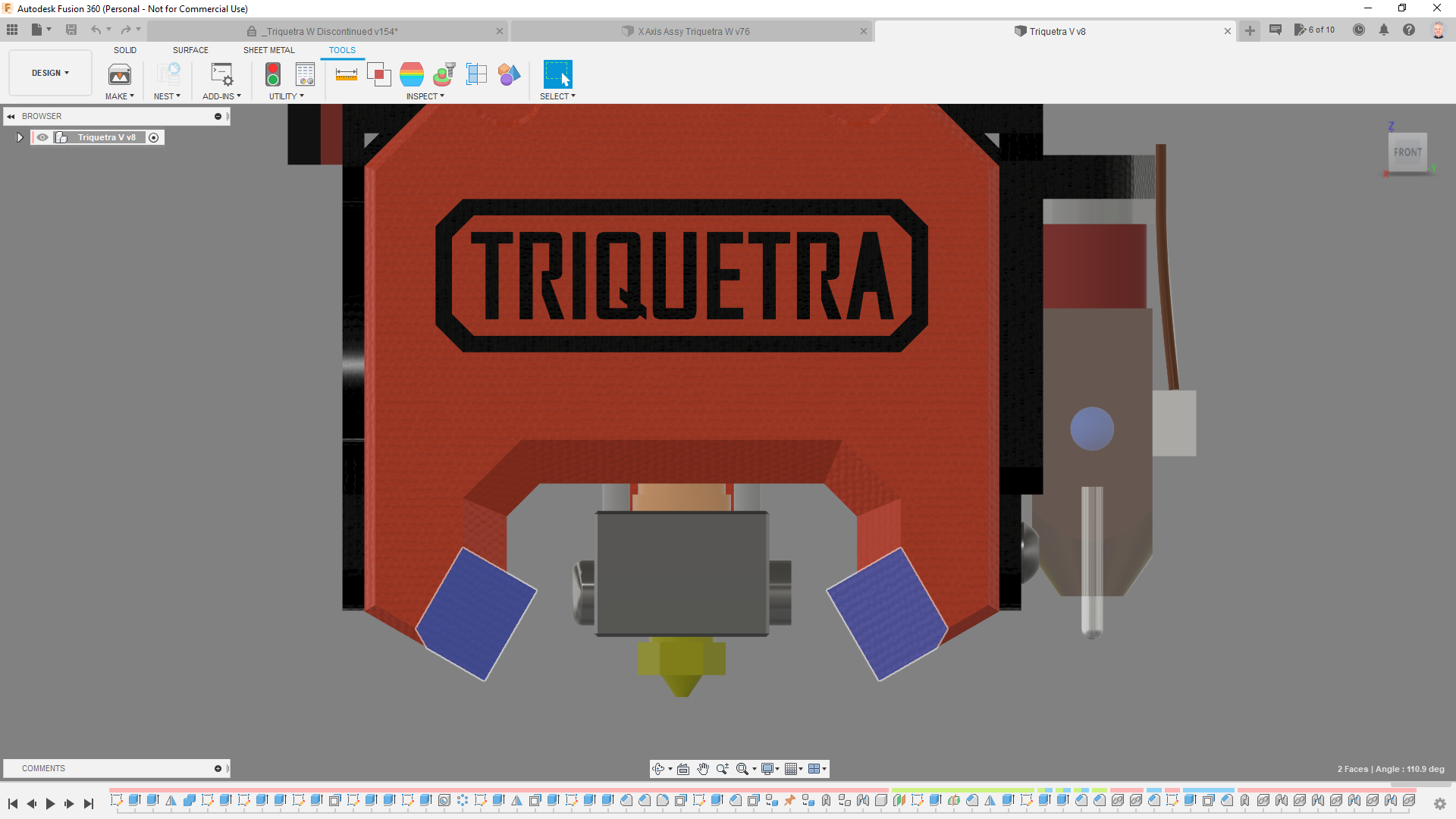

• Updated part cooling fan shrouds for better cooling of print.
• Small changes to the side buddys

Beta Release 1.0

TRIQUETRA TOOLHEAD PUBLIC BETA RELEASE

If you want to support the development - consider becoming a patreon or supporting buying a coffee:
https://www.buymeacoffee.com/pro3d
https://www.patreon.com/pro3d

Assembly instructions and print instructions to come. Print instructions are important to get proper tolerances. You need a well calibrated machine
Wall Lines: 0.5x4
Layer Height: 0.2 for all layers
Speed: 20-60 depending on how good your machine is... Slower is more precise
Material: CPE or PETG or something high TG (temperature tolerant)

Mjølnir NEMA 14 motor: https://s.click.aliexpress.com/e/_9jtVG0
Mjølnir Gear set: https://s.click.aliexpress.com/e/_9jXj9w
Triquetra Coldend Fan: https://s.click.aliexpress.com/e/_AqCZdw
Triquetra Part Fans: https://s.click.aliexpress.com/e/_AYxBUu
Triquetra Hotend - TL Dragon: https://s.click.aliexpress.com/e/_9RBaKu
