Securing AWS S3 with Terraform

Introduction

In today's cloud-driven world, security is paramount. As part of my journey into DevSecOps, I embarked on a project to secure an AWS S3 bucket using Terraform while ensuring compliance with security best practices. This documentation highlights the steps taken, challenges faced, and lessons learned along the way.

Tech Stack

• Terraform: Infrastructure as Code (IaC) tool
• AWS S3: Object storage for secure data storage
• AWS KMS: Key Management Service for encryption
• AWS IAM: Identity and Access Management for security policies
• AWS CloudTrail & Logging: Audit and monitoring capabilities
• tfsec & checkov: Security scanning tools for Terraform
• GitHub Actions (Planned): Future integration for CI/CD security automation

Objectives

The primary goals of this project were to:

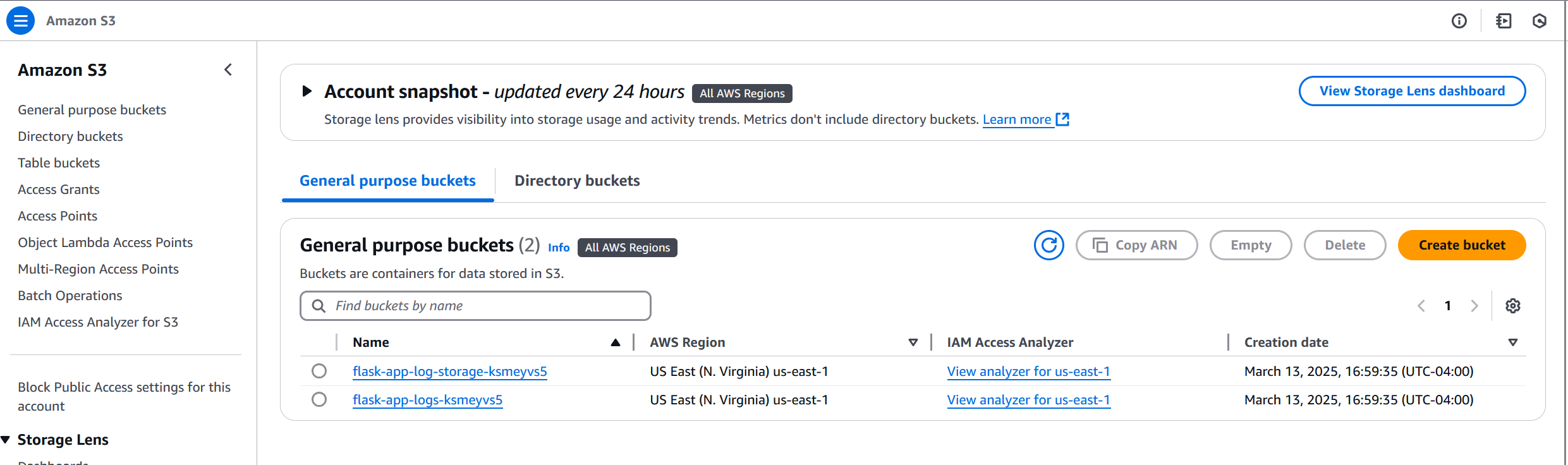

• Deploy a secure AWS S3 bucket using Terraform.
• Implement security measures such as encryption, logging, and access restrictions.
• Use security scanning tools (tfsec and checkov) to identify and remediate misconfigurations.
• Document the entire process for learning and sharing with others.

Initial Setup

To begin, I set up my environment with the following tools:

• AWS CLI configured with appropriate IAM permissions.
• Terraform (v1.0+).
• Security Scanning Tools: tfsec and checkov.

Implementing Security Measures

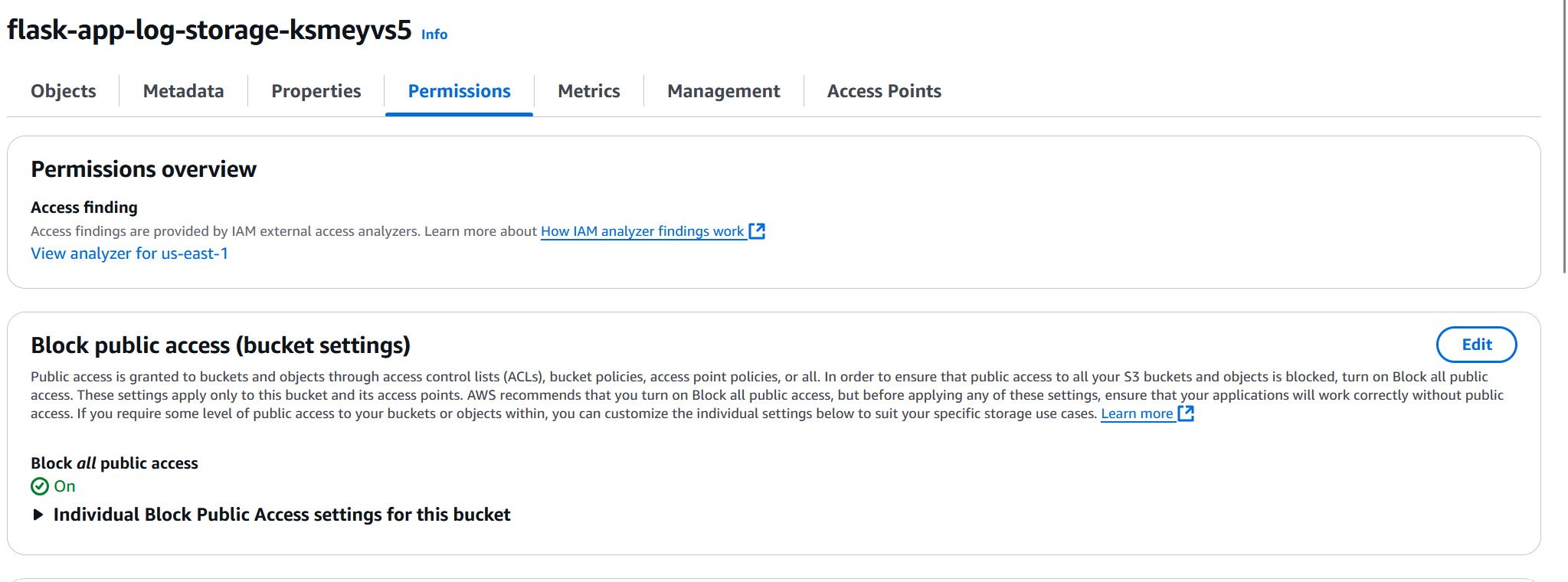

1. Blocking Public Access

To ensure that the S3 bucket and its objects were never exposed publicly, I implemented strict public access blocking policies:

resource "aws_s3_bucket_public_access_block" "secure_bucket" {
  bucket                  = aws_s3_bucket.secure_bucket.id
  block_public_acls       = true
  block_public_policy     = true
  ignore_public_acls      = true
  restrict_public_buckets = true
}

2. Enabling Encryption

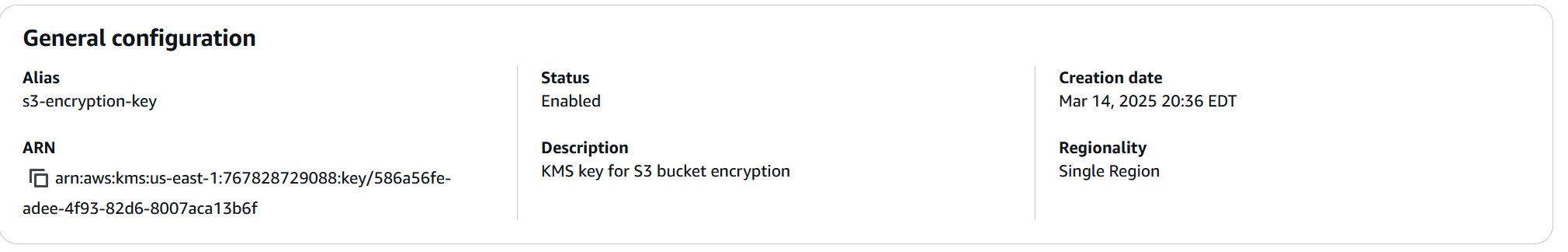

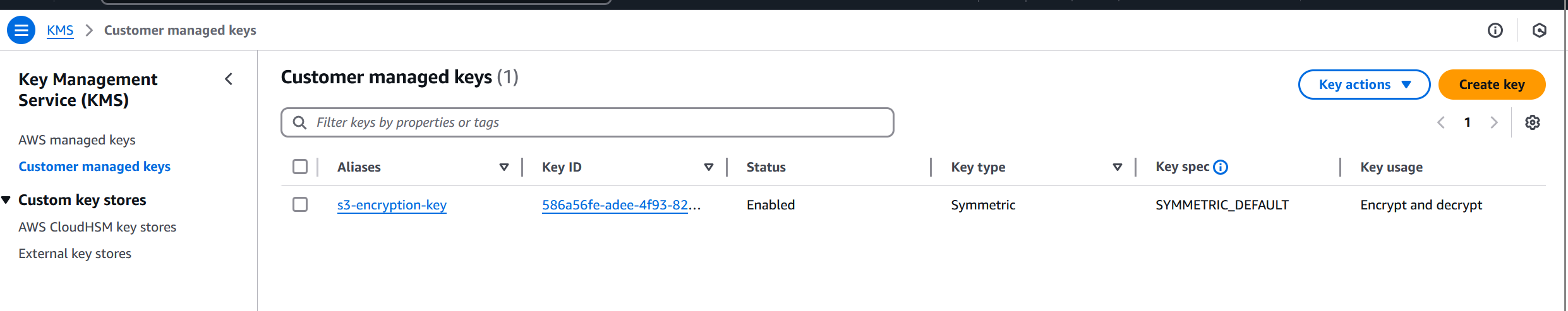

To protect data at rest, I enforced server-side encryption using AWS KMS:

resource "aws_kms_key" "s3_key" {
  description         = "KMS key for S3 encryption"
  enable_key_rotation = true
}

This ensured that all stored data was encrypted using a customer-managed key.

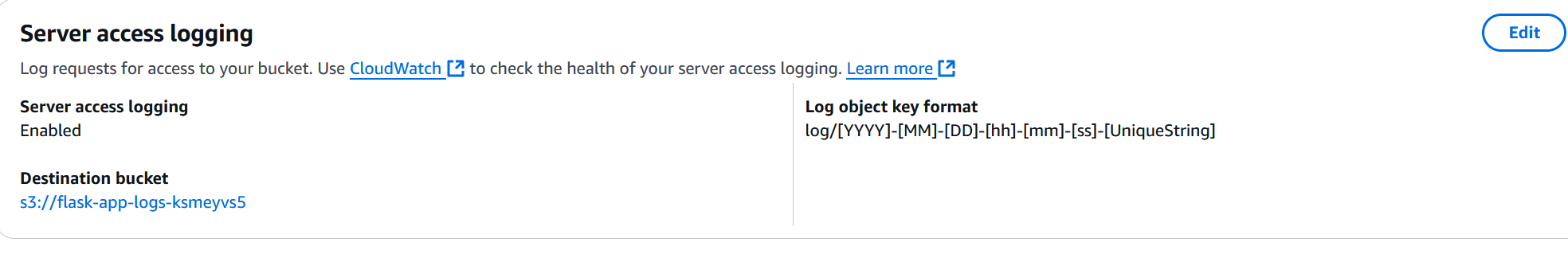

3. Enabling Logging for Auditability

To maintain an audit trail of bucket access, I enabled logging:

resource "aws_s3_bucket_logging" "logging" {
  bucket        = aws_s3_bucket.secure_bucket.id
  target_bucket = aws_s3_bucket.log_bucket.id
  target_prefix = "log/"
}

Logging provides valuable insights into access patterns and potential security threats.

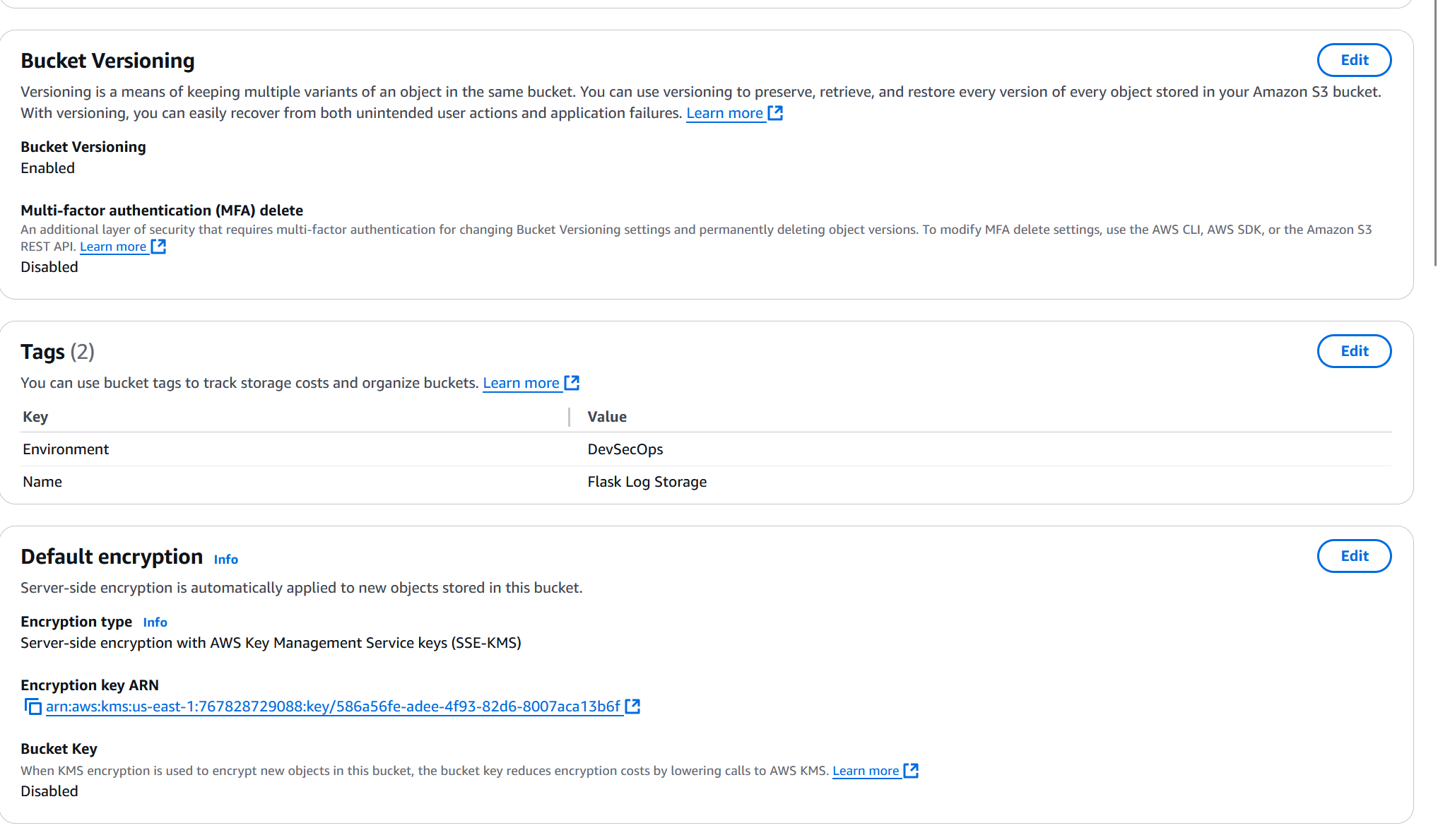

4. Enabling Versioning

Versioning was enabled to preserve object history and recover from accidental deletions:

resource "aws_s3_bucket_versioning" "versioning" {
  bucket = aws_s3_bucket.secure_bucket.id
  versioning_configuration {
    status = "Enabled"
  }
}

Security Scanning & Remediation

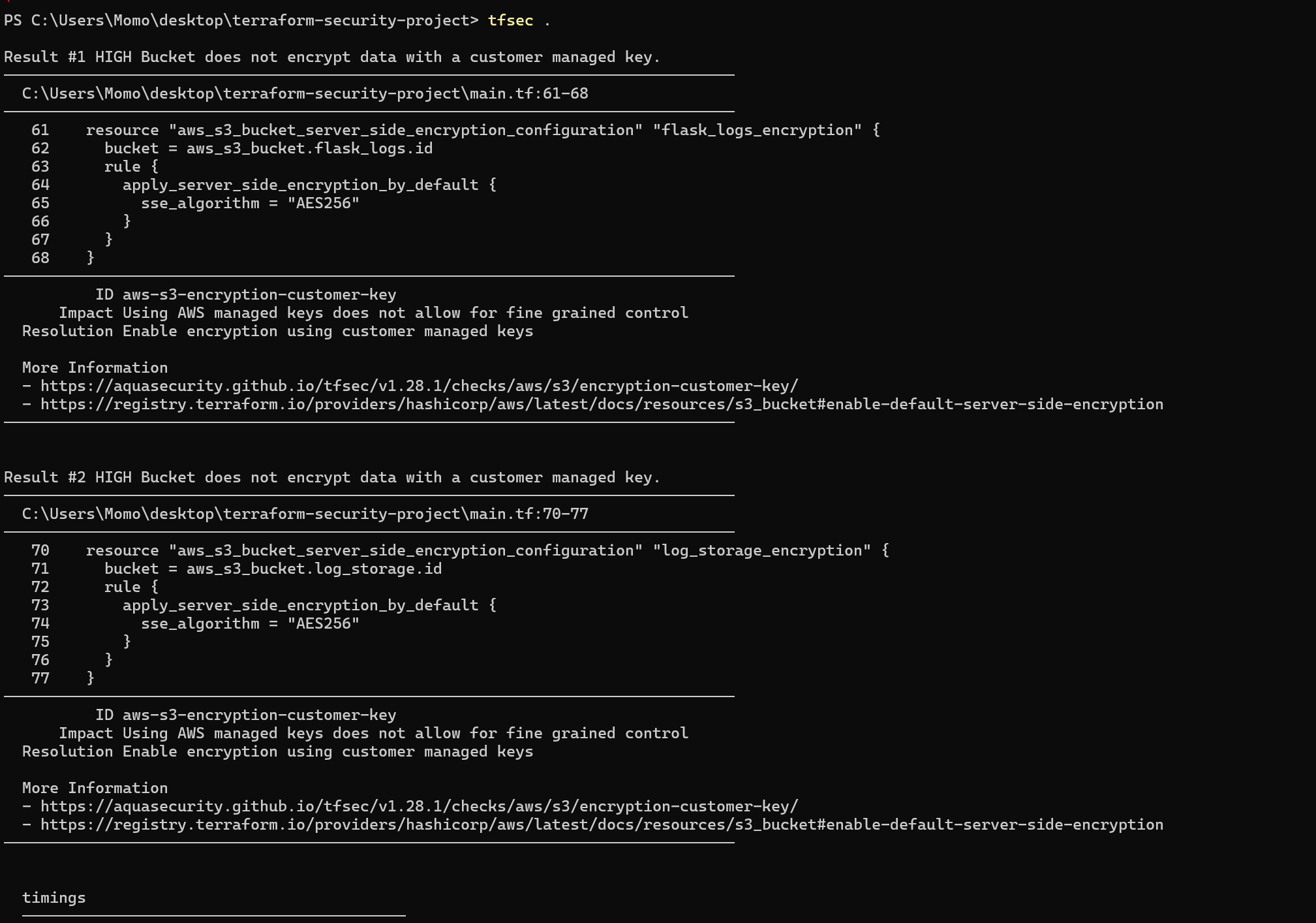

1. Running tfsec

To scan Terraform configurations for security vulnerabilities, I used tfsec:

tfsec .

Initially, it detected missing encryption settings, which I addressed by ensuring that all S3 buckets were encrypted using KMS.

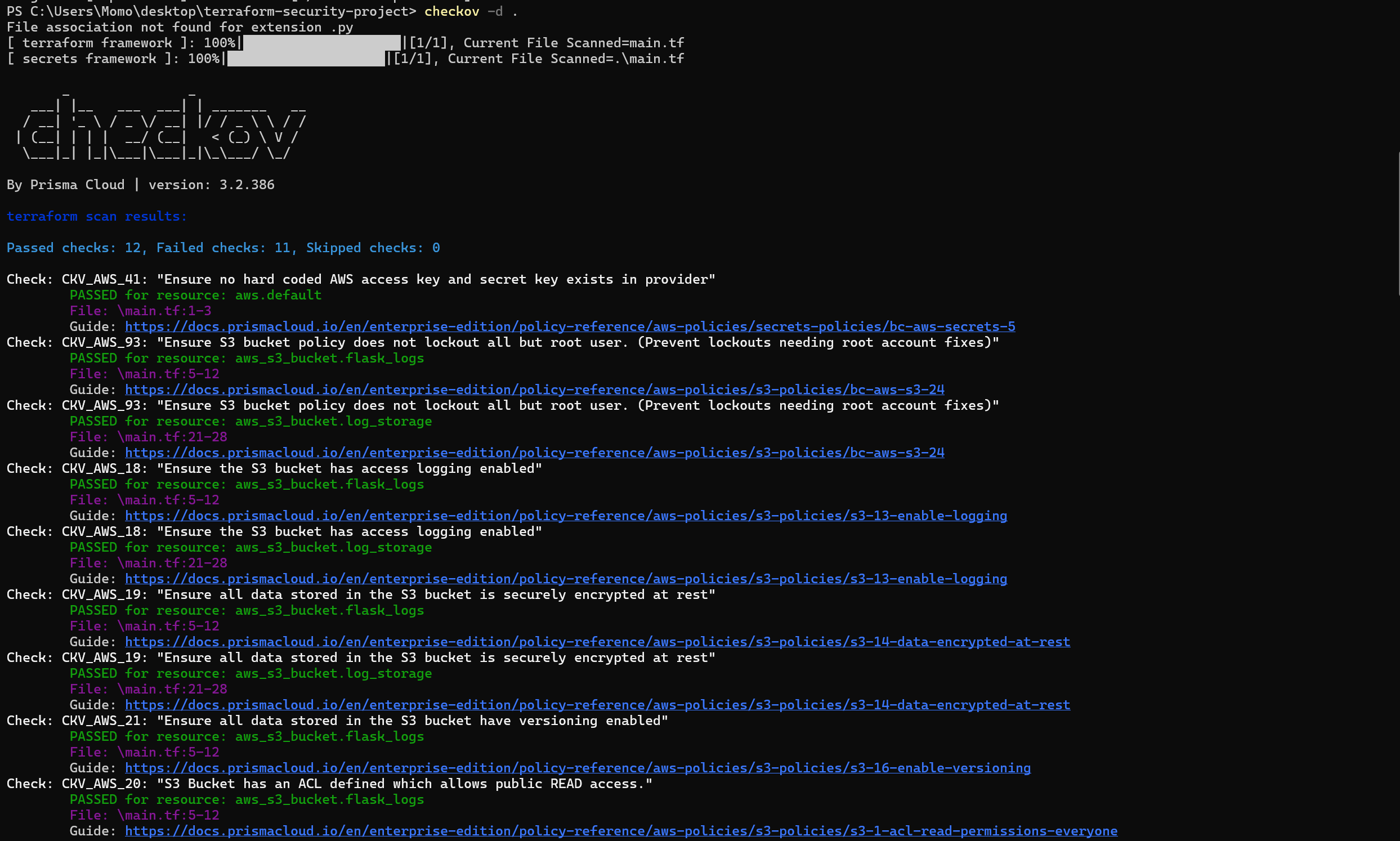

2. Running checkov

I also ran checkov to validate compliance against security best practices:

checkov -d .

This tool flagged improper access controls, which I resolved by enforcing stricter policies.

Challenges Faced & Solutions

1. Duplicate Terraform Resources

• Issue: Initially, I had multiple declarations of resources such as aws_kms_key and aws_s3_bucket_public_access_block.
• Solution: Cleaned up duplicate resources and ensured uniqueness across Terraform configurations.

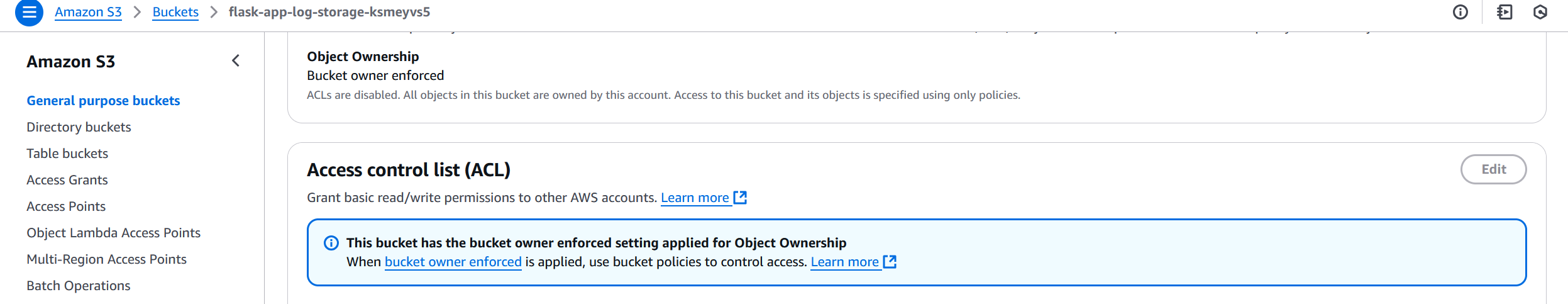

2. Public Access Misconfigurations

• Issue: Some configurations did not correctly restrict public access.
• Solution: Explicitly defined block_public_acls, block_public_policy, and verified changes via the AWS Console.

3. State Management Conflicts

• Issue: Changes made outside of Terraform caused state inconsistencies.
• Solution: Ensured all changes were made via Terraform and ran terraform refresh when necessary.

4. Security Scans Reporting Issues

• Issue: tfsec and checkov flagged missing encryption and access misconfigurations.
• Solution: Implemented AWS KMS encryption and refined access policies.

Final Outcome

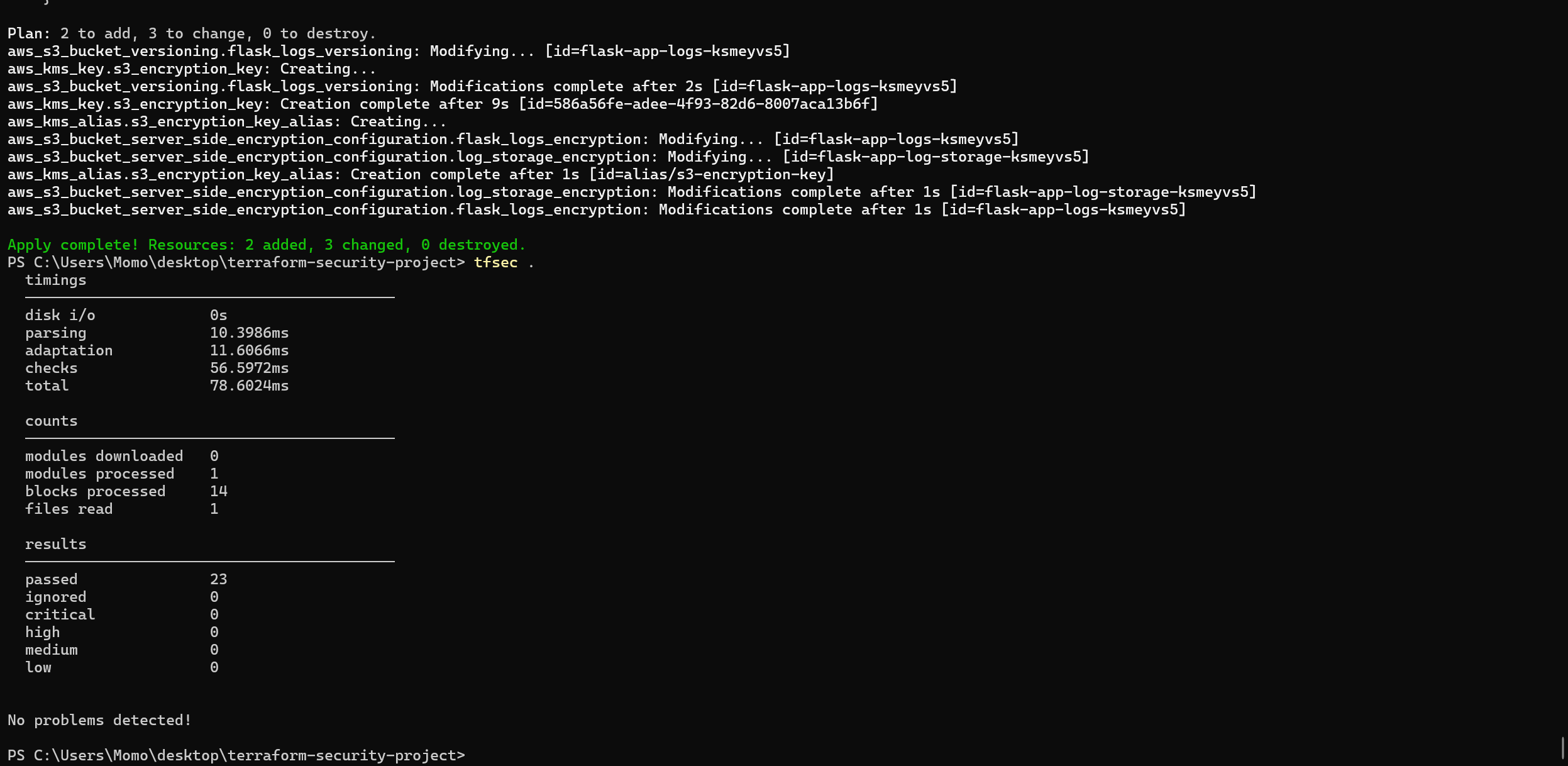

After addressing all detected security vulnerabilities, I achieved: ✅ Fully secured S3 bucket with encryption, logging, and access restrictions. ✅ Successful security scans with no reported issues. ✅ Documented best practices for securing cloud storage using Terraform.

Conclusion

This project demonstrated the importance of Infrastructure as Code (IaC) in enforcing security best practices. By leveraging Terraform, tfsec, and checkov, I was able to proactively secure AWS S3 while following compliance standards.

This journey reinforced my skills in DevSecOps, cloud security, and Terraform troubleshooting, preparing me for more advanced security projects.
