[Tabs] Disclosure activator vertical misalignment #2086

@rexmac

Description

@rexmac

Issue summary

In contrast to Polaris-Tabs__Tab, which is styled with display: block, Polaris-Tabs__DisclosureActivator is currently styled with display: inline-block. This causes extra whitespace to be added above and below the element which messes up the alignment of the hover/selected indicator as shown in the screenshots below.

Expected behavior

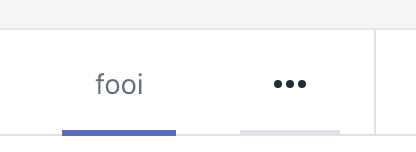

Screen Shot 2019-09-05 at 15 07 31

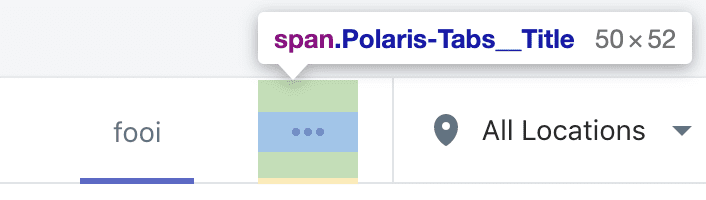

Screen Shot 2019-09-05 at 15 07 24

Actual behavior

Extra whitespace below tabs' active and hover indicators

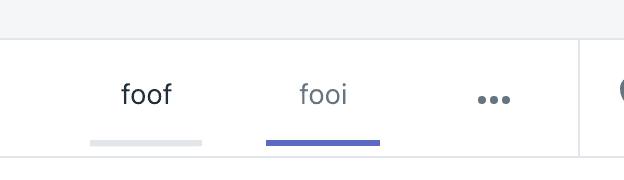

Screen Shot 2019-09-05 at 15 06 38

Misalignment of disclosure activator's hover indicator

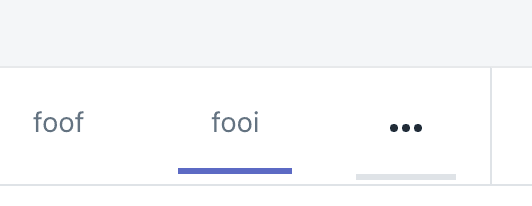

Screen Shot 2019-09-05 at 15 06 45

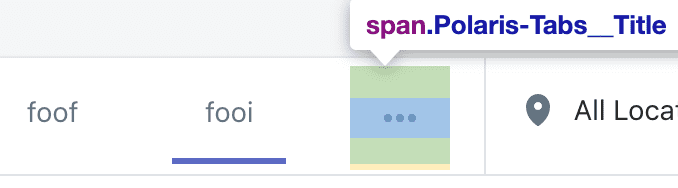

Screen Shot 2019-09-05 at 15 07 07

Steps to reproduce the problem

  1. Use the Polaris <Tabs> component.
  2. Add enough tabs to trigger the display of the Polaris-Tabs__DisclosureActivator button.

Reduced test case

https://codesandbox.io/s/shopify-polaris-react-typescript-playground-tzxms

Specifications

  System:
    OS: macOS 10.14.6
    CPU: x64 Intel(R) Core(TM) i7-7700HQ CPU @ 2.80GHz
    Memory: 609.73 MB / 16.00 GB
    Shell: 5.3 - /bin/zsh
  Binaries:
    Node: 10.11.0 - ~/.nvm/versions/node/v10.11.0/bin/node
    Yarn: 1.12.3 - ~/.dev/yarn/1.12.3/bin/yarn
    npm: 6.4.1 - ~/.nvm/versions/node/v10.11.0/bin/npm
    Watchman: 4.9.0 - /usr/local/bin/watchman
  Browsers:
    Chrome: 76.0.3809.132
    Firefox: 67.0
    Safari: 12.1.2
  npmPackages:
    @shopify/polaris: 4.1.0 => 4.1.0
    react: 16.9.0-alpha.0 => 16.9.0-alpha.0
    react-dom: 16.9.0-alpha.0 => 16.9.0-alpha.0
