The web application is written in React App using libraries: React-Bootstrap & React-Bootstrap-Router for connecting ready-made styles and routing between charts, and the react-chartjs-2 library, which was engaged in drawing charts. The project uses a class of components that help structure the project for readability.

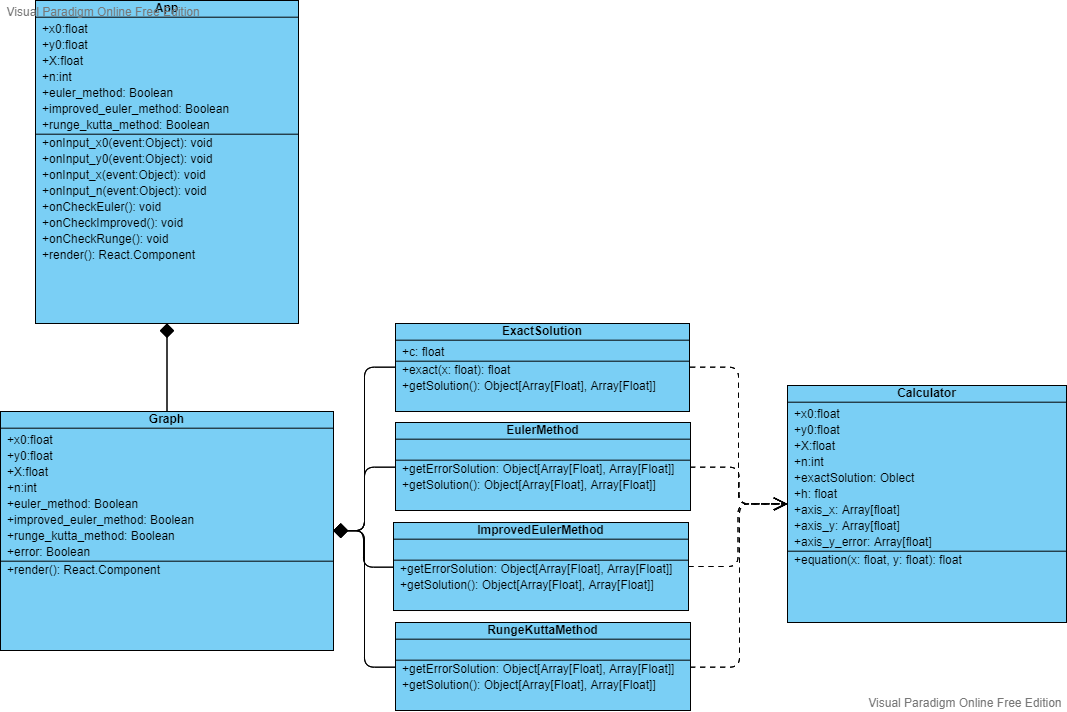

Main class component to build a structure of the web application.
class App extends Component {
state = {
"x0": Math.PI,
"y0": 2,
"X": 5 * Math.PI,
"n": 20,
"euler_method": true,
"improved_euler_method": false,
"runge_kutta_method": false,
}
onInput_x0 = (event) => {}
onInput_y0 = (event) => {}
onInput_x = (event) => {}
onInput_n = (event) => {}
onCheckEuler = () => {}
onCheckImproved = () => {}
onCheckRunge = () => {}
render() {}
}Main core to draw charts

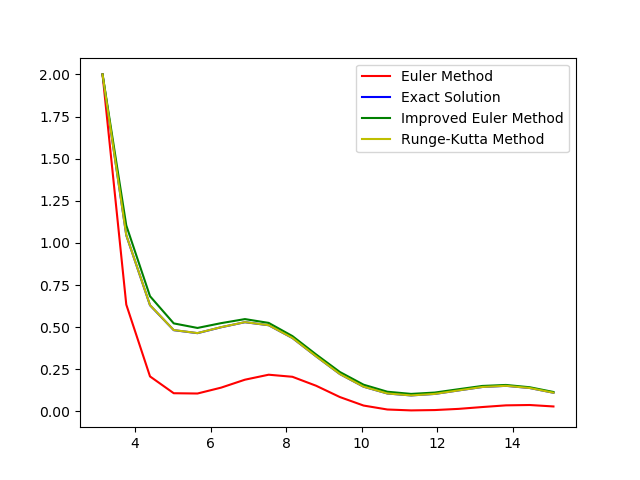

class Graph extends Component {
constructor(props) {
super(props);
}
render() {
let {x0, y0, X, n, euler_method, improved_euler_method, runge_kutta_method} = this.props.data;
let error = this.props.error;
let exactSolution = new ExactSolution(x0, y0, X, n);
let exa = exactSolution.getSolution();
let euler = new EulerMethod(x0, y0, X, n, exa);
let improved = new ImprovedEulerMethod(x0, y0, X, n, exa);
let rungeKutta = new RungeKuttaMethod(x0, y0, X, n, exa)
const data = {
labels: euler.axis_x,
datasets: []
}
if (euler_method) {
let res = error ? euler.getErrorSolution() : euler.getSolution();
let plot = {
data: res.y,
label: "Euler method",
fill: false,
backgroundColor: 'rgb(255, 99, 132)',
borderColor: 'rgba(255, 99, 132, 0.2)',
}
data.datasets.push(plot);
}
if (improved_euler_method) {
let res = error ? improved.getErrorSolution() : improved.getSolution();
let plot = {
data: res.y,
label: "Improved Euler method",
fill: false,
backgroundColor: 'rgb(255, 0, 255)',
borderColor: 'rgba(255, 0, 255, 0.2)',
}
data.datasets.push(plot);
}
if (runge_kutta_method) {
let res = error ? rungeKutta.getErrorSolution() : rungeKutta.getSolution();
let plot = {
data: res.y,
label: "Runge-Kutta method",
fill: false,
backgroundColor: 'rgb(0, 0, 255)',
borderColor: 'rgba(0, 0, 255, 0.2)',
}
data.datasets.push(plot);
}
if (!error) {
data.datasets.push({
data: exa.y,
label: "Exact Solution",
fill: false,
backgroundColor: 'rgb(0, 155, 132)',
borderColor: 'rgba(0, 155, 132, 0.2)',
})
}
return (
<Line data={data}/>
)
}
}The main class of computations for processing methods and obtaining method solutions for DE.
class Calculator {
constructor(x0, y0, x, n, exactSolution) {
this.x0 = x0;
this.y0 = y0;
this.x = x;
this.n = n;
this.exactSolution = exactSolution
this.h = (x - x0) / n;
this.axis_x = [x0];
this.axis_y = [y0];
this.axis_y_error = [];
for (let i = 1; i < n; i++) {
this.axis_x.push(this.axis_x[i-1] + this.h);
}
}
equation = (x, y) => {
return 2 * Math.pow(y, 0.5) * Math.cos(x) / x - 2 * y / x;
}
}Calculator inherited class implemented to apply Euler's Method.
EulerMethod extends Calculator {
constructor(x0, y0, x, n, exactSolution) {
super(x0, y0, x, n, exactSolution);
}
getSolution = () => {
for (let i = 0; i < this.n - 1; i++) {
let x = this.axis_x[i];
let y = this.axis_y[i];
let y_new = y + this.h * this.equation(x, y);
this.axis_y.push(y_new);
}
return {
x: this.axis_x,
y: this.axis_y
}
}

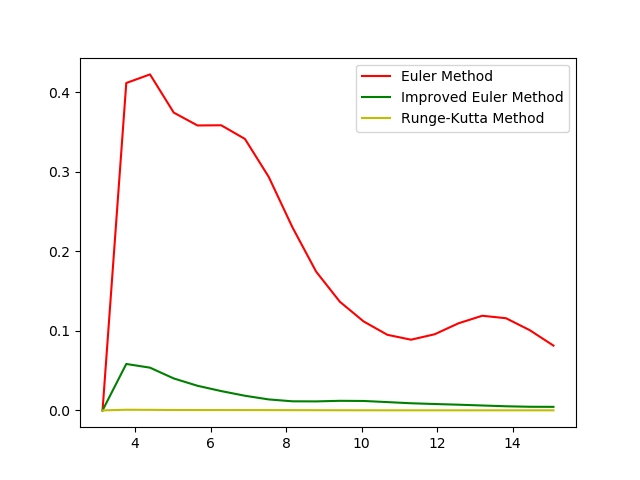

getErrorSolution = () => {
let res = this.getSolution();
for (let i = 0; i < this.n; i++) {
this.axis_y_error.push(Math.abs(this.exactSolution.y[i] - res.y[i]));
}
return {
x: this.axis_x,
y: this.axis_y_error
}
}
}Calculator inherited class implemented to apply Improved Euler's Method.
ImprovedEulerMethod extends Calculator {
constructor(x0, y0, x, n, exactSolution) {
super(x0, y0, x, n, exactSolution);
}
getSolution = () => {
for (let i = 0; i < this.n - 1; i++) {
let x = this.axis_x[i];
let y = this.axis_y[i];
let k1 = this.equation(x, y);
let k2 = this.equation(x + this.h, y + this.h * k1);
let y_new = y + this.h * (k1 + k2) / 2;
this.axis_y.push(y_new);
}
return {
x: this.axis_x,
y: this.axis_y
}
}
getErrorSolution = () => {
let res = this.getSolution();
for (let i = 0; i < this.n; i++) {
this.axis_y_error.push(Math.abs(this.exactSolution.y[i] - res.y[i]));
}
return {
x: this.axis_x,
y: this.axis_y_error
}
}
}A class inherited from Calculator is implemented to use the Runge-Kutta Method.
RungeKuttaMethod extends Calculator {
constructor(x0, y0, x, n, exactSolution) {
super(x0, y0, x, n, exactSolution);
}
getSolution = () => {
for (let i = 0; i < this.n - 1; i++) {
let x = this.axis_x[i];
let y = this.axis_y[i];
let k1 = this.equation(x, y);
let k2 = this.equation(x + this.h / 2, y + this.h * k1 / 2);
let k3 = this.equation(x + this.h / 2, y + this.h * k2 / 2);
let k4 = this.equation(x + this.h, y + this.h * k3);
let y_new = y + this.h * (k1 + 2 * k2 + 2 * k3 + k4) / 6;
this.axis_y.push(y_new);
}
return {
x: this.axis_x,
y: this.axis_y
}
}
getErrorSolution = () => {
let res = this.getSolution();
for (let i = 0; i < this.n; i++) {
this.axis_y_error.push(Math.abs(this.exactSolution.y[i] - res.y[i]));
}
return {
x: this.axis_x,
y: this.axis_y_error
}
}
}A class inherited from Calculator is implemented for using Exact Solution.
ExactSolution extends Calculator {
constructor(x0, y0, x, n) {
super(x0, y0, x, n, null);
this.c = x0 * Math.sqrt(y0) - Math.sin(x0);
}
exact = (x) => {
return Math.pow((Math.sin(x) + this.c),2) / Math.pow(x, 2);
}
getSolution = () => {
for (let i = 1; i < this.n; i++) {
let x = this.axis_x[i];
this.axis_y.push(this.exact(x));
}
return {
x: this.axis_x,
y: this.axis_y
}
}
}
