lws-esp32

Status

• Station mode provides the full lws test server on port 443 over htps, all working

• ESP32 becomes an AP and serves dynamic websocket-based scan / config page, so you can set up your AP and password. Initially comes up in this since the AP details are not set yet.

• Integration to new projects hugely simplified by moving common lws support code into lws directly. Non-library parts licensed are CC0.

Customizing to your build setup

0) Set the right serial device in menuconfig

1) Patch esp-idf

You can either use the already-patched esp-idf at

$ git clone --init --recursive https://github.com/lws-team/lws-esp-idf

or you can apply this patch to your own esp-idf

    Apply this patch on esp-idf, then


diff --git a/.gitmodules b/.gitmodules
index 6a6af0e..897992d 100644
--- a/.gitmodules
+++ b/.gitmodules
@@ -13,3 +13,7 @@
 [submodule "components/coap/libcoap"]
        path = components/coap/libcoap
        url = https://github.com/obgm/libcoap.git
+[submodule "components/libwebsockets"]
+       path = components/libwebsockets
+       url = https://git@github.com/warmcat/libwebsockets
+       branch=master
diff --git a/components/libwebsockets b/components/libwebsockets
new file mode 160000
index 0000000..3a09c3b
--- /dev/null
+++ b/components/libwebsockets
@@ -0,0 +1 @@
+Subproject commit 102d40e6b6486076f37a46708604ec387834f16c

and then do

     $ git submodules update --recursive

from the esp-idf

2) Partitioning the device

Clear down the partitioning since we write a custom table and the bootloader will choke if the OTA parts are not initialized like this

 $ make erase_flash

Writing the ROMFS to flash

A ROMFS contains the files to be served, stored at a partition at the end of the flash.

There's currently space for ~900KiB there.

The ROMFS is generated automatically from files in ./romfs-files every make.

Write it and update it in the flash like this:

 $ make all flash-romfs

General build and flash

 $ make all flash monitor

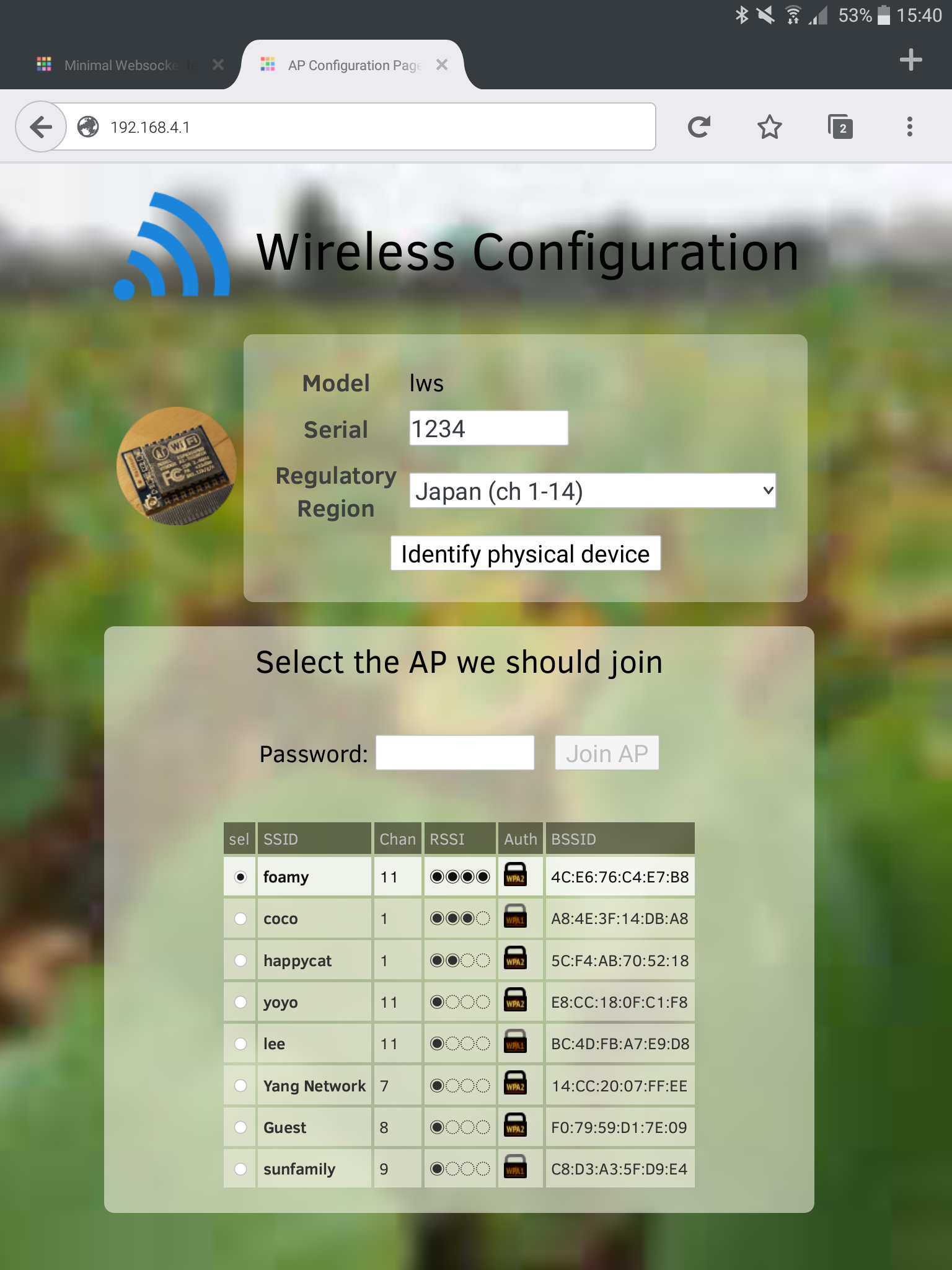

Using the AP config

• connect your wifi to the ap "lws-config-...."

• In a browser, go to https://192.168.4.1

• set a serial number, like 1234

• Select your normal AP from the list

• Give the AP password and click the button

• Your ESP32 resets into Station mode and associates with the AP

Using the lws test apps

See what IP your ESP32 got from your AP, the visit it in your browser using, eg https://192.168.2.249

If your dhcp server provides your dns, you can also reach the device using lws-serial, eg, https://lws-1234

• dumb increment should be updating at ~20Hz

• mirror should let you draw in the canvas... open a second browser instance and they should be able to see each other's drawings

• close testing should work

• server info should reflect browsers open on the site dynamically

• POST tests should pass the string and upload the file if one given
