Hardware Viewer

A cross-platform hardware viewer application inspired by Redmond. View hardware devices, drivers, and system resources on Linux, macOS, and Windows.

Features

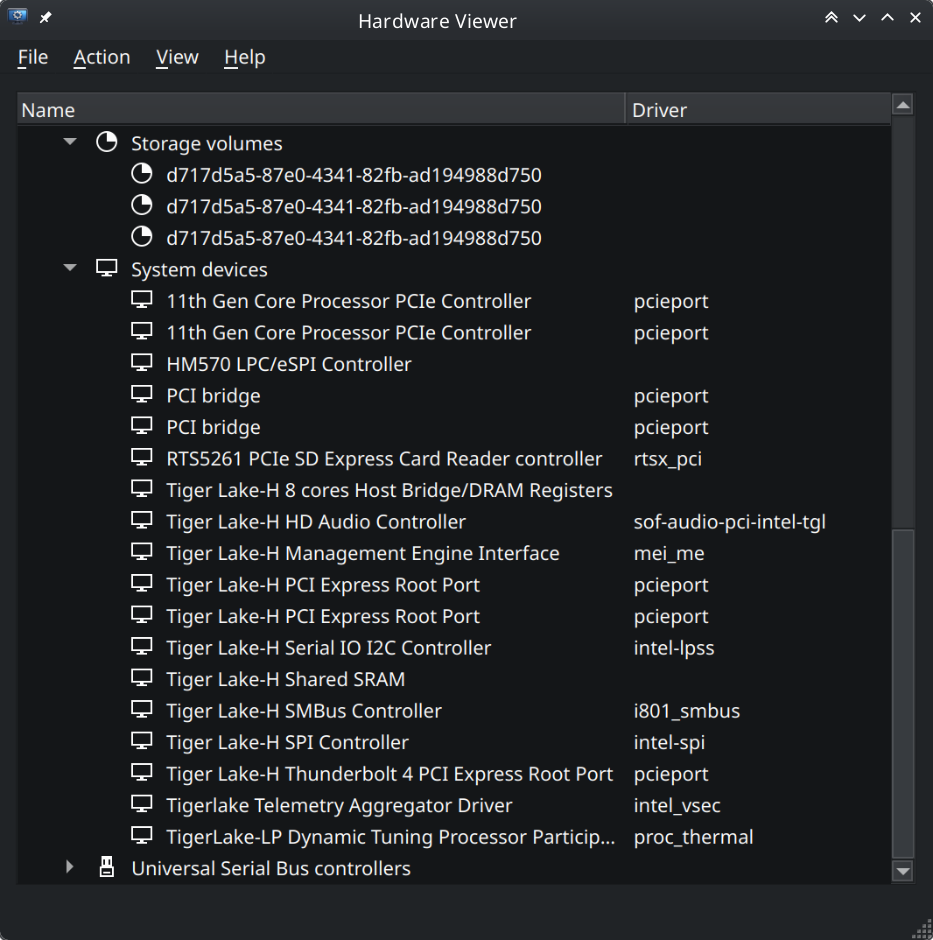

Multiple views

• Devices by type — categorised view with ability to show drivers in use.
• Devices by connection — hierarchical view showing the device tree.
• Devices by driver — devices grouped by their kernel driver.
• Drivers by type — drivers organised by device category.
• Drivers by device — drivers with their associated devices.
• Resources by type — flat view of system resources (IRQs, I/O ports, memory ranges, DMA channels).
• Resources by connection — resources shown in hierarchy.

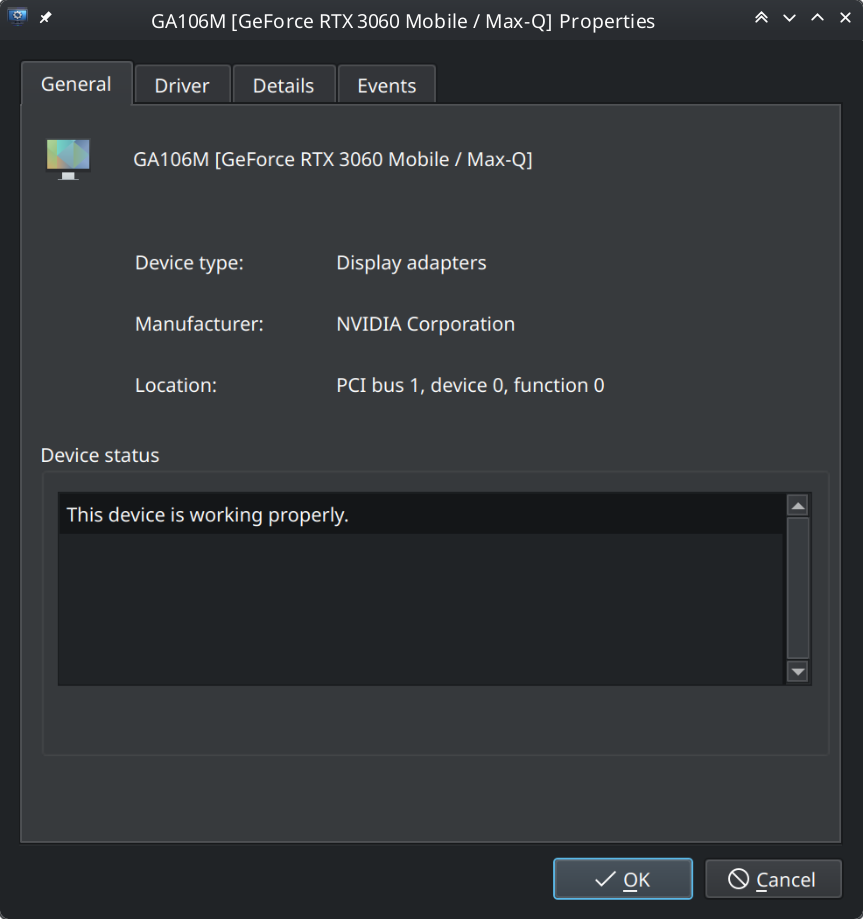

Device properties

Detailed information for each device including:

• General device information (type, manufacturer, location)
• Driver details (provider, version, digital signer, files)
• Device-specific properties (hardware IDs, compatible IDs, etc.)
• System events related to the device
• Hardware resources (IRQ, memory ranges, I/O ports)

Export and import

Save device information for later viewing or sharing.

Headless mode

Command-line export without GUI (build-time option).

Gallery

Building

Required dependencies:

• CMake at build time
• ECM at build time
• Qt 6.7 or later with Concurrency, Network, and Widgets components

In the cloned project:

mkdir build
cd build
cmake ..
make

On MacPorts, set the CMAKE_PREFIX_PATH variable to /opt/local/libexec/ffmpeg7;/opt/local/libexec/qt6.

Windows support

Support for Windows will be limited until Linux and macOS support are considered complete.
