DLSV2-443 Signposting parameters flow

[daniel-manta-hee]

JIRA link

https://hee-dls.atlassian.net/browse/DLSV2-443

Description

Developed multi-step flow for creating or updating learning resource parameters. User choices are stored in session and the application implements user friendly urls throgout the process.

Screenshots

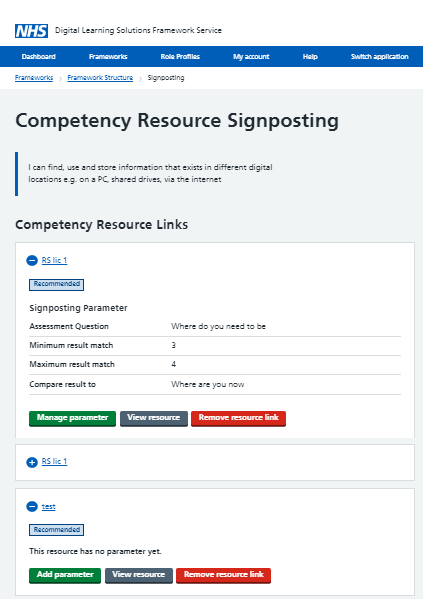

Select a resource and press Manage Parameter or Add

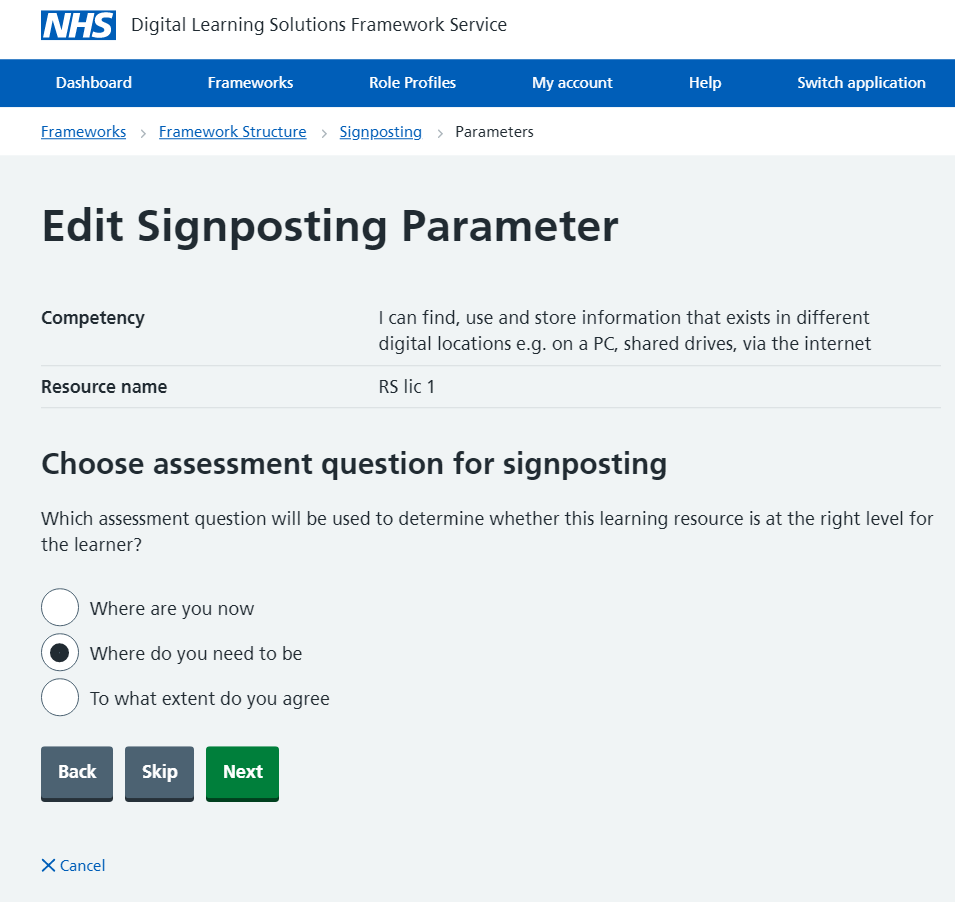

Depending on the chosen option, user is shown sliders or checkboxes in the next stage

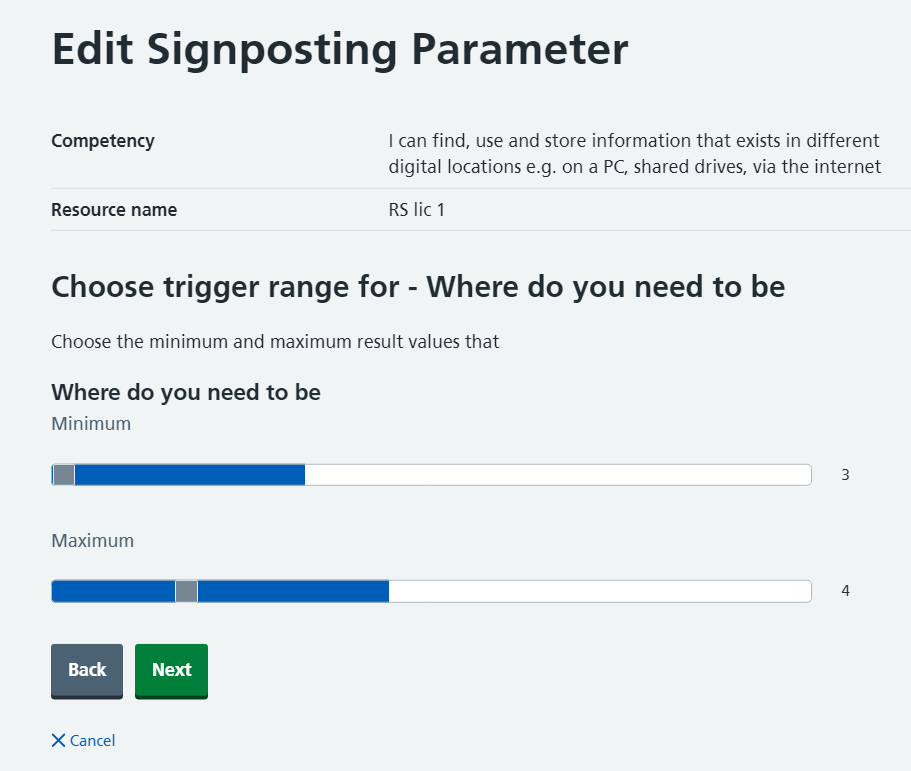

Select max and min values with sliders

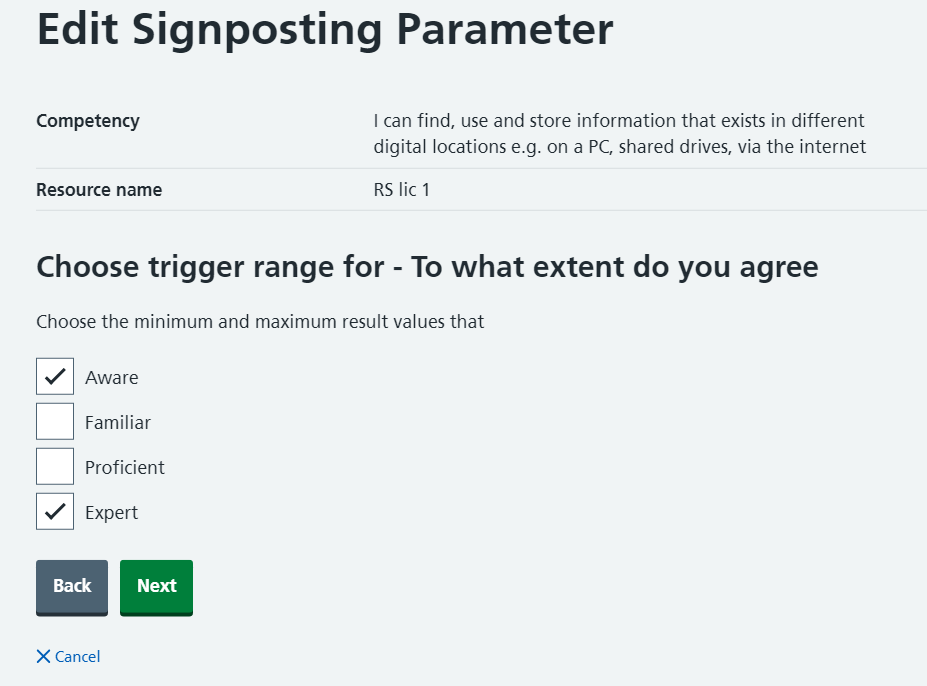

Select max and min values with checkboxes

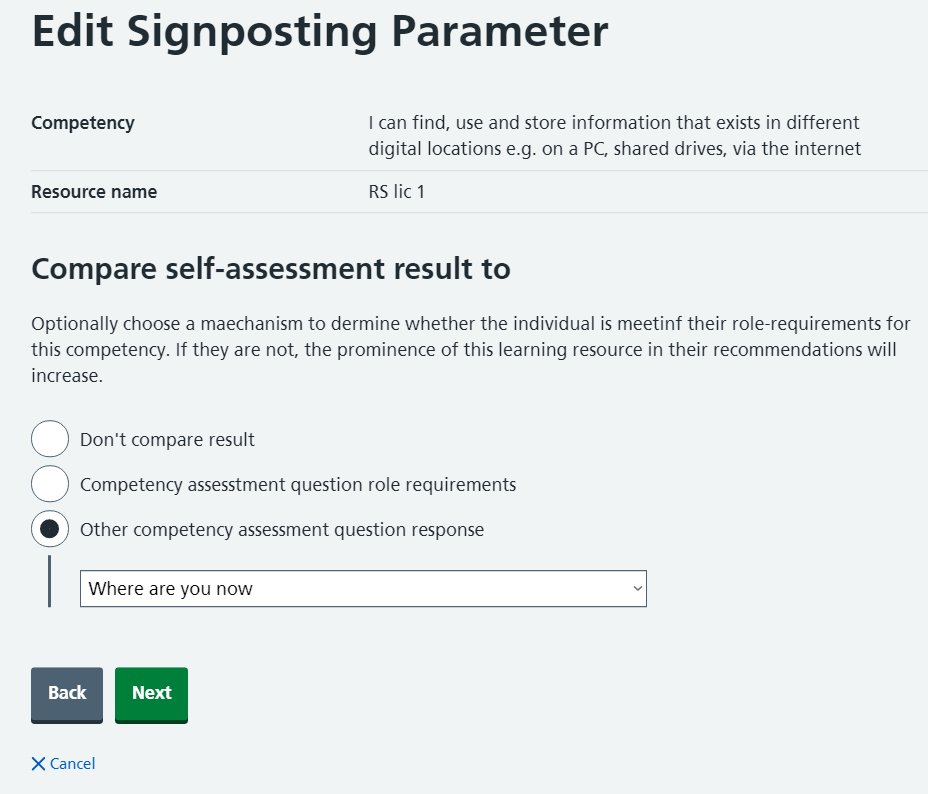

Select a compare result question

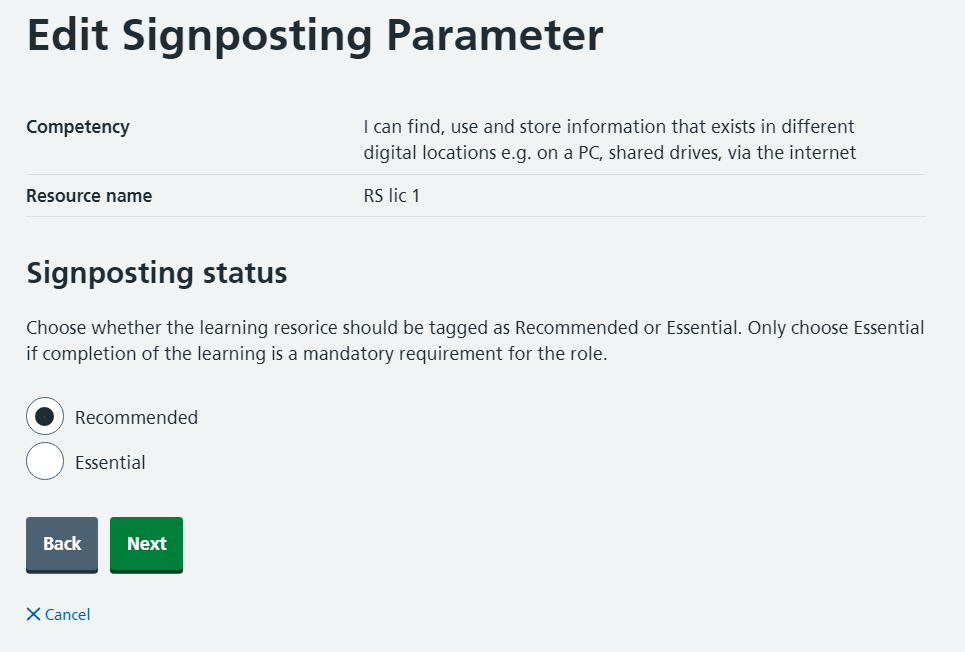

Parameter is essential or recommended

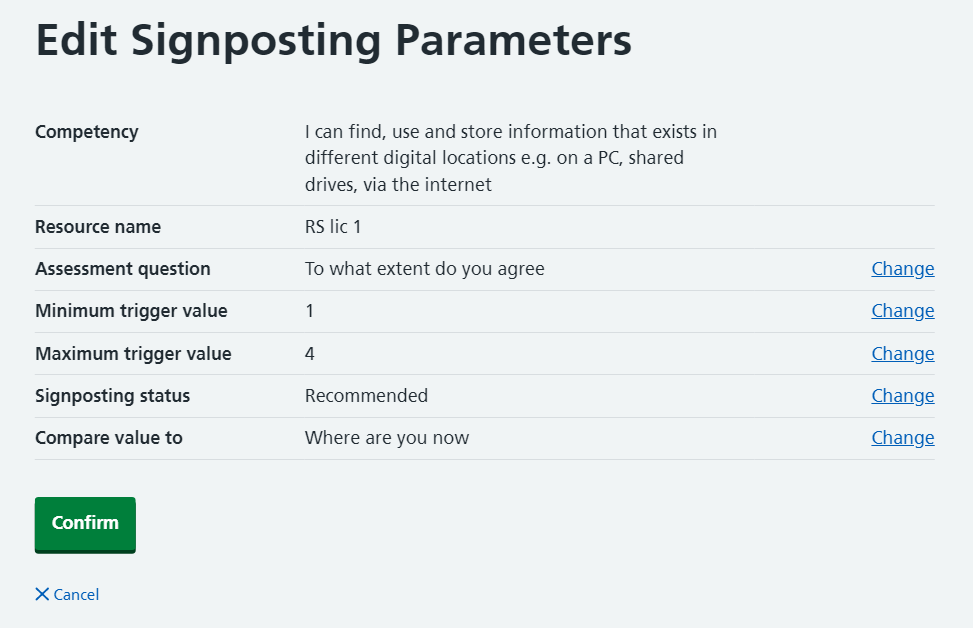

Final confirm form summary

---

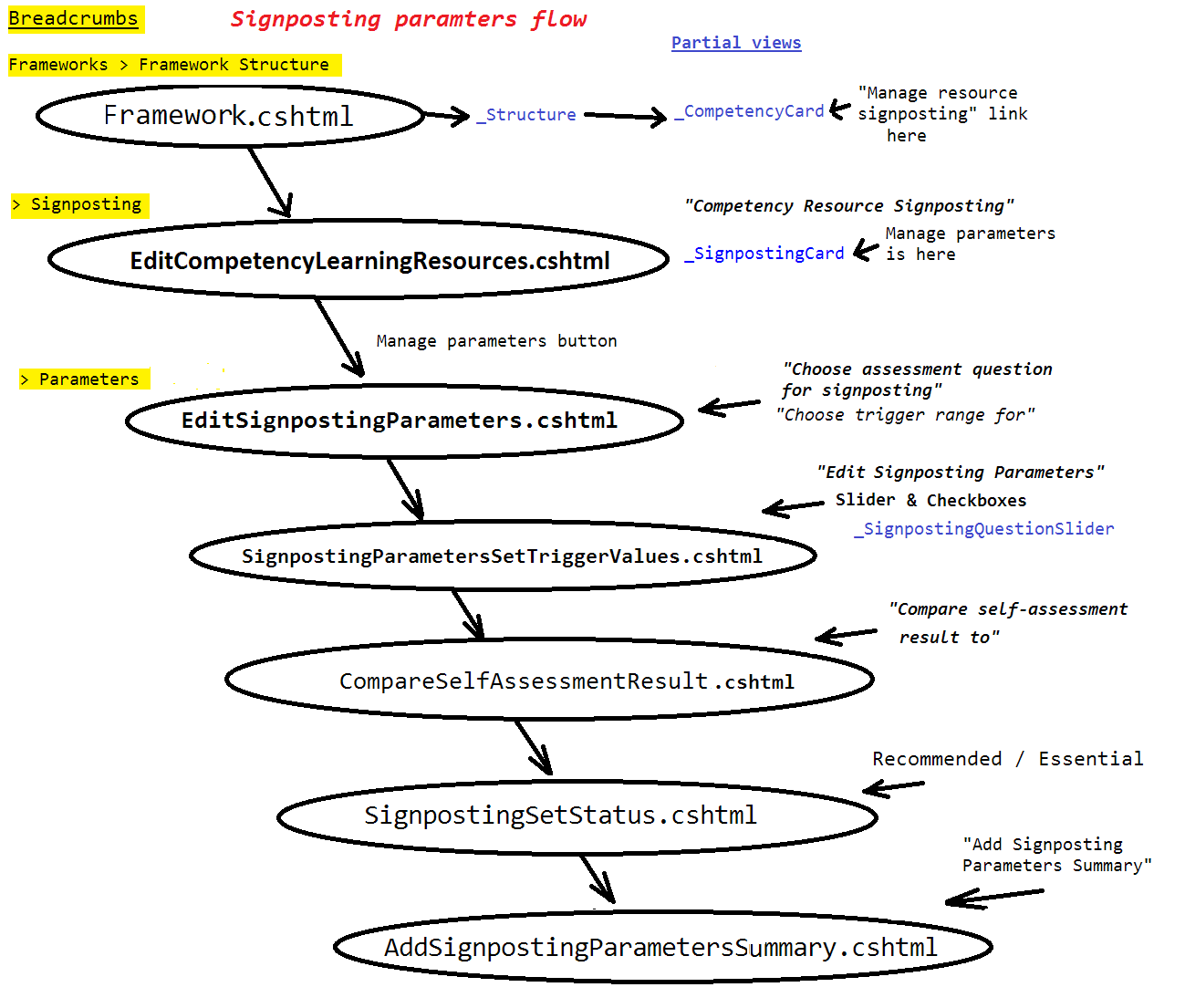

Flow and views involved

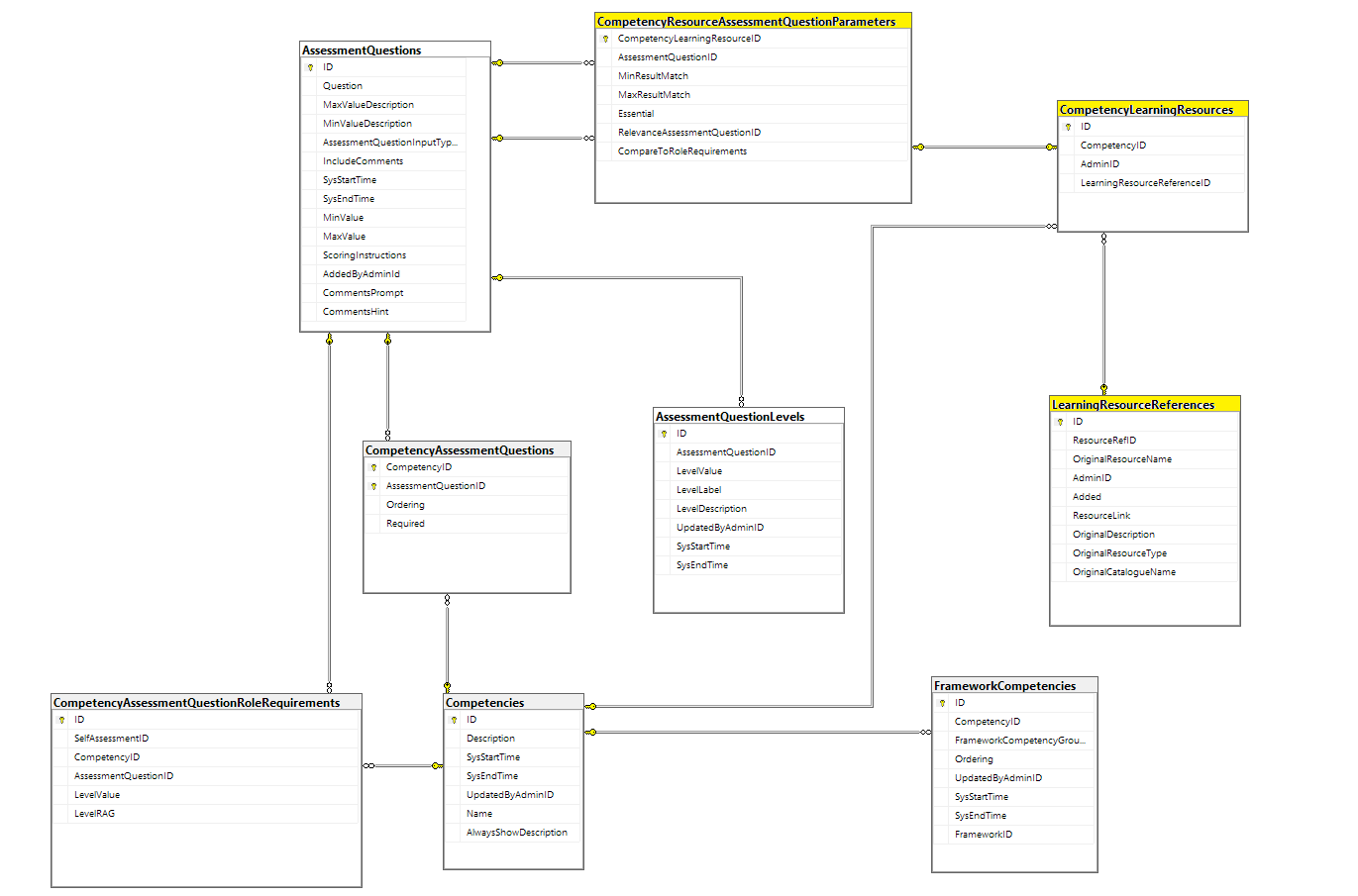

Most relevant tables in database and their relations

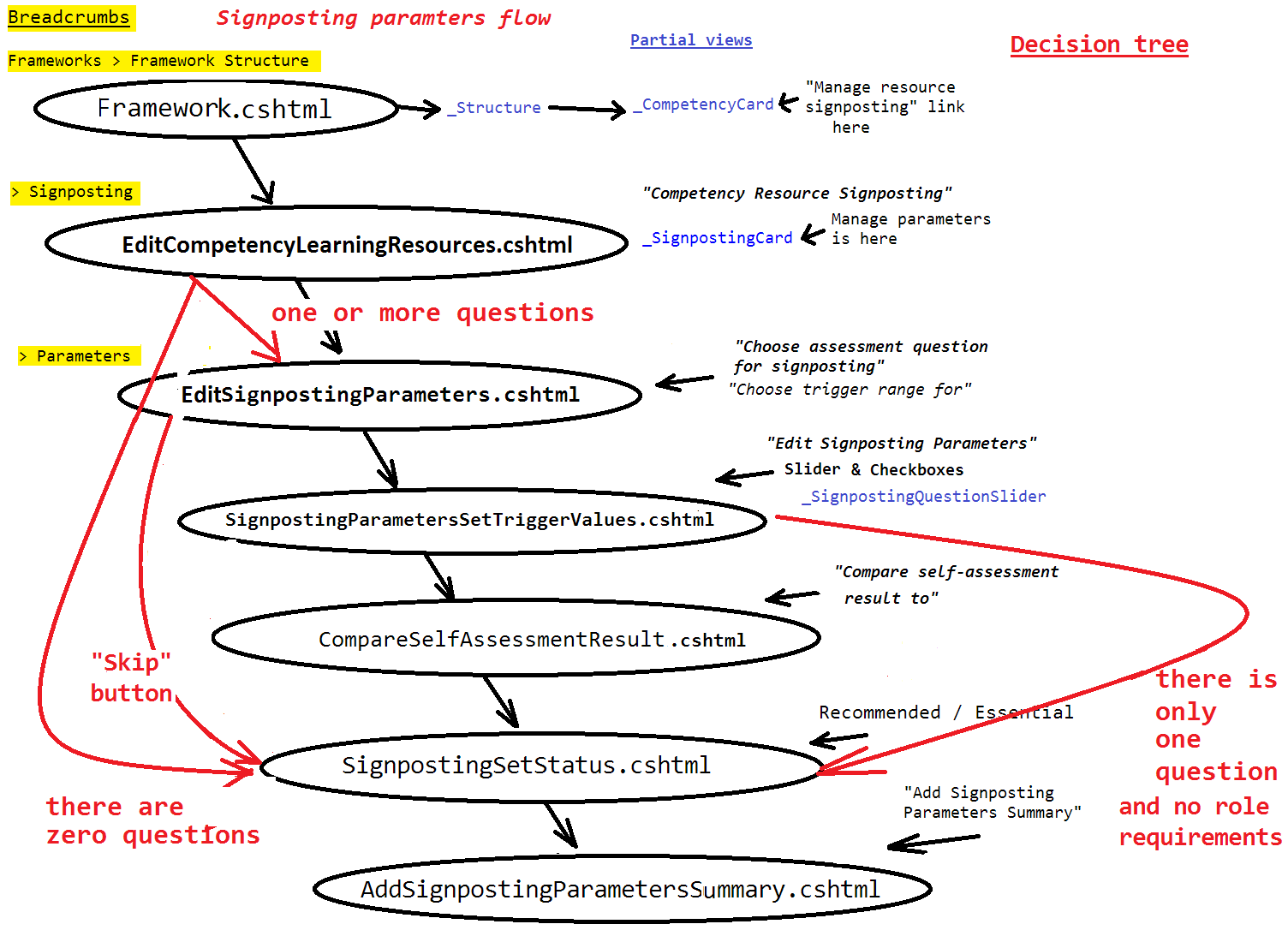

Decision tree

---

Developer checks

• "Back" button preserves selected values by the user
• Choosing an assessment question is mandatory
• "Skip" followed by Back button, returns to the original form
• "Change" links on final Summary form can be used to change user selection
• All stages can be accessed by url and retrieved user choices from session

[kevwhitt-hee]

Fantastic. This is working very well. A few minor changes requested in comments.

[kevwhitt-hee]

Okay. Almost perfect, now. One last scenario that isn't handled quite right... If I have a competency with either an assessment question with related competency assessment question role requirements or two assessment questions and I skip selecting an assessment question in the first step of editing parameters, I am still shown the "Compare result to" step of the flow (although my selection here isn't shown on the summary). This step should be skipped if the user hasn't chosen an asssessment question and they should be taken straight to the set status step.
