Appick is a 4-key macropad that allows you to launch an app from a click of a button! It's loaded to launch Brave, Spotify, Steam, and Discord. It also features an OLED display that displays what app is being launched!
You'll need to install AutoHotkey for this to work as intended. Install it here. When Autohotkey is setup, download the AHK script from the repository and edit it as instructed.

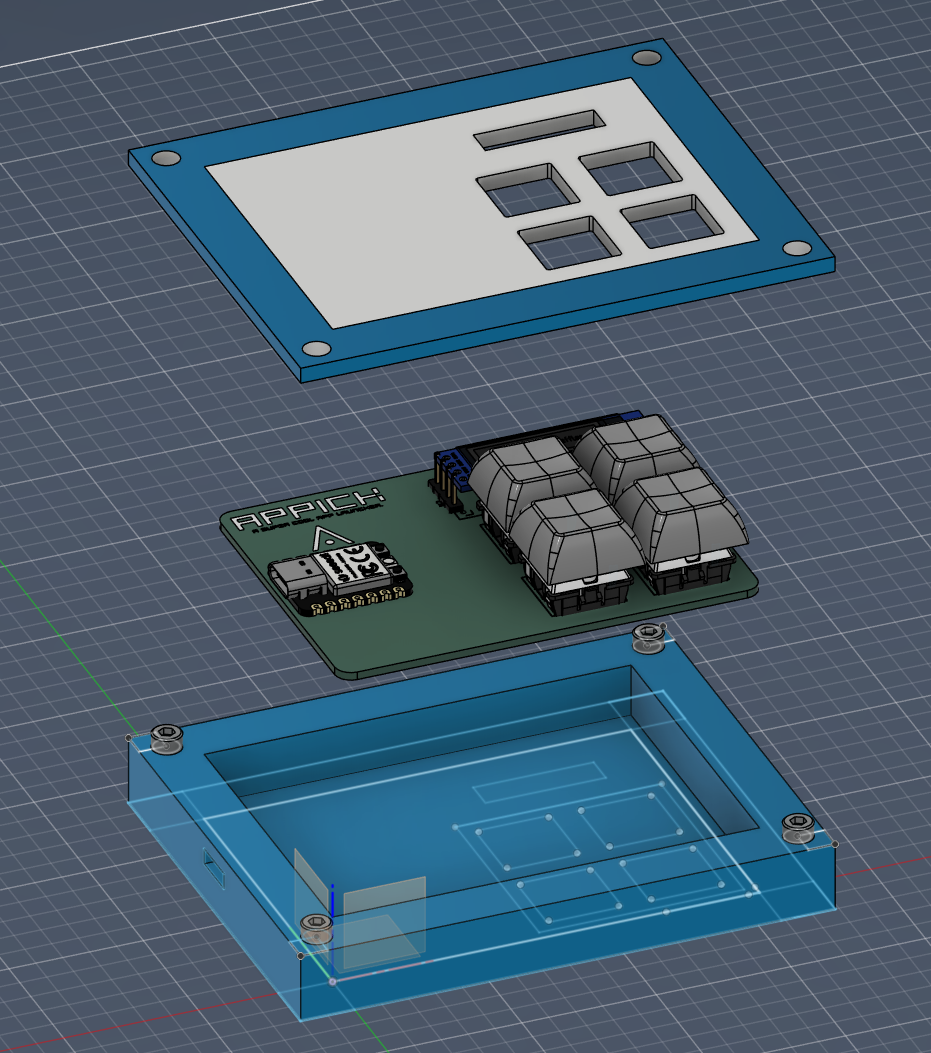

Appick 3D Model:

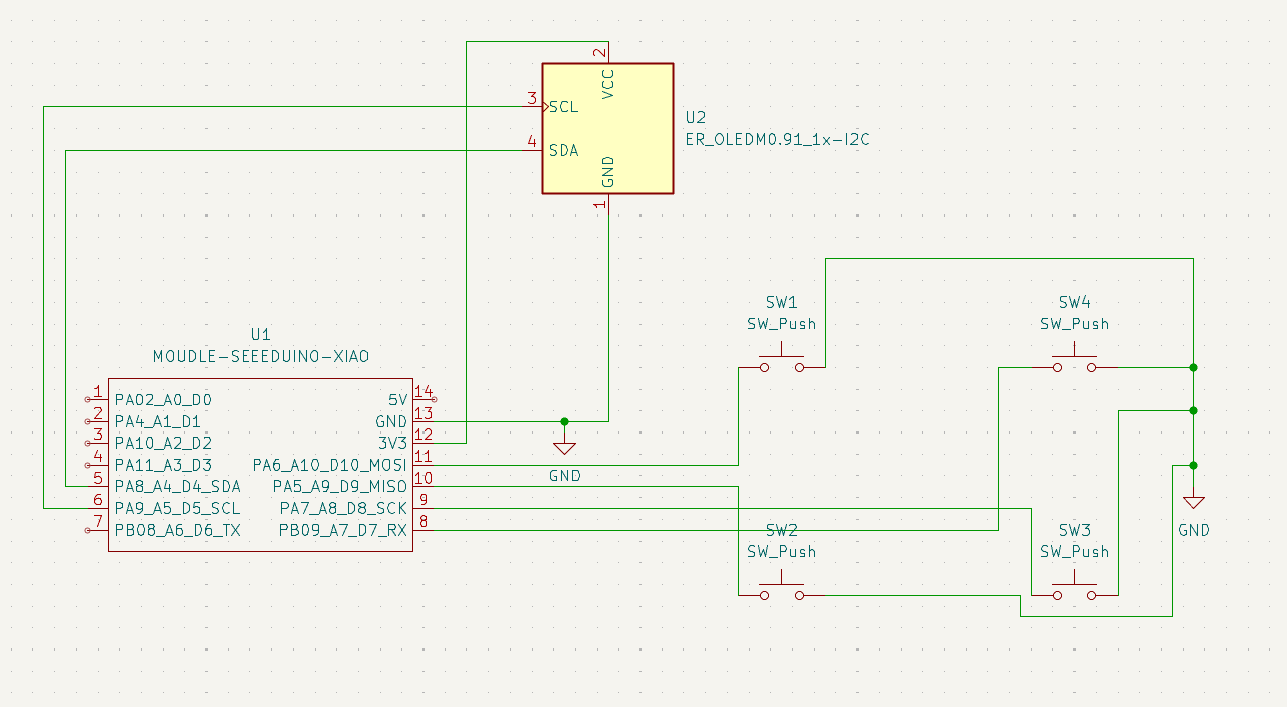

Schematic:

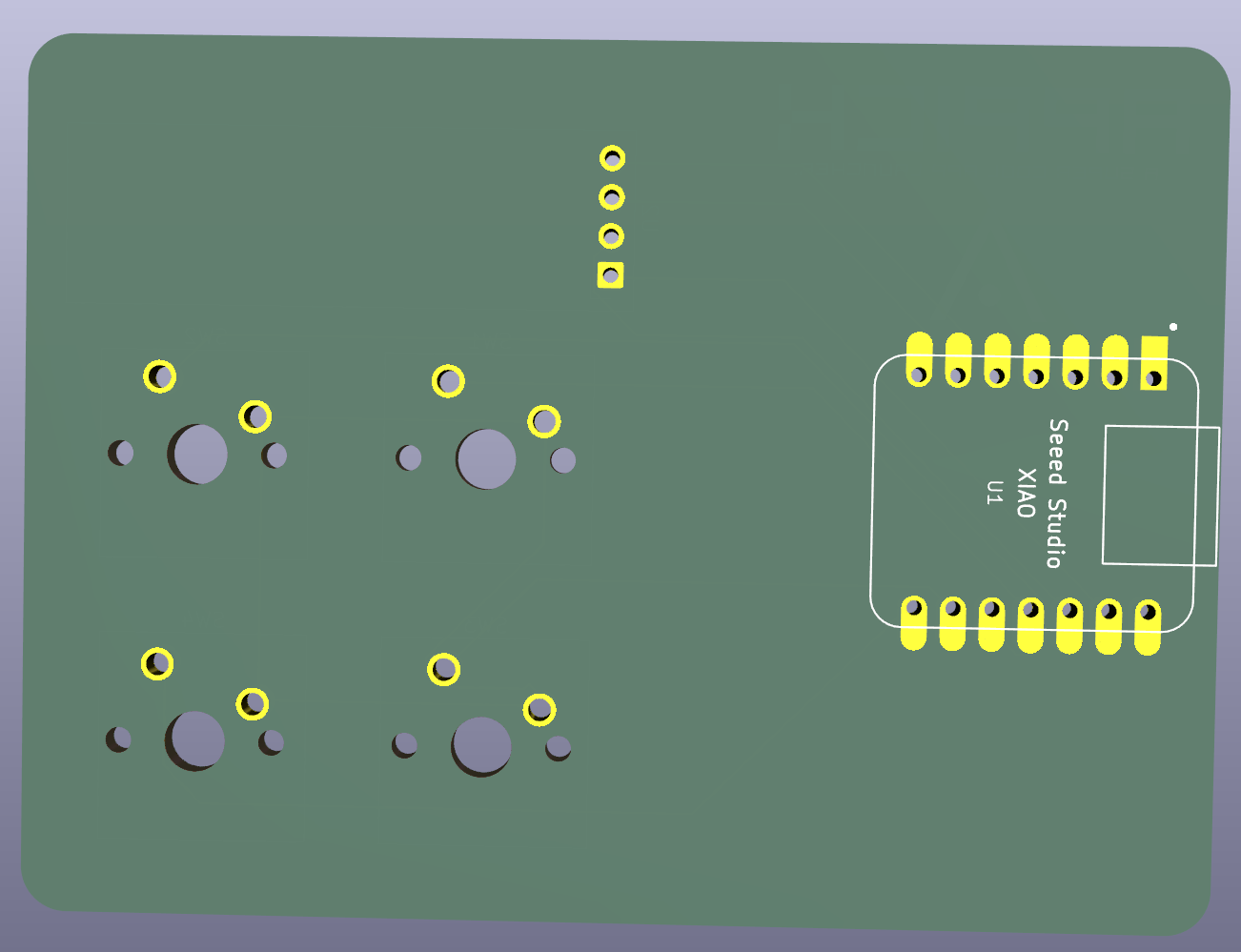

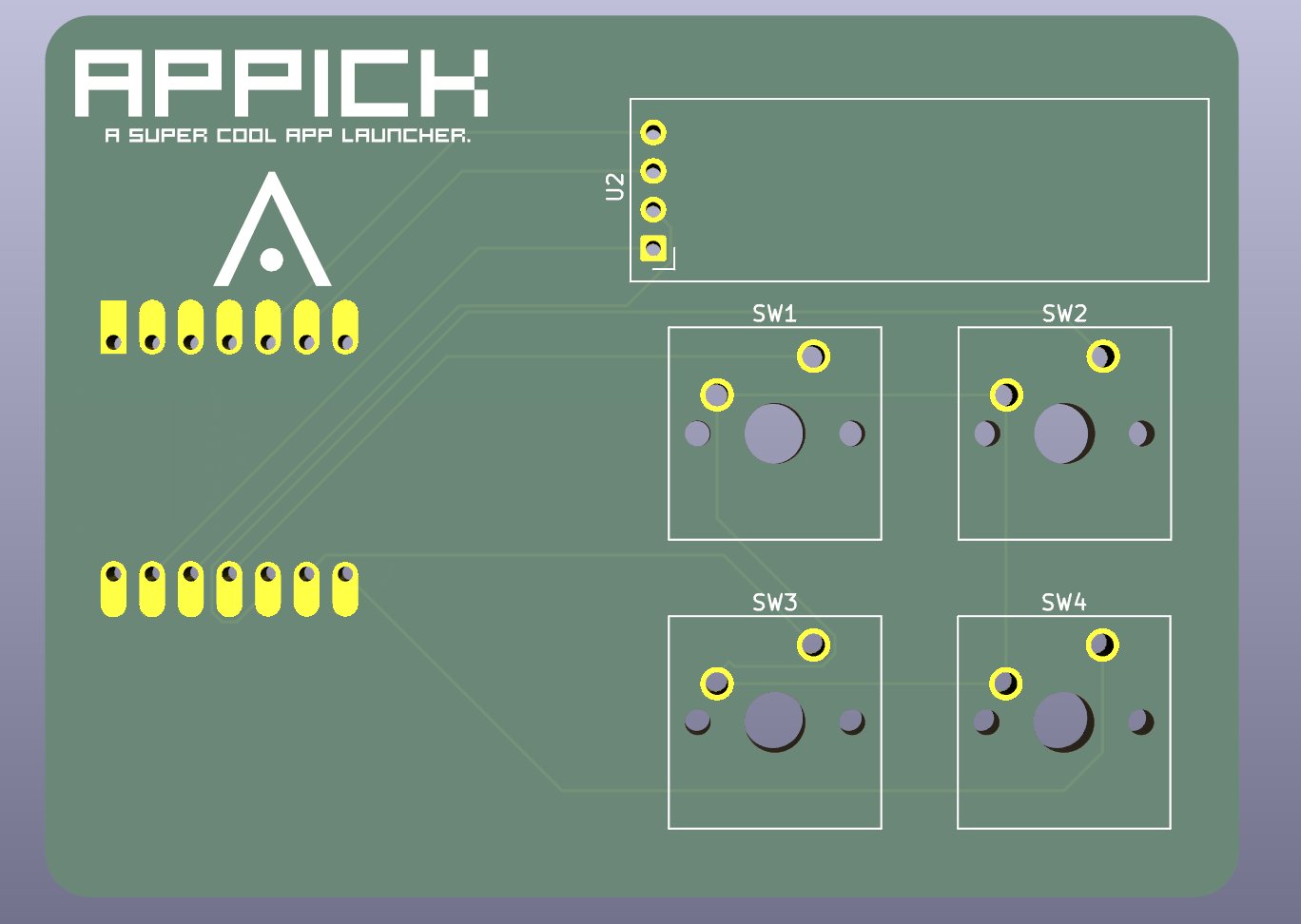

PCB:
- 4 Cherry MX Switches
- 4 DSA Keycaps
- 4 M3x5x4 Heatset Inserts
- 4 M3x12mm SHCS Bolts
- 1 0.91" 128x32 OLED Display
- 1 XIAO RP2040 Microcontroller
- 1 Case, 2 Printed Parts
Appick was created during Hack Club's Stardance challenge.
