missingno

Messy datasets? Missing values? missingno provides a small toolset of flexible and easy-to-use missing data visualizations and utilities that allows you to get a quick visual summary of the completeness (or lack thereof) of your dataset. It's built using matplotlib, so it's fast, and takes any pandas DataFrame input that you throw at it, so it's flexible. Just pip install missingno to get started.

Quickstart

Examples use the NYPD Motor Vehicle Collisions Dataset (cleaned up) and the PLUTO Housing Sales Dataset (cleaned up).

In the following walkthrough I take nullity to mean whether a particular variable is filled in or not.

Matrix

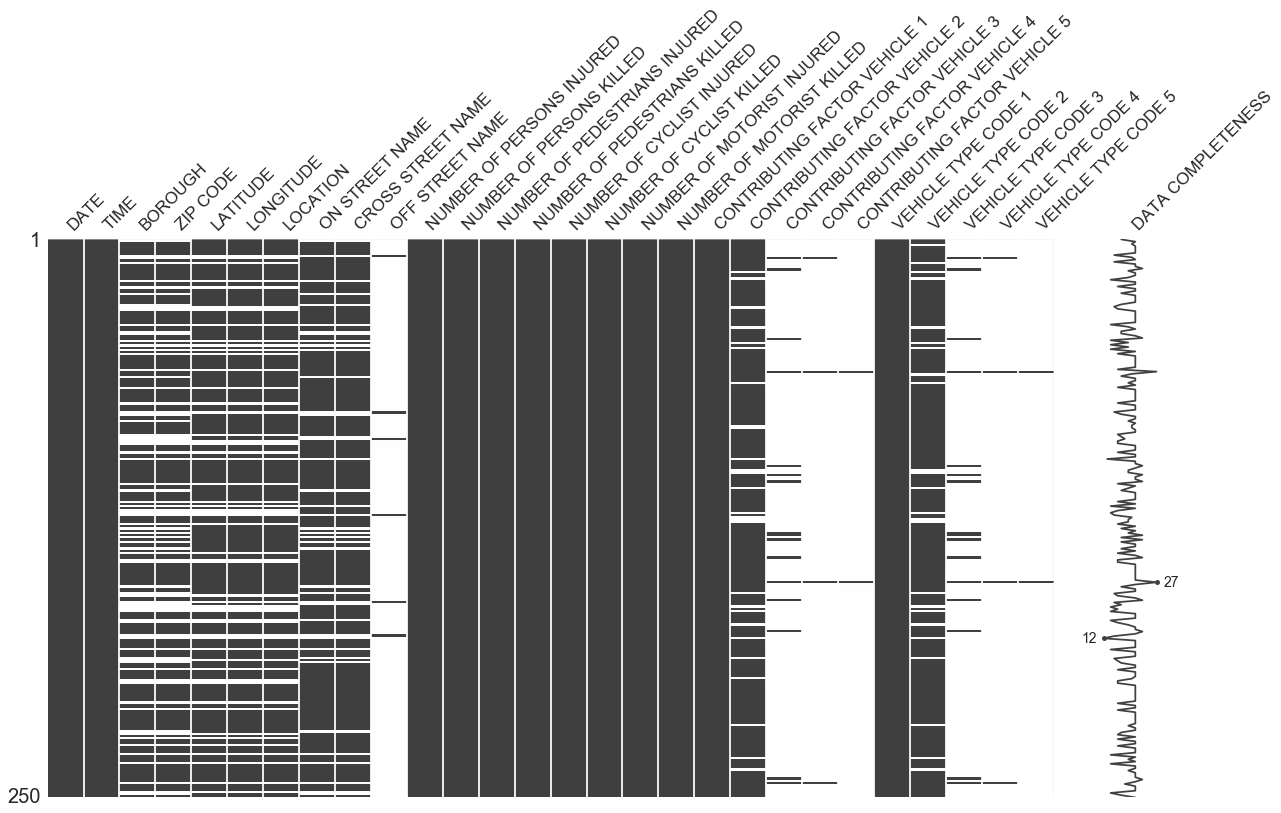

The msno.matrix nullity matrix is a data-dense display which lets you quickly visually pick out patterns in data completion.

>>> import missingno as msno
>>> %matplotlib inline
>>> msno.matrix(collision_data.sample(250))

At a glance, date, time, the distribution of injuries, and the contribution factor of the first vehicle appear to be completely populated, while geographic information seems mostly complete, but spottier.

The sparkline at right summarizes the general shape of the data completeness and points out the maximum and minimum rows.

This visualization will comfortably accommodate up to 50 labelled variables. Past that range labels begin to overlap or become unreadable, and by default large displays omit them.

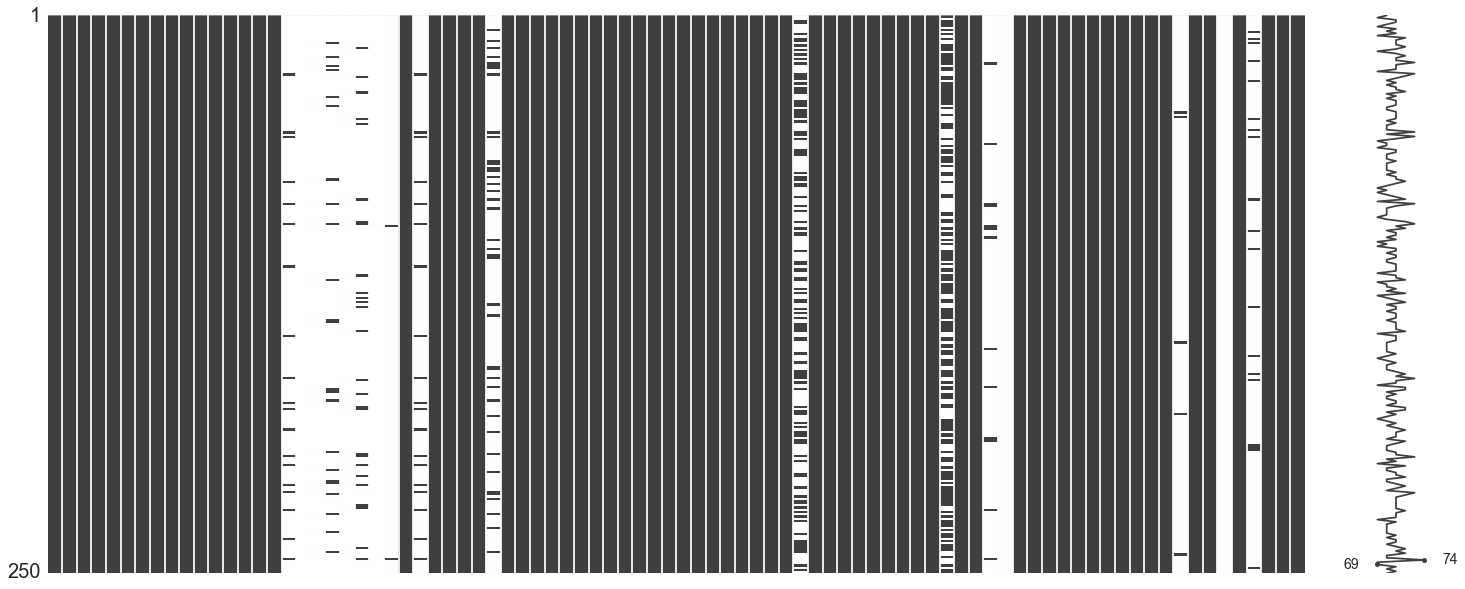

>>> msno.matrix(housing_data.sample(250))

You can override this behavior by specifying labels=True. In that case you will also want to set your own fontsize value. These optional parameters are among those covered in more detail in the Visual configuration section.

Heatmap

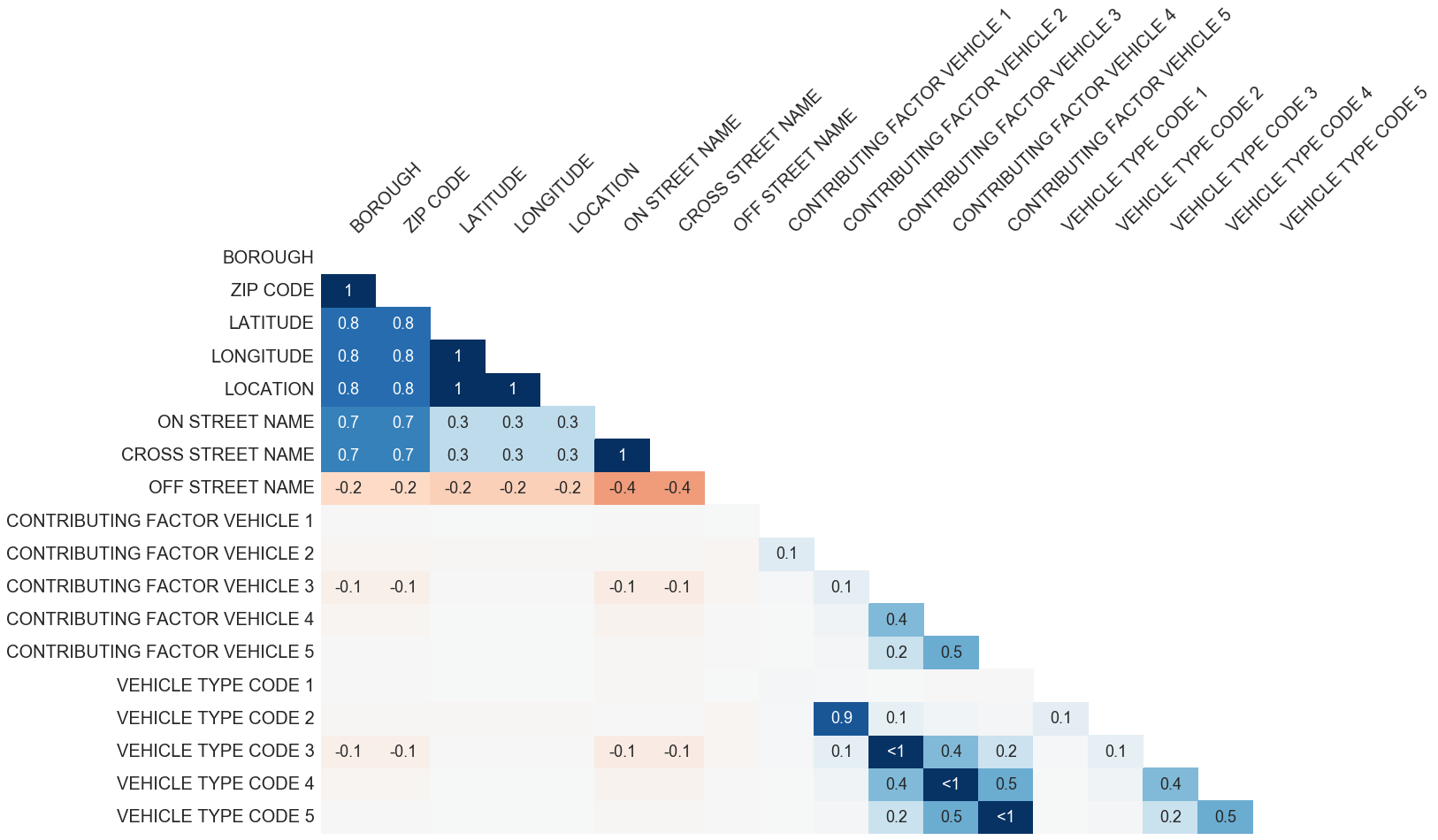

The missingno correlation heatmap lets you measure how strongly the presence of one variable positively or negatively affect the presence of another:

>>> msno.heatmap(collision_data)

Hmm. It seems that reports which are filed with an OFF STREET NAME variable are less likely to have complete geographic data.

Nullity correlation ranges from -1 (if one variable appears the other definitely does not) to 0 (variables appearing or not appearing have no effect on one another) to 1 (if one variable appears the other definitely also does). Entries marked <1 or >-1 are have a correlation that is close to being exactingly negative or positive, but is still not quite perfectly so. This points to a small number of records in the dataset which are erroneous. For example, in this dataset the correlation between VEHICLE CODE TYPE 3 and CONTRIBUTING FACTOR VEHICLE 3 is <1, indicating that, contrary to our expectation, there are a few records which have one or the other, but not both. These cases will require special attention.

Note that variables with a variance of zero (that is, variables which are always full or always empty) have no meaningful correlation and so are silently removed from the visualization—in this case for instance the datetime and injury number columns, which are completely filled, are not included.

The heatmap works great for picking out data completeness relationships between variable pairs, but its visual power is limited when it comes to larger relationships and it has no particular support for extremely large datasets.

Dendrogram

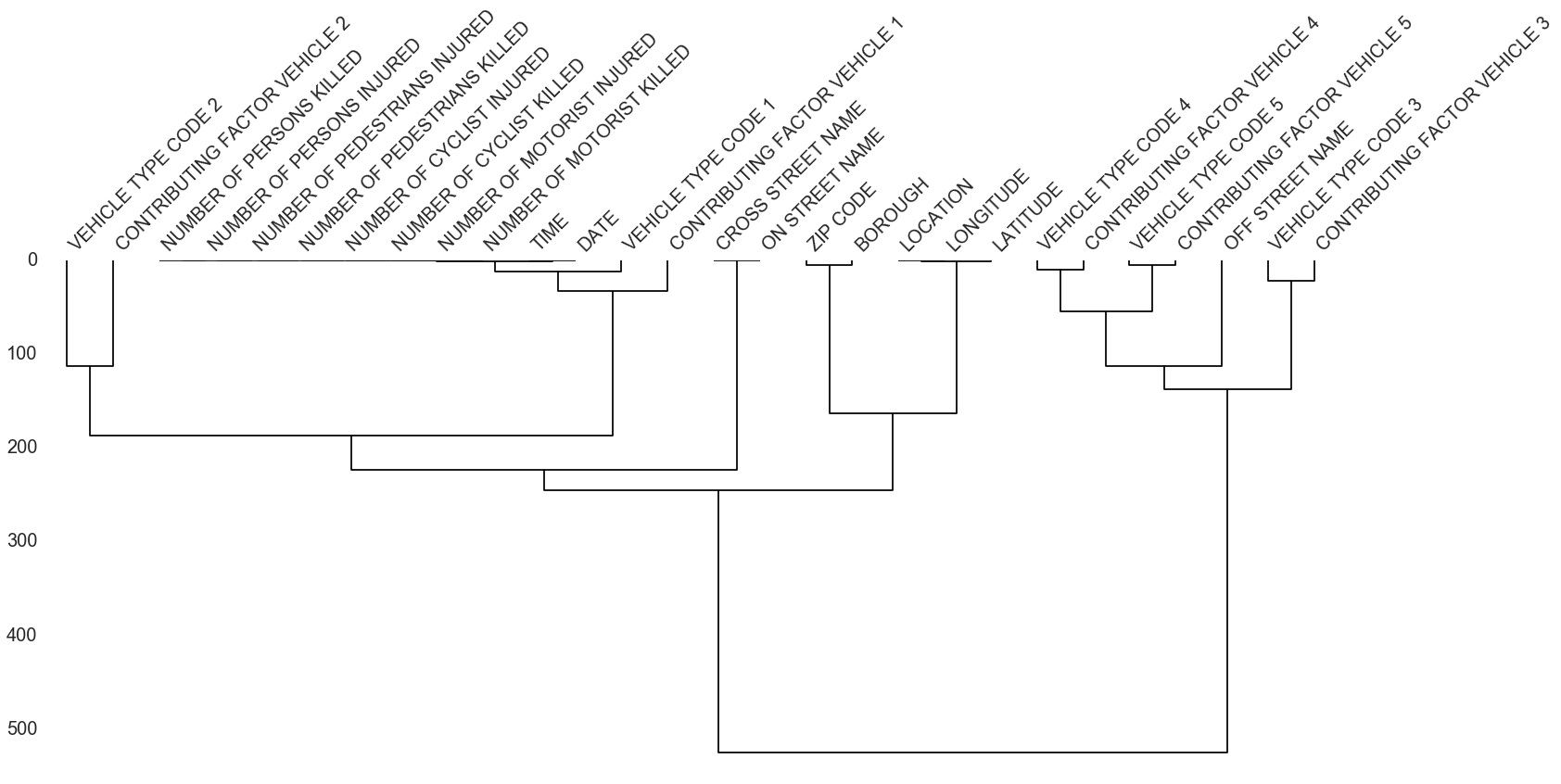

The dendrogram allows you to more fully correlate variable completion, revealing trends deeper than the pairwise ones visible in the correlation heatmap:

>>> msno.dendrogram(collision_data)

The dendrogram uses a hierarchical clustering algorithm (courtesy of scipy) to bin variables against one another by their nullity correlation (measured in terms of binary distance). At each step of the tree the variables are split up based on which combination minimizes the distance of the remaining clusters. The more monotone the set of variables, the closer their total distance is to zero, and the closer their average distance (the y-axis) is to zero.

To interpret this graph, read it from a top-down perspective. Cluster leaves which linked together at a distance of zero fully predict one another's presence—one variable might always be empty when another is filled, or they might always both be filled or both empty, and so on. In this specific example the dendrogram glues together the variables which are required and therefore present in every record.

Cluster leaves which split close to zero, but not at it, predict one another very well, but still imperfectly. If your own interpretation of the dataset is that these columns actually are or ought to be match each other in nullity (for example, as CONTRIBUTING FACTOR VEHICLE 2 and VEHICLE TYPE CODE 2 ought to), then the height of the cluster leaf tells you, in absolute terms, how often the records are "mismatched" or incorrectly filed—that is, how many values you would have to fill in or drop, if you are so inclined.

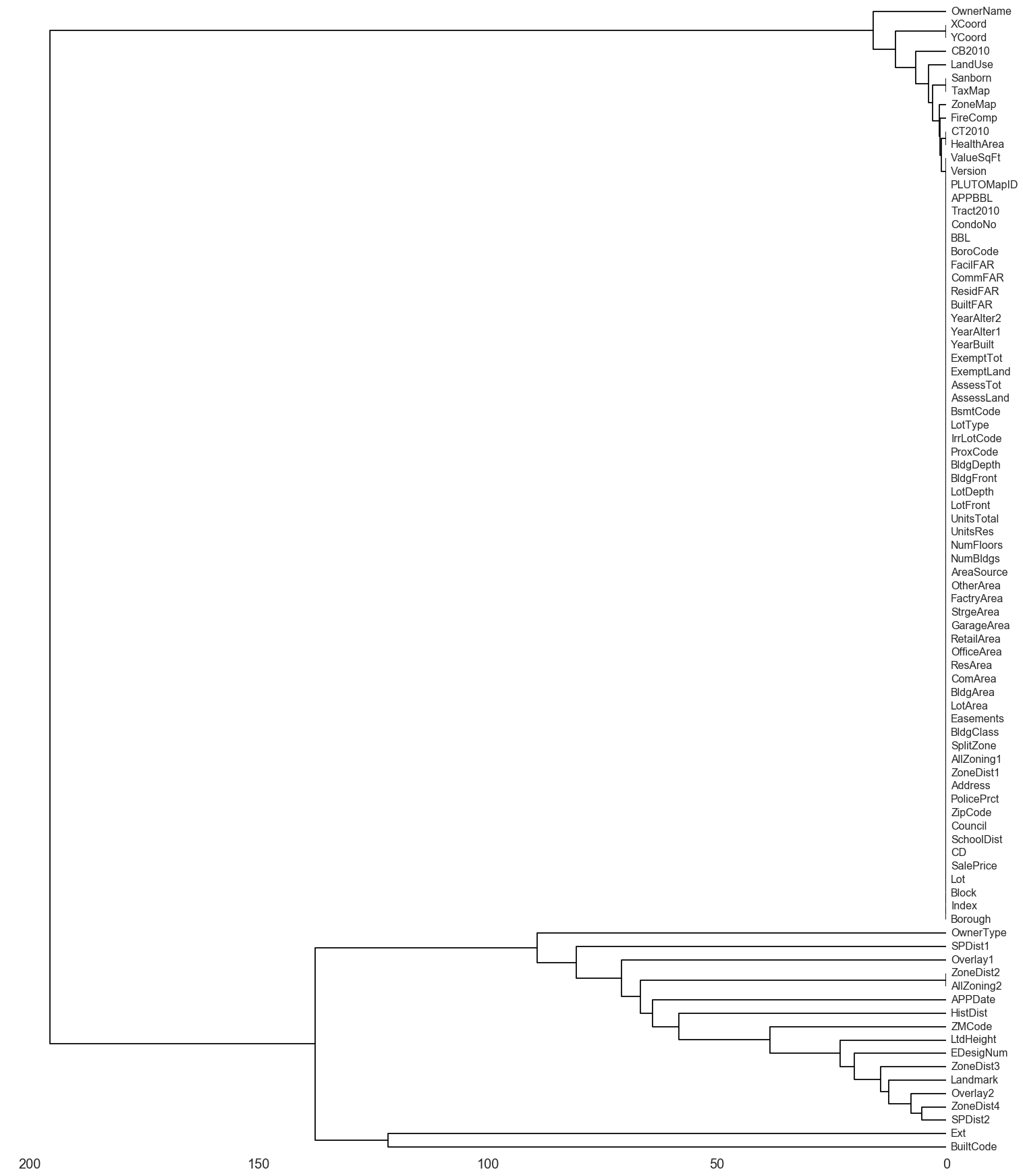

As with matrix, only up to 50 labeled columns will comfortably display in this configuration. However the dendrogram more elegantly handles extremely large datasets by simply flipping to a horizontal configuration.

>>> msno.dendrogram(housing_data)

Sorting and filtering

missingno also provides utility functions for filtering records in your dataset based on completion. These are useful in particular for filtering through and drilling down into particularly large datasets whose data nullity issues might otherwise be very hard to visualize or understand.

Let's first apply a nullity_filter() to the data. The filter parameter controls which result set we want: either filter=top or filter=bottom. The n parameter controls the maximum number of columns that you want: so for example n=5 makes sure we get at most five results. Finally, p controls the percentage cutoff. If filter=bottom, then p=0.9 makes sure that our columns are at most 90% complete; if filter=top we get columns which are at least 90% complete.

For example, the following query filtered down to only at most 15 columns which are not completely filled.

>>> filtered_data = msno.nullity_filter(dat, filter='bottom', n=15, p=0.999) # or filter='top'
>>> msno.matrix(filtered_data.sample(250))

nullity_sort() simply reshuffles your rows by completeness, in either ascending or descending order. Since it doesn't affect the underlying data it's mainly useful for matrix visualization:

>>> sorted_data = msno.nullity_sort(data, sort='descending') # or sort='ascending'
>>> msno.matrix(sorted_data.sample(250))

One final note. These methods also work inline within the visualization methods themselves. For instance, the following is perfectly valid:

>>> msno.matrix(data.sample(250), filter='top', n=5, p=0.9, sort='ascending')

Visual configuration

Lesser parameters

Each of the visualizations provides a further set of lesser configuration parameters for visually tweaking the display.

matrix, heatmap, and dendrogram all provide:

• figsize: The size of the figure to display. This is a matplotlib parameter which defaults to (20, 12), except for large dendrogram visualizations, which compute a height on the fly based on the number of variables to display.
• fontsize: The figure's font size. The default is 16.
• labels: Whether or not to display the column names. For matrix this defaults to True for <=50 variables and False for >50. It always defaults to True for dendrogram and heatmap.
• inline: Defaults to True, in which case the chart is plotted and nothing is returned. If this is set to False the methods omit plotting and return their visualizations instead.

matrix also provides:

• sparkline: Set this to False to not draw the sparkline.
• width_ratios: The ratio of the width of the matrix to the width of the sparkline. Defaults to (15, 1). Does nothing if sparkline=False.
• color: The color of the filled columns. Defaults to (0.25, 0.25, 0.25).

heatmap also provides:

• cmap: What matplotlib colormap to use. Defaults to RdBu.

dendrogram also provides:

• orientation The orientation of the dendrogram. Defaults to top if <=50 columns and left if there are more.
• method: The linkage method scipy.hierarchy uses for clustering. average is the default argument.

Advanced configuration

If you are not satisfied with these admittedly basic configuration parameters, the display can be further manipulated in any way you like using matplotlib post-facto.

The best way to do this is to specify inline=False, which will cause missingno to return the underlying matplotlib.figure.Figure object. Anyone with sufficient knowledge of matplotlib operations and the missingno source code can then tweak the display to their liking. For example, the following code will bump the size of the dendrogram visualization's y-axis labels up from 20 to 30:

>>> mat = msno.dendrogram(collision_data, inline=False)
    mat.axes[0].tick_params(axis='y', labelsize=30)

Note that if you are running matplotlib line in inline plotting mode (as was done above) it will always plot at the end of the cell anyway, so if you do not want to plot the same visualization multiple times you will want to do all of your manipulations in a single cell!

Note that this may not be as well-behaved as I would like it to be. I'm still testing configuration—if you have any issues be sure to file them.

Further reading

• The way that numpy and pandas represent null data informs how one goes about working with such data in Python. It's an interesting subject and an important design limitation that's good keep in mind in your work higher up the stack, so I wrote an exploratory blog post on the subject that's well worth reading if you're into this sort of thing.
• For public reviews and third-party test drives of this library's capacities check out this post and this one.
• For slightly more details on this module's ideation check out this post on my personal blog.

Contributing

Bugs? Thoughts? Feature requests? Throw them at the bug tracker and I'll take a look.

As always I'm very interested in hearing feedback—reach out to me at aleksey@residentmar.io.
