SIGMAP

The goal is to build a modern, modular WebGPU-based visualization framework for 2D/3D rendering and compute-powered data representations. SIGMAP provides a core library and framework-specific adapters (React, Vue, Angular), as well as a zero-dependency standalone build for pure TypeScript usage.

---

Table of Contents

• Features
• Monorepo Structure
• Getting Started
  • Prerequisites
  • Installation
  • Bootstrapping
• Building Packages
• Usage Examples
  • Standalone
  • Core API
  • React Adapter
  • Vue Adapter
  • Angular Adapter
• Contribution Guide
• License

---

Work in progress

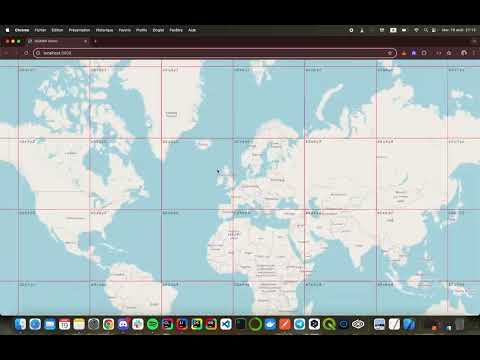

The video is an early-stage demonstration. It showcases basic map features to help users navigate. This debug view makes my work easier as I grab OpenStreetMap tiles and rebuild the map "one tile at a time".

Current state (from Branch-6 moving)

Full WebGPU rendering and move handler (Date : 04/11/2025)

---

Features

• Core WebGPU API: Lightweight, framework-agnostic core library with full TypeScript support.
• Adapters: Thin, idiomatic bindings for React, Vue 3, and Angular.
• Standalone Bundle: UMD/ESM build for zero-dependency <script> inclusion.
• Monorepo Management: Powered by Lerna & npm/Yarn workspaces for synchronized versioning and dependencies.
• TypeScript: Full typings and TS support across all packages.

---

Monorepo Structure

SIGMAP/
├── lerna.json
├── package.json
├── tsconfig.json           # project references
└── packages/
    ├── core/               # @sigmap/webgpu-core
    ├── standalone/         # @sigmap/webgpu (UMD bundle)
    ├── react/              # @sigmap/webgpu-react (Vite)
    ├── vue/                # @sigmap/webgpu-vue
    └── angular/            # @sigmap/webgpu-angular

Each package includes its own package.json, tsconfig.json, and build config (rollup.config.js or vite.config.ts).

---

Getting Started

Prerequisites

• Node.js 16 or higher
• npm (>= 8)

Installation

1. Clone the repository:

   git clone https://github.com/sigmap/SIGMAP.git
   cd SIGma

2. Install dependencies and link packages:

   npx lerna bootstrap

Bootstrapping

This step installs all devDependencies and creates symlinks between local packages.

---

Building Packages

To build all packages in the monorepo:

npx lerna run build

This runs each package’s build script (rollup for core/vue/angular/standalone, vite build for React).

---

Usage Examples

Standalone

Include the UMD bundle in your HTML:

<script src="https://unpkg.com/@sigmap/webgpu/dist/webgpu.umd.js"></script>
<script>
  // `WebGPUFramework` is exposed globally by the UMD build
  const app = new WebGPUFramework({ /* options */ });
  app.init();
</script>

Or install via npm:

npm install @sigmap/webgpu

Core API

import { GPUApp } from '@sigmap/webgpu-core';

const app = new GPUApp({
  canvas: document.getElementById('canvas') as HTMLCanvasElement
});
app.renderHeatmap(data);

See the folder "sigmap-demo"

React Adapter

NOT IMPLEMENTED YET

Vue Adapter

NOT IMPLEMENTED YET

Angular Adapter

NOT IMPLEMENTED YET

---

Contribution Guide

Please follow conventional commits and ensure all builds/tests pass in CI. This project is organised using Github Project (also connect to a Discord bot on a private server) that ease the communication, feedbacks and "Agile" methodology.

---

License

This project is licensed under the MIT License. See LICENSE for details.
