Car-Rpc

The objective of this project is to control an arduino-hacked RC car with an android phone, all connected to the cloud.

Travis CI Build Status

Purpose

The purpose of this project is to give any hobbyist or person who loves to build things a platform to build on to make autonomous RC cars. It is to give satisfaction to any designer, programmer, or builder that they can also make cool stuff.

How it works

If you have an rc car, a phone, and a computer, this project will work. Essentially, you can control the rc car from your phone's accelerometer, and the control is instantaneous. So, tilt left will turn the car left, right will turn the car right, forward will move the car forward, and backward will more it backward. Some more options would be to implement different methods of control, such as a smart glove and all that jazz. Setup is relatively easy, payoff is amazing.

Journey

Making this project was one hell of a journey. From conception to building to finishing, I learned more than I possibly could have. Some of the things I am proud of about this program are the way I built it and how reliable (I think) the server is. I thought about the design for a long time, and it paid off in the end. I started during my internship at life360, where I was learning various valuable design techniques, and it all helped. The code on the server - from controller endpoints to the database code architecture - was carefully thought out and designed. The server is also extremely scalable - and you can add your own features to the Server. It is multithreaded and is able to handle multiple controller connections at once. Everything about the server is a product of my knowledge of Java and gRPC.

Design Decisions I am Proud Of - Server

• A good database design decision was the BaseDatabase class, which was an abstract class which was generified for the Database Identifier (for pulling from mySQL), and the Database Entity Itself - which was returned on the retrieve() abstract function. You passed in the Entity Type (which inherited from a BaseDatabaseEntity class) to the generic. To use the BaseDatabase class you would need to directly inherit from it in your own database class, like KnownCarDatabase, but you would define a KnownCarEntity and KnownCarIdentifier to give the Generic Constructor. Those custom Entities and Identifiers would inherit from BaseDatabaseEntity and BaseDatabaseIdentifier. All in all, the way the java connector was designed was a good idea.
• The layers of abstraction implemented in the application was crucial to reliable, fast development. The package structure : a good thing I realized about this project was that in a project of this scale, you would need to split everything up appropriately. So, the package structure and RIB (Router Interactor Builder) pattern that was used was extremely useful. For example, the class ControlInteractor was used only for controller-related communication, and that would be defined in the gRPC service definition implementation. The ControlInteractor contained an Esp8266Interactor, which had everything to do with the low-level socket communication (using protobuf), The ControlInteractor contained the database function calls too, which were organized well.
• The Algorithm used to translate accelerometer positions to car velocity and wheel rotation was pretty useful. You Can find it in CommandFactory#buildCommand.
• Code Patterns used :
  • dependency injection
  • object pools
  • Factories and Builders
  • Base Generics and Interfaces

Components Necessary

This project requires :

• Any electrically controlled car that you can expose the motherboard with, and drives with servos and motors.
• A computer to host the server that will be doing most of the work - that has java 8 or above and maven installed.
• An android phone to install the Car-Rpc app APK on (the controller), that has an accelerometer in-built.
• An esp8266 - That was the microcontroller we used. Any wifi-compatible arduino-based microcontroller should work. (Given it supports the ESP IOT libraries).
• Wires, a breadboard (optional), and 3 HCSR04s. (More on that later).
• A Network Connection - Does not require internet access because the server is being run locally - so any old router or your home router should work.

Make your own controller

One of the points of this project was to have other people build on it. Use the esp8266 and Server Code to make your own controller! The gRPC service definitions and declarations are readily available - come up with creative ways to control the Car - such as an app with various inputs or some other type of input - like a sensor array on your hand to map hand movements to car movements - you build it!

Setup

The repository has 3 main components (excluding test directories).

• CarApp - The android App Directory.
• Esp8266 - the embedded system code for the microcontroller.
• ServicePlatform - The main server platform.
• One of the ideologies behind this project were to have the App and Esp8266 do as little work as possible, and have the server do all the heavy lifting/processing. Any crappy linux-based computer (what we tested it on) will work perfect. A Raspberry Pi is perfect for this job, but anything will do.

Server Setup

1. Clone Repositiory with command git clone git@github.com:adiprerepa/Car-Rpc.git - Needs to be in home directory.
2. Do cd ServerPlatform. List out the contents with ls, you should see a pom.xml, runPlatform.sh, and a src directory.
3. Run ./runServicePlatform.sh, wait for the terminal output of the java program, you should see something like Server Started on port <port>.

MySQL Database Setup

• You can easily install mysql with this link : https://support.rackspace.com/how-to/installing-mysql-server-on-ubuntu/

After Installation

• run sudo -i on your computer - and enter the password.
• run mysql -u root -p and do not put anything in for the password - you should automatically log in.
• now run :

GRANT ALL PRIVILEGES ON *.* TO 'username'@'localhost' IDENTIFIED BY 'password';

where you insert username and password at your discretion. Remember this username and password.

• to create the car_rpc database :

CREATE DATABASE car_rpc;

• Now you are done!

Repository Database Credentials setup

In order to stop from committing usernames and passwords to repository sources, make the file database_credentials.json in the directory /Car-Rpc/ServicePlatform/src/main/resources/, where you put the username, url, and password as follows(assuming that you run the database locally) :

 {
     "databaseUrl" : "jdbc:mysql://localhost/car_rpc?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC",
     "databaseUsername" : "USERNAME!!!!",
     "databasePassword" : "PASSWORD"
 }

Where you can insert the username and password from earlier. Thats it for the database setup - the program will automatically make tables for you.

Prerequisites - Server Setup

• An Internet Connection (Setup - git&maven)
• Maven Installed
• Java 8 or Higher Installed

Esp8266 Setup

Prerequisites

• Arduino Compiler with Esp8266 - https://dzone.com/articles/programming-the-esp8266-with-the-arduino-ide-in-3
• Nanopb protobuf plugin : https://github.com/nanopb/nanopb - clone into home directory.
• An RC car

RC Car setup

In order to effectively set up the rc car-rpc, you need a remote control car. You should expose the motherboard of this car, and get a multimeter. Switch it into completion mode and play around with the pins - see which pins move which motors. You are basically mocking what the RC reciever would do. Once that happens - note down which combinations of pins work for which commands - such as left, right, forward, and backward. This is useful later on.

• You should solder the wires onto the car's motherboard.

App Setup

Install the Car-Rpc app, and on the corresponding screens input the server IP and port, as well as the esp8266 IP and port (defined in the .ino file in Esp8266). The app should connect to the esp8266 and server successfully, and you should see a list of previously controlled cars by you. From there, tilt the phone left for tha car moving left, right for the car moving right, and so on.

Architecture

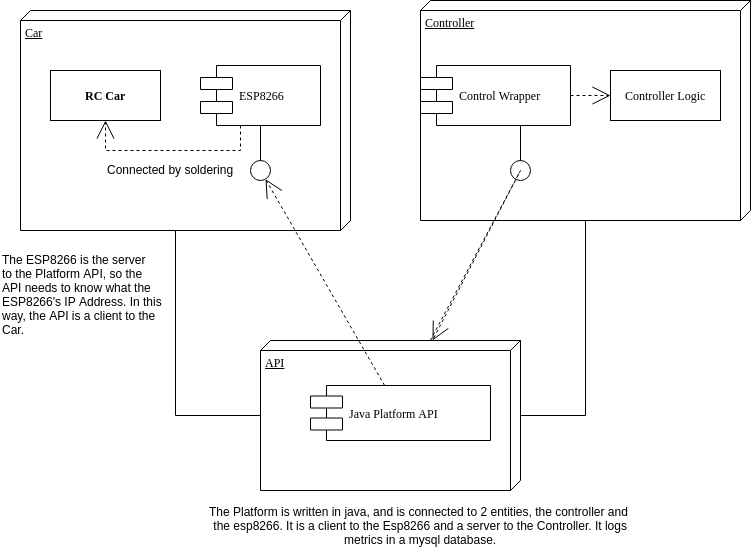

There are 3 main components to this project - the esp8266, the api, and the controller. Here, the esp8266 is done in c++, the api is done in java, and the controller is done in c++ and/or java. Here, the esp8266 is the master.

Libraries

This project uses protobuf, gRPC, mysql-connector-jdbc for the API, ESP8266WiFi and nanopb for the esp8266, and gRPC for the controller.

Authors

• Aditya Prerepa
  • Underlying architecture and idea.
  • Server Development and Code in Java.
  • gRPC service definitions and implementations on controller side and esp8266 side.
  • MySQL database schema and jdbc architecture implementation.
  • Helped with Test App Client.
• Akshay Trivedi
  • Esp8266 C++ Code
  • Help with Esp8266 Protobuf definition.

Last Updated

9/15/2019
