Populous

A powerful Godot 4.4+ editor plugin for creating procedurally generated NPCs with unique appearances, personal data, and behaviors through an extensible resource-based architecture.

Overview

Populous provides a modular system for generating NPCs (Non-Player Characters) with unique characteristics. The plugin follows a Generator-Meta pattern that separates how NPCs are created from what makes them unique:

• Generator (PopulousGenerator) – Defines how NPCs are created (spawning logic, positioning, quantity)
• Meta (PopulousMeta) – Defines what makes each NPC unique (names, appearance, attributes)

This separation allows for flexible combinations of generation strategies and metadata systems, making it easy to create diverse NPC populations for your game.

Features

Core Features

• Modular NPC Creation: Extensible generator/meta system for custom NPC generation
• Dynamic UI Generation: Automatically creates UI controls based on generator parameters
• Container-Based Spawning: Uses PopulousContainer Node3D nodes as spawn points
• Parameter Binding: Two-way binding between UI controls and generator parameters
• Scene Integration: Spawned NPCs are properly owned by the scene root

Built-in Tools

• Populous Tool: Main editor window for generating NPCs with real-time parameter editing
• JSON-to-Resource Converter: Convert JSON files to Godot .tres resources for easy data management
• Batch Resource Creator: Batch create resources from FBX files with automatic mesh assignment
• Container Creator: Quick creation of PopulousContainer nodes in your scene

Extension Examples

• Random Generation: Simple example with grid-based spawning and random attributes
• Capsule Person Generator: Advanced example with modular body parts, gender-based generation, and skin type support

Installation

1. Download the latest release or clone this repository
2. Copy the addons/Populous folder into your Godot project's addons directory
3. Alternative (Submodule): If using as a submodule, create a symbolic link from this repo's addons/Populous to your project's addons/Populous
4. Enable the Populous plugin from Project Settings > Plugins
5. The plugin menu will appear under Project > Tools > Populous

Quick Start

Basic Usage

1. Create a Container: In your scene, go to Project > Tools > Populous > Create Container to add a PopulousContainer Node3D
2. Select the Container: Click on the container node in the scene tree
3. Open Populous Tool: Navigate to Project > Tools > Populous > Populous Tool
4. Assign a Resource: Select a PopulousResource in the tool (or create one)
5. Adjust Parameters: Modify any available parameters in the dynamic UI
6. Generate: Click "Generate Populous" to spawn NPCs

Creating Custom NPCs

To create custom NPCs, you'll need to extend both the Generator and Meta classes:

1. Create a Custom Generator

extends PopulousGenerator

# Define your parameters
var npc_count: int = 10
var spawn_radius: float = 5.0

func _generate(populous_container: Node) -> void:
    # Your custom spawning logic here
    for i in range(npc_count):
        var npc = resource.instantiate()
        var angle = (i * TAU) / npc_count
        var pos = Vector3(cos(angle), 0, sin(angle)) * spawn_radius
        npc.position = pos
        populous_container.add_child(npc)
        meta_resource.set_metadata(npc)

func _get_params() -> Dictionary:
    return {
        "npc_count": npc_count,
        "spawn_radius": spawn_radius
    }

func _set_params(params: Dictionary) -> void:
    if params.has("npc_count"):
        npc_count = params["npc_count"]
    if params.has("spawn_radius"):
        spawn_radius = params["spawn_radius"]

2. Create a Custom Meta

extends PopulousMeta

var use_random_colors: bool = true

func set_metadata(npc: Node) -> void:
    # Apply unique attributes to the NPC
    npc.set_meta("name", generate_random_name())
    if use_random_colors:
        npc.set_meta("color", Color(randf(), randf(), randf()))

func _get_params() -> Dictionary:
    return {"use_random_colors": use_random_colors}

func _set_params(params: Dictionary) -> void:
    if params.has("use_random_colors"):
        use_random_colors = params["use_random_colors"]

3. Create Resources

1. Create a new PopulousGenerator resource and assign your custom generator script
2. Create a new PopulousMeta resource and assign your custom meta script
3. Create a new PopulousResource and assign both your generator and meta
4. Use it in the Populous Tool!

Architecture

Core Classes

PopulousResource

The main entry point that combines a Generator and Meta. Contains:

• run_populous(populous_container: Node): Executes NPC generation
• get_params() -> Dictionary: Retrieves generator parameters for UI
• set_params(params: Dictionary): Updates generator parameters

PopulousGenerator (Base Class)

Abstract base class for NPC generation logic. Override:

• _generate(populous_container: Node): Core generation logic
• _get_params() -> Dictionary: Returns parameters for UI binding
• _set_params(params: Dictionary): Updates parameters from UI

PopulousMeta (Base Class)

Abstract base class for NPC metadata/attributes. Override:

• set_metadata(npc: Node): Applies metadata to spawned NPC
• _get_params() -> Dictionary: Returns meta parameters for UI
• _set_params(params: Dictionary): Updates meta parameters

Examples

Random Generation Example

Located in addons/Populous/ExtendedExamples/RandomGeneration/, this example demonstrates:

• Grid-based NPC spawning
• Random name generation from JSON resources
• Optional random color assignment
• Configurable density and spacing

Parameters:

• populous_density: Maximum NPCs to spawn
• spawn_padding: Spacing between NPCs
• rows / columns: Grid dimensions

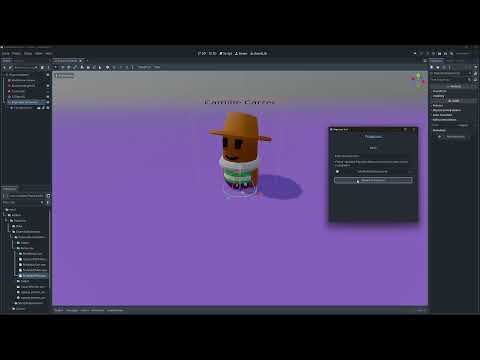

Capsule Person Generator

Located in addons/Populous/ExtendedExamples/CapsulePersonGenerator/, this advanced example shows:

• Gender-based name generation (Male/Female/Neutral)
• Modular body part system with weighted random selection
• Skin type support (DEFAULT, LIGHT, MEDIUM, DARK)
• Part filtering by gender and skin type
• Optional part skipping for variation

Tools Reference

Populous Tool

Main editor window for NPC generation. Features:

• Automatic container selection detection
• Resource picker for PopulousResource
• Dynamic parameter UI generation
• Real-time parameter editing
• Generate button for spawning NPCs

JSON Tres Tool

Converts JSON files to Godot .tres resources:

1. Select a JSON file
2. Choose output path for .tres file
3. Convert and use in your meta classes

Batch Resources Tool

Batch creates resources from FBX files:

1. Select a blueprint resource
2. Select multiple FBX files
3. Resources are automatically generated with mesh assignment

Demo & Tutorial

Watch the demo videos:

Requirements

• Godot Engine: 4.4+ (Forward Plus renderer)
• Editor Access: Plugin requires editor access (@tool classes)

Project Structure

addons/Populous/
├── Base/                          # Core plugin files
│   ├── Constants/                 # Centralized constants
│   ├── Editor/                    # Editor tools and UI
│   ├── GenerationClasses/         # Base generator and meta classes
│   ├── ResourcePicker/            # Custom resource picker
│   ├── Resources/                 # Default resources
│   └── populous_resource.gd       # Main resource class
├── ExtendedExamples/              # Example implementations
│   ├── RandomGeneration/          # Simple random example
│   └── CapsulePersonGenerator/    # Advanced modular example
├── Tools/                         # Utility tools
│   ├── JSON_TRES/                 # JSON converter
│   └── Batch_Resources/           # Batch resource creator
└── populous.gd                    # Plugin entry point

Contributing

Contributions are welcome! Feel free to:

• Submit issues and bug reports
• Propose new features
• Submit pull requests
• Improve documentation

License

This project is licensed under the MIT License - see the LICENSE file for details.

Authors

• Siva
• Gauri

---

⭐ If you find this addon useful, consider giving it a star on GitHub!
