MotionLayout in RecyclerView appears to not properly size cell when ViewHolder is bound for a recycled, animated cell

[sschendel]

Trying to use a MotionLayout to expand/collapse a particular view (change size and rearrange slightly) in a row in a RecyclerView list and seeing an issue with the cell height not properly being restored when I try to reset the MotionLayout transition when binding a new ViewHolder.

When a ViewHolder that was expanded is recycled the views that are part of the ViewHolder look like they've been correctly transitioned to the collapsed state, but the entire cell seems to stay the full expanded size.

Is there something obvious I'm missing? Using version: 2.1.2

A screen capture and minimal code sample follows...

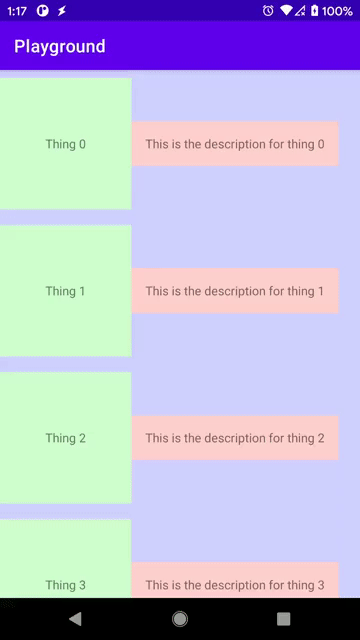

Screen capture...

Activity...

class MotionLayoutPlayground : AppCompatActivity() {
  private lateinit var binding: ActivityMotionLayoutPlaygroundBinding
  private val things = IntRange(0, 40).toList().map {
    Thing(
      name = "Thing $it",
      description = "This is the description for thing $it"
    )
  }
  override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    binding = ActivityMotionLayoutPlaygroundBinding.inflate(layoutInflater)
    setContentView(binding.root)
    binding.recyclerView.layoutManager = LinearLayoutManager(this)
    binding.recyclerView.adapter = ThingAdapter(things)
  }
}

Activity layout (activity_motion_layout_playground.xml) ...

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  tools:context=".motionplay.MotionLayoutPlayground">
  <androidx.recyclerview.widget.RecyclerView
    android:id="@+id/recyclerView"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    />
</androidx.constraintlayout.widget.ConstraintLayout>

Model...

data class Thing(
  val name: String,
  val description: String
)

Adapter...

class ThingAdapter(private val things: List<Thing>) : RecyclerView.Adapter<ThingAdapter.ViewHolder>() {
  override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): ViewHolder {
    val binding = RowThingBinding.inflate(LayoutInflater.from(parent.context), parent, false)
    return ViewHolder(binding = binding)
  }
  override fun onBindViewHolder(holder: ViewHolder, position: Int) {
    holder.bind(things.get(position))
  }
  override fun getItemCount() = things.size
  class ViewHolder(val binding: RowThingBinding) : RecyclerView.ViewHolder(binding.root) {
    fun bind(thing: Thing) {
      // reset the MotionLayout to collapsed state
      binding.rootMotionLayout.setTransition(R.id.start, R.id.end)
      binding.rootMotionLayout.transitionToStart()

      binding.nameTextView.text = thing.name
      binding.descriptionTextView.text = thing.description
    }
  }
}

Row layout (row_thing.xml) ...

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.motion.widget.MotionLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:app="http://schemas.android.com/apk/res-auto"
  xmlns:tools="http://schemas.android.com/tools"
  android:id="@+id/rootMotionLayout"
  android:minHeight="168dp"
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  android:background="@color/light_blue"
  app:layoutDescription="@xml/thing_cell_scene"
  app:currentState="@id/start"
  >
  <TextView
    android:id="@+id/nameTextView"
    android:layout_width="150dp"
    android:layout_height="150dp"
    android:gravity="center"
    android:padding="16dp"
    android:background="@color/light_green"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"
    tools:text="This is a name"
    />
  <TextView
    android:id="@+id/descriptionTextView"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:padding="16dp"
    android:background="@color/light_red"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintStart_toEndOf="@id/nameTextView"
    tools:text="This is the description"
    />
</androidx.constraintlayout.motion.widget.MotionLayout>

Motion scene (thing_cell_scene.xml) ...

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
  xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:app="http://schemas.android.com/apk/res-auto"
  >
  <Transition
    app:constraintSetStart="@id/start"
    app:constraintSetEnd="@id/end"
    app:duration="250"
    >
    <OnClick
      app:clickAction="toggle"
      app:targetId="@+id/nameTextView"
      />
  </Transition>
  <!-- Collapsed constraints -->
  <ConstraintSet android:id="@+id/start">
    <Constraint
      android:id="@+id/nameTextView"
      android:layout_width="150dp"
      android:layout_height="150dp"
      app:layout_constraintTop_toTopOf="parent"
      app:layout_constraintStart_toStartOf="parent"
      app:layout_constraintBottom_toBottomOf="parent"
      />
    <Constraint
      android:id="@+id/descriptionTextView"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:padding="16dp"
      android:background="@color/light_red"
      app:layout_constraintTop_toTopOf="parent"
      app:layout_constraintBottom_toBottomOf="parent"
      app:layout_constraintStart_toEndOf="@id/nameTextView"
      />
  </ConstraintSet>
  <!-- Expanded constraints -->
  <ConstraintSet android:id="@+id/end">
    <Constraint
      android:id="@+id/nameTextView"
      android:layout_width="300dp"
      android:layout_height="300dp"
      app:layout_constraintTop_toTopOf="parent"
      app:layout_constraintStart_toStartOf="parent"
      />
    <Constraint
      android:id="@+id/descriptionTextView"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:padding="16dp"
      android:background="@color/light_red"
      app:layout_constraintTop_toBottomOf="@id/nameTextView"
      app:layout_constraintBottom_toBottomOf="parent"
      app:layout_constraintStart_toStartOf="parent"
      />
  </ConstraintSet>
</MotionScene>

[jafu888]

No time to check now but..
You set MotionLayout to
android:layout_width="match_parent"
android:layout_height="match_parent"
not wrap_content
Is that intentional?

[sschendel]

I had that wrong. Editted my comment to fix. I have android:layout_height="wrap_content".

[jafu888]

Do not know what is causing it but as a work around
binding.rootMotionLayout.post( binding.rootMotionLayout.requestLayout( ) )
You may also need to do a post requestLayout() in an onTransitionListener( .. onTransitionCompleated() ..)

[sschendel]

Ah. I tried that without scoping to post Runnable. Works as such. Thank you!
