[Bug] [DAO] Workflow execution time increases gradually #9937

@winskin

Description

@winskin

Search before asking

  • I had searched in the issues and found no similar issues.

What happened

说明:耗时随着数据增加而增加,测试耗时从4s增加到20s,只有一个调度任务在跑。

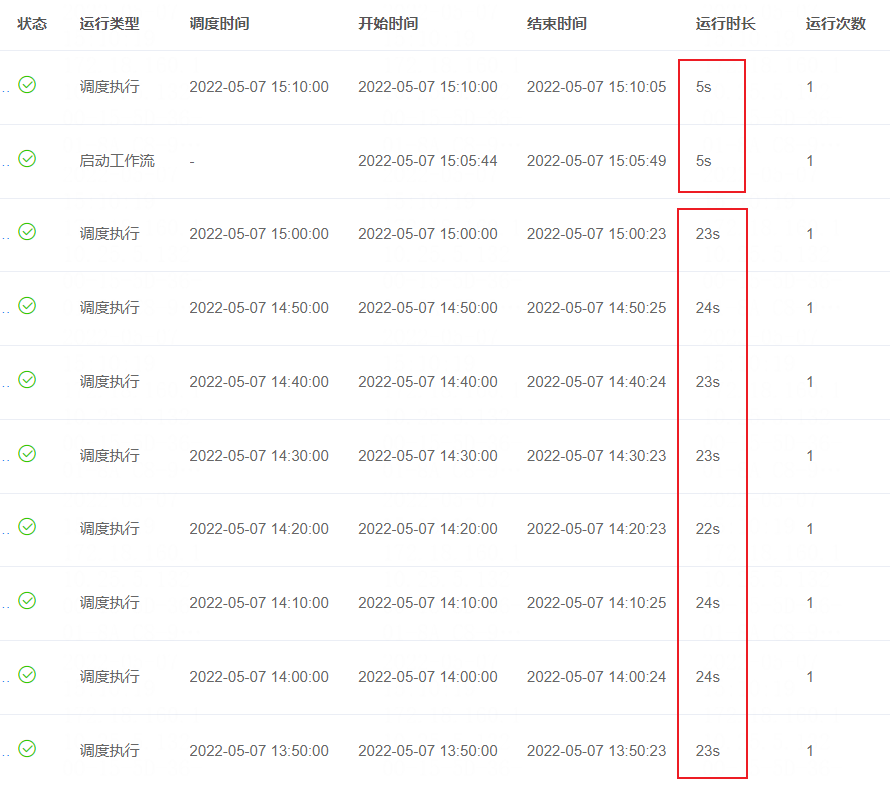

Note: The time-consuming increases as the data increases, the test time increases from 4s to 20s, and only one scheduling task is running.

排查:发现是工作流执行时会查询t_ds_task_instance表,主要的耗时集中在这里,如果能减少查询时间即可降低耗时。
Troubleshooting: It is found that the t_ds_task_instance table is queried when the workflow is executed. The main time-consuming is concentrated here. If the query time can be reduced, the time-consuming can be reduced.

临时解决:t_ds_task_instance表增加索引(当前t_ds_task_instance表数据量为20万)
Temporary solution: add an index to the t_ds_task_instance table (the current data volume of the t_ds_task_instance table is 200,000)

CREATE INDEX t_ds_task_instance_process_instance_id_idx ON t_ds_task_instance (process_instance_id,task_code);

效果:有效提升
Effect: Effectively improve


What you expected to happen

耗时降低
time-consuming reduction

How to reproduce

t_ds_task_instance表数据量越大,耗时增加越多
The larger the amount of data in the t_ds_task_instance table, the more time-consuming

Anything else

No response

Version

2.0.5

Are you willing to submit PR?

  • Yes I am willing to submit a PR!
