The UI reports incorrect historical max size after I resized them.

[didip]

Affected Version

0.21.1

Description

• I am deploying Druid on EKS Kubernetes.
• The original EBS size for historical is 2TB per pod, I resized it to 10TB.
• But the UI still reports 2TB.

What can I do to fix the reporting? See screenshot for more details:

The Volume Claim Definition:

  volumeClaimTemplates:
  - metadata:
      name: historical-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: gp2-encrypted-retain
      resources:
        requests:
          storage: 10000Gi

The actual disk size:

df -h /opt/druid/var/ebs
Filesystem      Size  Used Avail Use% Mounted on
/dev/nvme2n1    9.7T  1.6T  8.2T  16% /opt/apache-druid-0.21.1/var/ebs

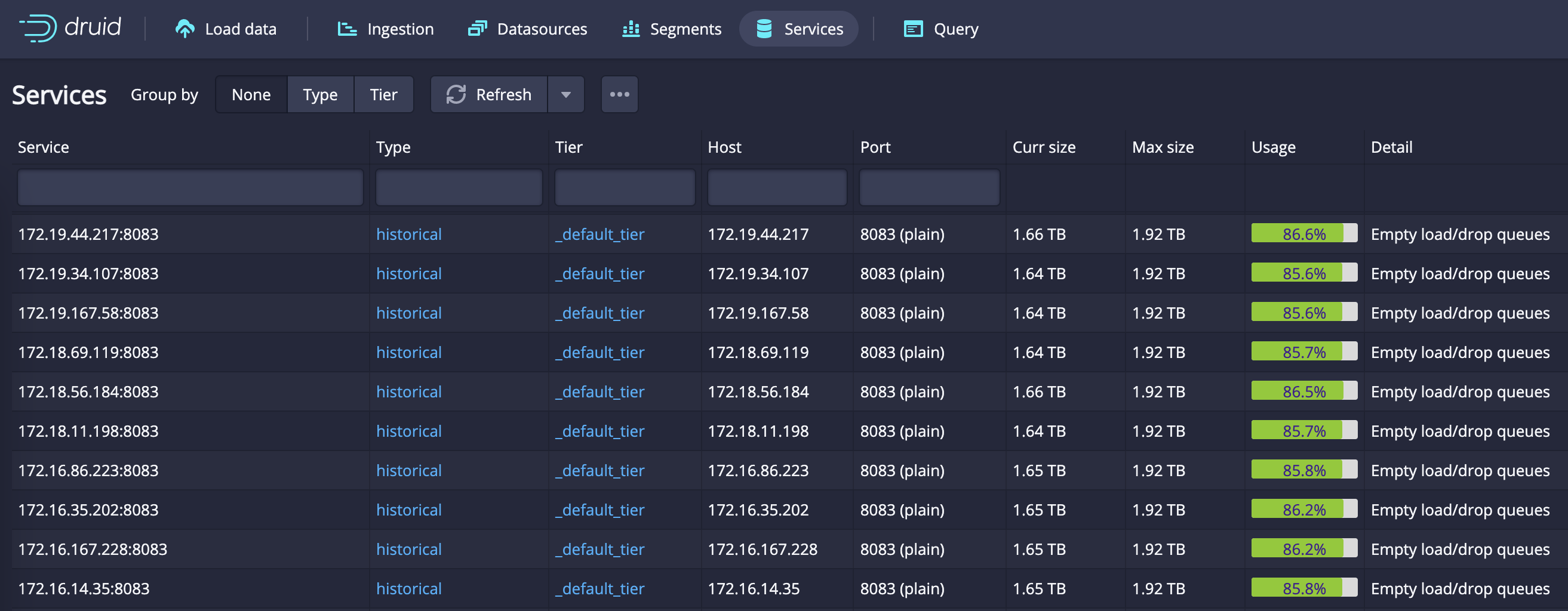

The UI Services Tab

[FrankChen021]

Have you enlarged the maxSize property in druid.segmentCache.locations from 2TB to 10TB ?

[didip]

That's it. Totally missed that config, I thought it auto detects the file system size.
