[Feature] displaying overlapped labels on emphasis even when hideOverlap is true

[pineappleok]

Version

5.3.3

Link to Minimal Reproduction

No response

Steps to Reproduce

版本：5.3.3
配置代码代码如下：
option = { "backgroundColor": "#000a40", "title": { "text": "title", "x": "center", "top": 15, "textStyle": { "color": "#fff" } }, "tooltip": { "trigger": "axis", "axisPointer": { "type": "shadow" } }, "emphasis": { "focus": "series", "label": { "show": true } }, "toolbox": { "feature": { "saveAsImage": { "backgroundColor": "#243a55" } }, "iconStyle": { "borderColor": "#fff", "fontSize": "22px" } }, "color": [ "#F56679", "#4C98FB", "#8CDF6C", "#9D50E0", "#1D50E0", "yellow", "purple", "white" ], "legend": { "bottom": 10, "left": "center", "itemWidth": 10, "itemHeight": 10, "padding": [ 5, 10 ], "textStyle": { "fontSize": 16, "color": "#96A4F4", "padding": [ 3, 0, 0, 0 ] }, "data": [ "公路", "水运", "民航", "铁路", "测试", "公路1", "水运1", "民航1", "铁路1", "测试1" ] }, "grid": { "left": "3%", "right": "4%", "bottom": "7%", "containLabel": true }, "xAxis": { "type": "category", "axisLabel": { "color": "#96A4F4", "rotate": 0 }, "axisLine": { "lineStyle": { "color": "#96A4F4" }, "width": 5 }, "axisTick": { "show": false }, "data": [ "2015", "2016", "2017", "2018" ] }, "yAxis": { "name": "单位：个", "type": "value", "axisLabel": { "color": "#96A4F4" }, "axisLine": { "lineStyle": { "color": "#96A4F4" }, "width": 5 }, "axisTick": { "show": false }, "splitLine": { "lineStyle": { "color": "rgba(150, 164, 244, 0.3)" } } }, "series": [ { "name": "公路", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 1550, 1.26, 2125, 1800 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "水运", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 929, 945, 1012, 9.3 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "民航", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 2310, 2890, 3198, 3645 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "铁路", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 1670, 2337, 2724, 2990 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "测试", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 1550, 1.26, 2125, 1800 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "公路1", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 929, 0.945, 1012, 9.3 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "水运1", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 2310, 2890, 3198, 3645 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "民航1", "type": "bar", "stack": "总数", "barWidth": "45%", "data": [ 1670, 2337, 2724, 2990 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "铁路1", "type": "bar", "stack": "总数", "barWidth": "45%", "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "测试1", "type": "bar", "stack": "总数", "barWidth": "45%", "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } } ] }

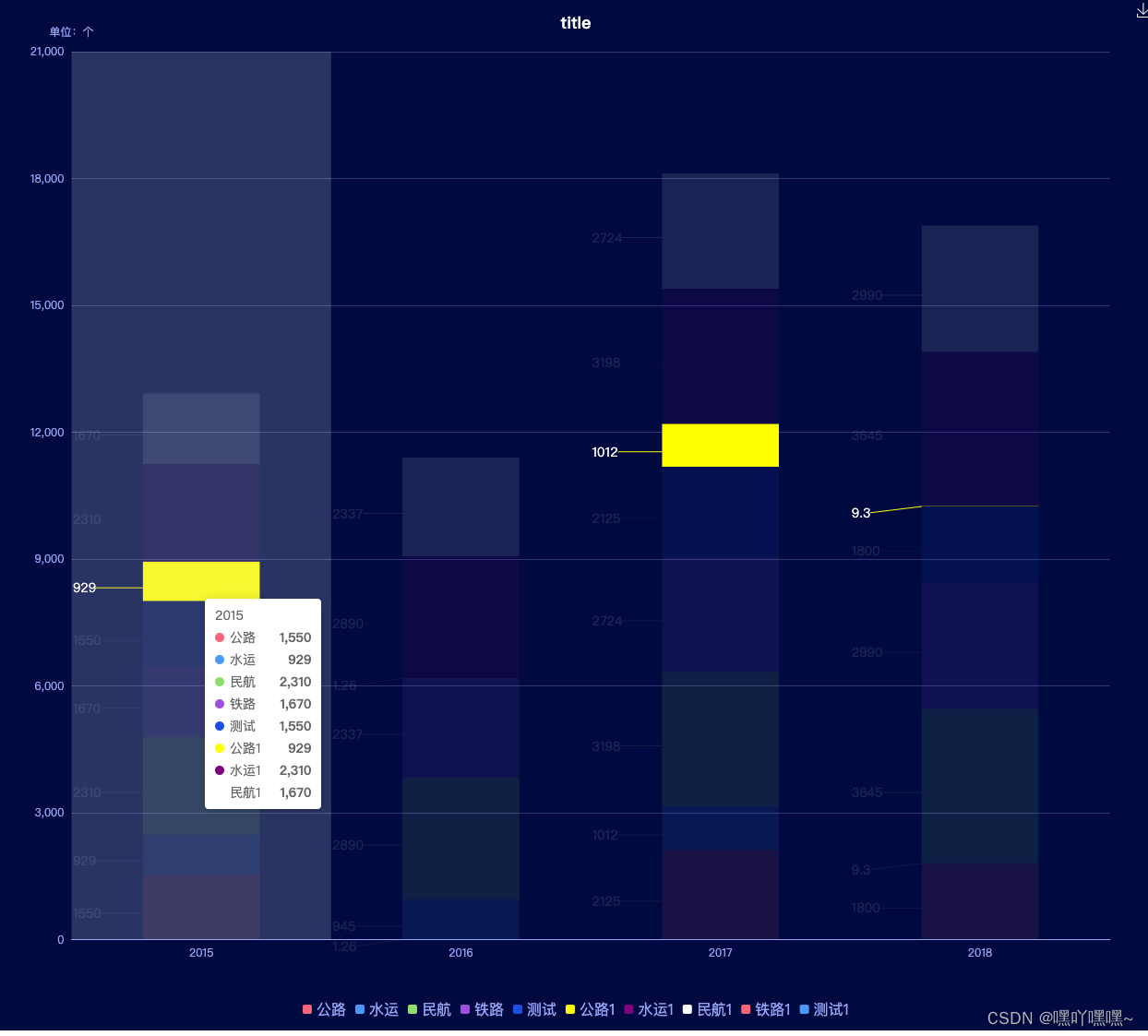

悬停截图效果如下：

期望效果：希望被隐藏掉的label“0.945”，在鼠标悬停的时候（即emphasis时）能显示出来。

Current Behavior

Expected Behavior

希望被隐藏掉的label“0.945”，在鼠标悬停的时候（即emphasis时）能显示出来。

Environment

- OS:
- Browser:
- Framework:

Any additional comments?

No response

[echarts-bot]

@pineappleok It seems you are not using English, I've helped translate the content automatically. To make your issue understood by more people and get helped, we'd like to suggest using English next time. 🤗

TRANSLATED

TITLE

[Bug] labelLayout: label hidden by hideOverlap should be displayed during emphasis

BODY

Version

5.3.3

Link to Minimal Reproduction

No response

Steps to Reproduce

Version: 5.3.3
The configuration code code is as follows:
option = { "backgroundColor": "#000a40", "title": { "text": "title", "x": "center", "top": 15, "textStyle": { "color": " #fff" } }, "tooltip": { "trigger": "axis", "axisPointer": { "type": "shadow" } }, "emphasis": { "focus": "series", "label" : { "show": true } }, "toolbox": { "feature": { "saveAsImage": { "backgroundColor": "#243a55" } }, "iconStyle": { "borderColor": "#fff", "fontSize": "22px" } }, "color": [ "#F56679", "#4C98FB", "#8CDF6C", "#9D50E0", "#1D50E0", "yellow", "purple", "white " ], "legend": { "bottom": 10, "left": "center", "itemWidth": 10, "itemHeight": 10, "padding": [ 5, 10 ], "textStyle": { " fontSize": 16, "color": "#96A4F4", "padding": [ 3, 0, 0, 0 ] }, "data": [ "road", "water transport", "civil aviation", "railway", "test", "road 1", "water transport 1", "civil aviation 1", "railway 1", "test 1" ] }, "grid": { "left": "3%", "right": " 4%", "bottom": "7%", "containLabel": true }, "xAxis": { "type": "category", "axisLabel": { "color": "#96A4F4", "rotate" : 0 }, "axisLine": { "lineStyle": { "color": "#96A4F4" }, "width": 5 }, "axisTick": { "show": false }, "data": [ "2015", "2016", "2017", "2018" ] }, "yAxis": { "name": "Unit: Units", "type": " value", "axisLabel": { "color": "#96A4F4" }, "axisLine": { "lineStyle": { "color": "#96A4F4" }, "width": 5 }, "axisTick": { "show": false }, "splitLine": { "lineStyle": { "color": "rgba(150, 164, 244, 0.3)" } } }, "series": [ { "name": "Highway" , "type": "bar", "stack": "total", "barWidth": "45%", "data": [ 1550, 1.26, 2125, 1800 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255 , 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Water Transport", "type": "bar", "stack": "Total", "barWidth ": "45%", "data": [ 929, 945, 1012, 9.3 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Civil Aviation", "type": "bar", "stack": "Total", "barWidth": "45%", " data": [ 2310, 2890, 3198, 3645 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60 %", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name" : "rail", "type": "bar", "stack": "total", "barWidth": "45%", "data": [ 1670, 2337, 2724, 2990 ], "labelLayout": { " hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "test", "type": "bar", "stack": "total ", "barWidth": "45%", "data": [ 1550, 1.26, 2125, 1800 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow ": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Highway 1", "type": "bar", "stack": "Total", "barWidth": "45%", "data": [ 929, 0.945, 1012, 9.3 ], "labelLayout": { "hideOverlap": true }, "label" : { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Water Transport 1", "type": "bar", "stack": "Total", "barWidth": "45 %", "data": [ 2310, 2890, 3198, 3645 ], "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Civil Aviation 1", "type": "bar", "stack": "Total", "barWidth": "45%", "data": [ 1670, 2337, 2724, 2990 ], " labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14 , "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } }, { "name": "Railway 1", "type": "bar", "stack": "Total", "barWidth": "45%", "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ], "fontSize": 14, "color": "rgba(255, 255, 25 5, 1)" }, "labelLine": { "show": true } }, { "name": "Test 1", "type": "bar", "stack": "Total", "barWidth": "45%", "labelLayout": { "hideOverlap": true }, "label": { "show": true, "labelNameShow": true, "position": [ "-60%", "50%" ] , "fontSize": 14, "color": "rgba(255, 255, 255, 1)" }, "labelLine": { "show": true } } ] }
The hover screenshot effect is as follows:

Expected effect: I hope that the hidden label "0.945" can be displayed when the mouse is hovered (ie, emphasis).

Current Behavior

Expected Behavior

It is hoped that the hidden label "0.945" can be displayed when the mouse is hovered (ie, emphasis).

Environment

- OS:
- Browser:
- Framework:

Any additional comments?

No response
