KYLIN-3942 Support multi-level json event in backend

[hit-lacus]

Problem

Currently real-time OLAP didn't support multi-level json event.
For example,if I have a kafka multi-level json event like this:

Sample Event

{
    "country":"JAPAN",
    "amount":13.075058425023922,
    "qty":8,
    "currency":"USD",
    "order_time":1554801950882,
    "category":"ELECTRONIC",
    "device":"Andriod",
    "user":{
        "gender":"Female",
        "id":"7a0cfa5e-bbaa-79ef-1a38-e06f02c85fcb",
        "first_name":"unknown",
        "age":16
    }
}

streaming_receiver.log

2019-04-09 09:46:09,878 ERROR [StreamingV2Cube_channel] kafka.TimedJsonStreamParser:107 : error
com.fasterxml.jackson.databind.exc.MismatchedInputException: Cannot deserialize instance of `java.lang.String` out of START_OBJECT token
at [Source: (String)"\{"country":"US","amount":14.498498222823619,"qty":1,"currency":"USD","order_time":1554803169876,"category":"Other","device":"Other","user":{"gender":"Female","id":"0736b41a-9ae7-9b4a-a124-f74436d3eb41","first_name":"unknown","age":26}}"; line: 1, column: 140] (through reference chain: java.util.HashMap["user"])
at com.fasterxml.jackson.databind.exc.MismatchedInputException.from(MismatchedInputException.java:63)
at com.fasterxml.jackson.databind.DeserializationContext.reportInputMismatch(DeserializationContext.java:1342)
at com.fasterxml.jackson.databind.DeserializationContext.handleUnexpectedToken(DeserializationContext.java:1138)
at com.fasterxml.jackson.databind.DeserializationContext.handleUnexpectedToken(DeserializationContext.java:1092)
at com.fasterxml.jackson.databind.deser.std.StringDeserializer.deserialize(StringDeserializer.java:63)
at com.fasterxml.jackson.databind.deser.std.StringDeserializer.deserialize(StringDeserializer.java:10)
at com.fasterxml.jackson.databind.deser.std.MapDeserializer._readAndBindStringKeyMap(MapDeserializer.java:527)
at com.fasterxml.jackson.databind.deser.std.MapDeserializer.deserialize(MapDeserializer.java:364)
at com.fasterxml.jackson.databind.deser.std.MapDeserializer.deserialize(MapDeserializer.java:29)
at com.fasterxml.jackson.databind.ObjectMapper._readMapAndClose(ObjectMapper.java:4001)
at com.fasterxml.jackson.databind.ObjectMapper.readValue(ObjectMapper.java:3030)
at org.apache.kylin.stream.source.kafka.TimedJsonStreamParser.parse(TimedJsonStreamParser.java:79)
at org.apache.kylin.stream.source.kafka.TimedJsonStreamParser.parse(TimedJsonStreamParser.java:54)
at org.apache.kylin.stream.source.kafka.consumer.KafkaConnector.nextEvent(KafkaConnector.java:110)
at org.apache.kylin.stream.core.consumer.StreamingConsumerChannel.run(StreamingConsumerChannel.java:93)
at java.lang.Thread.run(Thread.java:748)

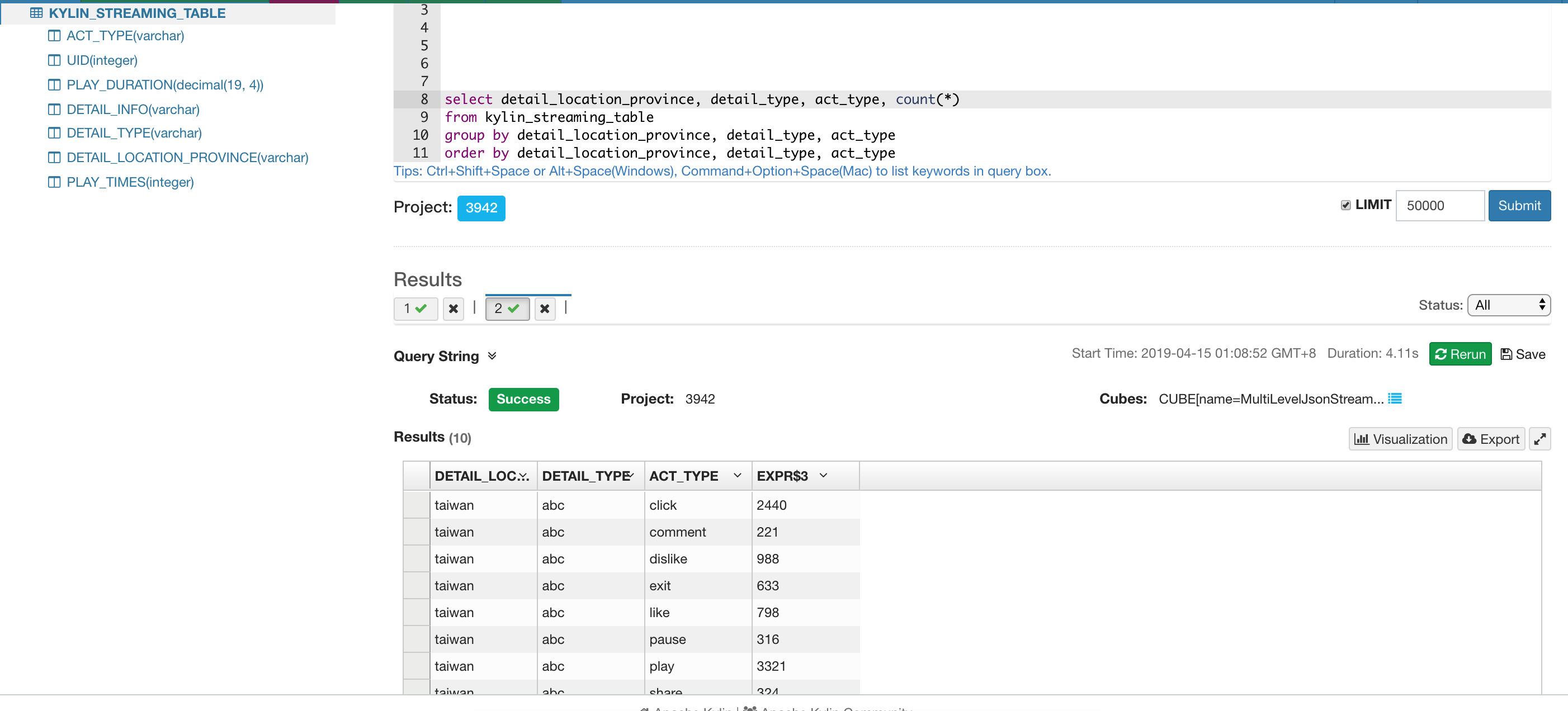

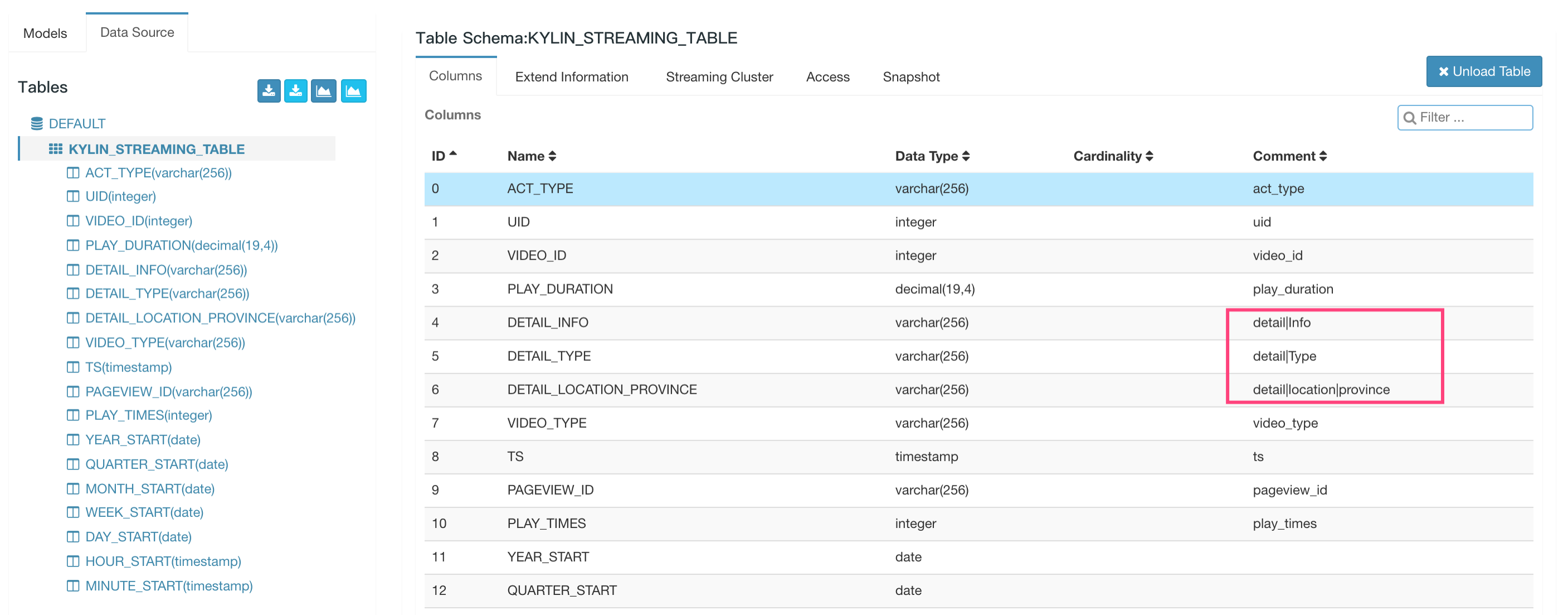

After repair

{
    "act_type":"play",
    "uid":1716,
    "video_id":1786,
    "play_duration":10.2966,
    "detail":{
        "Info":"dk",
        "Type":"abc",
        "location":{
            "province":"taiwan"
        }
    },
    "video_type":"3aa17",
    "ts":1555261235000,
    "pageview_id":"6ed3aa34d75f0",
    "play_times":31
}

[asfgit]

Can one of the admins verify this patch?

[coveralls]

Pull Request Test Coverage Report for Build 4403

• 39 of 42 (92.86%) changed or added relevant lines in 1 file are covered.
• 3 unchanged lines in 2 files lost coverage.
• Overall coverage increased (+0.06%) to 27.823%

---

Changes Missing Coverage	Covered Lines	Changed/Added Lines	%
stream-source-kafka/src/main/java/org/apache/kylin/stream/source/kafka/TimedJsonStreamParser.java	39	42	92.86%

Files with Coverage Reduction	New Missed Lines	%
core-dictionary/src/main/java/org/apache/kylin/dict/lookup/cache/RocksDBLookupTable.java	1	81.08%
stream-core/src/main/java/org/apache/kylin/stream/core/storage/columnar/ColumnarStoreCache.java	2	55.81%

Totals
Change from base Build 4393:	0.06%
Covered Lines:	22746
Relevant Lines:	81753

---

💛 - Coveralls

[codecov-io]

Codecov Report

Merging #605 into master will increase coverage by 0.04%.
The diff coverage is 83.33%.

@@             Coverage Diff              @@
##             master     #605      +/-   ##
============================================
+ Coverage      25.3%   25.34%   +0.04%
- Complexity     5827     5838      +11
============================================
  Files          1379     1379
  Lines         81720    81753      +33
  Branches      11444    11452       +8
============================================
+ Hits          20676    20720      +44
+ Misses        59032    59011      -21
- Partials       2012     2022      +10

Impacted Files	Coverage Δ	Complexity Δ
...lin/stream/source/kafka/TimedJsonStreamParser.java	76.71% <83.33%> (+76.71%)	12 <8> (+12)	⬆️
...he/kylin/dict/lookup/cache/RocksDBLookupTable.java	72.97% <0%> (-5.41%)	6% <0%> (-1%)
...ream/core/storage/columnar/ColumnarStoreCache.java	48.83% <0%> (-3.49%)	7% <0%> (ø)
.../apache/kylin/cube/cuboid/TreeCuboidScheduler.java	63.84% <0%> (-2.31%)	0% <0%> (ø)
...rg/apache/kylin/cube/inmemcubing/MemDiskStore.java	69.6% <0%> (-1.22%)	7% <0%> (ø)

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 595c4e2...546bfaa. Read the comment docs.

[hit-lacus]

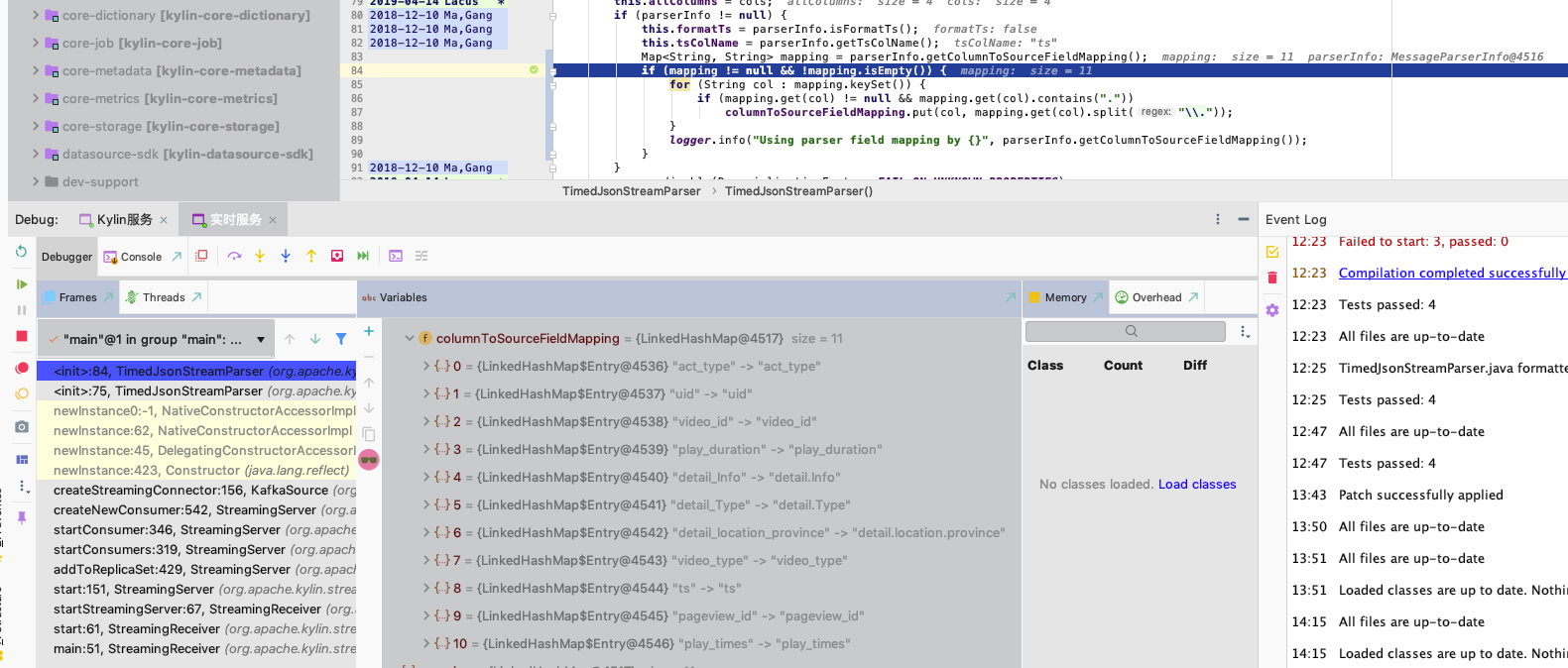

After disscussion, I use ParseInfo's columnToSourceFieldMapping to parse multi-level json event.

[allenma]

It is better not change the interface

[hit-lacus]

OK
