[KYUUBI #5677][AUTHZ] Typeof expression miss column information #5678

AngersZhuuuu · 2023-11-13T04:17:24Z

Why are the changes needed?

To close #5677
Typeof expression miss column information, in this pr we add a place holder to support this.

For sql

SELECT typeof(id), typeof(age) FROM default.t1 LIMIT 1

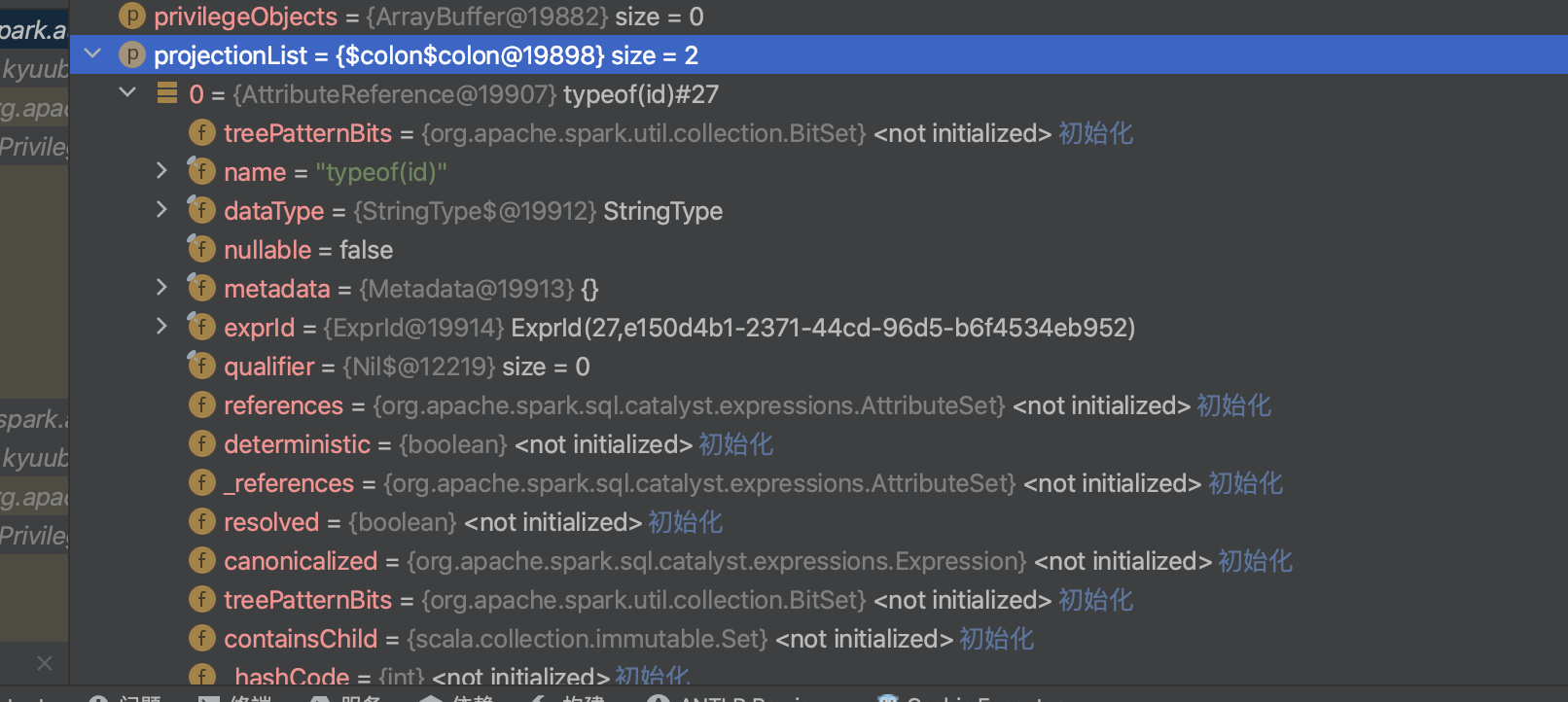

Without this pr, typeof after optimizer passed to PrivilegeBuild is just an attribute, miss the origin child expression info.

GlobalLimit 21
+- LocalLimit 21
   +- Project [int AS typeof(id)#27, int AS typeof(age)#28]
      +- Relation default.t1[id#18,age#19,part#20] parquet

When handle this plan's project list, it's an attribute and miss expression when expression result is a constant value, then we can't extract the TypeOf's child expression.

This is caused by TypeOf expression is foldable

It will be convert to a constant value after spark optimizer, then cause we miss the child expression, then can't extract columns by collectLeaves

In this pr we wrap the TypeOf by a non-foldable expression placeholder then we can get the expression contains column of table when mergeProjection
After this pr, the plan is like below

GlobalLimit 21
+- LocalLimit 21
   +- Project [typeofplaceholder(id#21) AS typeof(id)#30, typeofplaceholder(day#23) AS typeof(day)#31]
      +- HiveTableRelation [`default`.`table1`, org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe, Data Cols: [id#21, scope#22, day#23], Partition Cols: []]

How was this patch tested?

Add some test cases that check the changes thoroughly including negative and positive cases if possible
Add screenshots for manual tests if appropriate
Run test locally before make a pull request

Was this patch authored or co-authored using generative AI tooling?

No

AngersZhuuuu · 2023-11-13T04:17:37Z

ping @yaooqinn

yaooqinn · 2023-11-13T04:32:10Z

What is the problem here?

AngersZhuuuu · 2023-11-13T04:48:50Z

What is the problem here?

Without this pr, it will check the privilege of all table, not column

yaooqinn · 2023-11-13T04:51:30Z

I see the id, age field in the project. Why not pull them out?

AngersZhuuuu · 2023-11-13T05:58:57Z

I see the id, age field in the project. Why not pull them out?

Yea

AngersZhuuuu · 2023-11-13T06:37:41Z

Without this pr the UT's result is as below cc @yaooqinn

"Permission denied: user [someone] does not have [select] privilege on [default/table1]" did not contain "does not have [select] privilege on [default/table1/id,default/table1/day]"
ScalaTestFailureLocation: org.apache.kyuubi.plugin.spark.authz.ranger.HiveCatalogRangerSparkExtensionSuite at (RangerSparkExtensionSuite.scala:1316)
org.scalatest.exceptions.TestFailedException: "Permission denied: user [someone] does not have [select] privilege on [default/table1]" did not contain "does not have [select] privilege on [default/table1/id,default/table1/day]"
	at org.scalatest.Assertions.newAssertionFailedException(Assertions.scala:472)
	at org.scalatest.Assertions.newAssertionFailedException$(Assertions.scala:471)

codecov-commenter · 2023-11-13T07:59:35Z

Codecov Report

Attention: 4 lines in your changes are missing coverage. Please review.

Comparison is base (0ce697e) 61.44% compared to head (273cd61) 61.43%.
Report is 9 commits behind head on master.

Files	Patch %	Lines
...park/authz/rule/expression/TypeOfPlaceHolder.scala	66.66%	1 Missing and 1 partial ⚠️
.../plugin/spark/authz/rule/RuleEliminateTypeOf.scala	75.00%	0 Missing and 1 partial ⚠️
.../authz/rule/expression/RuleApplyTypeOfMarker.scala	66.66%	0 Missing and 1 partial ⚠️

Additional details and impacted files

@@             Coverage Diff              @@
##             master    #5678      +/-   ##
============================================
- Coverage     61.44%   61.43%   -0.01%
  Complexity       23       23
============================================
  Files           603      607       +4
  Lines         35664    35712      +48
  Branches       4876     4891      +15
============================================
+ Hits          21914    21941      +27
- Misses        11373    11392      +19
- Partials       2377     2379       +2

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

yaooqinn · 2023-11-13T08:21:19Z

I see the id, age field in the project. Why not pull them out?

Yea

Why not pull them out?

AngersZhuuuu · 2023-11-13T08:49:12Z

I see the id, age field in the project. Why not pull them out?

Yea

Why not pull them out?

The name and exprId are not the same between the projection list and the relation 's output, then merge projection miss the column.

yaooqinn · 2023-11-13T09:34:21Z

Why is typeof special, or how many are they?

AngersZhuuuu · 2023-11-13T09:40:16Z

Why is typeof special, or how many are they?

Since typeof's result only needs the expression's datatype, it doesn't need real value.
Only see one such case.

yaooqinn · 2023-11-13T11:49:00Z

Since typeof's result only needs the expression's datatype, it doesn't need real value.

Shall we bypass it?

AngersZhuuuu · 2023-11-13T12:37:31Z

Since typeof's result only needs the expression's datatype, it doesn't need real value.

Shall we bypass it?

But it need table's read privilege, can't just ignore, better extract the correct column?

yaooqinn · 2023-11-13T12:52:06Z

It's much more like explain select a from src to me

AngersZhuuuu · 2023-11-14T02:21:47Z

It's much more like explain select a from src to me

But only when the query's result is empty, then this sql have the output. If there is no row, show an empty result

Explain command seems won't trigger privilege check. But when it execute the query, still will check the query's privilege

yaooqinn · 2023-11-14T06:31:34Z

...z/src/test/scala/org/apache/kyuubi/plugin/spark/authz/ranger/RangerSparkExtensionSuite.scala

+                 |typeof(substring(day, 1, 3))
+                 |FROM $db1.$table1""".stripMargin).show()))(
+          s"does not have [select] privilege on [$db1/$table1/id,$db1/$table1/day]")
+        doAs(admin, sql(s"SELECT typeof(id), typeof(day) FROM $db1.$table1").show())


check values

SELECT typeof(typeof)

typeof typeof(id + age)

How about current?

...z/src/test/scala/org/apache/kyuubi/plugin/spark/authz/ranger/RangerSparkExtensionSuite.scala

bowenliang123 · 2023-11-14T08:01:18Z

Could you add the example for the plan in either the issue or the pr description to show the problem and the plan?

AngersZhuuuu · 2023-11-14T09:29:46Z

Any more suggestion? cc @yaooqinn

AngersZhuuuu · 2023-11-14T09:32:43Z

Could you add the example for the plan in either the issue or the pr description to show the problem and the plan?

How about current?

...ark-authz/src/main/scala/org/apache/kyuubi/plugin/spark/authz/rule/RuleEliminateTypeOf.scala

AngersZhuuuu · 2023-11-15T02:28:43Z

Any more suggestion?

bowenliang123 · 2023-11-15T03:33:14Z

Could you add the example for the plan in either the issue or the pr description to show the problem and the plan?

How about current?

Sorry, it's still too difficult for me. I'm out of the context.
Show the SQL or situation first, then the plan, and the suggested solution.

bowenliang123 · 2023-11-15T03:44:40Z

If you don't have time next time, there's no need to ping me. Lately, I haven't been keeping up with your series of PRs. They always get merged quickly, and my suggestions are being skipped. Not enough information for me to understand. If the Kyuubi community is okay with this 'no-explanation-just-go' approach, I don't have any objections. I attribute all of my willingness to my own shortcomings in abilities.

AngersZhuuuu · 2023-11-15T03:44:41Z

Could you add the example for the plan in either the issue or the pr description to show the problem and the plan?

How about current?

Sorry, it's still too difficult for me. I'm out of the context. Show the SQL or situation first, then the plan, and the suggested solution.

Add explain about root cause and solution.
