[KYUUBI #5680] Optimize Spark engine pod name generation #5695

Ocean22 · 2023-11-15T03:00:21Z

Why are the changes needed?

Close #5680

Background:

In default case, when kyuubi submit spark sql engine on kubernetes, will generate spark driver pod name with "kyuubi-${app_name}-${engine_ref_id}-driver".
And app_name will be "kyuubi_${shareLevel}${engineType}${appUser}_${engineRefId}" if not set by user.
In result, we may get spark driver pod name with "kyuubi-kyuubi-${shareLevel}-${engineType}-${appUser}-${engineRefId}-${engineRefId}-driver".
We were hoping for a more concise and readable name, such as "kyuubi-${shareLevel}-${engineType}-${appUser}-${app_name}-${engineRefId}-driver".

How was this patch tested?

Add some test cases that check the changes thoroughly including negative and positive cases if possible
Add screenshots for manual tests if appropriate
1) Before modification：
Left is unset spark.app.name, and right is set to “ocean”

2) Modify the code

3) Build module and get the jar

4) Build a new images

5) After modification:

Run test locally before make a pull request

Was this patch authored or co-authored using generative AI tooling?

No

yaooqinn · 2023-11-15T03:53:09Z

Hi @Ocean22, thanks for the PR.

There is also an original purpose for spark.app.name generation I want to share. In early versions of kyuubi, I used(just an attemption) it as a unique key for retrieval. However, we do not rely on it for this purpose.

So, since we are now touching this part, I suggest we make it as simple as possible. for example, the appUser is not necessary here as both YARN UI or Spark History UI display with a USER field, uuid is not necessary as it is also in the app tags,

zwangsheng

We can just simply changed appendPodName logic in SparkProcessBuilder#appendPodNameConf

remove kyuubi prefix
only append engineRefId, when appName not contains it.

zwangsheng · 2023-11-15T06:12:30Z

kyuubi-server/src/main/scala/org/apache/kyuubi/engine/EngineRef.scala

    builder = engineType match {
      case SPARK_SQL =>
-        conf.setIfMissing(SparkProcessBuilder.APP_KEY, defaultEngineName)
+        conf.set(SparkProcessBuilder.APP_KEY, generateAppKey(conf.getOption(SparkProcessBuilder.APP_KEY).getOrElse(null)))


IMO, if user set spark app name, we should not over write this, so let's keep setIfMissing here.

Ocean22 · 2023-11-15T07:06:31Z

Thanks for guidance,I will continue to improve it when I have free time.

If the `appName` contains the `engineRefId`, it indicates that this `appName` is the `defaultEngineNmae` from `EngineRef.scala`, not set by the user.

Ocean22 · 2023-11-18T08:53:48Z

@yaooqinn @zwangsheng Hi, following our previous discussion, I have changed a way to handle this issue.

Ocean22 · 2023-11-18T09:29:13Z

@yaooqinn @zwangsheng Hi, following our previous discussion, I have changed a way to handle this issue.

Sorry, it still need some else change,I still need to do more testing

Ocean22 · 2023-11-18T10:49:27Z

@yaooqinn @zwangsheng Hi, following our previous discussion, I have changed a way to handle this issue.

Sorry, it still need some else change,I still need to do more testing

Now is OK, and this photo is the result that I test.

zwangsheng

Sorry for late review, we should determine if resolvedResourceName carries engine ref id before determining if it's too long.

zwangsheng · 2023-11-20T01:57:25Z

kyuubi-server/src/main/scala/org/apache/kyuubi/util/KubernetesUtils.scala

    lazy val resolvedResourceName = s"kyuubi-${getResourceNamePrefix(appName, engineRefId)}-driver"
    if (forciblyRewrite || resolvedResourceName.length > DRIVER_POD_NAME_MAX_LENGTH) {
      s"kyuubi-$engineRefId-driver"
+    } else if (appName.contains(engineRefId)){
+      getResourceNamePrefix(appName, "driver")
    } else {
      resolvedResourceName
    }


Suggested change

lazy val resolvedResourceName = s"kyuubi-${getResourceNamePrefix(appName, engineRefId)}-driver"

if (forciblyRewrite || resolvedResourceName.length > DRIVER_POD_NAME_MAX_LENGTH) {

s"kyuubi-$engineRefId-driver"

} else if (appName.contains(engineRefId)){

getResourceNamePrefix(appName, "driver")

} else {

resolvedResourceName

}

val resourceNamePrefix = if (appName.contains(engineRefId)) {

getResourceNamePrefix(appName, "")

} else {

getResourceNamePrefix(appName, engineRefId)

}

val resolvedResourceName = if (resourceNamePrefix.startsWith("kyuubi")) {

s"$resourceNamePrefix-driver"

} else {

s"kyuubi-$resourceNamePrefix-driver"

}

if (forciblyRewrite || resolvedResourceName.length > DRIVER_POD_NAME_MAX_LENGTH) {

s"kyuubi-$engineRefId-driver"

} else {

resolvedResourceName

}

Yes,you are right.And I tested with your code and it passed, but about resourceNamePrefix. startsWith ("kyuubi"), if spark. app. name is set to the name starting with kyuubi, it will have the effect of the arrow in the photo. So should it be changed to resourceNamePrefix. startsWith ("kyuubi-")?

zwangsheng

LGTM, also FYI @pan3793

pan3793

LGTM, though @yaooqinn's suggestion is not applied, we can do it in the future

pan3793 · 2023-11-23T05:33:50Z

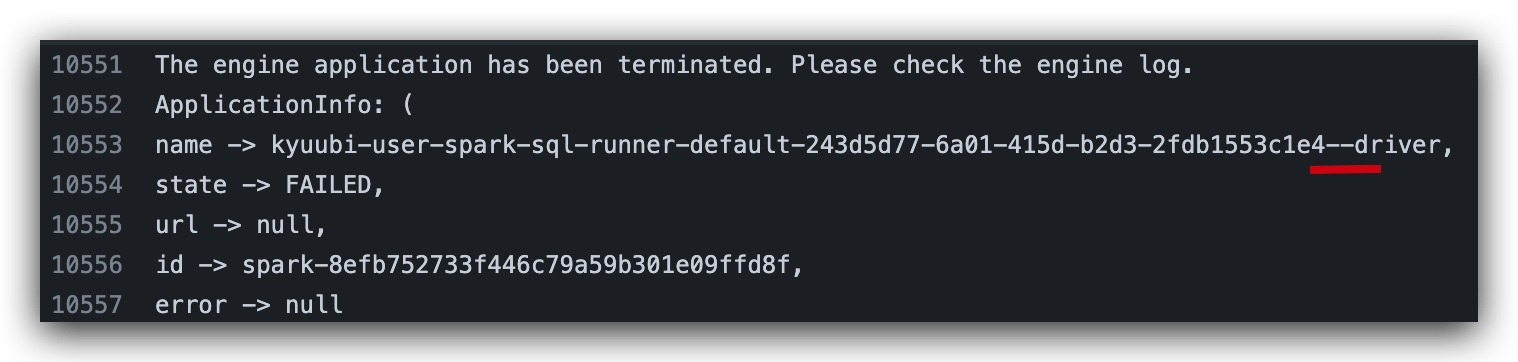

there still is a minor issue on the final result

Ocean22 · 2023-11-23T05:47:10Z

there still is a minor issue on the final result

Sorry,I thought this method would avoid this situation.Let me improve it

codecov-commenter · 2023-11-23T05:50:00Z

Codecov Report

Attention: 6 lines in your changes are missing coverage. Please review.

Comparison is base (2568b0d) 61.46% compared to head (6dbac57) 61.34%.
Report is 68 commits behind head on master.

Files	Patch %	Lines
...scala/org/apache/kyuubi/util/KubernetesUtils.scala	53.84%	3 Missing and 3 partials ⚠️

Additional details and impacted files

@@             Coverage Diff              @@
##             master    #5695      +/-   ##
============================================
- Coverage     61.46%   61.34%   -0.13%
  Complexity       23       23
============================================
  Files           604      608       +4
  Lines         35697    35941     +244
  Branches       4889     4940      +51
============================================
+ Hits          21942    22048     +106
- Misses        11380    11495     +115
- Partials       2375     2398      +23

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

pan3793 · 2023-11-23T05:50:11Z

how about this?

- private def getResourceNamePrefix(appName: String, engineRefId: String): String = {
-   s"$appName-$engineRefId"
+ private def getResourceNamePrefix(appName: String, engineRefId: Option[String]): String = {
+   engineRefId.map(refId => s"$appName-$refId").getOrElse(appName)

Ocean22 · 2023-11-23T06:22:57Z

how about this?

- private def getResourceNamePrefix(appName: String, engineRefId: String): String = {
-   s"$appName-$engineRefId"
+ private def getResourceNamePrefix(appName: String, engineRefId: Option[String]): String = {
+   engineRefId.map(refId => s"$appName-$refId").getOrElse(appName)

Is it right what I modified?

pan3793 · 2023-12-04T02:19:05Z

@Ocean22 sorry I missed the message, it's correct, please push it

Ocean22 · 2023-12-04T02:19:12Z

how about this?

- private def getResourceNamePrefix(appName: String, engineRefId: String): String = {
-   s"$appName-$engineRefId"
+ private def getResourceNamePrefix(appName: String, engineRefId: Option[String]): String = {
+   engineRefId.map(refId => s"$appName-$refId").getOrElse(appName)

Is it right what I modified?

@pan3793 Hi,the code passed the test,and it's the result

Ocean22 · 2023-12-04T02:20:56Z

@Ocean22 sorry I missed the message, it's correct, please push it

Good,I will push it later.

Optimize engine pod name generation.

kyuubi-server/src/main/scala/org/apache/kyuubi/util/KubernetesUtils.scala

…Utils.scala

pan3793 · 2023-12-04T04:09:51Z

@Ocean22 could you please provide a Public Name and email (which should be linked to your GitHub account), e.g. San Zhang <sanzhang@example.com>, otherwise, your contribution will not be counted by the GitHub

### _Why are the changes needed?_ Close #5680 **Background**: 1) In default case, when kyuubi submit spark sql engine on kubernetes, will generate spark driver pod name with "kyuubi-${app_name}-${engine_ref_id}-driver". 2) And app_name will be "kyuubi_${shareLevel}_${engineType}_${appUser}_${engineRefId}" if not set by user. 3) In result, we may get spark driver pod name with "kyuubi-kyuubi-${shareLevel}-${engineType}-${appUser}-${engineRefId}-${engineRefId}-driver". 4) We were hoping for a more concise and readable name, such as "kyuubi-${shareLevel}-${engineType}-${appUser}-${app_name}-${engineRefId}-driver". ### _How was this patch tested?_ - [ ] Add some test cases that check the changes thoroughly including negative and positive cases if possible - [ ] Add screenshots for manual tests if appropriate **1) Before modification：** Left is unset `spark.app.name`, and right is set to “ocean” ![image](https://github.com/apache/kyuubi/assets/45907917/350aa09f-a9cb-4cc4-bdc6-71b085ba0824) **2) Modify the code** ![image](https://github.com/apache/kyuubi/assets/45907917/f9cbef91-9e1a-482a-82bb-a78caf669438) **3) Build module and get the jar** ![image](https://github.com/apache/kyuubi/assets/45907917/b2cf7595-dd54-46eb-bb79-354f3301499f) **4) Build a new images** ![image](https://github.com/apache/kyuubi/assets/45907917/c0418f2d-dcde-4845-a568-84e920892359) **5) After modification:** ![image](https://github.com/apache/kyuubi/assets/45907917/5db95d5b-2550-41b7-a11c-d8e4a6c0f09f) - [ ] [Run test](https://kyuubi.readthedocs.io/en/master/contributing/code/testing.html#running-tests) locally before make a pull request ### _Was this patch authored or co-authored using generative AI tooling?_ No Closes #5695 from Ocean22/master. Closes #5680 6dbac57 [Cheng Pan] Update kyuubi-server/src/main/scala/org/apache/kyuubi/util/KubernetesUtils.scala 5ddc9f6 [no 会 English] Update KubernetesUtils.scala b685b60 [no 会 English] Update KubernetesUtils.scala 6a64e17 [no 会 English] Update KubernetesUtils.scala 1335bbd [no 会 English] Update EngineRef.scala f2af955 [no 会 English] Update KubernetesUtils.scala 891f172 [no 会 English] Update KubernetesUtils.scala c20b755 [no 会 English] Update EngineRef.scala 09f3ed1 [no 会 English] Update EngineRef.scala 64bd2c1 [no 会 English] Update EngineRef.scala Lead-authored-by: Ocean22 <1058853680@qq.com> Co-authored-by: no 会 English <45907917+Ocean22@users.noreply.github.com> Co-authored-by: Cheng Pan <pan3793@gmail.com> Signed-off-by: Cheng Pan <chengpan@apache.org> (cherry picked from commit 25eb53d) Signed-off-by: Cheng Pan <chengpan@apache.org>

pan3793 · 2023-12-04T04:33:43Z

Thanks, merged to master/1.8
