HDDS-5463. [FSO] Recon Container API does not work correctly with FSO.

[ArafatKhan2198]

What changes were proposed in this pull request?

The container Endpoint and ContainerKeyMapperTask have been updated to support both legacy and file-system optimized (FSO) buckets. Previously, only the KeyTable for legacy buckets was being referenced, but now both the KeyTable and FileTable will be utilised to fetch metadata

What is the link to the Apache JIRA

https://issues.apache.org/jira/browse/HDDS-5463

How was this patch tested?

Manually tested out the API along with Unit-Testing

[ArafatKhan2198]

@aryangupta1998 @devmadhuu @dombizita @sadanand48 Can you please take a look at this !!

[aryangupta1998]

I think we don't have any usage of the 'getBucketLayout()' function as we are directly passing the bucket layout in the 'getKeyTable()' function in ContainerEndpoint.java. Can we remove 'getBucketLayout()'?

[kerneltime]

@GeorgeJahad can you please take a look as well.

[aryangupta1998]

+1, LGTM!

[GeorgeJahad]

Is there a reason why no tests have been added to confirm this fix?

[GeorgeJahad]

What about object store buckets? I know those are similar to legacy buckets but the way recon is coded they won't get handled, will they? Is that a separate PR?

[DaveTeng0]

Hey @ArafatKhan2198 ~ there were some new comments, please help take a look.
Thanks!

[jojochuang]

Actually, getKeyTable() returns fileTable rocksdb column family if it's FSO and returns keyTable otherwise, so no need to distinguish between OBJECT_STORE or LEGACY.

But good point on the test case. We need that.

[ArafatKhan2198]

@GeorgeJahad @jojochuang can you please take a look!

[dombizita]

thanks for working on this @ArafatKhan2198, overall it looks good to me, I added a comment inline.

[GeorgeJahad]

It would be good to add an fso test here as well:

ozone/hadoop-ozone/recon/src/test/java/org/apache/hadoop/ozone/recon/tasks/TestContainerKeyMapperTask.java

Line 153 in 94598d1

public void testProcessOMEvents() throws IOException {

[sumitagrawl]

LGTM, @ArafatKhan2198 Plz check below comments

[GeorgeJahad]

I don't see any smoketests for this api here: https://github.com/apache/ozone/tree/master/hadoop-ozone/dist/src/main/smoketest/recon

[sumitagrawl]

IMO, pseudocode,

1. Get all keys (FSO/OBS) with limit and prvKey as starting point
2. For each Key,

• get bucket Type (OBS/FSO)
• If OBS, as old code, get KeyInfo and extract metadata
• If FSO, generate key based on path

•         use generated Key, get KeyInfo and extract metadata


Few optimization, generate key based on path, can see avoid getting parentId again and again

[ArafatKhan2198]

@GeorgeJahad @ChenSammi @jojochuang Could you kindly review this patch? It has been open for some time. Please let me know if there are any additional changes required to expedite the merge process. Thank you.

[sumitagrawl]

@ArafatKhan2198 we need have implementation wrt pagination as used by Recond UI

[ArafatKhan2198]

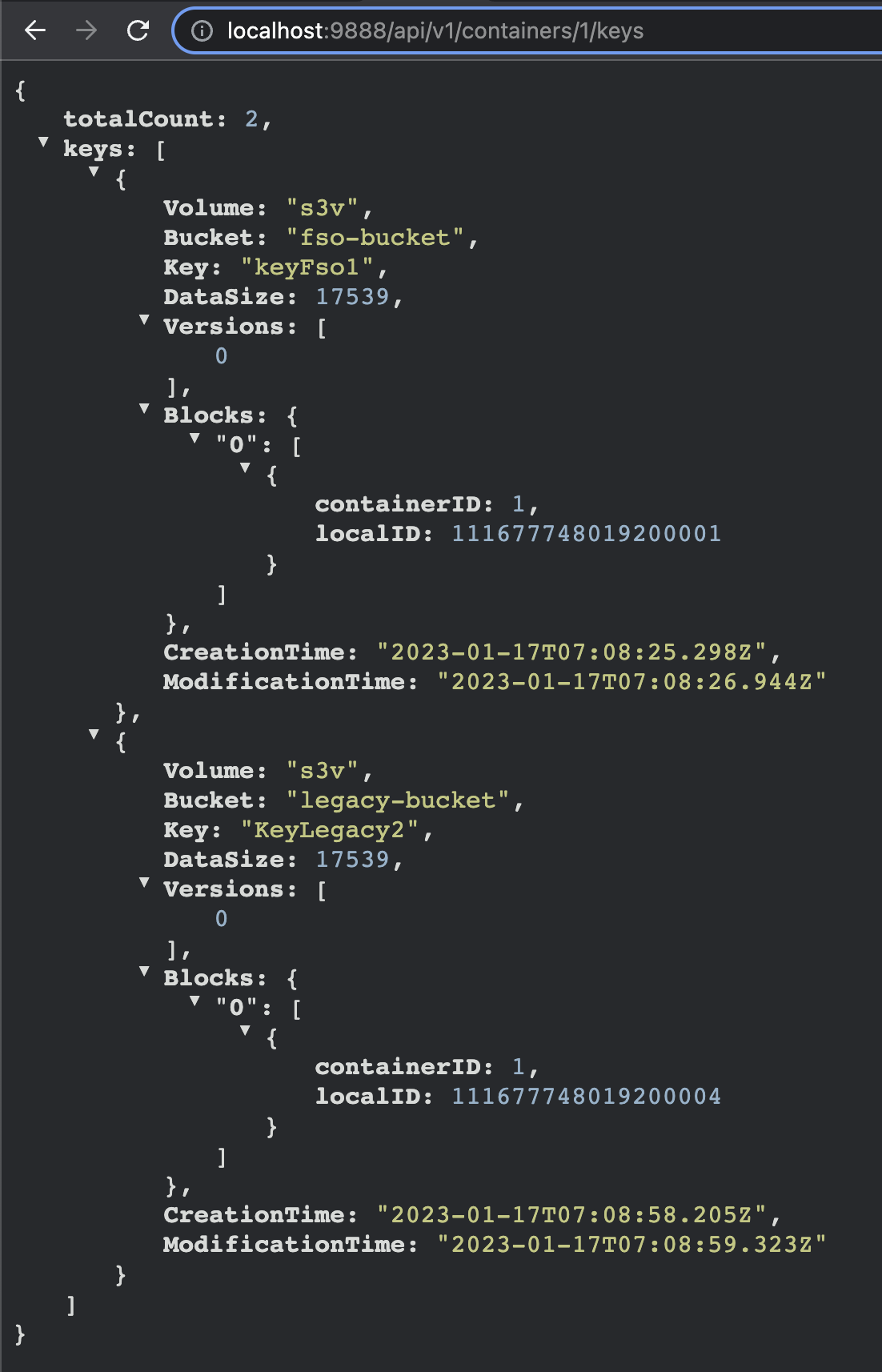

While working on this patch, I had a doubt regarding the endpoint GET /api/v1/containers/:id/keys, which is handled by the getKeysForContainer() method in the ContainerEndpoint class. This endpoint supports two optional query parameters, prevKey and limit.

Initially, we assumed that the prevKey parameter was used to filter the keys in a container based on a certain prefix (specified by prevKey) in their name, and only the keys with names that started with this prefix would be returned, while those that did not have this prefix would be excluded from the response. But it turned out to be wrong!

So after a discussion this is what we have understood about the prevKey parameter of the ContainerEndpoint in Recon :-

• The method getKeysForContainers() can be used by the RECON-UI for Pagination by making use of the "prev-key" query parameter and the "limit" parameter.
• The "prev-key" parameter is used to specify the last key seen on the previous page. The method then retrieves all the keys starting from the key that comes after the "prev-key" parameter up to the limit specified by the "limit" parameter.
• For example, if the UI wants to retrieve the first 10 keys in a container, it will call this method with a limit of 10 and no "prev-key" parameter. The method will then retrieve the first 10 keys in the container and return them to the UI along with the last key seen (which will be the 10th key).
• If the UI wants to retrieve the next 10 keys, it will call the method again with the same limit of 10 and the "prev-key" parameter set to the last key seen on the previous page (i.e., the 10th key). The method will then retrieve the next 10 keys in the container starting from the key that comes after the 10th key and return them to the UI along with the last key seen (which will be the 20th key).
• This process can be repeated for as many pages as the UI wants to retrieve. The UI can also change the limit parameter to retrieve more or fewer keys per page.

[ArafatKhan2198]

Therefore, to conclude, there is no need for any conversion from object-ID to vol/bucket Name. Our goal should be to ensure that both the FSO and OBS keys are stored in the ContainerKey table, as it serves as the source of information for this endpoint. For Example :-

ozone sh bucket create --layout FILE_SYSTEM_OPTIMIZED /s3v/fso-bucket
ozone sh key put s3v/fso-bucket/key1-fso NOTICE.txt
ozone sh key put s3v/fso-bucket/key2-fso NOTICE.txt

ozone sh bucket create --layout OBJECT_STORE /s3v/obs-bucket
ozone sh key put s3v/obs-bucket/key1-obs NOTICE.txt
ozone sh key put s3v/obs-bucket/key2-obs NOTICE.txt

ozone sh bucket create --layout LEGACY s3v/legacy-bucket
ozone sh key put s3v/legacy-bucket/key1-legacy NOTICE.txt
ozone sh key put s3v/legacy-bucket/key2-legacy NOTICE.txt

The ContainerKey Table generated for this data would be the below table :-
In which the FSO key information would be displayed in the form of Object-ID's

KeyPrefix	Container ID
/-4611686018427388160/-9223372036854774528/-9223372036854774528/key1-fso	1
/s3v/obs-bucket/key2-obs	1
/-4611686018427388160/-9223372036854774528/-9223372036854774528/key2-fso	2
/s3v/legacy-bucket/key1-legacy	2
/s3v/legacy-bucket/key2-legacy	3
/s3v/obs-bucket/key1-obs	3

[sumitagrawl]

@ArafatKhan2198 LGTM +1
