[feat][broker] Support dynamic update log level at runtime #14200

ethqunzhong · 2022-02-10T03:41:13Z

Motivation

As default, Broker log level set by log4j2.yaml with pulsar.log.level=info, if developers want to update log level to debug, need to Modify log42j.yaml#pulsar.log.level=debug and then restart Broker service.

This PR support developers dynamic update Broker log level at runtime,It is very useful for online trouble shooting without having to stop Broker service and start it again.

Modifications

add admin cli (bin/pulsar-admin brokers update-logger-level --classname ${CLASSNAME} --level ${LEVEL})
add rest endpoints (/admin/v2/brokers/log4j/{classname}/{level})

Verifying this change

Make sure that the change passes the CI checks.

This change added tests and can be verified as follows:org.apache.pulsar.admin.cli.PulsarAdminToolTest#brokers
works as expected on product environment.

Does this pull request potentially affect one of the following parts:

If yes was chosen, please highlight the changes

Dependencies (does it add or upgrade a dependency): (no)
The public API: (no)
The schema: (no)
The default values of configurations: (no)
The wire protocol: (no)
The rest endpoints: (yes)
The admin cli options: (yes)
Anything that affects deployment: (no)

Documentation

doc-not-needed

pulsar-client-tools/src/main/java/org/apache/pulsar/admin/cli/CmdBrokers.java

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

Jason918 · 2022-02-11T07:27:28Z

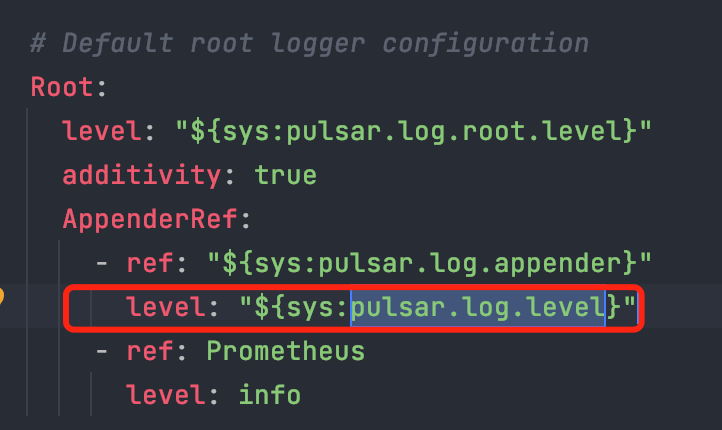

conf/log4j2.yaml

      additivity: true
      AppenderRef:
        - ref: "${sys:pulsar.log.appender}"
-          level: "${sys:pulsar.log.level}"


This should not be changed as we should keep default behavior.

as default pulsar.log.level=info
i have do a test in product env as follow:

remove this item seems do not change default log4j behavior.

as answer in [stackoverflow:programmatically-change-log-level-in-log4j2 :

i have try all mentioned way to change logger level by programmatically way, it not work unless remove level: "${sys:pulsar.log.level}"

Have you ever had similar problems?

User may already have set pulsar.log.level=warn in their deployment. Will this PR change the settings?

i have set pulsar.log.level=warn for test. but not what i expected. described as this issue #14298
update: 🤲

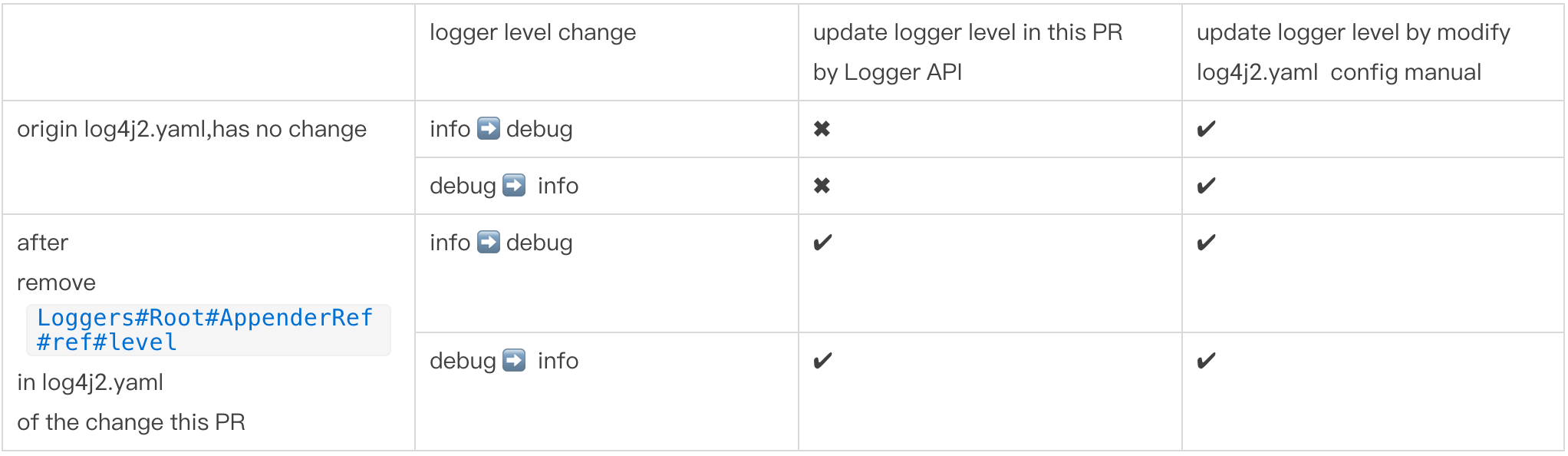

i have a test, result as follow:
as log4j2.yaml using way,

pulsar.log.level go into effect only set by ENV property PULSAR_LOG_LEVEL which set in pulsar_env.sh while service starting.
while service running, change pulsar.log.level in log4j2.yaml is not work, pulsar.log.level is unmodifiable now.

User may already have set pulsar.log.level=warn in their deployment. Will this PR change the settings?

i have a test

if User set pulsar.log.level=warn in their deployment while starting service.

this PR will not change the settings , all loggers's level is warn, meanwhile , the PR featrue also works.

~~level: "${sys:pulsar.log.level}"~~

this line config is redundant and will disturb the programmatically way.

this PR will not change the settings

I am a little confused that if you removed this, how would user's previous setting (set by ENV property PULSAR_LOG_LEVEL in pulsar_env.sh) take effect?

i have a test in standalone mode after removed this line.

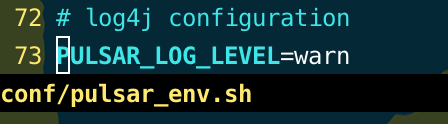

pulsar.log.level set by ENV property PULSAR_LOG_LEVEL in pulsar_env.sh to warn

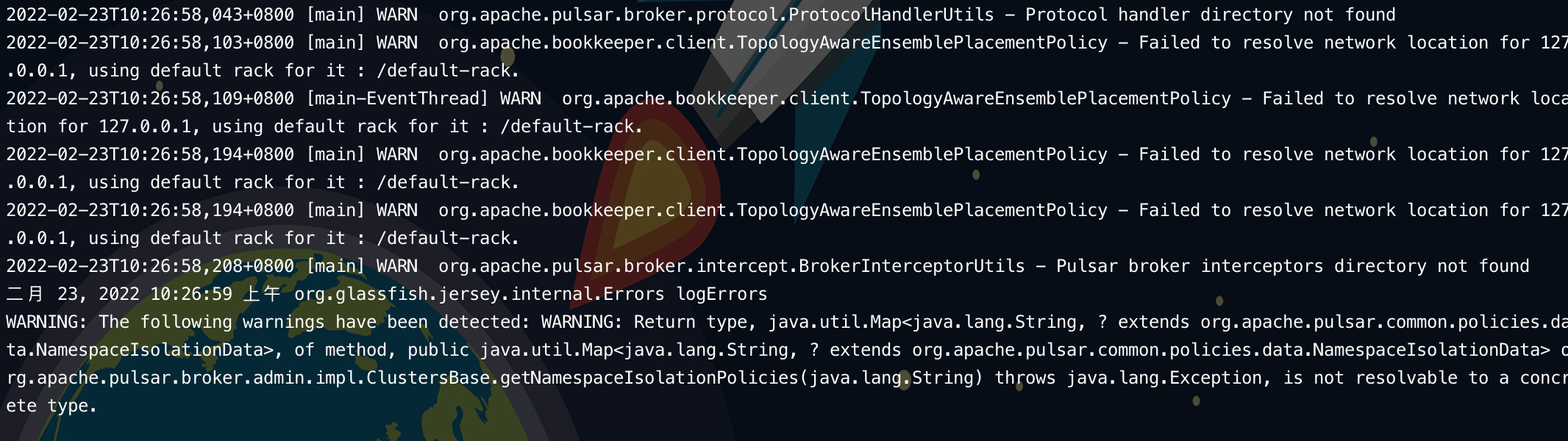

2. then start pulsar service in standalone mode. the service log level is warn, worked as desired.

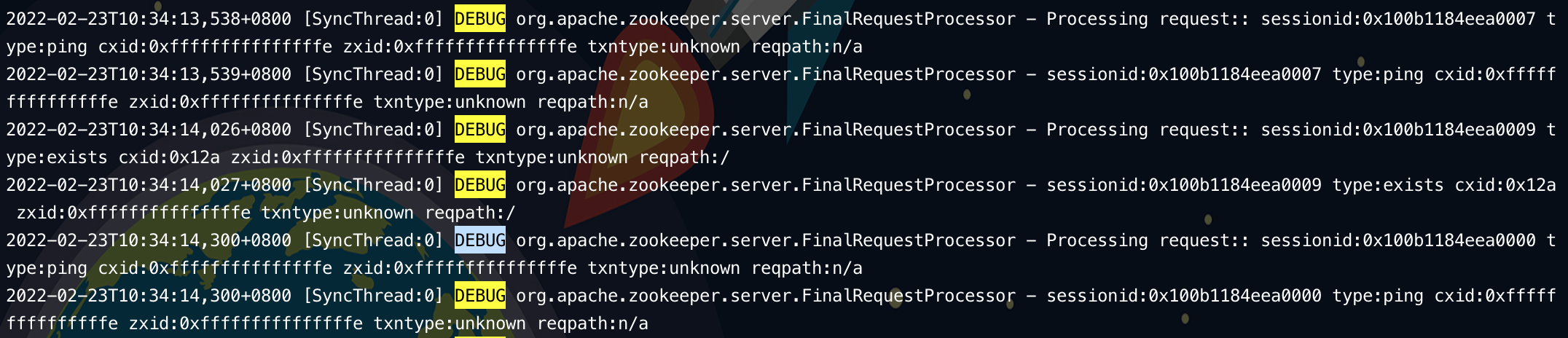

3. then run cmd `bin/pulsar-admin brokers update-logger-level --classname org.apache.zookeeper.server.FinalRequestProcessor --level debug` to validation feature in this PR. workd as desired.

so remove this line would not invalidate user's previous setting (set by ENV property PULSAR_LOG_LEVEL in pulsar_env.sh

Can you explain from the code, why pulsar.log.level this system env could still take effect after we delete from log4j2.yaml? Did we pass this variable to log4j somewhere else?

Can you explain from the code, why pulsar.log.level this system env could still take effect after we delete from log4j2.yaml? Did we pass this variable to log4j somewhere else?

+1, from the source code here https://github.com/apache/pulsar/blob/master/bin/pulsar#L299, I think we can't remove this line here.

eolivelli

Very interesting work.
I left some suggestions, PTAL

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

pulsar-client-tools/src/main/java/org/apache/pulsar/admin/cli/CmdBrokers.java

wolfstudy · 2022-02-21T09:31:20Z

cc @eolivelli @Jason918 PTAL again thanks

ethqunzhong · 2022-02-22T07:18:59Z

/pulsarbot run-failure-checks

eolivelli

IIRC log4j supports automatic reloading of configuration files.
Isn't it enough for you?

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

ethqunzhong · 2022-02-22T10:31:33Z

IIRC log4j supports automatic reloading of configuration files. Isn't it enough for you?

yes, Log4j has the ability to automatically configure itself during initialization and reload config while config files changed.
but it is more convenient for developers update logger level by programmatically way.

codelipenghui · 2022-03-21T07:47:25Z

conf/log4j2.yaml

      additivity: true
      AppenderRef:
        - ref: "${sys:pulsar.log.appender}"
-          level: "${sys:pulsar.log.level}"


Can you explain from the code, why pulsar.log.level this system env could still take effect after we delete from log4j2.yaml? Did we pass this variable to log4j somewhere else?

+1, from the source code here https://github.com/apache/pulsar/blob/master/bin/pulsar#L299, I think we can't remove this line here.

codelipenghui · 2022-03-21T07:50:10Z

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

+      @ApiResponse(code = 403, message = "You don't have admin permission to update logger level."),
+      @ApiResponse(code = 500, message = "Internal server error")})
+    public void updateLoggerLevelDynamically(@Suspended final AsyncResponse asyncResponse,
+                                             @PathParam("classname") String classname,


It should be the logger name here, not the class name. Usually, we will use the class name as the logger name, but not 100%

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

codelipenghui · 2022-03-21T07:54:32Z

pulsar-broker/src/main/java/org/apache/pulsar/broker/admin/impl/BrokersBase.java

+      @ApiResponse(code = 204, message = "class logger level updated successfully"),
+      @ApiResponse(code = 403, message = "You don't have admin permission to update logger level."),
+      @ApiResponse(code = 500, message = "Internal server error")})
+    public void updateLoggerLevelDynamically(@Suspended final AsyncResponse asyncResponse,


Is it able to provide a get method to get the current applied log levels?

codelipenghui · 2022-03-21T07:55:07Z

pulsar-client-admin-api/src/main/java/org/apache/pulsar/client/admin/Brokers.java

+     *
+     * @throws PulsarAdminException if update logger level failed.
+     */
+    void updateLoggerLevel(String classname, String level) throws PulsarAdminException;


Suggested change

void updateLoggerLevel(String classname, String level) throws PulsarAdminException;

void updateLoggerLevel(String loggerName, String level) throws PulsarAdminException;

codelipenghui · 2022-03-21T07:55:17Z

pulsar-client-admin-api/src/main/java/org/apache/pulsar/client/admin/Brokers.java

+     * Reset logger level dynamically in runtime asynchronously.
+     * @return CompletableFuture
+     */
+    CompletableFuture<Void> updateLoggerLevelAsync(String classname, String level);


Suggested change

CompletableFuture<Void> updateLoggerLevelAsync(String classname, String level);

CompletableFuture<Void> updateLoggerLevelAsync(String loggerName, String level);

codelipenghui · 2022-03-21T07:55:38Z

pulsar-client-tools/src/main/java/org/apache/pulsar/admin/cli/CmdBrokers.java

+    private class UpdateLoggerLevelCmd extends CliCommand {
+        @Parameter(names = {"-c", "--classname"}, description =
+          "The except class name,if set \"ROOT\" will take effect to rootLogger", required = true)
+        private String classname;


Suggested change

private String classname;

private String loggerName;

codelipenghui · 2022-03-21T07:55:50Z

pulsar-client-tools/src/main/java/org/apache/pulsar/admin/cli/CmdBrokers.java


+    @Parameters(commandDescription = "Dynamic update logger level in runtime by classname.")
+    private class UpdateLoggerLevelCmd extends CliCommand {
+        @Parameter(names = {"-c", "--classname"}, description =


Suggested change

@Parameter(names = {"-c", "--classname"}, description =

@Parameter(names = {"-l", "--logger-name"}, description =
