[ISSUE #2719] Docker image support arm architecture

[JooKS-me]

Fix #2719 .

[codecov-commenter]

Codecov Report

Merging #2722 (747a717) into master (b75e222) will decrease coverage by 0.02%.
The diff coverage is n/a.

❗ Current head 747a717 differs from pull request most recent head f268524. Consider uploading reports for the commit f268524 to get more accurate results

@@             Coverage Diff              @@
##             master    #2722      +/-   ##
============================================
- Coverage     60.34%   60.31%   -0.03%
+ Complexity     4399     4390       -9
============================================
  Files           680      680
  Lines         19468    19472       +4
  Branches       1725     1727       +2
============================================
- Hits          11748    11745       -3
- Misses         6732     6740       +8
+ Partials        988      987       -1

Impacted Files	Coverage Δ
...henyu/plugin/grpc/resolver/ShenyuNameResolver.java	54.25% <0.00%> (-9.58%)	⬇️
...apache/shenyu/admin/utils/ShenyuDictH2Trigger.java	63.63% <0.00%> (-9.10%)	⬇️
...ache/shenyu/admin/utils/PluginHandleH2Trigger.java	63.63% <0.00%> (-9.10%)	⬇️
...enyu/admin/controller/DashboardUserController.java	93.10% <0.00%> (-6.90%)	⬇️
...u/admin/service/impl/DashboardUserServiceImpl.java	82.47% <0.00%> (-1.74%)	⬇️
...che/shenyu/sync/data/http/HttpSyncDataService.java	81.18% <0.00%> (+7.92%)	⬆️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update b75e222...f268524. Read the comment docs.

[donlinglok1]

Hi, @JooKS-me @yu199195

I am trying to pull the image from the official docker hub.

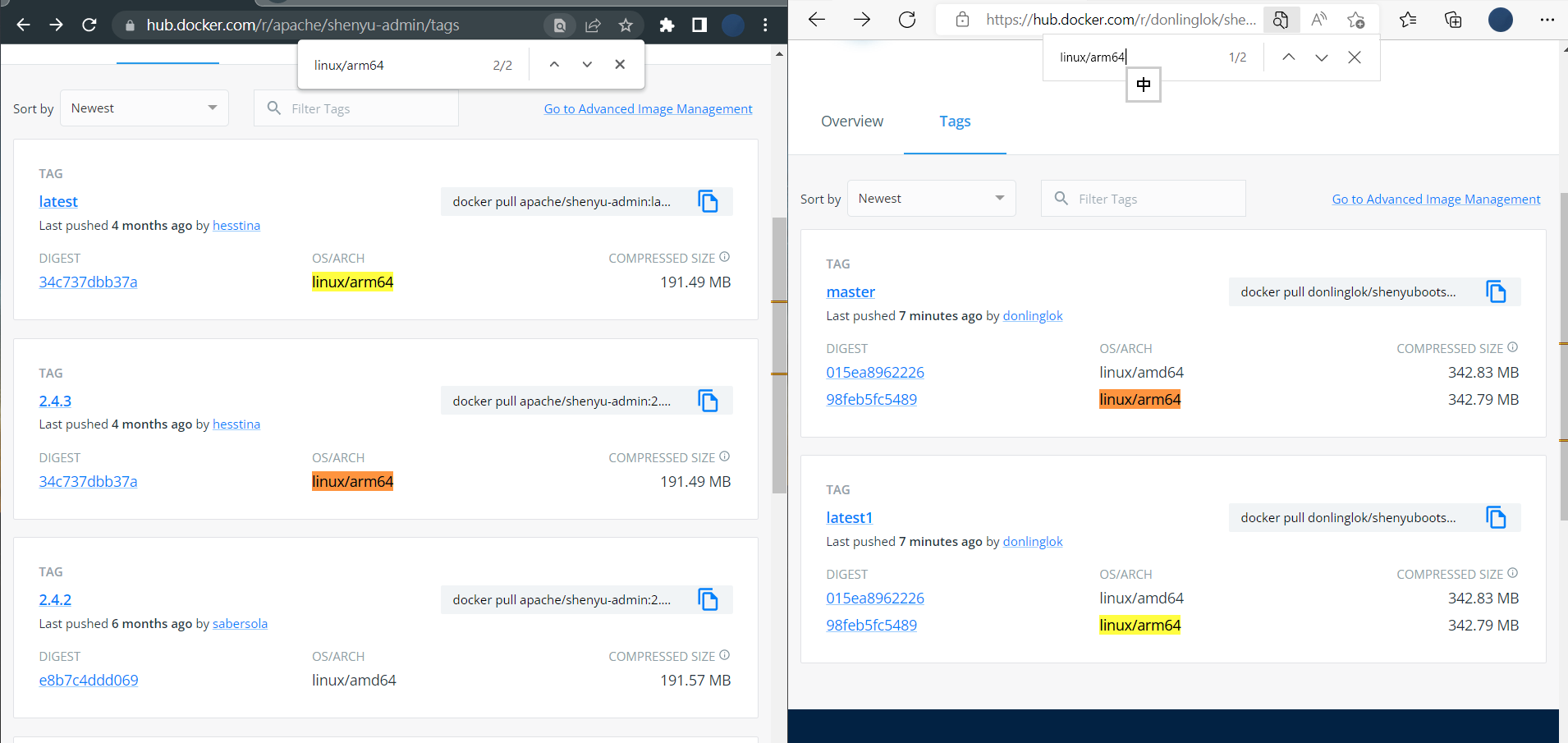

But seems both latest and 2.4.3 image of the admin and bootstrap container are marked as 'linux/arm64' only.
And it runs fail on windows and ubuntu with 'linux/amd64'.

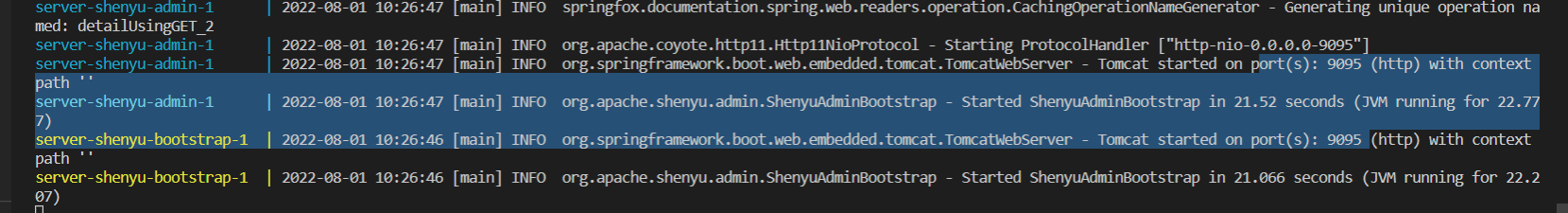

I find this project has a GitHub Action to publish images to the docker hub, so I forked the master branch and test the action, below is the image I build, and run success on windows and ubuntu:

In conclusion, the official docker hub image may need to publish again.
Attached is the Github Action command log for your reference:

/usr/bin/docker buildx build --build-arg APP_NAME=apache-shenyu-*-admin-bin --iidfile /tmp/docker-build-push-Tdk9x6/iidfile --platform linux/amd64,linux/arm64 --tag ***/shenyuadmin:latest1 --tag ***/shenyuadmin:master --metadata-file /tmp/docker-build-push-Tdk9x6/metadata-file --push ./shenyu-dist/shenyu-admin-dist
/usr/bin/docker buildx build --build-arg APP_NAME=apache-shenyu-*-bootstrap-bin --iidfile /tmp/docker-build-push-XBGOK5/iidfile --platform linux/amd64,linux/arm64 --tag ***/shenyubootstrap:latest1 --tag ***/shenyubootstrap:master --metadata-file /tmp/docker-build-push-XBGOK5/metadata-file --push ./shenyu-dist/shenyu-bootstrap-dist

[yu199195]

@donlinglok thanks for you suggestion. In the next version will solve this problem, the previous version of the problem, perhaps we also need to update.

[JooKS-me]

@donlinglok Thanks, I have updated the image, you can try it again.

[donlinglok1]

@donlinglok Thanks, I have updated the image, you can try it again.

Sorry, just find the exposed port is wrong on the bootstrap. Should be 9195?

[JooKS-me]

Sorry, just find the exposed port is wrong on the bootstrap. Should be 9195?

The gateway should be 9195. If there are any questions, you can open an issue to describe your steps and configuration so that we can reproduce it.

[donlinglok1]

Sorry, just find the exposed port is wrong on the bootstrap. Should be 9195?

The gateway should be 9195. If there are any questions, you can open an issue to describe your steps and configuration so that we can reproduce it.

Sorry for my mistake, all image problem is solved after the fix! Thank you!
