[SPARK-29910][SQL] Optimize speculation performance by adding minimum runtime limit

[Deegue]

What changes were proposed in this pull request?

The minimum runtime to speculation used to be a fixed value 100ms. It means tasks finished in seconds will also be speculated and more executors will be required.
To improve this situation, we add spark.speculation.minRuntime to control the minimum runtime limit of speculation.
We can reduce normal tasks to be speculated by adjusting spark.speculation.minRuntime.

Example:

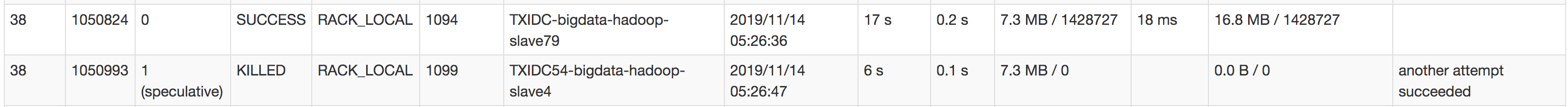

Tasks that don't need to be speculated:

and

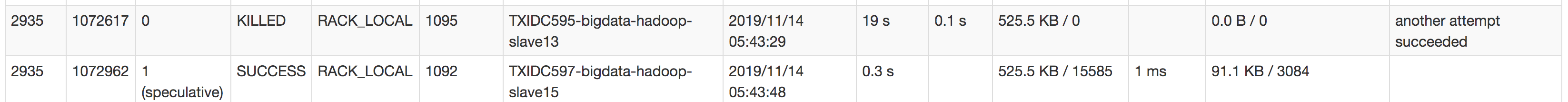

Tasks are more likely to go wrong and need to be speculated:
(especially those shuffle tasks with large amount of data and will cost minutes even hours)

Why are the changes needed?

To improve speculation performance by reducing speculated tasks which don't need to be speculated actually.

Does this PR introduce any user-facing change?

No.

How was this patch tested?

Unit tests.

[jiangxb1987]

What you really want is to make MIN_TIME_TO_SPECULATION configurable? I'm not sure whether it would be a good idea because it's a fixed global value, so changing the min time should affect all the jobs. Also, if we feel speculation is not necessary then we can set spark.speculation to false.

[Deegue]

What you really want is to make MIN_TIME_TO_SPECULATION configurable? I'm not sure whether it would be a good idea because it's a fixed global value, so changing the min time should affect all the jobs. Also, if we feel speculation is not necessary then we can set spark.speculation to false.

Hi @jiangxb1987 , thanks for your comment. This PR aims to improve the behavior when spark.speculation is true by configuring MIN_TIME_TO_SPECULATION. The default value of spark.speculation.minRuntime is 100(ms) which is the same as before.

Besides, increasing spark.speculation.minRuntime will reduce the number of extra executors allocated for speculation and in other words, allocating those executors to the task which is more needed to be speculated.

[Deegue]

Gentle ping, @cloud-fan

[cloud-fan]

In general it's OK to make a hardcoded value configurable, but I doubt if it's really useful in this case. If you have different kinds of tasks that need different speculation min time, then a global config doesn't help. You need a per job(or even per stage) config.

[Deegue]

In general it's OK to make a hardcoded value configurable, but I doubt if it's really useful in this case. If you have different kinds of tasks that need different speculation min time, then a global config doesn't help. You need a per job(or even per stage) config.

Thanks for your review @cloud-fan .
Before this patch, the minimum runtime is set to 100ms which means almost all the tasks meet the condition will be speculated. After this patch and setting it to 60s, a lot of tasks finished in seconds won't be speculated and our cluster is in better performance. Thus I think it's useful in this case.

As for jobs and stages, spark.speculation.quantile and spark.speculation.multiplier will help to judge which task need to be speculated in different situations.

[AmplabJenkins]

Can one of the admins verify this patch?

[github-actions]

We're closing this PR because it hasn't been updated in a while. This isn't a judgement on the merit of the PR in any way. It's just a way of keeping the PR queue manageable.
If you'd like to revive this PR, please reopen it and ask a committer to remove the Stale tag!
