[SPARK-39553][CORE] Multi-thread unregister shuffle shouldn't throw NPE when using Scala 2.13

[LuciferYang]

What changes were proposed in this pull request?

This pr add a shuffleStatus != null condition to o.a.s.MapOutputTrackerMaster#unregisterShuffle method to avoid throwing NPE when using Scala 2.13.

Why are the changes needed?

Ensure that no NPE is thrown when o.a.s.MapOutputTrackerMaster#unregisterShuffle is called by multiple threads, this pr is only for Scala 2.13.

o.a.s.MapOutputTrackerMaster#unregisterShuffle method will be called concurrently by the following two paths:

• BlockManagerStorageEndpoint:

spark/core/src/main/scala/org/apache/spark/storage/BlockManagerStorageEndpoint.scala

Lines 56 to 62 in 6f1046a

	case RemoveShuffle(shuffleId) =>
	doAsync[Boolean]("removing shuffle " + shuffleId, context) {
	if (mapOutputTracker != null) {
	mapOutputTracker.unregisterShuffle(shuffleId)
	}
	SparkEnv.get.shuffleManager.unregisterShuffle(shuffleId)
	}

• ContextCleaner:

spark/core/src/main/scala/org/apache/spark/ContextCleaner.scala

Lines 234 to 241 in 6f1046a

	def doCleanupShuffle(shuffleId: Int, blocking: Boolean): Unit = {
	try {
	if (mapOutputTrackerMaster.containsShuffle(shuffleId)) {
	logDebug("Cleaning shuffle " + shuffleId)
	// Shuffle must be removed before it's unregistered from the output tracker
	// to find blocks served by the shuffle service on deallocated executors
	shuffleDriverComponents.removeShuffle(shuffleId, blocking)
	mapOutputTrackerMaster.unregisterShuffle(shuffleId)

When test with Scala 2.13, for example sql/core module, there are many log as follows，although these did not cause UTs failure:

17:44:09.957 WARN org.apache.spark.storage.BlockManagerMaster: Failed to remove shuffle 87 - null
java.lang.NullPointerException
	at org.apache.spark.MapOutputTrackerMaster.$anonfun$unregisterShuffle$1(MapOutputTracker.scala:882)
	at org.apache.spark.MapOutputTrackerMaster.$anonfun$unregisterShuffle$1$adapted(MapOutputTracker.scala:881)
	at scala.Option.foreach(Option.scala:437)
	at org.apache.spark.MapOutputTrackerMaster.unregisterShuffle(MapOutputTracker.scala:881)
	at org.apache.spark.storage.BlockManagerStorageEndpoint$$anonfun$receiveAndReply$1.$anonfun$applyOrElse$3(BlockManagerStorageEndpoint.scala:59)
	at scala.runtime.java8.JFunction0$mcZ$sp.apply(JFunction0$mcZ$sp.scala:17)
	at org.apache.spark.storage.BlockManagerStorageEndpoint.$anonfun$doAsync$1(BlockManagerStorageEndpoint.scala:89)
	at scala.concurrent.Future$.$anonfun$apply$1(Future.scala:678)
	at scala.concurrent.impl.Promise$Transformation.run(Promise.scala:467)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)
17:44:09.958 ERROR org.apache.spark.ContextCleaner: Error cleaning shuffle 94
java.lang.NullPointerException
	at org.apache.spark.MapOutputTrackerMaster.$anonfun$unregisterShuffle$1(MapOutputTracker.scala:882)
	at org.apache.spark.MapOutputTrackerMaster.$anonfun$unregisterShuffle$1$adapted(MapOutputTracker.scala:881)
	at scala.Option.foreach(Option.scala:437)
	at org.apache.spark.MapOutputTrackerMaster.unregisterShuffle(MapOutputTracker.scala:881)
	at org.apache.spark.ContextCleaner.doCleanupShuffle(ContextCleaner.scala:241)
	at org.apache.spark.ContextCleaner.$anonfun$keepCleaning$3(ContextCleaner.scala:202)
	at org.apache.spark.ContextCleaner.$anonfun$keepCleaning$3$adapted(ContextCleaner.scala:195)
	at scala.Option.foreach(Option.scala:437)
	at org.apache.spark.ContextCleaner.$anonfun$keepCleaning$1(ContextCleaner.scala:195)
	at org.apache.spark.util.Utils$.tryOrStopSparkContext(Utils.scala:1432)
	at org.apache.spark.ContextCleaner.org$apache$spark$ContextCleaner$$keepCleaning(ContextCleaner.scala:189)
	at org.apache.spark.ContextCleaner$$anon$1.run(ContextCleaner.scala:79)

I think this is a bug of Scala 2.13.8 and already submit an issue to scala/bug#12613, this PR is only for protection, we should remove this protection after Scala 2.13(maybe scala/scala#9957) fixes this issue.

Does this PR introduce any user-facing change?

No

How was this patch tested?

• Pass GA
• Add new test SPARK-39553: Multi-thread unregister shuffle shouldn't throw NPE to MapOutputTrackerSuite, we can test manually as follows:

dev/change-scala-version.sh 2.13
mvn clean install -DskipTests -pl core -am -Pscala-2.13
mvn clean test -pl core -Pscala-2.13 -Dtest=none -DwildcardSuites=org.apache.spark.MapOutputTrackerSuite

Before

- SPARK-39553: Multi-thread unregister shuffle shouldn't throw NPE *** FAILED ***
  3 did not equal 0 (MapOutputTrackerSuite.scala:971)
Run completed in 17 seconds, 505 milliseconds.
Total number of tests run: 25
Suites: completed 2, aborted 0
Tests: succeeded 24, failed 1, canceled 0, ignored 1, pending 0
*** 1 TEST FAILED ***

After

- SPARK-39553: Multi-thread unregister shuffle shouldn't throw NPE
Run completed in 17 seconds, 996 milliseconds.
Total number of tests run: 25
Suites: completed 2, aborted 0
Tests: succeeded 25, failed 0, canceled 0, ignored 1, pending 0
All tests passed.

[LuciferYang]

cc @HyukjinKwon @srowen @dongjoon-hyun

[LuciferYang]

Is it necessary to do this protection work?

[LuciferYang]

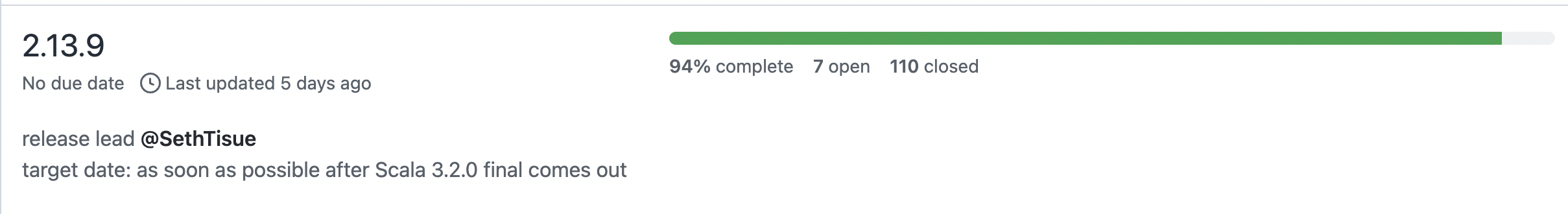

scala/scala#9957 should resolved this issue, but the release time of 2.13.9 is uncertain

https://github.com/scala/scala/milestones

[srowen]

This looks like a fine defensive check to adopt now.

[mridulm]

We have a similar pattern in SortShuffleManager - but there we wrap result in Option before foreach (given no asScala), and so is fine … did not find any other cases where this is an issue thankfully.

[srowen]

Merged to master/3.3/3.2

[LuciferYang]

We have a similar pattern in SortShuffleManager - but there we wrap result in Option before foreach (given no asScala), and so is fine … did not find any other cases where this is an issue thankfully.

Yes, taskIdMapsForShuffle in SortShuffleManager is safe. Thanks ~

[LuciferYang]

Thanks @srowen @mridulm ~

[dongjoon-hyun]

+1, late LGTM. Thank you all.
