fix(time-comparison): shift offset filter when X-axis is adhoc Custom SQL

[jesperct]

SUMMARY

When a chart with a Custom SQL X-axis (adhoc column whose label differs from the underlying time column) uses a relative time comparison like "1 year ago", the offset query's temporal filter never gets shifted. The original time range and the granularity-derived shifted range both end up in the WHERE clause, AND'd together. The intersection covers only the overlap of the two ranges, so the comparison series shows values for just that overlap (e.g. last ~4 months of the requested window) instead of the full range.

In processing_time_offsets (relative-offset, datetime-series branch), the existing TEMPORAL_RANGE filter was matched against query_object_clone.granularity or x_axis_label. For an adhoc Custom SQL X-axis the label is the user's column label (e.g. wedding_date_cast), not the dataset column the filter is on (wedding_date), so the match fails and the filter's val stays at the original range.

The fix uses _get_temporal_column_for_filter, which is already used by the date-range-offset branch. It prefers the column from an existing TEMPORAL_RANGE filter over the X-axis label.

BEFORE/AFTER SCREENSHOTS OR ANIMATED GIF

Same chart, same X-axis Custom SQL, time range 2025-01-01 to 2026-06-01, "1 year ago" comparison. Dataset has year-dependent revenue (2024 baseline + 80/year) so the comparison line is visually offset from the main line.

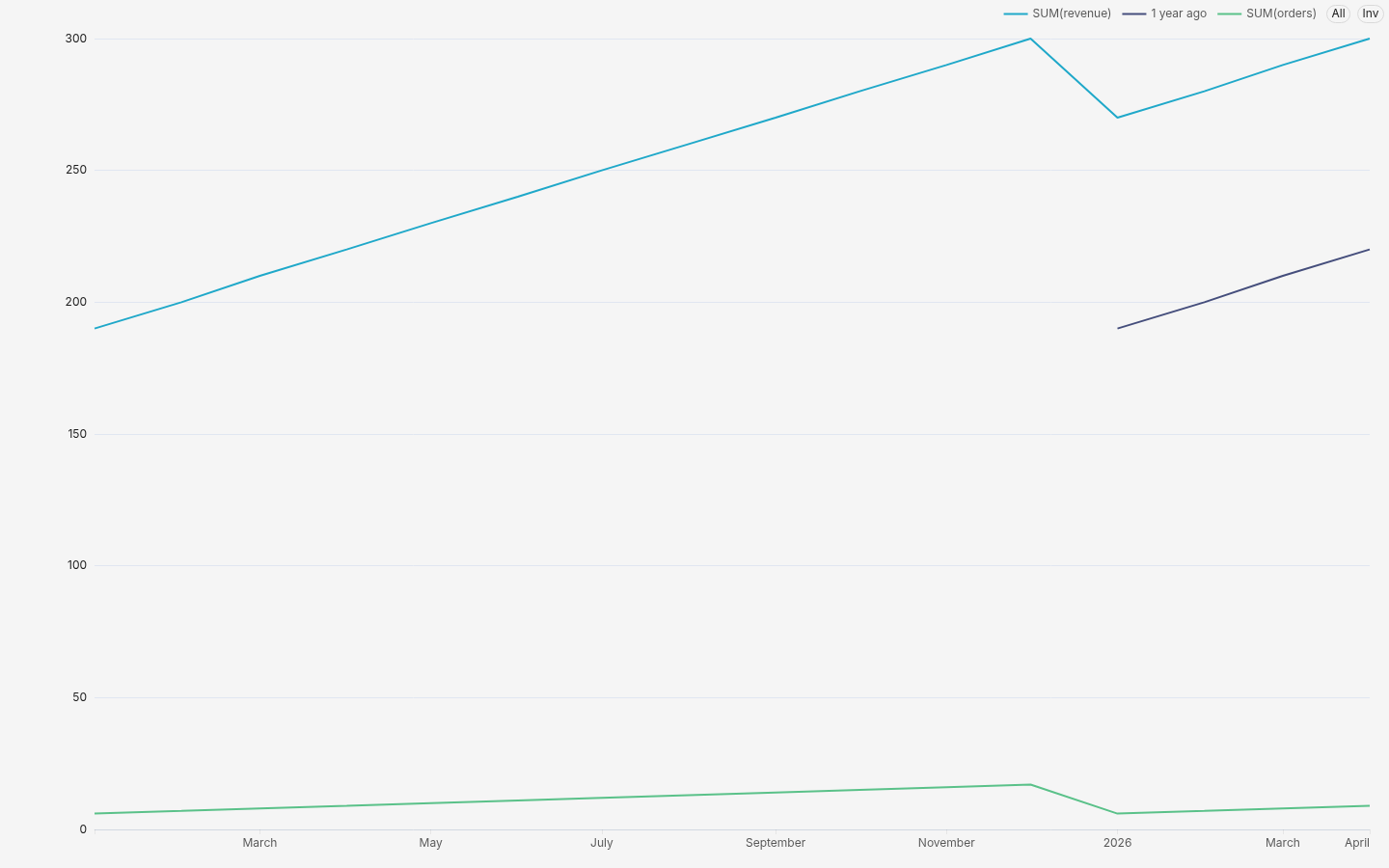

Before — 1 year ago series (purple) only renders for the last ~4 months of the range (the overlap of original and shifted windows):

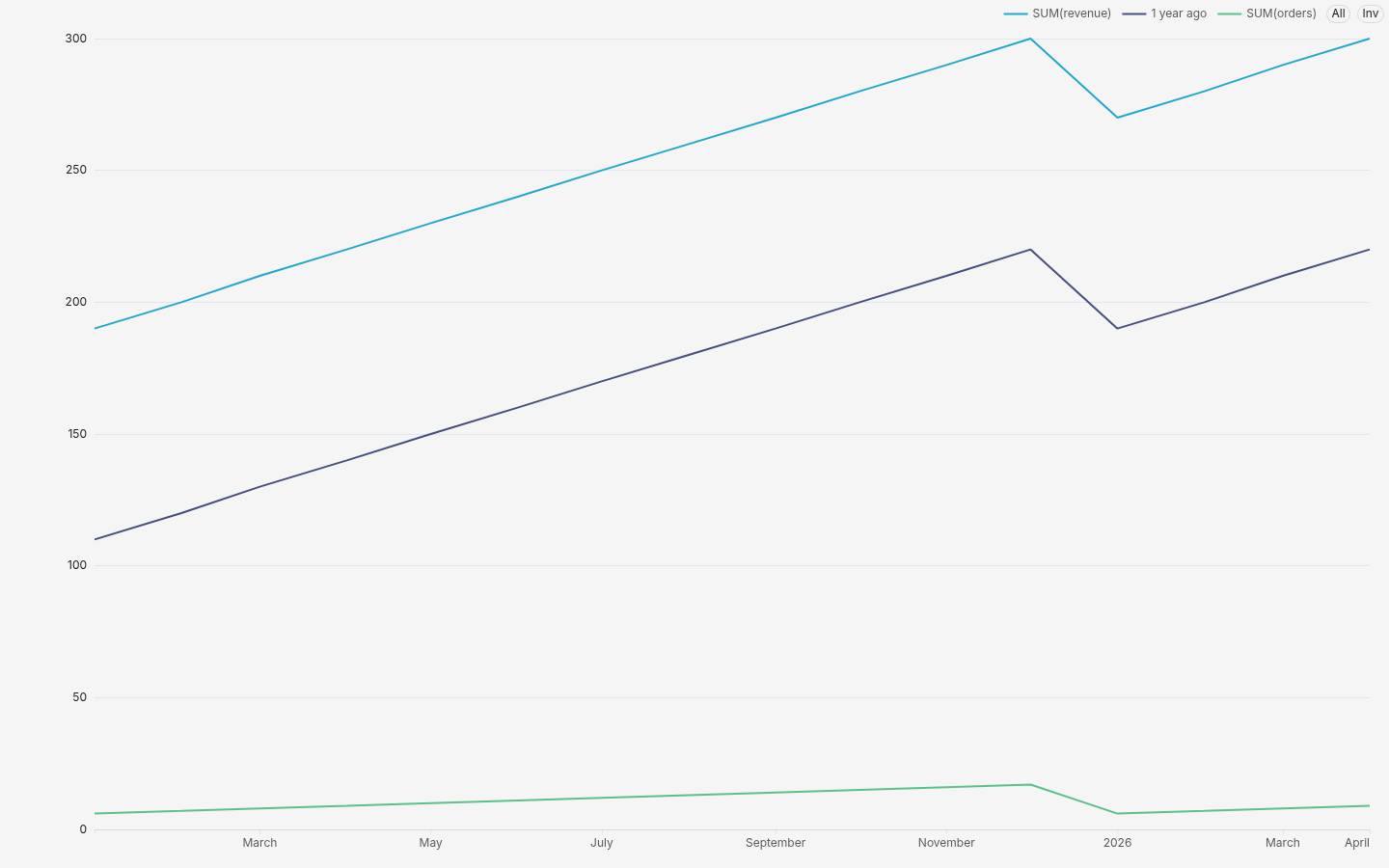

After — 1 year ago series plots across the full range, ~80 below the main SUM(revenue) line (as expected from the dataset formula):

Offset query WHERE clause before/after:

Before (offset has impossible intersection of original + shifted ranges):

WHERE wedding_date >= '2024-01-01' AND wedding_date < '2025-06-01'
  AND wedding_date >= '2025-01-01' AND wedding_date < '2026-06-01'

After (offset uses the shifted range only):

WHERE wedding_date >= '2024-01-01' AND wedding_date < '2025-06-01'
  AND wedding_date >= '2024-01-01' AND wedding_date < '2025-06-01'

TESTING INSTRUCTIONS

1. Create a virtual dataset with a temporal column (e.g. wedding_date).
2. Create a Mixed/Line/Bar chart on that dataset.
3. Set X-axis to Custom SQL with a Jinja expression like:

   {% set tc = time_column if time_column else 'wedding_date' %} CAST({{ tc }} AS TIMESTAMP)


4. Add a SUM metric, a TEMPORAL_RANGE filter on wedding_date, time grain Month.
5. Enable a relative time comparison such as "1 year ago".
6. Confirm the comparison line plots values across the full range rather than only the trailing overlap.

Unit test: test_processing_time_offsets_updates_temporal_filter_with_adhoc_x_axis.

ADDITIONAL INFORMATION

• Has associated issue:
• Required feature flags:
• Changes UI
• Includes DB Migration (follow approval process in SIP-59)
• Introduces new feature or API
• Removes existing feature or API

[bito-code-review]

Code Review Agent Run #f1a130

Actionable Suggestions - 0

Review Details

• Files reviewed - 2 · Commit Range: 65c15d2..65c15d2

  • superset/models/helpers.py
  • tests/unit_tests/common/test_query_context_processor.py
• Files skipped - 0
• Tools

  • Whispers (Secret Scanner) - ✔︎ Successful
  • Detect-secrets (Secret Scanner) - ✔︎ Successful
  • MyPy (Static Code Analysis) - ✔︎ Successful
  • Astral Ruff (Static Code Analysis) - ✔︎ Successful

---

Bito Usage Guide

Commands

Type the following command in the pull request comment and save the comment.

• /review - Manually triggers a full AI review.

• /pause - Pauses automatic reviews on this pull request.

• /resume - Resumes automatic reviews.

• /resolve - Marks all Bito-posted review comments as resolved.

• /abort - Cancels all in-progress reviews.

Refer to the documentation for additional commands.

Configuration

This repository uses Superset You can customize the agent settings here or contact your Bito workspace admin at evan@preset.io.

Documentation & Help

• Customize agent settings
• Review rules
• General documentation
• FAQ

AI Code Review powered by

[codecov]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 63.95%. Comparing base (1523d79) to head (fdb2d62).

Additional details and impacted files

@@           Coverage Diff           @@
##           master   #40586   +/-   ##
=======================================
  Coverage   63.94%   63.95%
=======================================
  Files        2658     2658
  Lines      143011   143011
  Branches    32866    32866
=======================================
+ Hits        91454    91456    +2
+ Misses      49994    49992    -2
  Partials     1563     1563

Flag	Coverage Δ
hive	39.75% <0.00%> (ø)
mysql	58.40% <100.00%> (ø)
postgres	58.47% <100.00%> (ø)
presto	41.36% <0.00%> (ø)
python	59.96% <100.00%> (+<0.01%)	⬆️
sqlite	58.13% <100.00%> (+<0.01%)	⬆️
unit	100.00% <ø> (ø)

Flags with carried forward coverage won't be shown. Click here to find out more.

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:

• ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.
• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[bito-code-review]

Code Review Agent Run #a27f44

Actionable Suggestions - 0

Review Details

• Files reviewed - 2 · Commit Range: fdb2d62..fdb2d62

  • superset/models/helpers.py
  • tests/unit_tests/common/test_query_context_processor.py
• Files skipped - 0
• Tools

  • Whispers (Secret Scanner) - ✔︎ Successful
  • Detect-secrets (Secret Scanner) - ✔︎ Successful
  • MyPy (Static Code Analysis) - ✔︎ Successful
  • Astral Ruff (Static Code Analysis) - ✔︎ Successful

---

Bito Usage Guide

Commands

Type the following command in the pull request comment and save the comment.

• /review - Manually triggers a full AI review.

• /pause - Pauses automatic reviews on this pull request.

• /resume - Resumes automatic reviews.

• /resolve - Marks all Bito-posted review comments as resolved.

• /abort - Cancels all in-progress reviews.

Refer to the documentation for additional commands.

Configuration

This repository uses Superset You can customize the agent settings here or contact your Bito workspace admin at evan@preset.io.

Documentation & Help

• Customize agent settings
• Review rules
• General documentation
• FAQ

AI Code Review powered by

[betodealmeida]

Thanks for fixing this! We need to spend some time cleaning up this logic, it's getting very messy.
