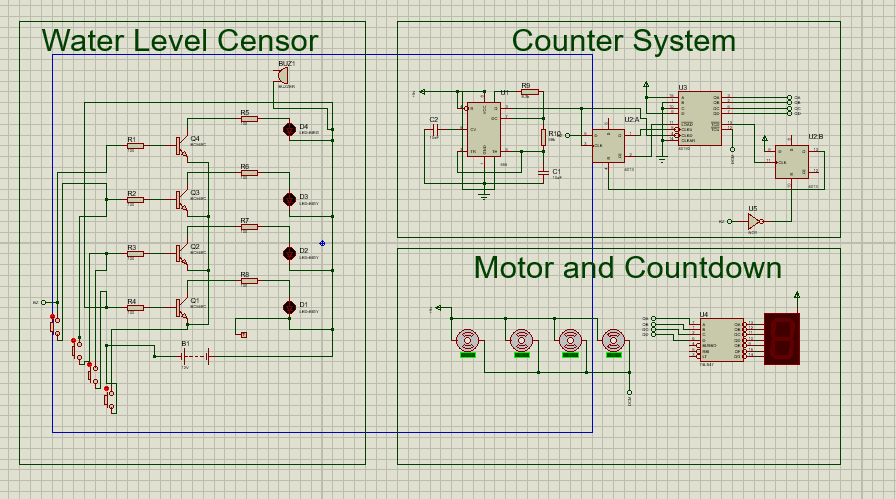

Water Level Censor and Automatic Gate

Detection level of water in a reservoir, if the water reach the level 4 the counter will countdown from 10 and then automaticly turn on the motor to open the gate then flowdown the water from reservoir to river or sea.

Simulation

• Proteus 8.9 Professional

Spesifications

• Clock = astable
• Clock Rate = 1 Khz

Developer

Arief Saferman

• NPM = 1806148656
• Almamater = Universitas Indonesia

Link Proteus's File

Automatic Level Water Gate
