Use PMCS.Core.CLI.Programm to parse existing C# code and create a .mse file.

Following command line paramaters are available:

/o:"path\to\result.mse"
/w:"^whitelist.*csfiles.*that.*matches.*this.*regexp$"
/w:"^blacklist.*csfiles.*that.*matches.*this.*regexp$"
"path\to\csharp\project"

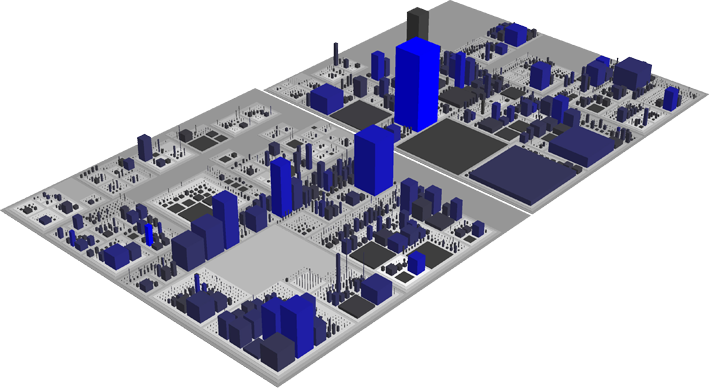

You can then import the .mse file into CodeCity to render your C# code as a Code City.

PMCS stands for Parsing and Modeling C# Systems. The code in this repository is a fork from Erik Doernenburgs PMCS project on bitbucket. The original PMCS code was written by Ermira Daka, and then donated for further development.

Project Structure

PMCS

Project PMCS represents https://bitbucket.org/erikdoe/pmcs/commits/99012d8659a3d4509bf75bf8a09e460a3298ebe9. This is the latest commit from Erik (2009-07-29) and will not be extended on github.

PMCS.Core

Project PMCS.Core is a new .NET Core 2.1 version of the PMCS core model.

PMCS.Core.CLI

Project PMCS.Core.CLI is a command line interface for .NET Core 2.1.
