PS3 Simulator: Physics-Parametrised Synthetic Sonar for Self-Supervised Sim-to-Real Transfer
Kamal Basha S, Athira Nambiar
MaCVi Workshop @ CVPR 2026

---

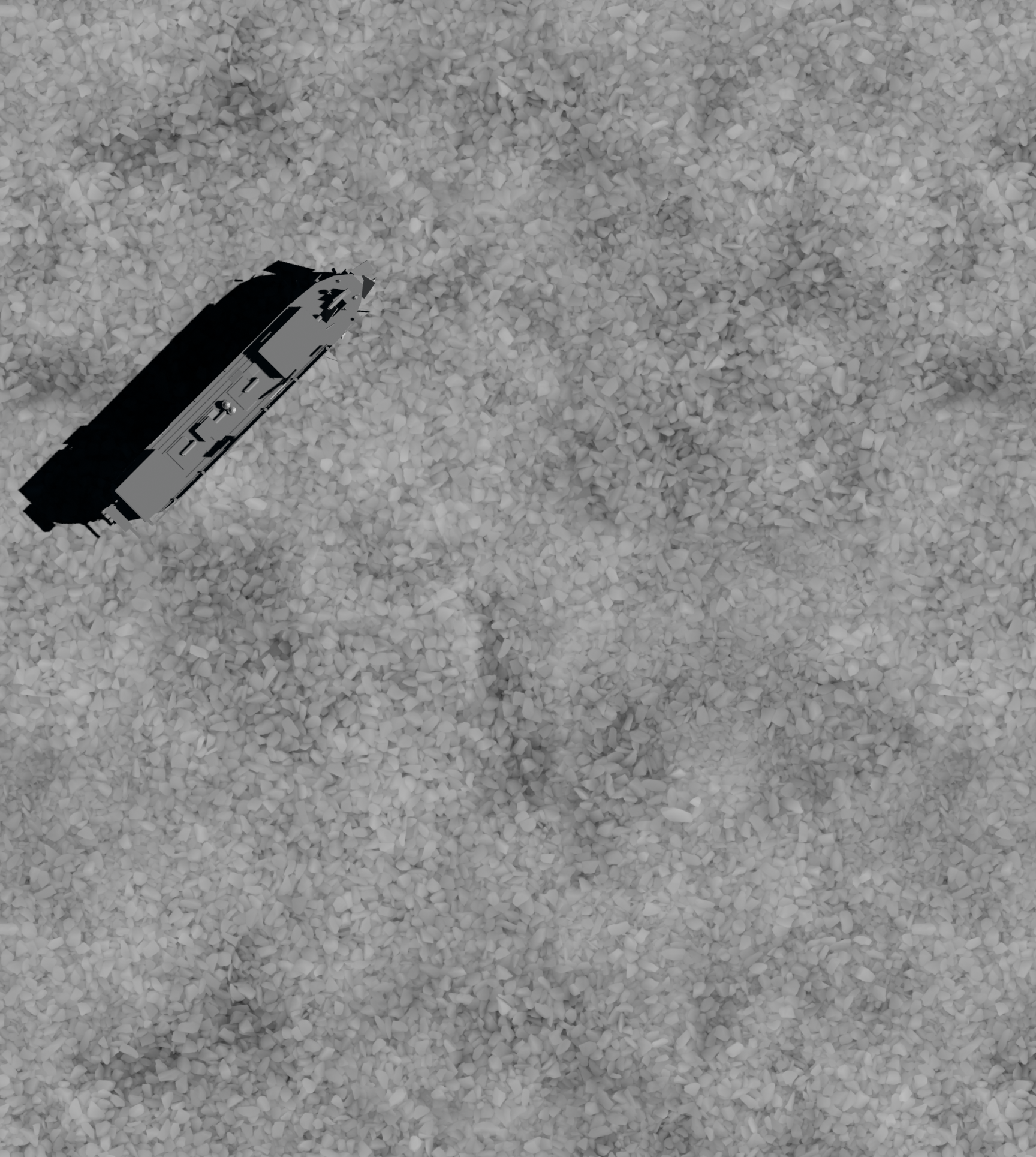

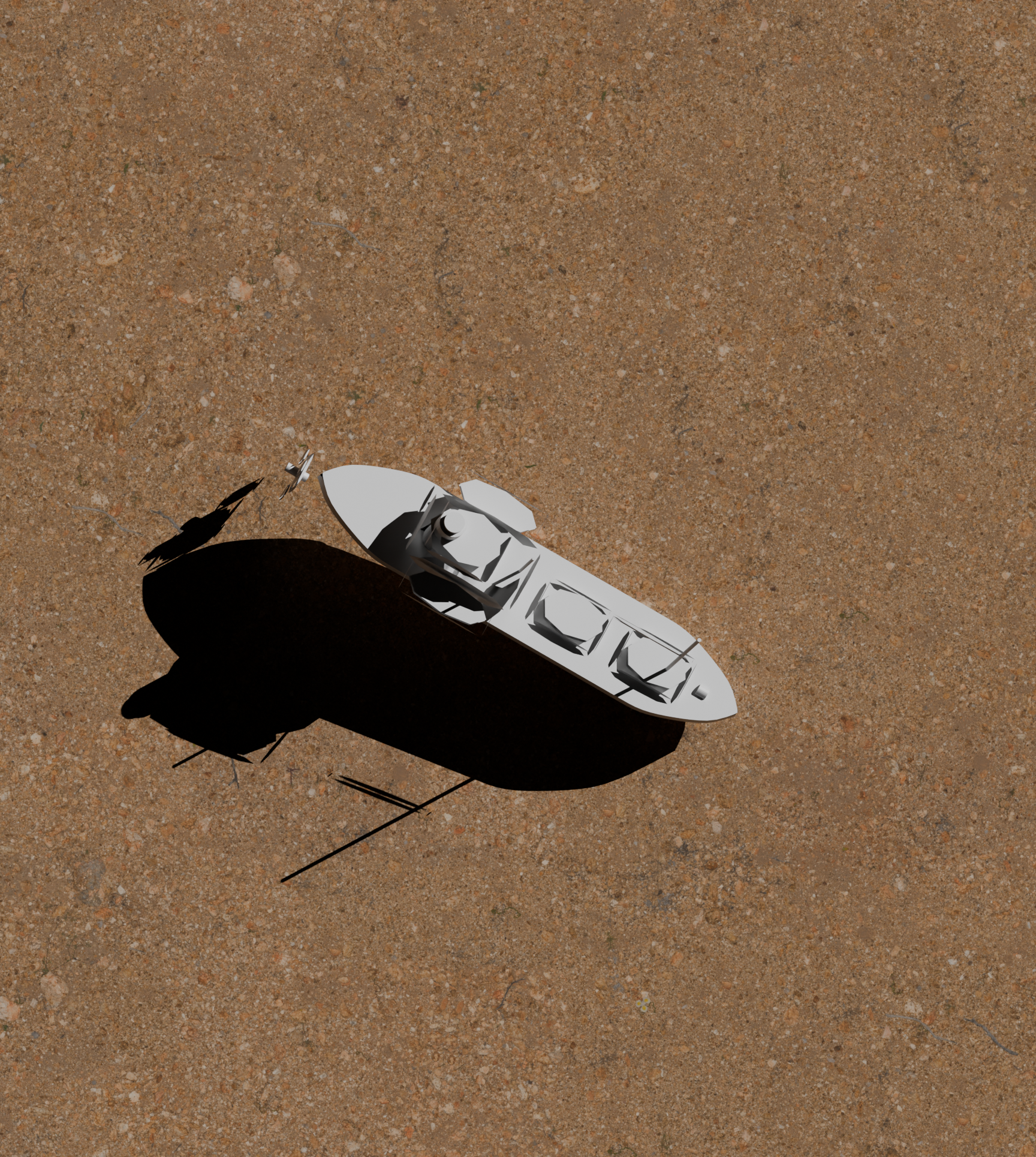

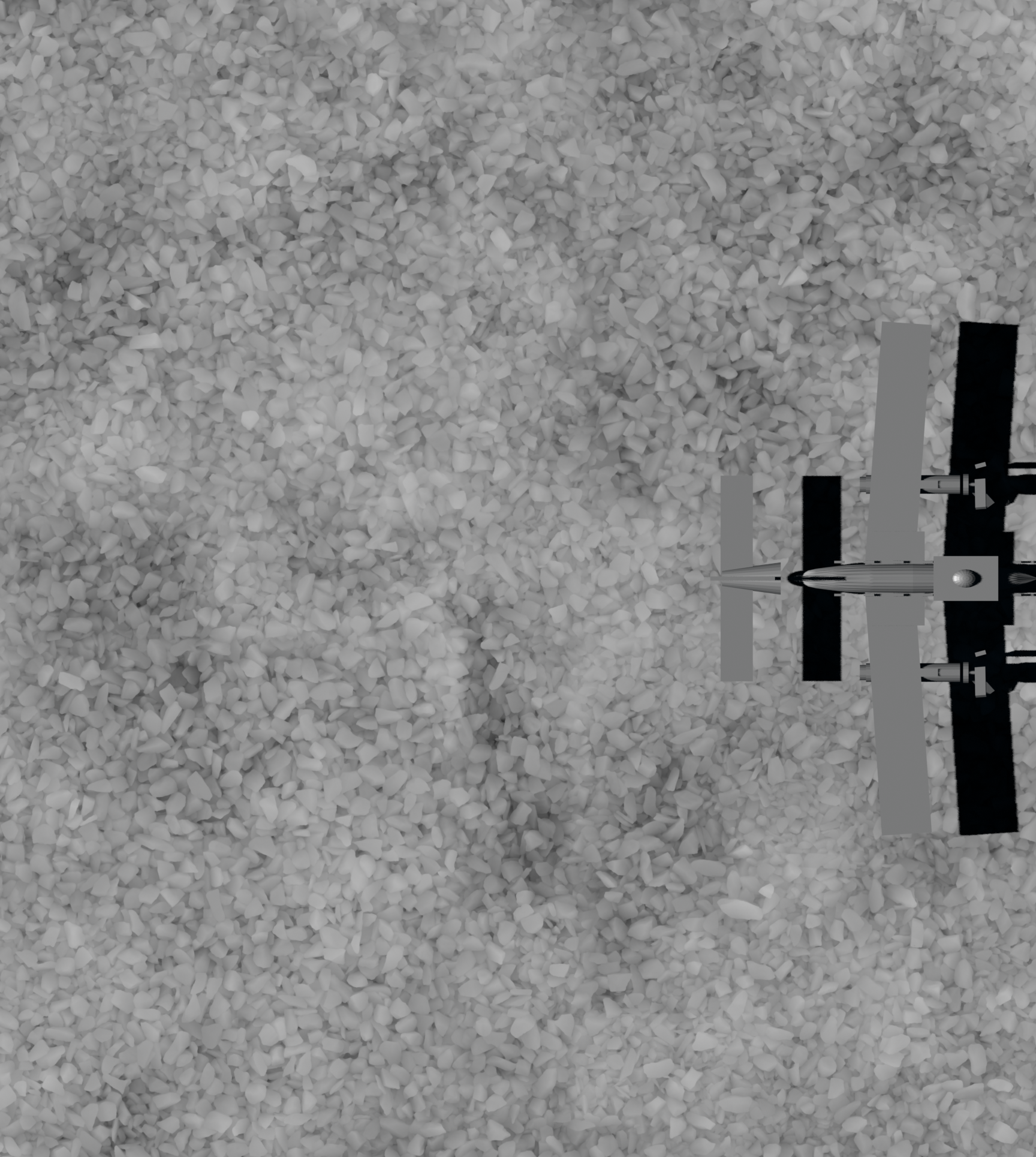

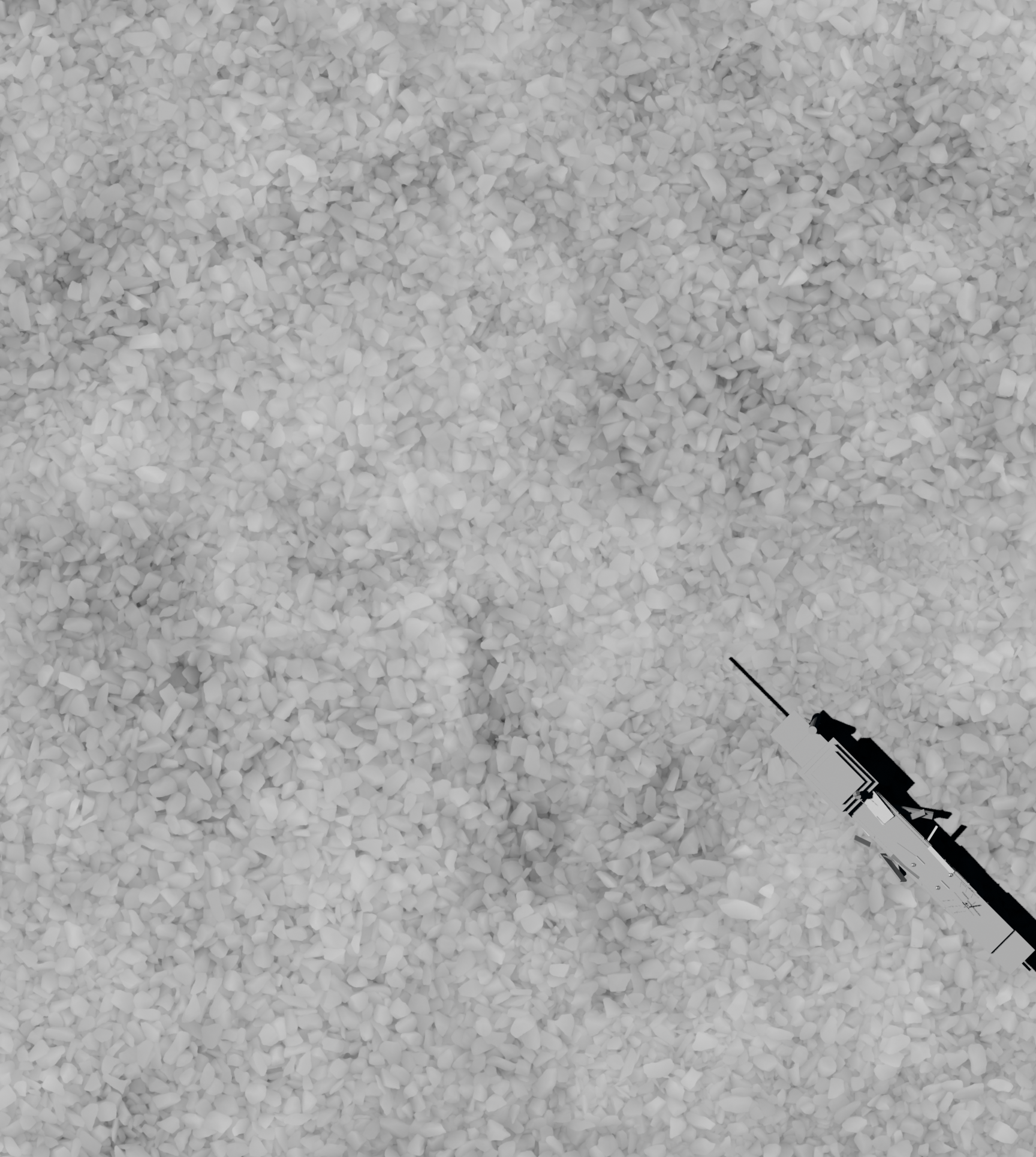

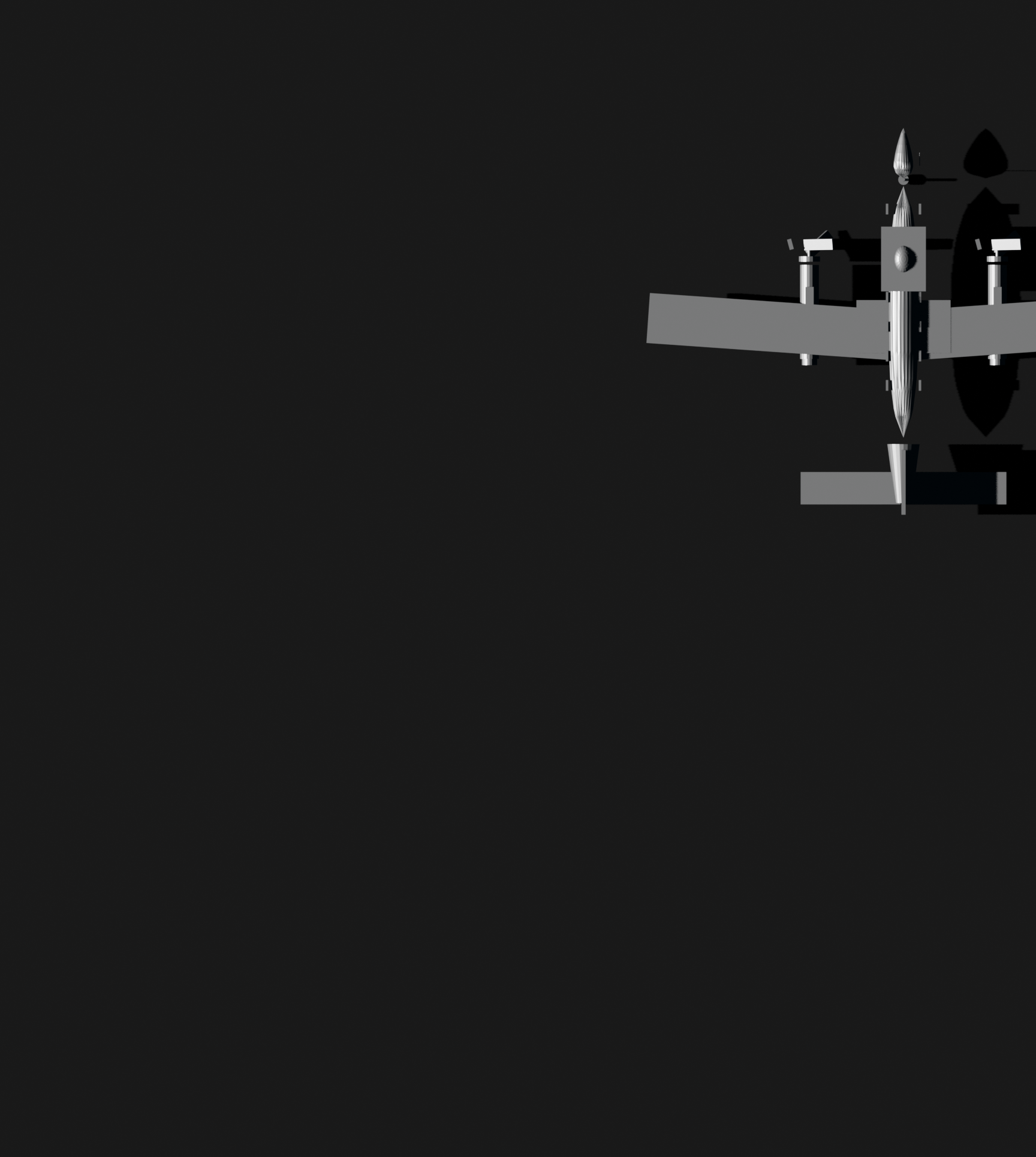

🖼️ Sample Images

Overview

PS3 Simulator is a three-stage pipeline for sonar object classification without any real sonar data at any training stage:

Stage 1: PS3 Simulator Dataset Generation
         Blender + MCP → 1,008 synthetic SSS images
         Physics parameters: altitude, grazing angle, seabed texture

Stage 2: Structure-Aware SSL Pretraining
         I-JEPA on 1,008 unlabeled PS3 images
         Learns geometric structure in latent space

Stage 3: Sim-to-Real Evaluation
         Fine-tune on labeled PS3 → Test on real KSLG/SCTD
         No real sonar data used at any training stage

---

🏗️ Architecture Overview

Key Results

Method	Pretrain	Acc (%)	±Std	F1
Random Init	None	23.0	±0.9	0.239
ImageNet Supervised	ImageNet	76.8	±8.2	0.775
DINO (ImageNet)	ImageNet	78.8	±0.9	0.810
DINO (PS3)	PS3 Synthetic	58.8	±11.9	0.639
I-JEPA PS3 (Ours)	PS3 Synthetic	70.9	±4.5	0.733
I-JEPA ImageNet†	ImageNet	86.0	±0.1	0.796

†Upper bound — ViT-H/14, not directly comparable
Train: Synthetic PS3 only | Test: 876 real KSLG/SCTD images

---

Repository Structure

ps3-simulator/
│
├── README.md
├── LICENSE
├── requirements.txt
│
├── stage1_dataset/
│   ├── README.md
│   ├── blender_scripts/
│   │   └── blender_batch_render.py   ← dataset generation
│   ├── 3d_objects/                   ← ship and plane .blend files
│   └── seabed_textures/              ← sand and gravel textures
│
├── stage2_pretraining/
│   ├── README.md
│   ├── configs/
│   │   └── sonar_vits16.yaml         ← I-JEPA config
│   └── src/                          ← I-JEPA training source
│
├── stage3_evaluation/
│   ├── README.md
│   └── PS3_Stage2_Evaluation.ipynb   ← main evaluation notebook
│
├── results/
│   ├── tsne_final.png
│   ├── bar_chart.png
│   ├── fewshot_plot.png
│   └── results_final.json
│
└── assets/
    └── pipeline.png                  ← Figure 1 from paper

---

Installation

git clone https://github.com/bashakamal/ps3-simulator
cd ps3-simulator
pip install -r requirements.txt

---

Dataset

PS3 Simulator dataset (1,008 synthetic SSS images):

Download: [HuggingFace Dataset Link — coming soon]

Structure:
data/
├── train/
│   ├── ship/    (N images)
│   └── plane/   (N images)
├── val/
│   ├── ship/
│   └── plane/
└── test/        ← REAL sonar (KSLG + SCTD)
    ├── ship/
    └── plane/

---

Pretrained Weights

Download from HuggingFace: huggingface.co/kamalbasha/ps3-simulator

or in Python:

from huggingface_hub import hf_hub_download

path = hf_hub_download(
    repo_id="kamalbasha/ps3-simulator",
    filename="jepa-ep200.pth.tar")

---

Stage 1 — Dataset Generation

# Generate PS3 dataset using Blender
blender --background --python stage1_dataset/blender_scripts/blender_batch_render.py

# Physical parameters controlled:
# - Altitude: 50m, 70m, 100m
# - Grazing angle: varied
# - Seabed: sand, gravel
# - Object rotation: 0-360 degrees

---

Stage 2 — I-JEPA Pretraining

cd stage2_pretraining
python main.py \
  --fname configs/sonar_vits16.yaml \
  --devices cuda:0

---

Stage 3 — Evaluation

Open and run stage3_evaluation/PS3_Stage2_Evaluation.ipynb

Update paths in Cell 2 — Configuration:

CFG = {
    'data_dir'      : 'path/to/ps3_data',
    'ijepa_ckpt'    : 'path/to/jepa-ep200.pth.tar',
    'dino_ps3_ckpt' : 'path/to/dino_checkpoint.pth',
    'ijepa_h_ckpt'  : 'path/to/IN1K-vit.h.14-300e.pth.tar',
    'output_dir'    : 'path/to/save/results',
}

Run all cells in order (Cell 1 → Cell 12).

---

Requirements

torch>=2.0.0
torchvision>=0.15.0
timm>=0.9.0
numpy>=1.24.0
scikit-learn>=1.3.0
matplotlib>=3.7.0
seaborn>=0.12.0
Pillow>=9.5.0

---

Citation

@inproceedings{basha2026ps3,
  title     = {PS3 Simulator: Physics-Parametrised Synthetic Sonar
               for Self-Supervised Sim-to-Real Transfer},
  author    = {Basha, Kamal S; Athira Nambiar},
  booktitle = {MaCVi Workshop @ CVPR},
  year      = {2026}
}

---

Acknowledgements

• I-JEPA — Facebook Research
• DINO — Facebook Research
• timm — HuggingFace
• SeabedObjects-KLSG — test dataset
• Blender MCP — 3D generation

---

License

MIT License — see LICENSE
