oc run -it gotest1 --rm=true --restart='Never' --image=bigg01/go-17-centos7:latest -- /bin/sh
git clone https://github.com/kamon-io/docker-grafana-graphite.git
Cloning into 'docker-grafana-graphite'...
remote: Counting objects: 262, done.
remote: Total 262 (delta 0), reused 0 (delta 0), pack-reused 262
Receiving objects: 100% (262/262), 75.97 KiB | 0 bytes/s, done.
Resolving deltas: 100% (113/113), done.
Checking connectivity... done.
guo ~ grafana-compose $ oc import docker-compose -f ./docker-compose.yml -o yaml
error: open /Users/guo/grafana-compose/Dockerfile: no such file or directory
guo ~ grafana-compose $ ls
docker-compose.yml docker-grafana-graphite
guo ~ grafana-compose $ cd docker-grafana-graphite/
guo ~ grafana-compose docker-grafana-graphite master $ oc import docker-compose -f ./docker-compose.yml -o yaml
apiVersion: v1
items:
- apiVersion: v1
kind: ImageStream
metadata:
creationTimestamp: null
name: grafana_graphite
spec:
tags:
- annotations:
openshift.io/imported-from: ubuntu:14.04
from:
kind: DockerImage
name: ubuntu:14.04
generation: null
importPolicy: {}
name: from
status:
dockerImageRepository: ""
- apiVersion: v1
kind: BuildConfig
metadata:
creationTimestamp: null
name: grafana_graphite
spec:
nodeSelector: null
output:
to:
kind: ImageStreamTag
name: grafana_graphite:latest
postCommit: {}
resources: {}
source:
contextDir: .
git:
ref: master
uri: https://github.com/kamon-io/docker-grafana-graphite.git
type: Git
strategy:
dockerStrategy:
from:
kind: ImageStreamTag
name: grafana_graphite:from
type: Docker
triggers:
- github:
secret: MRaAp3h2ynQzm5ewavfn
type: GitHub
- generic:
secret: P9PCFl9bawP7DmPBLjjK
type: Generic
- type: ConfigChange
- imageChange: {}
type: ImageChange
status:
lastVersion: 0
- apiVersion: v1
kind: ImageStream
metadata:
creationTimestamp: null
name: grafanagraphite
spec:
tags:
- annotations:
openshift.io/imported-from: kamon/grafana_graphite
from:
kind: DockerImage
name: kamon/grafana_graphite
generation: null
importPolicy: {}
name: latest
status:
dockerImageRepository: ""
- apiVersion: v1
kind: DeploymentConfig
metadata:
creationTimestamp: null
name: grafanagraphite
spec:
replicas: 1
selector:
deploymentconfig: grafanagraphite
strategy:
resources: {}
template:
metadata:
creationTimestamp: null
labels:
deploymentconfig: grafanagraphite
spec:
containers:
- image: kamon/grafana_graphite
name: kamon-grafana-dashboard
ports:
- containerPort: 80
- containerPort: 81
- containerPort: 8126
resources: {}
volumeMounts:
- mountPath: /opt/grafana/data
name: dir-1
- mountPath: /opt/graphite/storage/log
name: dir-2
- mountPath: /opt/graphite/storage/whisper
name: dir-3
volumes:
- emptyDir: {}
name: dir-1
- emptyDir: {}
name: dir-2
- emptyDir: {}
name: dir-3
test: false
triggers:
- type: ConfigChange
- imageChangeParams:
automatic: true
containerNames:
- grafanagraphite
from:
kind: ImageStreamTag
name: grafanagraphite:latest
type: ImageChange
status: {}
- apiVersion: v1
kind: Service
metadata:
creationTimestamp: null
name: grafanagraphite
spec:
ports:
- name: 80-tcp
port: 80
targetPort: 80
- name: 81-tcp
port: 81
targetPort: 81
- name: 8126-tcp
port: 8126
targetPort: 8126
selector:
deploymentconfig: grafanagraphite
status:
loadBalancer: {}
kind: List
metadata: {}
The goal create a pod where is not dying
https://docs.openshift.org/latest/dev_guide/new_app.html https://docs.openshift.org/latest/getting_started/administrators.html#running-in-a-docker-container
oc get pod minion-1-5a9p6 -o go-template={{.status.podIP}}
Waiting for pod elk/temp2-1-gyvia to be running, status is Pending, pod ready: false
Hit enter for command prompt
[root@temp2-1-gyvia /]# [root@temp2-1-gyvia /]# [root@temp2-1-gyvia /]# [root@temp2-1-gyvia /]# id uid=0(root) gid=0(root) groups=0(root) [root@temp2-1-gyvia /]# yum install http Loaded plugins: fastestmirror, ovl base | 3.6 kB 00:00 extras | 3.4 kB 00:00 updates | 3.4 kB 00:00 (1/4): extras/7/x86_64/primary_db | 117 kB 00:00 (2/4): base/7/x86_64/group_gz | 155 kB 00:00 (3/4): base/7/x86_64/primary_db | 5.3 MB 00:01 (4/4): updates/7/x86_64/primary_db | 4.1 MB 00:01 Determining fastest mirrors
- base: mirror.switch.ch
- extras: mirror.23media.de
- updates: centosmirror.netcup.net No package http available. Error: Nothing to do [root@temp2-1-gyvia /]# yum install httpd -y Loaded plugins: fastestmirror, ovl Loading mirror speeds from cached hostfile
- base: mirror.switch.ch
- extras: mirror.23media.de
- updates: centosmirror.netcup.net Resolving Dependencies --> Running transaction check ---> Package httpd.x86_64 0:2.4.6-40.el7.centos will be installed
[root@temp2-1-gyvia /]# [root@temp2-1-gyvia /]# exec /usr/sbin/apachectl -DFOREGROUND
I0503 21:42:05.607473 2524 portforward.go:213] Forwarding from 127.0.0.1:8083 -> 80 I0503 21:42:05.607612 2524 portforward.go:213] Forwarding from [::1]:8083 -> 80 I0503 21:42:19.696162 2524 portforward.go:247] Handling connection for 8083 I0503 21:42:19.696289 2524 portforward.go:247] Handling connection for 8083
open browser 127.0.0.1:8083
oc port-forward mysql-1-kabxl 3306:3306
I0417 13:42:13.326021 2342 portforward.go:213] Forwarding from 127.0.0.1:3306 -> 3306
I0417 13:42:13.326255 2342 portforward.go:213] Forwarding from [::1]:3306 -> 3306
vI0417 13:43:38.949544 2342 portforward.go:247] Handling connection for 3306
I0417 13:43:41.904705 2342 portforward.go:247] Handling connection for 3306
I0417 13:43:41.977789 2342 portforward.go:247] Handling connection for 3306
oc new-app https://github.com/bigg01/dockerfun.git --context-dir=flask/ --strategy=docker

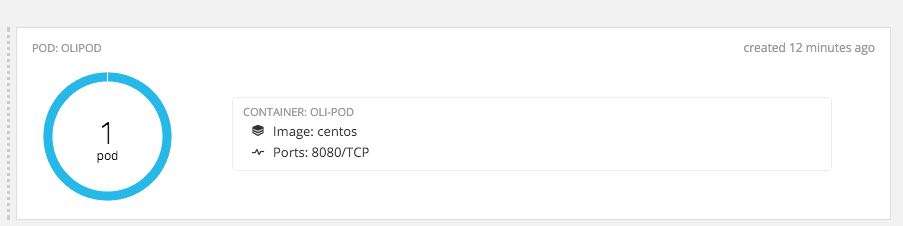

oc create -f ./oli-pod.json
oc delete pod olipod
oc get pod
NAME READY STATUS RESTARTS AGE
hello-openshift-1-rm2is 1/1 Running 0 1h
olicentos 0/1 Completed 0 19m
olipod 1/1 Running 0 5m
oc rsh olipod
bash-4.2$
bash-4.2$ ls
anaconda-post.log dev home lib64 media opt root sbin sys usr
bin etc lib lost+found mnt proc run srv tmp var
bash-4.2$ ps
PID TTY TIME CMD
381 ? 00:00:00 bash
395 ? 00:00:00 ps
bash-4.2$
oc rsh olipod
bash-4.2$ yum install httpd -y
Loaded plugins: fastestmirror, ovl
ovl: Error while doing RPMdb copy-up:
[Errno 13] Permission denied: '/var/lib/rpm/.dbenv.lock'
Error making cache directory: /var/cache/yum/x86_64/7/base error was: [Errno 13] Permission denied: '/var/cache/yum/x86_64'
bash-4.2$
https://docs.openshift.org/latest/dev_guide/templates.html#uploading-a-template YAML
oc export pod/olipod --as-template=standalone_centos > standalone_centos.json
JSON
oc export pod/olipod --as-template=standalone_centos -o json> standalone_centos.json
#create template
oc create -f standalone_centos_temp.json
template "standalonecentos" created
oc create -f centos-base-working.json
Cannot create pod "olipod-1". pods "olipod-1" is forbidden: unable to validate against any security context constraint: [securityContext.runAsUser: Invalid value: 0: UID on container oli-pod does not match required range. Found 0, required min: 1000050000 max: 1000059999].
https://docs.openshift.com/enterprise/3.0/admin_guide/manage_scc.html
oc get scc
NAME PRIV CAPS HOSTDIR SELINUX RUNASUSER FSGROUP SUPGROUP PRIORITY
anyuid false [] false MustRunAs RunAsAny RunAsAny RunAsAny 10
hostaccess false [] true MustRunAs MustRunAsRange RunAsAny RunAsAny <none>
hostmount-anyuid false [] true MustRunAs RunAsAny RunAsAny RunAsAny <none>
nonroot false [] false MustRunAs MustRunAsNonRoot RunAsAny RunAsAny <none>
privileged true [] true RunAsAny RunAsAny RunAsAny RunAsAny <none>
restricted false [] false MustRunAs MustRunAsRange RunAsAny RunAsAny <none>
oc export scc privileged --as-template='olisecurity' -o json > olisecurity.json
apiVersion: v1
kind: Pod
metadata:
annotations:
openshift.io/scc: privileged
spec:
containers:
securityContext:
privileged: false
runAsUser: 0
"privileged": false,
"seLinuxOptions": {
"level": "s0:c7,c4"
},
"runAsUser": 1000050000
"securityContext": {
"capabilities": {
"drop": [
"KILL",
"MKNOD",
"SETGID",
"SETUID",
"SYS_CHROOT"
]
},
cat <<EOF | oc create -n test -f -
kind: ServiceAccount
apiVersion: v1
metadata:
name: oliuser
EOF
runAsUser:
type: RunAsAny
seLinuxContext:
type: MustRunAs
supplementalGroups:
type: RunAsAny
"/tmp/kubectl-edit-lmcwy.yaml" 41L, 1137C written
error: apiVersion should not be changed
A copy of your changes has been stored to "/tmp/kubectl-edit-lmcwy.yaml"
[root@atomic-node01 origin]# oc edit scc restricted
https://blog.openshift.com/getting-any-docker-image-running-in-your-own-openshift-cluster/
run any user oadm policy add-scc-to-user anyuid -z playground oc edit scc anyuid
` users:
- system:serviceaccount:hexboard:instant-container
- system:serviceaccount:admin:instant-container
- system:serviceaccount:playground:default ` oc status In project playground on server https://xxx:8443
oc run --restart=Never --attach --stdin --tty --image registry.access.redhat.com/rhel7 olitest /bin/sh
oc run -i --tty temp2 --image registry.access.redhat.com/rhel7
Waiting for pod playground/temp2-1-gognv to be running, status is Pending, pod ready: false
[root@temp2-1-gognv /]# [root@temp2-1-gognv /]# [root@temp2-1-gognv /]# [root@temp2-1-gognv /]# [root@temp2-1-gognv /]# [root@temp2-1-gognv /]# id uid=0(root) gid=0(root) groups=0(root)
oc get pods -o json 2>/dev/null |jq -r '.items[].status.podIP'
172.17.0.3
172.17.0.3
172.17.0.7
172.17.0.3
172.17.0.3
