Hungr AI

Food Ingredient Classification and Recipe Recommendation using CNN and Transfer Learning

ECE-GY 6143 · Intro to Machine Learning --- Course Project

Author: Shreyansh Saurabh
NetID: ss21034

• GitHub: https://github.com/binaryshrey/Hungr-AI\

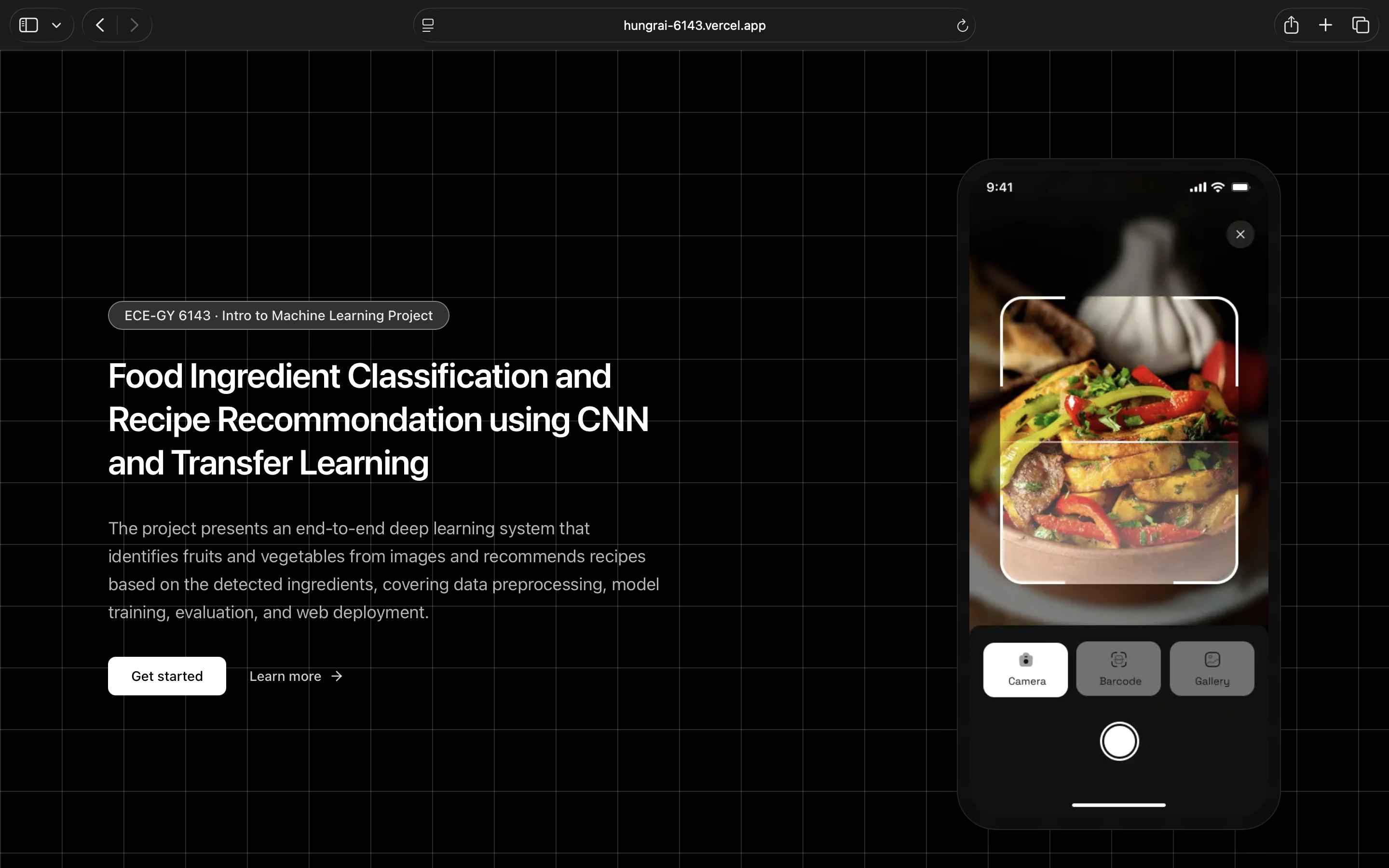

• Live Demo: https://hungrai-6143.vercel.app/

Project Overview

Hungr AI is an end-to-end machine learning web application where users upload multiple images of fruits and vegetables and the system:

1. Detects the ingredients present in the images (e.g., apple, tomato, onion)
2. Recommends recipes that best match the detected ingredients

The project demonstrates a complete ML lifecycle: dataset preprocessing, CNN-based image classification using transfer learning, model evaluation, backend inference serving, database-backed recipe retrieval and frontend deployment.

Machine Learning Concepts & Methods

• Supervised learning (image classification)
• Convolutional Neural Networks (CNNs)
• Transfer learning with pretrained backbones (EfficientNet)
• Train / validation / test split
• Model evaluation and metrics
• Top-1 / Top-3 / Top-5 accuracy
• Confusion matrix and error analysis

Tech Stack

ML & Data

• Python
• PyTorch, torchvision, timm
• pandas

Backend

• FastAPI
• Supabase (Postgres)

Frontend

• React
• Vercel

Deployment

• Render (API)
• Vercel (Frontend)

Data Sources

Vision Dataset

• Kaggle: Fruit and Vegetable Image Recognition
  • 36 classes (apple, banana, garlic, etc.)
  • Used for training the CNN classifier
    Link : https://www.kaggle.com/datasets/kritikseth/fruit-and-vegetable-image-recognition

Recipe Dataset

• Kaggle: RecipeNLG
  • Large-scale recipe dataset
  • Preprocessed and stored (subset ~200k recipes) in Supabase
    Link : https://www.kaggle.com/datasets/paultimothymooney/recipenlg

All datasets are public and used strictly for academic purposes.

Analysis Plan

Data Cleaning & Preparation

Vision Dataset - Verified folder structure and labels - Image resizing and normalization - Light augmentation (flip, rotation)

Recipe Dataset - Safe JSON parsing - Ingredient text normalization - CSV export and Supabase ingestion

Labels & Outputs

Vision Model

• Single label per image (fruit/vegetable)
• Multi-image input → merged unique ingredient set

Recipe Output

• Ranked by ingredient overlap
• Matched ingredients
• Missing ingredients (optional)
• Recipe title and instructions

Feature Engineering

Vision - No manual feature extraction - CNN learns features directly from pixels

Recipes - Ingredient normalization - Optional synonym mapping (e.g., capsicum ↔ bell pepper)

Exploratory Data Analysis

• Class distribution analysis
• Confusion matrix for similar ingredients
• Recipe coverage and ingredient frequency

Model Training & Evaluation

• EfficientNet with transfer learning
• Metrics:
  • Loss
  • Top-1 / Top-3 / Top-5 accuracy
• Confusion matrix visualization

Saved Artifacts - best_model.pt - classes.json - model_config.json

Model Interpretation

• Analysis of common misclassifications
• Identification of visually similar classes
• Qualitative evaluation of recipe retrieval quality

System Architecture

1. Frontend (React + Vercel)

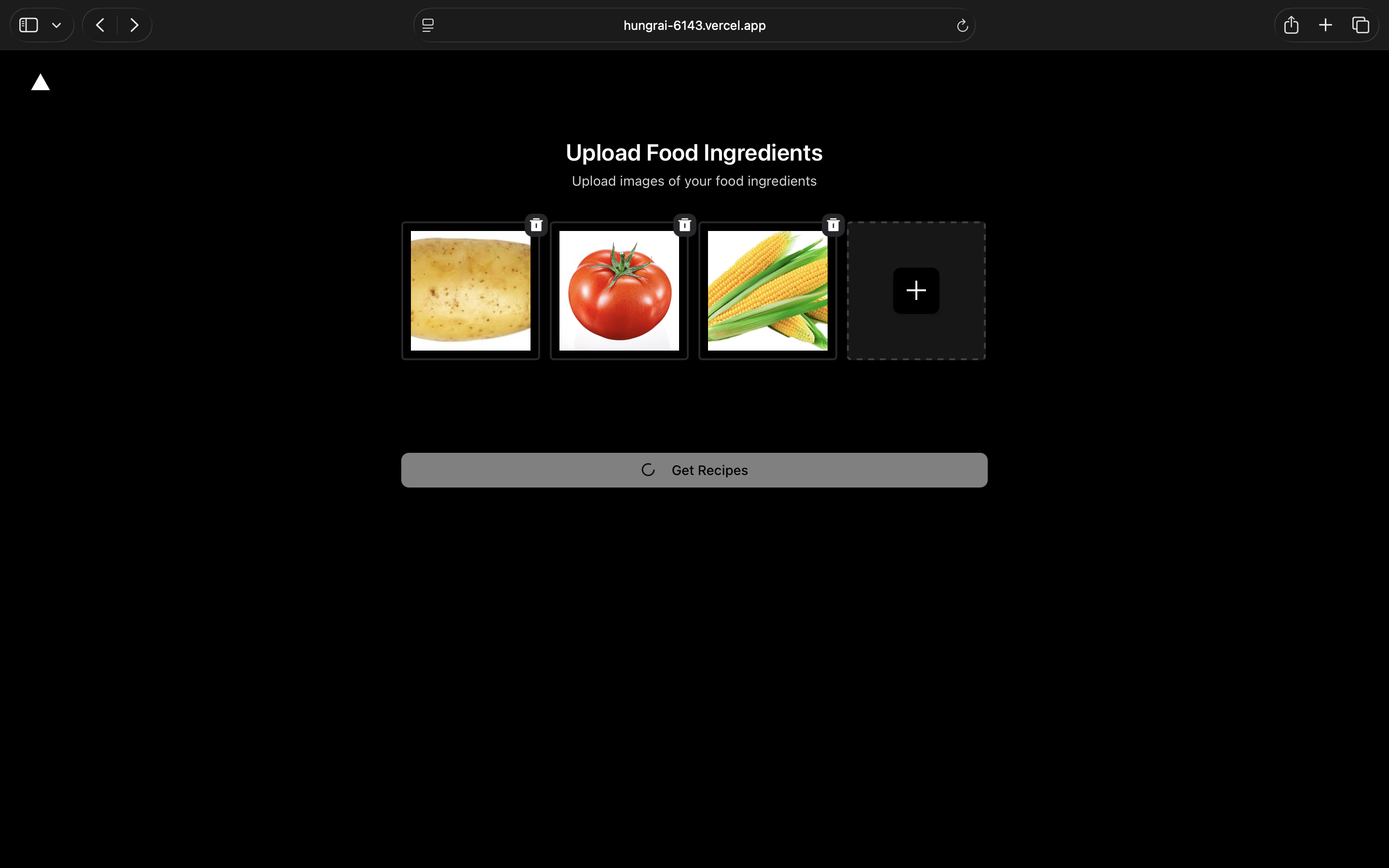

• Multi-image upload UI
• Async requests to backend
• Displays:
  • Per-image predictions
  • Merged ingredient list
  • Ranked recipe recommendations

Concepts: SPA, async APIs, multipart upload, CORS

2. Backend API (FastAPI)

Endpoints - GET /health - POST /predict - POST /recipes/search (optional)

Inference Pipeline

1. Receive images
2. Preprocess images
3. Run CNN inference
4. Merge predicted ingredients
5. Query Supabase recipes
6. Rank and return results

3. ML Inference Service

• PyTorch model loaded at startup
• CPU-based inference
• torch.no_grad() for efficiency
• Softmax confidence scores

4. Database Layer (Supabase Postgres)

• Stores recipes as JSONB
• Ingredient overlap matching
• Recommended improvement:
  • TEXT[] ingredients column
  • GIN index for fast overlap queries

5. Deployment

• Frontend: Vercel
• Backend: Render
• Python 3.11 runtime
• Environment variables:
  • SUPABASE_URL
  • SUPABASE_SERVICE_ROLE_KEY

Learning Outcomes

• Built and deployed an end-to-end ML system
• Applied CNN transfer learning in practice
• Designed scalable ML-backed APIs
• Integrated ML inference with a real database
• Deployed a full-stack ML application to production

License

This project is developed for academic purposes as part of ECE-GY 6143.
