CallBuddy for Access

pitch

Waiting on the phone is a tax on people who can least afford it.

Many low-income residents, seniors, and non-native English speakers struggle to access basic community resources—not because they don’t exist, but because everything requires long, stressful phone calls.

Our project helps users navigate phone calls without replacing them. We use AI to prepare call scripts, wait through automated systems, and summarize essential information—while clearly disclosing that it’s an AI assistant and allowing the user to stay in control at all times.

The result: fewer missed resources, less anxiety, and more equitable access to help that already exists.

Architecture

• Node.js (Twilio Media Streams, gRPC client, call control)
• Python (Silero VAD, audio processing, AI inference)

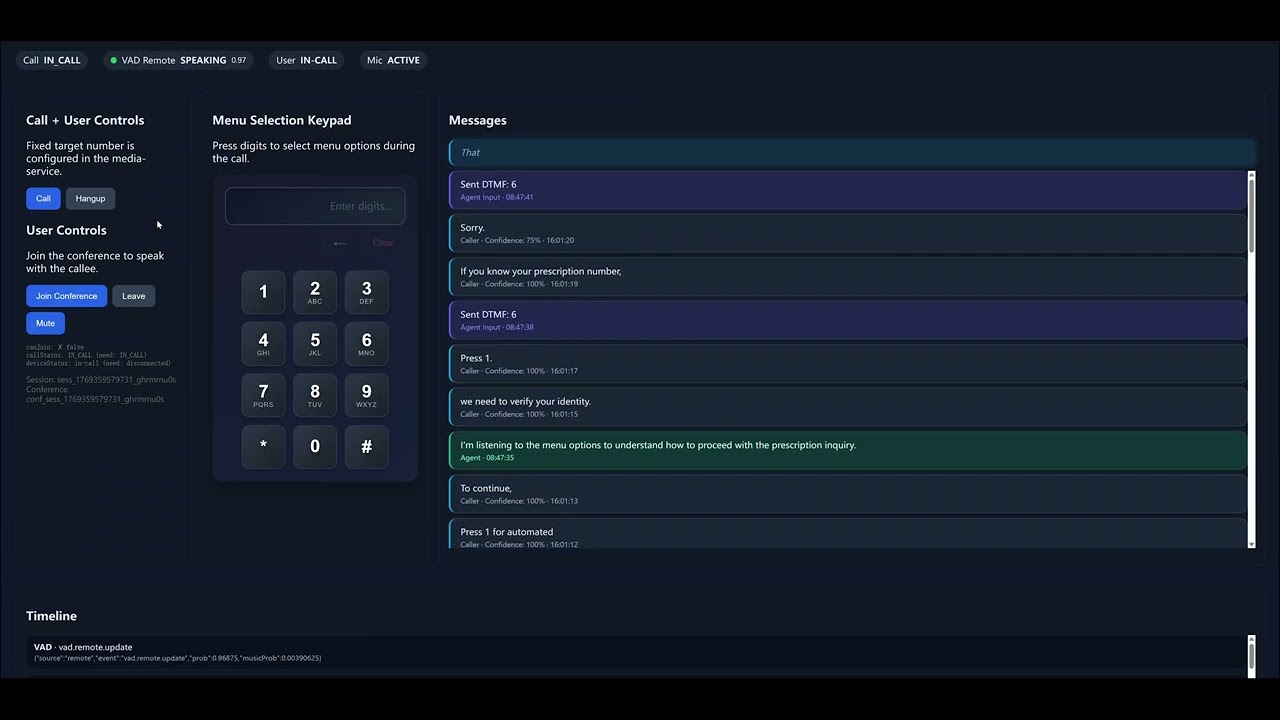

• Next.js (Debug Console UI with XState v5)

DEMO

## Tech Stack

• Package Manager: pnpm workspaces
• Frontend: Next.js 14+ (App Router), XState v5
• Backend: Node.js 18+, Python 3.10+
• Communication: gRPC (bidirectional streaming)
• VAD Model: Silero VAD (ONNX)

Project Structure

voip_agent/
├── apps/
│   ├── web/                 # Next.js UI + BFF
│   ├── media-service/       # Node: Twilio WS + gRPC client
│   └── ai-audio-service/    # Python: gRPC server + VAD
├── packages/
│   ├── proto/               # gRPC .proto definitions
│   ├── event-schema/        # Event contracts (TS/Zod)
│   └── shared-config/       # Shared configs
├── infra/
│   ├── docker/              # Dockerfiles
│   ├── compose/             # docker-compose
│   └── k8s/                 # Kubernetes (future)
├── scripts/                 # Utility scripts
└── docs/                    # Documentation

Getting Started

1. Install dependencies:

   pnpm install

2. Create a .env with your Twilio credentials (see template below)

3. Start services:

   # Start media service
   pnpm --filter media-service dev

   # Start python mock VAD service
   python -m venv .venv
   .\\.venv\\Scripts\\Activate.ps1
   pip install -r apps/ai-audio-service/requirements.txt
   python apps/ai-audio-service/ai_audio_service/main.py

   # Start web
   pnpm --filter web dev

Docker Compose (Dev)

This runs the three dev services in containers and auto-starts them.

1. Ensure apps/media-service/.env has your Twilio/ngrok values. The web app already includes apps/web/.env, but you can adjust it if needed.

2. Start the stack:

   docker compose up --build

3. Services:

   • Web: http://localhost:3005
   • Media service: http://localhost:4001
   • AI audio gRPC: localhost:50051

Local Twilio + ngrok setup

1. Run ngrok:

   ngrok http 4001

2. Set PUBLIC_BASE_URL to your ngrok https URL.
3. Configure Twilio Voice webhook (or let /call/start create outbound calls).
4. Use the Web UI Call button to dial the fixed number.

.env template

TWILIO_ACCOUNT_SID=ACxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
TWILIO_AUTH_TOKEN=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
TWILIO_FROM_NUMBER=+15550001111
FIXED_TO_NUMBER=+15550002222
PUBLIC_BASE_URL=https://your-ngrok-domain.ngrok-free.app
MEDIA_SERVICE_PORT=4001
MEDIA_WS_PATH=/media
EVENTS_PATH=/events
NEXT_PUBLIC_MEDIA_SERVICE_URL=http://localhost:4001
USE_PYTHON_VAD=true
AI_AUDIO_GRPC_URL=localhost:50051

Documentation

See docs/ for detailed architecture and module structure documentation.
