@work-graph/cli

Install Work Graph in any project via npm. No engine clone, no manual engineRoot.

Work Graph is a local, Git-friendly work system for AI-assisted development. It stores work items as BVC files, keeps project intent close to the codebase, and opens a local backlog UI for operators and agents.

Use it when you want:

• a project-local backlog without SaaS lock-in;
• BVC work contracts that can be reviewed in Git;
• optional MCP client configuration for the project (Cursor by default);
• a local UI for task status, evidence and project navigation;
• repeatable setup through npx, not a copied engine repository.

Quick start

npx @work-graph/cli init .
npm install
npm run workgraph:ui

→ http://127.0.0.1:4177/

Screenshots

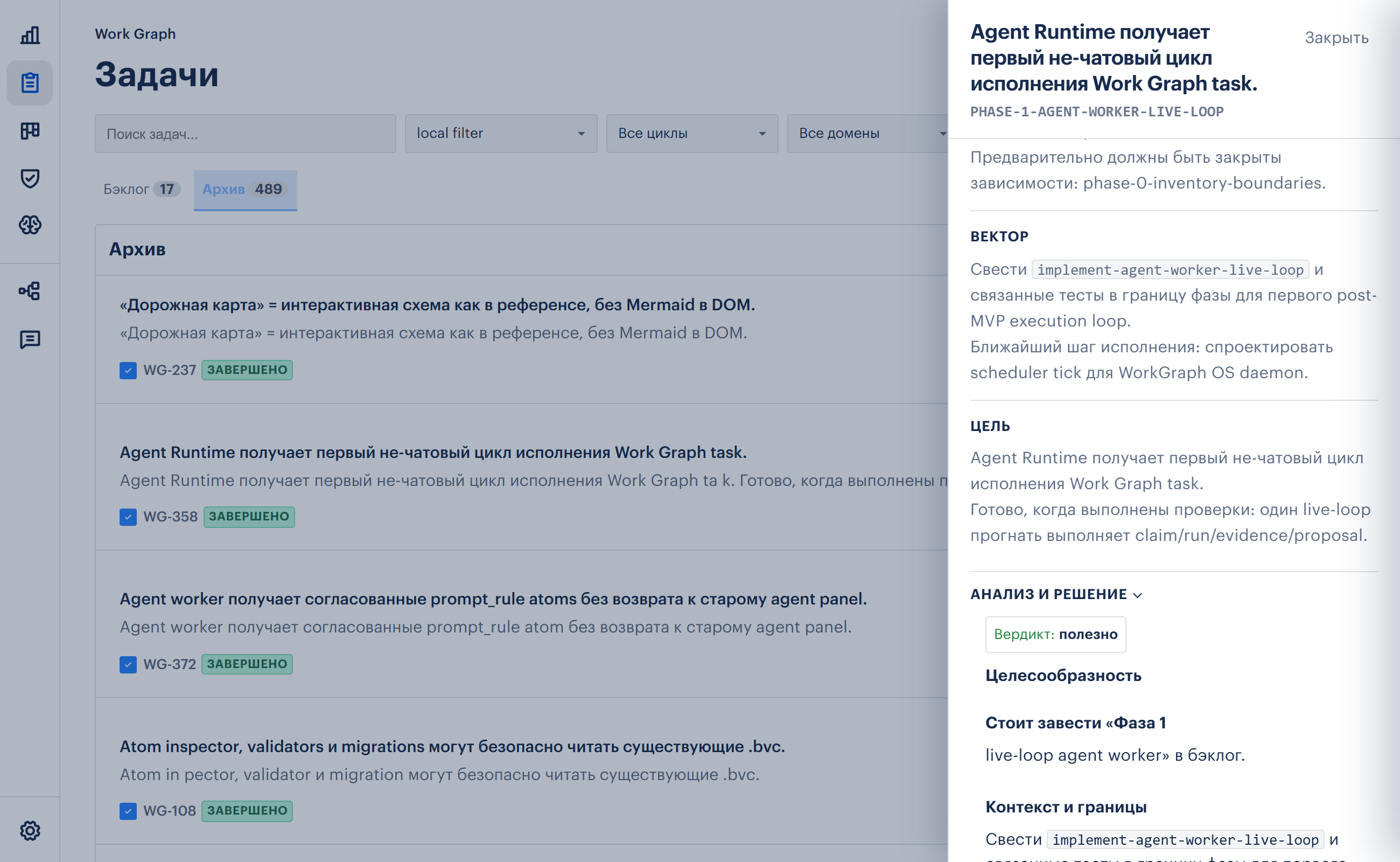

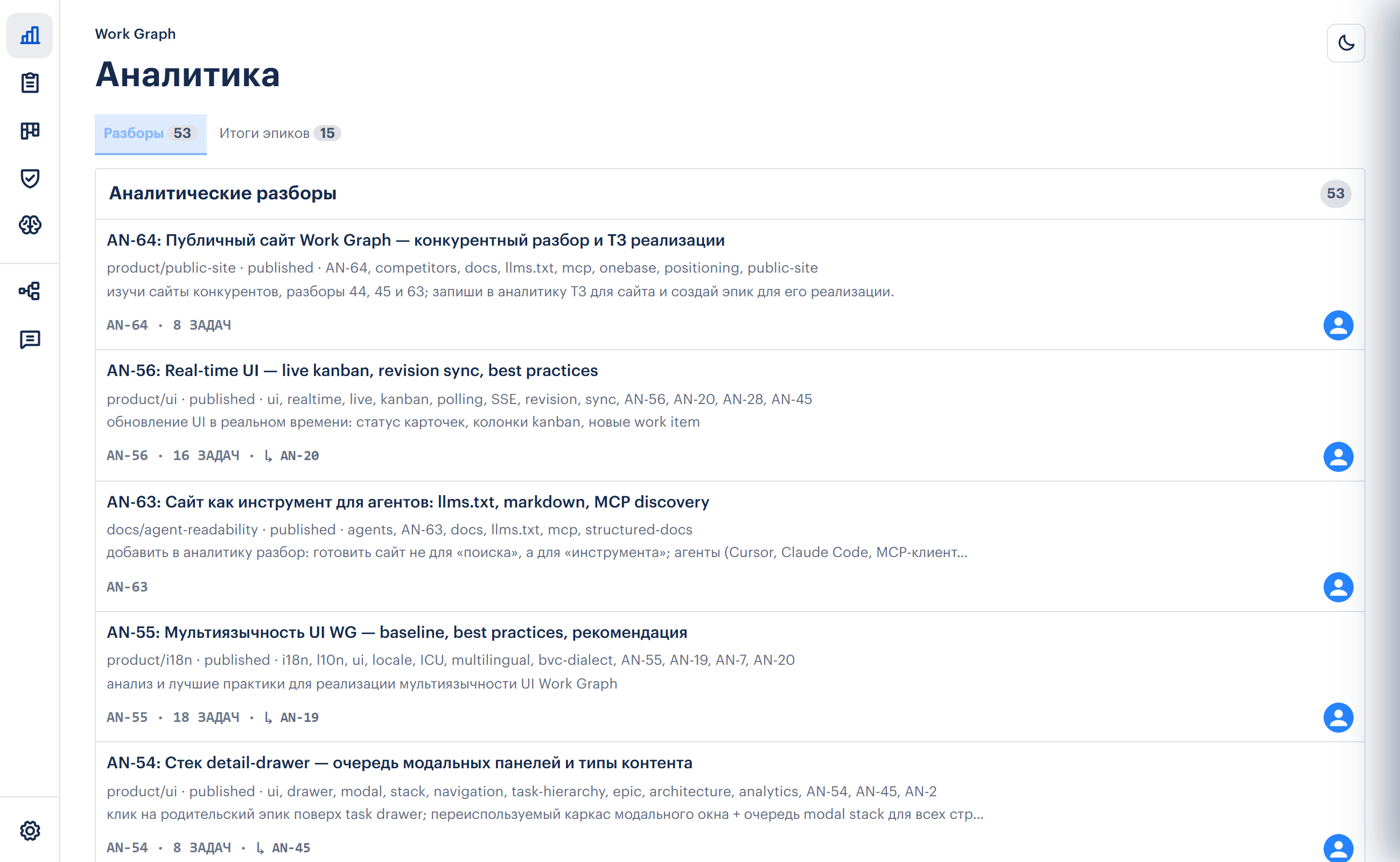

Analytics	Task contract drawer

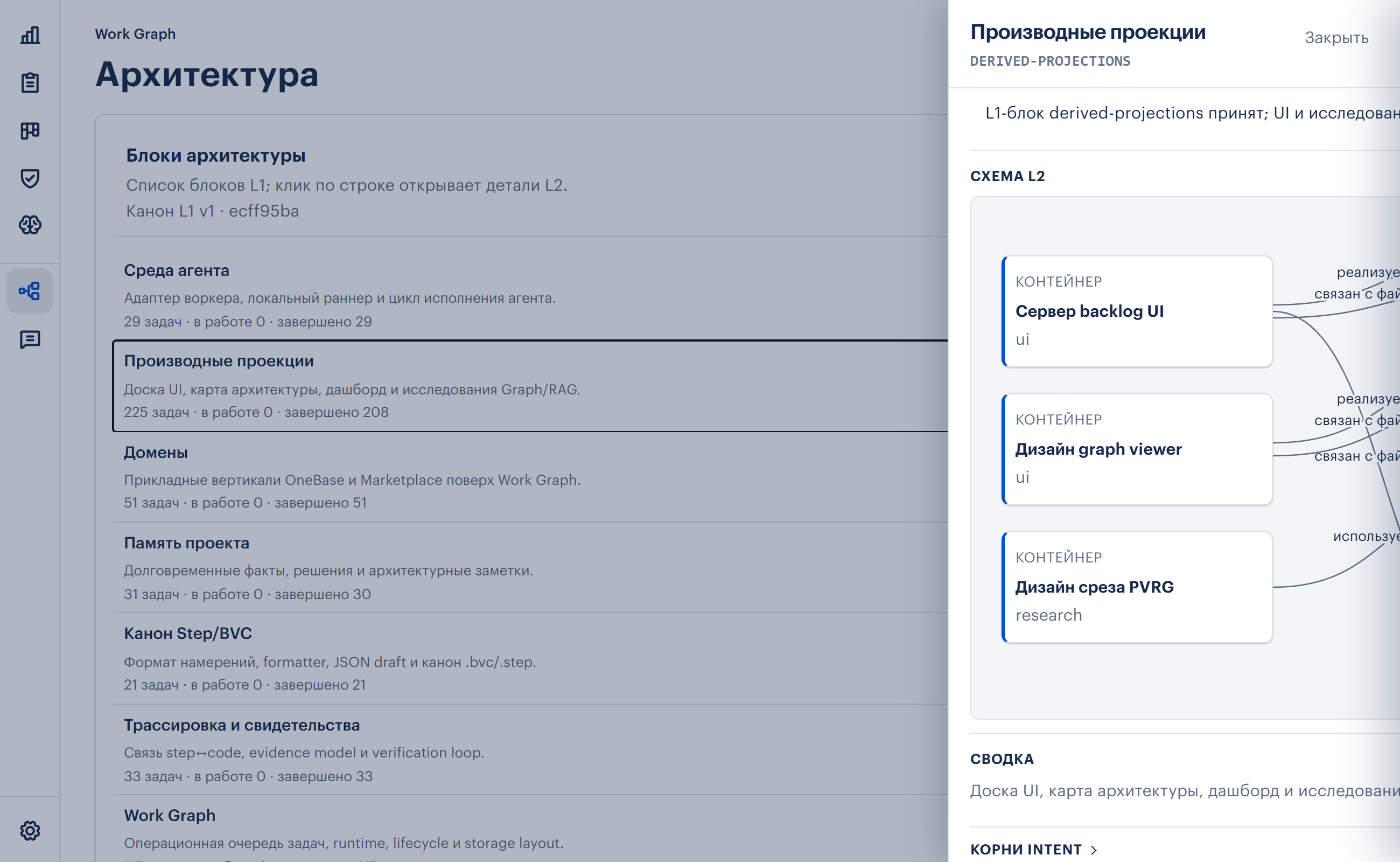

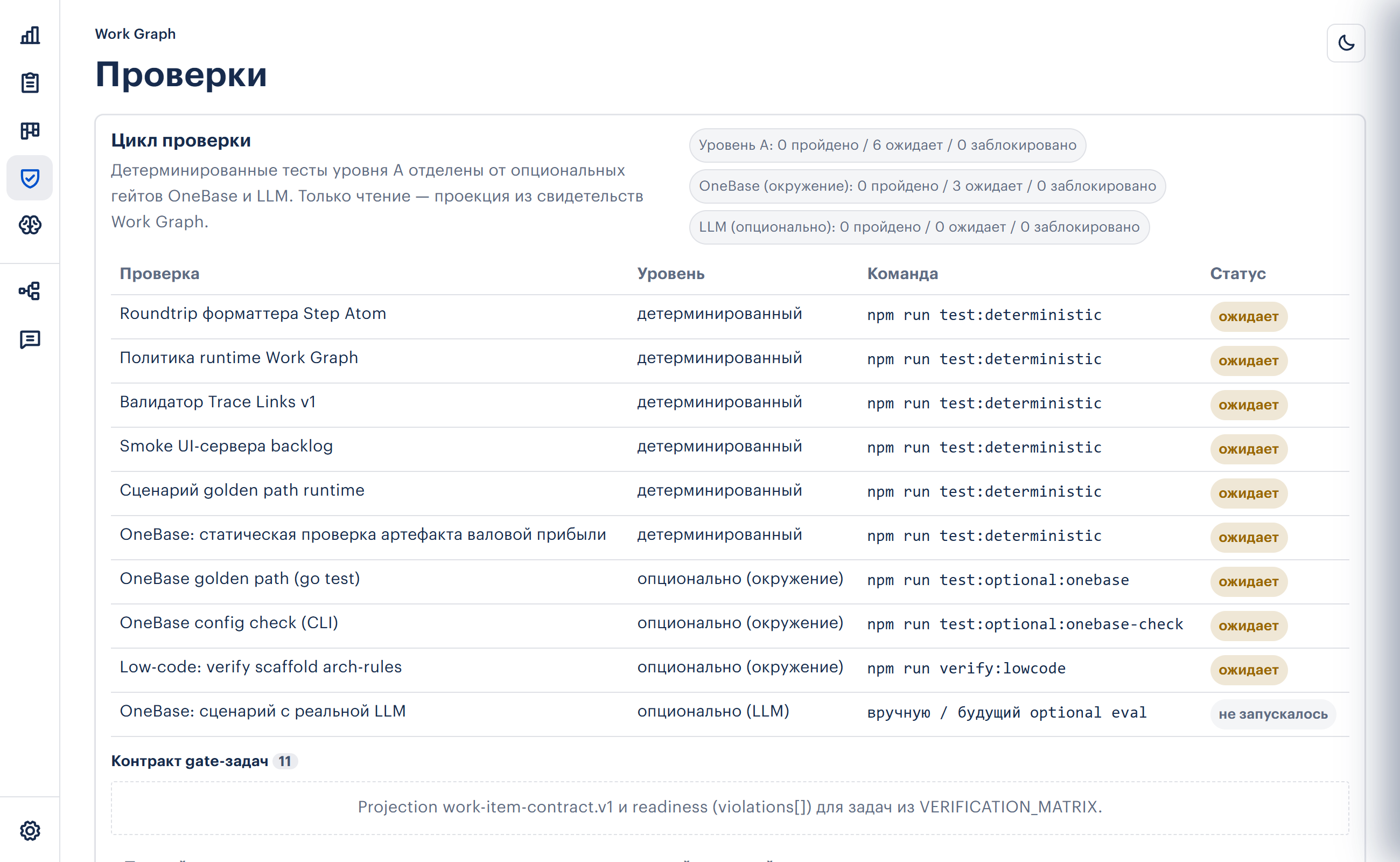

Verification	Architecture drawer

What init Creates

work-graph init is intentionally project-first. It updates the target repository rather than asking you to clone Work Graph itself.

Typical output:

Path	Purpose
.work-graph/config.json	Project id, label and UI settings
intent/	BVC intent tree for work items
intent/index.bvc	Index of work item files
.cursor/mcp.json	Optional: MCP server entry when using Cursor
.cursor/rules/work-graph-project.mdc	Optional: project rule for agents in Cursor
package.json	workgraph:* scripts and devDependencies

After npm install, the project owns its Work Graph runtime through node_modules/@work-graph/cli and node_modules/@work-graph/mcp.

Commands

Command	Description
init [path]	Scaffold Work Graph into a project: BVC intent tree, config, npm scripts, optional MCP/rule files
ui [path]	Start the local backlog UI for the project
doctor [path]	Verify that project config, package dependencies and runtime resolution are healthy
register [path]	Optional: register a project in the shared multiproject host

Flags (init)

Flag	Purpose
--label, --id	Display name and project id
--no-mcp	Do not update .cursor/mcp.json
--no-package	Do not update package.json
--no-rule	Do not create .cursor/rules/work-graph-project.mdc
--register-host	Register the project in the shared multiproject host after init
--port	Set the default local UI port
--legacy-engine-config	Dev only: write deprecated engineRoot to config

Common Workflows

Create a fresh Work Graph project:

mkdir my-project
cd my-project
npx @work-graph/cli init . --label "My Project"
npm install
npm run workgraph:ui

Add Work Graph to an existing repository:

cd existing-repo
npx @work-graph/cli init .
npm install
npm run workgraph:doctor

Run the UI without npm scripts:

npx @work-graph/cli ui .

Register a project for a multiproject host:

npx @work-graph/cli register . --label "Client A"

Relationship to BVC

Work Graph uses BVC files for durable work contracts. A work item is not just a card title; it carries Basis, Vector, Goal, labels, checks and evidence in a reviewable text artifact.

The CLI installs the runtime and UI. The BVC format itself is published separately as @bvc-lang/spec, and command-line BVC formatting/linting is available as @bvc-lang/cli.

Troubleshooting

Symptom	Fix
work-graph doctor says dependencies are missing	Run npm install in the target project
Agent does not see Work Graph MCP tools	Re-run npx @work-graph/cli init . without --no-mcp, then reload MCP servers in your IDE
UI port is already in use	Run npx @work-graph/cli ui . --port 4178
Existing package scripts were not updated	Re-run without --no-package or add the workgraph:* scripts manually
You are hacking Work Graph itself	Use WORKGRAPH_ENGINE_ROOT=. or --engine from the monorepo, not in normal projects

Contributors (monorepo dev)

git clone …/work-graph && cd work-graph && npm install
WORKGRAPH_ENGINE_ROOT=. npx work-graph ui /path/to/project

See CONTRIBUTING.md in the Work Graph repository.

Links

• CLI mirror: https://github.com/bvc-lang/work-graph-cli
• Work Graph monorepo: https://github.com/bvc-lang/work-graph
• BVC spec: https://github.com/bvc-lang/spec
• MCP package: https://www.npmjs.com/package/@work-graph/mcp
