Claim GUI

Claim GUI

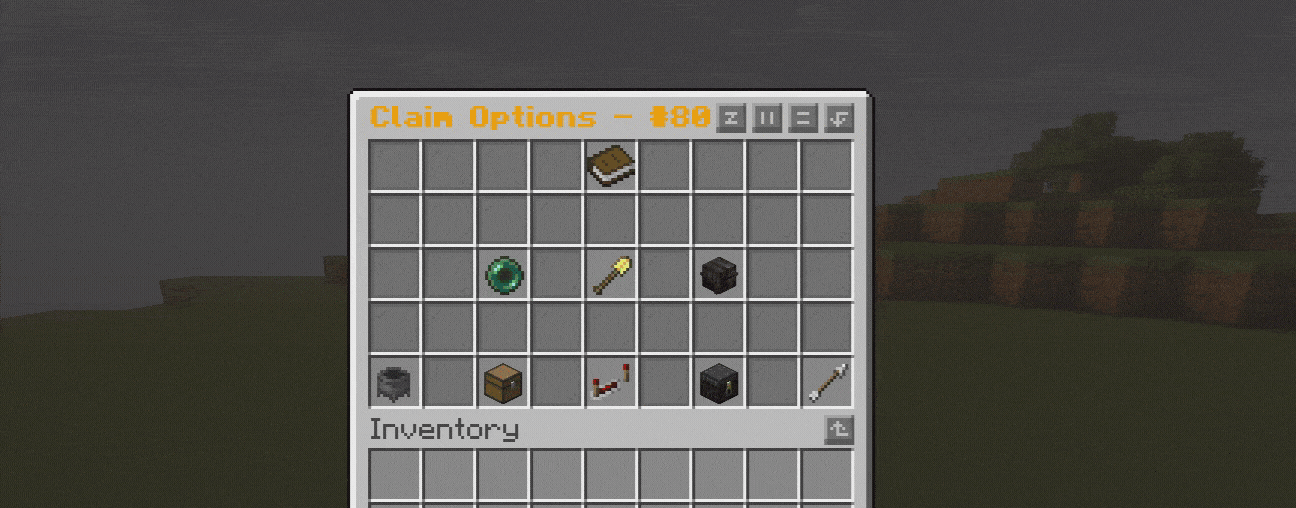

Claim Options Menu

GPExpansion includes an optional GUI system for managing claims. When enabled, many commands open interactive menus instead of chat output.

Enabling GUI Mode

In config.yml:

gui:
  enabled: true

Requires server restart to take effect.

Main Menu (/claim)

When GUI is enabled, running /claim opens the main menu with:

• My Claims - Browse your claims with icons and details
• Global Claims - View public global claims
• Claim Map - Visual claim editor (if standing in claim)
• Settings - Personal preferences

Claim List GUI (/claim list)

Interactive claim browser showing:

• Claim icon (customizable)
• Claim name (or "Unnamed")
• Claim ID
• Size and coordinates
• Click to view claim details

Claim Details Page

Clicking a claim opens options:

• Teleport - Go to claim spawn
• Manage - Open management menu
• Trust - View and edit trusted players
• Info - Detailed claim information

Claim Map Editor (/claim map)

Visual claim boundary editor with two modes:

Basic Mode

Simple directional expansion/contraction:

• North/South/East/West buttons
• Expand or shrink by set amounts
• Visual feedback on changes

Shaped Mode

Precise corner/boundary editing:

• Click specific points on the map
• Drag to resize boundaries
• Visual representation of claim shape
• See neighboring claims

Trust Management GUI

Visual trust interface:

• List of trusted players by level
• Add/remove players
• Change trust levels
• See when players were added

Management Menus

Claim Management

• Edit name/description
• Set icon
• Set spawn point
• Toggle global status
• View flags (GPFlags)
• Open options

Rental Management

• View active rentals
• Evict renters
• Collect payments
• Rental history

Mailbox Management

• View mailbox status
• Configure mailbox
• Check storage levels
• View deposit history

Global Claims Browser (/claim globallist)

Public claims directory:

• Search by name/description
• Filter by owner
• Sort by various criteria
• Click to view details
• Teleport (if enabled)

GUI Navigation

Return to Previous GUI

Use /claim ! to return to the last viewed GUI with preserved state.

Permission: griefprevention.claim.gui.return

Menu Navigation

• Back button - Return to previous menu
• Next/Prev - Browse paginated lists
• Close - Exit GUI
• Refresh - Update displayed data

GUI Configuration

gui:
  enabled: true

  main-menu:
    show-global-claims: true
    show-rental-info: true
    show-tutorial: true

  claim-list:
    page-size: 10
    show-coordinates: true
    show-size: true
    show-trust-count: true

  colors:
    primary: "&6"      # Gold
    secondary: "&e"  # Yellow
    error: "&c"      # Red
    success: "&a"    # Green
    info: "&b"       # Aqua

  sounds:
    open: true
    click: true
    close: true
    error: true

Permission Integration

GUI respects all GPExpansion permissions:

• Options hidden if player lacks permission
• Trust management disabled for non-owners
• Admin features only for admins

Fallback to Chat

If GUI is disabled or fails to load:

• Commands output to chat as normal
• All functionality still available
• No data loss or issues

Supported Versions

GUI requires:

• Paper 1.20+ (recommended)
• Spigot 1.20+ (compatible)
• Folia 1.20+ (compatible)

Troubleshooting

GUI not opening?

• Check gui.enabled in config
• Verify player has griefprevention.claim.gui permission
• Try /gpx reload or server restart

Items appearing wrong?

• Some icons require valid material names
• Invalid icons fall back to default

Lag when opening?

• Large claim lists may take time to load
• Consider using pagination
• Check database connection speed

Tips

• Set custom icons for easy identification
• Use /claim ! to quickly return to where you were
• The claim map is great for visualizing claim boundaries
• Global claims browser helps discover new builds
