10.0: Map IP address locations using interaction automations and ipstack

[jstanden]

Introduction

Let's assume we have a list of client IP addresses and want to plot them on a map to visualize where activity is coming from.

First, it's important to acknowledge that locations derived from IP addresses are approximate. Clients may be using VPNs, proxies, third party services, etc. The location may be an ISP, or the contact information for the registered owner of a block of IP addresses.

Sign up at ipstack

Like geocoding, IP-based geolocation uses a large dataset. It wouldn't make sense to ship this with Cerb, so we'll be using an API from ipstack.

You can sign up for a free API key at ipstack and make 10,000 IP location requests per month at no cost.

Once you sign up, make a note of your API Access Key so you can use it within Cerb.

Import the ipstack package in Cerb

Navigate to Setup -> Packages -> Import and paste the following package:

{
  "package": {
    "name": "ipstack for Cerb",
    "requires": {
      "cerb_version": "10.0.0"
    },
    "configure": {
      "placeholders": [],
      "prompts": [
        {
          "type": "text",
          "label": "API Key",
          "key": "prompt_api_key",
          "params": {
            "default": "",
            "placeholder": "(paste your ipstack API Key)"
          }
        }
      ]
    }
  },
  "records": [
    {
      "uid": "service_ipstack",
      "_context": "connected_service",
      "name": "ipstack for Cerb",
      "extension_id": "cerb.service.provider.api_key",
      "params": {
        "api_base_url": "https://api.ipstack.com/",
        "api_key_name": "access_key",
        "api_key_location": "url"
      }
    },
    {
      "uid": "account_ipstack",
      "_context": "connected_account",
      "name": "ipstack",
      "service_id": "{{{uid.service_ipstack}}}",
      "uri": "ipstack",
      "owner__context": "app",
      "owner_id": 0,
      "params": {
        "api_key": "{{{prompt_api_key}}}"
      }
    },
    {
      "uid": "automation_ipstack_lookup",
      "_context": "automation",
      "name": "wgm.services.ipstack.location",
      "extension_id": "cerb.trigger.automation.function",
      "description": "Return location data for a given IP address",
      "script": "inputs:\n  text/ip:\n    type: ip\n    required@bool: yes\n\nstart:\n  storage.get:\n    inputs:\n      key: wgm.services.ipstack.location::ip:{{inputs.ip}}\n    output: ip_data\n    on_error:\n      http.request@ref: httpRequest\n  return:\n    data@key: ip_data\n\n&httpRequest:\n  output: http_response\n  inputs:\n    url: http://api.ipstack.com/{{inputs.ip|url_encode}}\n    authentication: cerb:connected_account:ipstack\n  on_success:\n    set:\n      response_json@json: {{http_response.body}}\n    decision:\n      outcome/error:\n        if@bool: {{not response_json.ip ? 'yes'}}\n        then:\n          error: Failed to retrieve the IP.\n      \n      outcome/success:\n        then:\n          set:\n            ip_data@key: response_json\n          storage.set:\n            inputs:\n              key: wgm.services.ipstack.location::ip:{{inputs.ip}}\n              value@key: ip_data\n              expires: 3 days\n  on_error:\n    error:\n      message@key: http_response:error\n",
      "policy_kata": "commands:\n  storage.get:\n    deny/key@bool: {{inputs.key is not prefixed ('wgm.services.ipstack.location::')}}\n    allow@bool: yes\n  storage.set:\n    deny/key@bool: {{inputs.key is not prefixed ('wgm.services.ipstack.location::')}}\n    allow@bool: yes\n  http.request:\n    deny/url@bool: {{inputs.url is not prefixed ('http://api.ipstack.com/')}}\n    deny/account@bool: {{inputs.authentication is not ('cerb:connected_account:ipstack')}}\n    allow@bool: yes"
    },
    {
      "uid": "automation_ipstack_interaction",
      "_context": "automation",
      "name": "wgm.interaction.ipstack.location",
      "extension_id": "cerb.trigger.interaction.worker",
      "description": "Interaction to convert an IP address to geo coordinates",
      "script": "start:\n  await/ip:\n    form:\n      title: IP Lookup\n      elements:\n        text/prompt_ip:\n          label: IP:\n          type: ip\n          required@bool: yes\n          placeholder: (e.g. 1.2.3.4)\n  \n  function/lookup:\n    uri: cerb:automation:wgm.services.ipstack.location\n    output: results\n    inputs:\n      ip@key: prompt_ip\n    on_success:\n      set:\n        ip_data@key: results:data\n  \n  await/results:\n    form:\n      title: Coordinates\n      elements:\n        say:\n          content@text:\n            #### Location of {{ip_data.ip}}\n        sheet/ip_data:\n          data@json: [{{ip_data|json_encode}}]\n          schema:\n            layout:\n              style: fieldsets\n              paging@bool: no\n            columns:\n              text/city:\n                label: City\n              text/region_name:\n                label: State/Region\n              text/country_name:\n                label: Country\n              text/coordinates:\n                label: Coordinates\n                params:\n                  value_template@raw:\n                    {{latitude}}, {{longitude}}\n        map:\n          resource:\n            uri: cerb:resource:map.world.countries\n          projection:\n            type: mercator\n            scale: 90\n            center:\n              latitude: {{ip_data.latitude}}\n              longitude: {{ip_data.longitude}}\n            zoom:\n              latitude: {{ip_data.latitude}}\n              longitude: {{ip_data.longitude}}\n              scale: 3.5\n          points:\n            data:\n              point:\n                latitude: {{ip_data.latitude}}\n                longitude: {{ip_data.longitude}}\n                properties@key: feature\n            size:\n              default: 5\n            fill:\n              default: #FF0000\n  \n  return:\n    coordinates:\n      label: {{ip_data.ip}}\n      lat: {{ip_data.latitude}}\n      lon: {{ip_data.longitude}}\n",
      "policy_kata": "commands:\n  function:\n    deny/name@bool: {{uri != 'cerb:automation:wgm.services.ipstack.location'}}\n    allow@bool: yes"
    }
  ],
  "toolbars": [
    {
      "toolbar": "global.menu",
      "kata": "interaction/ipLocation:\n  label: Location by IP\n  uri: cerb:automation:wgm.interaction.ipstack.location\n  icon: global"
    }
  ]
}

Click the Import button.

Enter your ipstack API Access key.

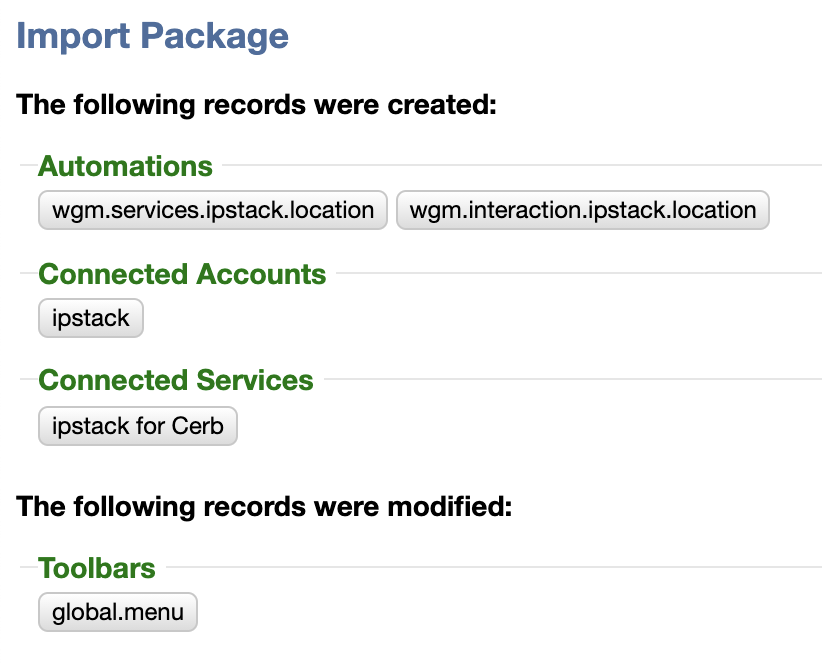

Click the Import button again.

Test the automation

Navigate to Search -> Automations and filter with ipstack.

Open the card for wgm.services.ipstack.location and click the Edit button.

This is a reusable function that returns location data for an IP address.

In the Run tab at the bottom, type the following into Input:

inputs:
  ip: 1.2.3.4

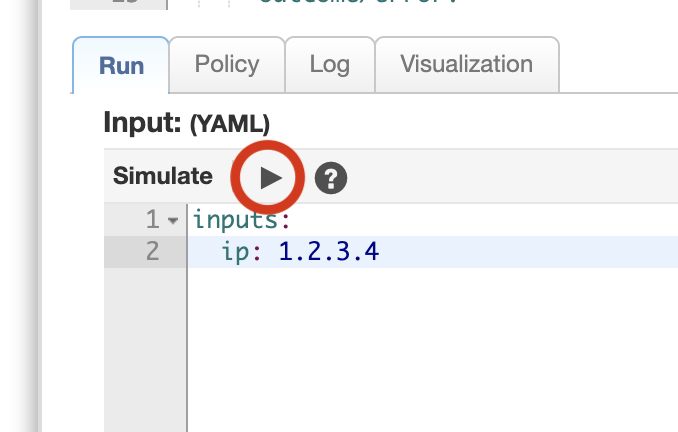

And click the run icon.

In the Output: section you should see something like:

__exit: return
__return:
  data:
    ip: 1.2.3.4
    type: ipv4
    continent_code: OC
    continent_name: Oceania
    country_code: AU
    country_name: Australia
    region_code: QLD
    region_name: Queensland
    city: Brisbane
    zip: "4000"
    latitude: -27.467581
    longitude: 153.027893

This demonstrates that our function is using the ipstack API to return location data for any IP address we give it.

Using the interaction

Reload the page by clicking on the logo in the top left.

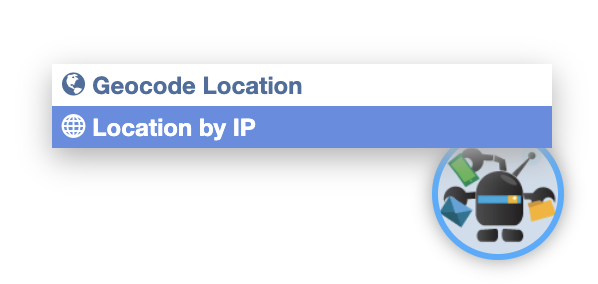

Click on the floating Cerb icon in the lower right and select Location by IP from the menu.

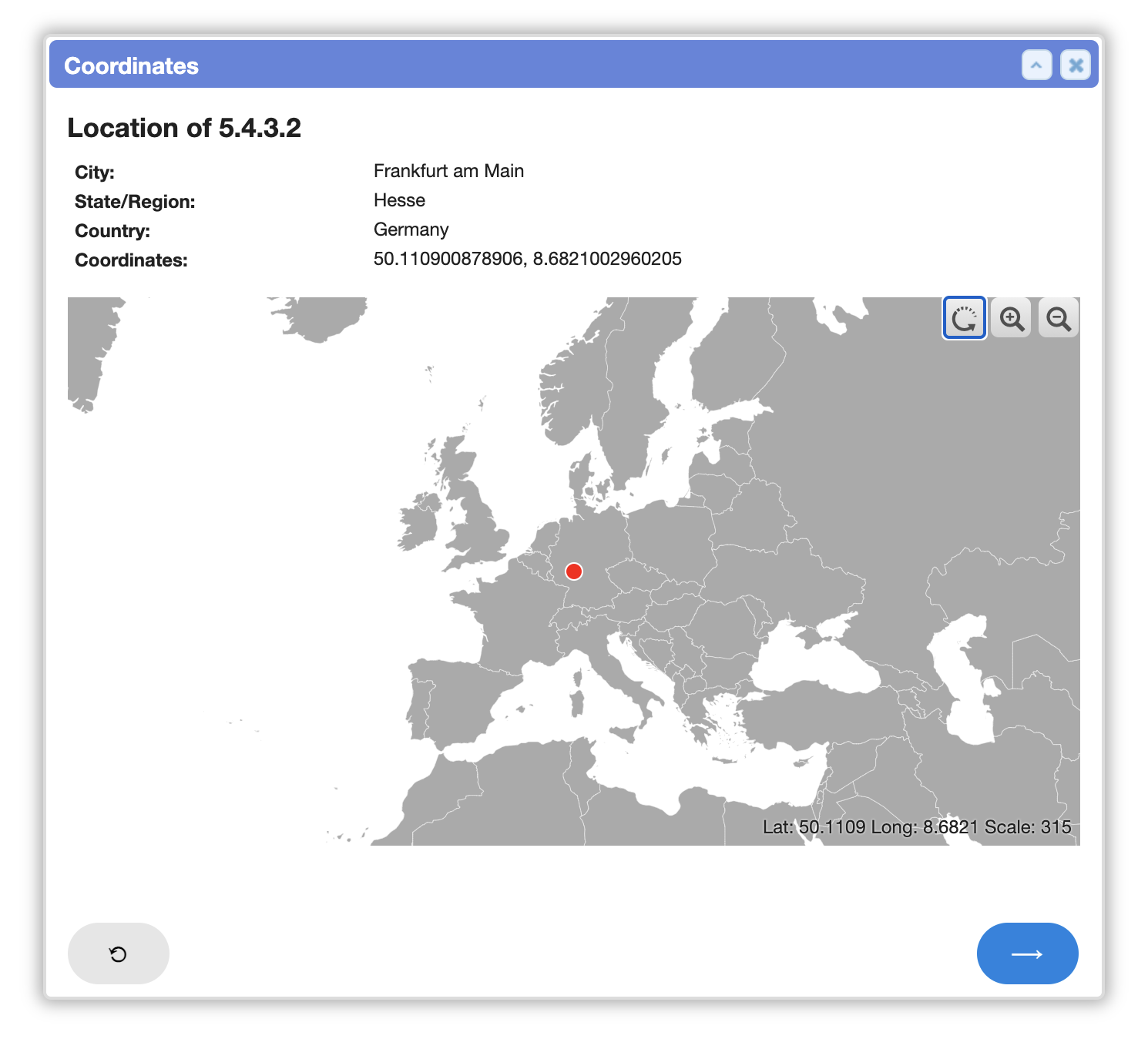

Enter an IP address:

cerb10_interaction_ipstack.mov

You can click the reset icon to repeat the interaction multiple times before closing the popup.

How it works

Connected Service and Connected Account

The package imports a connected service for ipstack. This is an API Key service that securely appends an access_key parameter any URL starting with https://api.ipstack.com/. You can find this at Search -> Connected Services.

The package also imports a connected account using the above service. This has the API key you configured. You can find it at Search -> Connected Accounts.

Automations

The package imports two automations. You can find them at Search -> Automations.

wgm.services.ipstack.location

The wgm.services.ipstack.location automation function is a reusable wrapper around the ipstack lookup API. This function can be called by any automation to fetch location data for an IP address.

The function takes an ip key as input and returns a data key with location info.

Because location data for an IP changes very infrequently, and ipstack charges per lookup, the function caches the results of an IP lookup for 3 days.

The storage.get: command is used to check the cache for a given IP. If the cache misses, the on_error: event connects the ipstack API. If the cache hits, that data is returned and the automation ends.

The http.request: command connects to the ipstack API. You'll see from http.request@ref: httpRequest that the command is defined as a reference. This makes the logic simpler to follow.

The &httpRequest uses the authentication: option to securely add the ipstack API key to the URL at runtime. The url: appends the ip input and uses the |url_encode filter to encode it.

If the HTTP request is successly, on_success: decodes the JSON body and saves it as a response_json placeholder.

A decision: then determines if the API returned successfully (the HTTP request can succeed and the API can still return an error code). If there's an error, the automation returns in the error: state. Otherwise, the IP data is set in the ip_data placeholder. That result is then cached with the storage.set: command.

Because http.request@ref: httpRequest is a reference, execution continues after that line. The interaction exits in the return: state with a data key containing the IP details. This is how results are returned to the caller.

inputs:
  text/ip:
    type: ip
    required@bool: yes

start:
  storage.get:
    inputs:
      key: wgm.services.ipstack.location::ip:{{inputs.ip}}
    output: ip_data
    on_error:
      http.request@ref: httpRequest
  return:
    data@key: ip_data

&httpRequest:
  output: http_response
  inputs:
    url: http://api.ipstack.com/{{inputs.ip|url_encode}}
    authentication: cerb:connected_account:ipstack
  on_success:
    set:
      response_json@json: {{http_response.body}}
    decision:
      outcome/error:
        if@bool: {{not response_json.ip ? 'yes'}}
        then:
          error: Failed to retrieve the IP.

      outcome/success:
        then:
          set:
            ip_data@key: response_json
          storage.set:
            inputs:
              key: wgm.services.ipstack.location::ip:{{inputs.ip}}
              value@key: ip_data
              expires: 3 days
  on_error:
    error:
      message@key: http_response:error

The automation policy allows the storage.get: and storage.set: commands with the key prefix wgm.services.ipstack.location::. This ensures only keys in this namespace are permitted.

The policy also allows the http.request: command for URLs prefixed with http://api.ipstack.com/ and only allows authentication: with the cerb:connected_account:ipstack record.

commands:
  storage.get:
    deny/key@bool: {{inputs.key is not prefixed ('wgm.services.ipstack.location::')}}
    allow@bool: yes
  storage.set:
    deny/key@bool: {{inputs.key is not prefixed ('wgm.services.ipstack.location::')}}
    allow@bool: yes
  http.request:
    deny/url@bool: {{inputs.url is not prefixed ('http://api.ipstack.com/')}}
    deny/account@bool: {{inputs.authentication != 'cerb:connected_account:ipstack'}}
    allow@bool: yes

wgm.interaction.ipstack.location

The wgm.interaction.ipstack.location interaction automation prompts a worker for an IP address, runs the wgm.services.ipstack.location function above, and displays the resulting location as a sheet and a map.

start:
  await/ip:
    form:
      title: IP Lookup
      elements:
        text/prompt_ip:
          label: IP:
          type: ip
          required@bool: yes
          placeholder: (e.g. 1.2.3.4)

  function/lookup:
    uri: cerb:automation:wgm.services.ipstack.location
    output: results
    inputs:
      ip@key: prompt_ip
    on_success:
      set:
        ip_data@key: results:data

  await/results:
    form:
      title: Coordinates
      elements:
        say:
          content@text:
            #### Location of {{ip_data.ip}}
        sheet/ip_data:
          data@json: [{{ip_data|json_encode}}]
          schema:
            layout:
              style: fieldsets
              paging@bool: no
            columns:
              text/city:
                label: City
              text/region_name:
                label: State/Region
              text/country_name:
                label: Country
              text/coordinates:
                label: Coordinates
                params:
                  value_template@raw:
                    {{latitude}}, {{longitude}}
        map:
          resource:
            uri: cerb:resource:map.world.countries
          projection:
            type: mercator
            scale: 90
            center:
              latitude: {{ip_data.latitude}}
              longitude: {{ip_data.longitude}}
            zoom:
              latitude: {{ip_data.latitude}}
              longitude: {{ip_data.longitude}}
              scale: 3.5
          points:
            data:
              point:
                latitude: {{ip_data.latitude}}
                longitude: {{ip_data.longitude}}
                properties@key: feature
            size:
              default: 5
            fill:
              default: #FF0000

  return:
    coordinates:
      label: {{ip_data.ip}}
      lat: {{ip_data.latitude}}
      lon: {{ip_data.longitude}}

The automation policy allows the function: command only for the wgm.services.ipstack.location function.

commands:
  function:
    deny/name@bool: {{uri != 'cerb:automation:wgm.services.ipstack.location'}}
    allow@bool: yes

Toolbar

The package registers the interaction on the global.menu toolbar. You'll find this in Search -> Toolbars.

interaction/ipLocation:
  label: Location by IP
  uri: cerb:automation:wgm.interaction.ipstack.location
  icon: global
