feat(sankey): add left and right props for layout padding control

[lkipke]

Summary

• Adds left and right optional props to SankeyChart (number | string) for controlling horizontal padding of the Sankey layout within its container
• When omitted, ECharts defaults apply ('5%'). Passing left={0} right={0} eliminates whitespace for a full-width layout
• Includes tests, a full-width demo, and docs updates

Motivation

ECharts defaults left and right to 5%, but in practice the right side ends up with ~20% whitespace because ECharts auto-calculates extra space for right-aligned node labels. Consumers currently have to hack around this by grabbing the ECharts instance from the DOM after mount and calling setOption({ series: [{ left: 0, right: 0 }] }) — which is fragile and races with kumo's own option updates. First-class props are the clean solution.

Changes

File	Change
packages/kumo/src/components/chart/SankeyChart.tsx	Add left/right to props interface, destructure in component, conditionally spread onto series config, add to useMemo deps
packages/kumo/src/components/chart/SankeyChart.test.tsx	4 new tests: omitted (no keys in config), numeric zero, string percentages, pixel numbers
packages/kumo-docs-astro/src/components/demos/Chart/SankeyChartDemo.tsx	Add SankeyChartFullWidthDemo
packages/kumo-docs-astro/src/pages/charts/sankey.astro	Add "Full-Width Layout" example section
.changeset/sankey-left-right-props.md	Minor changeset

• Reviews
• bonk has reviewed the change
• automated review not possible because: new feature requires human review of API design
• Tests
• Tests included/updated

[mattrothenberg]

/bonk

[ask-bonk]

PR #516 Summary: Sankey Chart Layout Padding Props

Author: @lkipke
Status: Open, awaiting review
Scope: Minor feature addition to @cloudflare/kumo

---

Changes Overview

This PR adds two new optional props (left and right) to the SankeyChart component, allowing consumers to control the horizontal padding of the Sankey layout within its container.

File	Change
SankeyChart.tsx	Adds left and right props (number | string), conditionally spreads them to the ECharts series config
SankeyChart.test.tsx	4 new test cases covering: omitted props, numeric zero values, percentage strings, and pixel numbers
SankeyChartDemo.tsx	New SankeyChartFullWidthDemo component showing left={0} right={0} usage
sankey.astro	New "Full-Width Layout" documentation section with live example
.changeset/	Minor changeset for versioning

---

Technical Details

API Design:

interface SankeyChartProps {
  left?: number | string;   // px value or percentage (e.g., "5%")
  right?: number | string;  // px value or percentage
}

Implementation approach:

• Uses conditional spreading (...(left !== undefined && { left })) to avoid passing keys when props are omitted, preserving ECharts defaults
• Props added to the useMemo dependency array for proper reactivity
• Accepts both numbers (pixels) and strings (percentages), matching ECharts' native API

---

Test Coverage

The 4 new tests verify:

1. Props omitted → no left/right keys in series config (ECharts defaults apply)
2. left={0} right={0} → values passed correctly
3. String percentages ("10%", "15%") → forwarded as-is
4. Pixel numbers (20, 30) → forwarded as-is

---

Documentation & Demos

• Demo: New SankeyChartFullWidthDemo shows a full-width layout with zero padding
• Docs: Added "Full-Width Layout" section explaining the use case (eliminating ECharts' default ~20% right-side whitespace caused by auto-calculated label spacing)

---

Current Activity

• @mattrothenberg triggered /bonk (likely for automated review/CI)
• PR includes proper changeset, tests, and documentation per project conventions
• PR checklist indicates: automated review not possible (new API requires human review), tests included

github run

[pkg-pr-new]

npm i https://pkg.pr.new/@cloudflare/kumo@516

commit: 2f2b4a1

[github-actions]

Docs Preview

View docs preview

Commit: 2f2b4a1

[github-actions]

Visual Regression Report — 13 changed, 25 unchanged

13 screenshot(s) with visual changes:

Button / Variant: Outline

204 px (0.2%) changed

Before	After	Diff

Button / Loading State

4 px (0%) changed

Before	After	Diff

Button / Disabled State

117 px (0.12%) changed

Before	After	Diff

Dialog / Dialog With Combobox

130 px (0.13%) changed

Before	After	Diff

Dialog (Open)

0 px (0%) changed

Before	After	Diff

Select / Select Sizes

901 px (0.48%) changed

Before	After	Diff

Select / Select Without Label

105 px (0.1%) changed

Before	After	Diff

Select / Select With Tooltip

294 px (0.29%) changed

Before	After	Diff

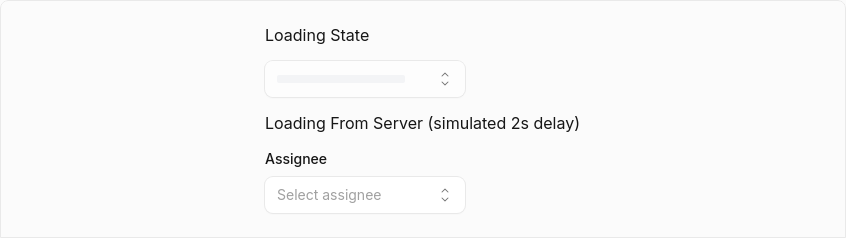

Select / Select Loading

0 px (0%) changed

Before	After	Diff

Select / Select Complex

1,093 px (0.92%) changed

Before	After	Diff

Select / Select Grouped

346 px (0.34%) changed

Before	After	Diff

Select / Select Grouped With Disabled

736 px (0.72%) changed

Before	After	Diff

Select (Open)

175 px (0%) changed

Before	After	Diff

25 screenshot(s) unchanged
