Add first-class Sheet title component customization

[liannacasper]

Motivation

• Provide a supported API for customizing the center area of a Sheet title bar (e.g. an image above the title) instead of relying on fragile parent traversal hacks.
• Preserve the existing default title label so callers can set text via API even when a custom component is installed.

Description

• Added titleComponent and titleComponentContainer members to Sheet and refactored the title bar center to use the dedicated container instead of FlowLayout.encloseCenterMiddle(title).
• Added public APIs: getTitle(), setTitle(String), getTitleComponent(), and setTitleComponent(Component) that allow installing, querying, and restoring the default title label.
• Updated the title spacing logic in show() to apply margins to the titleComponentContainer so custom components are laid out correctly and title/back/commands do not overlap.
• Added a core unit test SheetTest.titleComponentCanBeCustomized and updated scripts/hellocodenameone screenshot test SheetScreenshotTest to exercise an icon-over-title custom component.

Testing

• Ran the core unit tests for the modified class with: cd maven && mvn -pl core-unittests -am -DunitTests=true -Dmaven.javadoc.skip=true -DfailIfNoTests=false -Dtest=SheetTest test, and the SheetTest suite passed (4 tests run, 0 failures).
• Attempted to run the hellocodenameone screenshot test with: cd scripts/hellocodenameone && mvn -pl common -Dtest=SheetScreenshotTest -DfailIfNoTests=false test, but it failed in this environment because the com.codenameone:codenameone-maven-plugin:8.0-SNAPSHOT plugin/artifact is not available locally.
• Tried to follow the project Java 8 test recommendation by setting JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64, but that path did not exist in this container so the JVM selection step could not be completed here (tests were still executed with the available JVM and the core unit tests passed).

---

Codex Task

[github-actions]

✅ Continuous Quality Report

Test & Coverage

• ✅ Tests: 2364 total, 0 failed, 0 skipped
• 📊 Line coverage: 53.39% [HTML preview] [Download]
  • Lowest covered classes
    • com.codename1.ui.Display$EdtException – 0.00%
    • com.codename1.ui.plaf.CSSBorder$LinearGradient – 0.00%
    • com.codename1.util.EasyThread$InQueueRunnable – 0.00%
    • com.codename1.components.FloatingActionButton$ReleaseActionListener – 0.00%
    • com.codename1.io.Oauth2$ShowAuthenticationActionListener – 0.00%
    • com.codename1.io.Oauth2$RefreshTokenActionListener – 0.00%
    • com.codename1.util.EasyThread$RunAndWaitRunnable – 0.00%
    • com.codename1.components.ToastBar$FlushAnimationCallback – 0.00%
    • com.codename1.ui.plaf.CSSBorder$ColorStop – 0.00%
    • com.codename1.ui.ElevationComparator – 0.00%

Static Analysis

• SpotBugs [HTML preview] [Download]
  • ❌ ByteCodeTranslator: 109 findings (High: 2, Normal: 80, Low: 27)
    • Top findings
      • High: com/codename1/tools/translator/BytecodeMethod.java:559 – Method com.codename1.tools.translator.BytecodeMethod.findWritableFields(Set) seems to be useless (rule: UC_USELESS_VOID_METHOD)
      • High: com/codename1/tools/translator/bytecodes/TryCatch.java:91 – Write to static field com.codename1.tools.translator.bytecodes.TryCatch.hasTryCatch from instance method com.codename1.tools.translator.bytecodes.TryCatch.appendInstruction(StringBuilder, List) (rule: ST_WRITE_TO_STATIC_FROM_INSTANCE_METHOD)
      • Normal: com/codename1/tools/translator/ByteCodeClass.java:1802 – com.codename1.tools.translator.ByteCodeClass.getBaseClassObject() may expose internal representation by returning ByteCodeClass.baseClassObject (rule: EI_EXPOSE_REP)
      • …and 106 more
  • ❌ android: 414 findings (High: 24, Normal: 196, Low: 194)
    • Top findings
      • High: CodenameOne/src/com/codename1/impl/CodenameOneThread.java:48 – com.codename1.impl.CodenameOneThread.STACK_FRAME_SIZE isn't final but should be (rule: MS_SHOULD_BE_FINAL)
      • High: com/codename1/impl/android/AndroidImplementation.java:1085 – Write to static field com.codename1.impl.android.AndroidImplementation.context from instance method com.codename1.impl.android.AndroidImplementation.setContext(Context) (rule: ST_WRITE_TO_STATIC_FROM_INSTANCE_METHOD)
      • High: com/codename1/impl/android/AndroidImplementation.java:1286 – com.codename1.impl.android.AndroidImplementation.isDarkMode() has Boolean return type and returns explicit null (rule: NP_BOOLEAN_RETURN_NULL)
      • …and 411 more
  • ❌ codenameone-maven-plugin: 488 findings (High: 1, Normal: 315, Low: 172)
    • Top findings
      • High: com/codename1/maven/AbstractCN1Mojo.java:807 – com.codename1.maven.AbstractCN1Mojo.OS isn't final but should be (rule: MS_SHOULD_BE_FINAL)
      • Normal: com/codename1/builders/AndroidGradleBuilder.java:1018 – Dead store to googleServicesJson in com.codename1.builders.AndroidGradleBuilder.build(File, BuildRequest) (rule: DLS_DEAD_LOCAL_STORE)
      • Normal: com/codename1/builders/AndroidGradleBuilder.java:1043 – Possible null pointer dereference in com.codename1.builders.AndroidGradleBuilder.build(File, BuildRequest) due to return value of called method (rule: NP_NULL_ON_SOME_PATH_FROM_RETURN_VALUE)
      • …and 485 more
  • ❌ core-unittests: 1 findings (Normal: 1)
    • Top findings
      • Normal: CodenameOne/src/com/codename1/ui/util/MutableResource.java:239 – com.codename1.ui.util.MutableResource.saveL10N(DataOutputStream, Hashtable) makes inefficient use of keySet iterator instead of entrySet iterator (rule: WMI_WRONG_MAP_ITERATOR)
  • ❌ ios: 125 findings (High: 4, Normal: 75, Low: 46)
    • Top findings
      • High: com/codename1/impl/ios/IOSImplementation.java:1228 – com.codename1.impl.ios.IOSImplementation.isDarkMode() has Boolean return type and returns explicit null (rule: NP_BOOLEAN_RETURN_NULL)
      • High: com/codename1/impl/ios/IOSImplementation.java:128 – com.codename1.impl.ios.IOSImplementation.nativeInstance isn't final but should be (rule: MS_SHOULD_BE_FINAL)
      • High: com/codename1/impl/ios/IOSImplementation.java:214 – Write to static field com.codename1.impl.ios.IOSImplementation.instance from instance method com.codename1.impl.ios.IOSImplementation.init(Object) (rule: ST_WRITE_TO_STATIC_FROM_INSTANCE_METHOD)
      • …and 122 more
• ✅ PMD: 0 findings (no issues) [Report archive]
• ✅ Checkstyle: 0 findings (no issues) [Report archive]

Generated automatically by the PR CI workflow.

[shai-almog]

Compared 35 screenshots: 35 matched.

Native Android coverage

• 📊 Line coverage: 7.75% (3962/51104 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
  • Other counters: instruction 6.12% (19647/321171), branch 2.88% (898/31161), complexity 3.62% (1079/29819), method 6.38% (887/13907), class 10.56% (195/1847)
  • Lowest covered classes
    • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
    • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
    • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
    • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/712 lines covered)
    • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
    • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
    • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

✅ Native Android screenshot tests passed.

Native Android coverage

• 📊 Line coverage: 7.75% (3962/51104 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
  • Other counters: instruction 6.12% (19647/321171), branch 2.88% (898/31161), complexity 3.62% (1079/29819), method 6.38% (887/13907), class 10.56% (195/1847)
  • Lowest covered classes
    • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
    • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
    • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
    • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/712 lines covered)
    • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
    • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
    • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
    • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

[shai-almog]

iOS screenshot updates

Compared 35 screenshots: 34 matched, 1 updated.

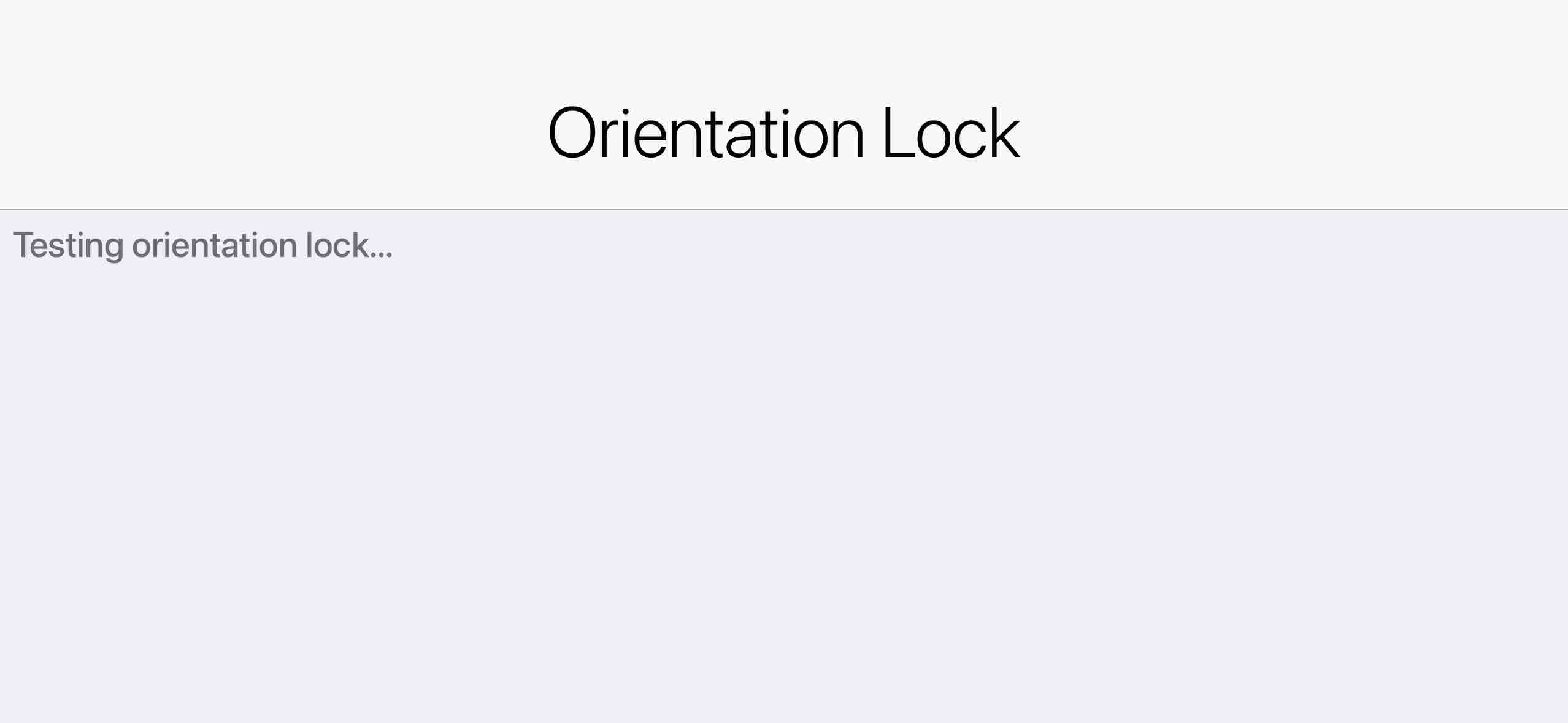

• landscape — updated screenshot. Screenshot differs (2556x1179 px, bit depth 8).


  Preview info: Preview provided by instrumentation.
  Full-resolution PNG saved as landscape.png in workflow artifacts.

Benchmark Results

• VM Translation Time: 0 seconds
• Compilation Time: 149 seconds

Detailed Performance Metrics

Metric	Duration
Simulator Boot	1000 ms
Simulator Boot (Run)	1000 ms
App Install	5000 ms
App Launch	4000 ms
Test Execution	179000 ms
