rasciichart

Beautiful ASCII line charts in Rust with smooth rendering, inspired by asciichartpy.

Features

• 📊 Smooth line rendering with Unicode box-drawing characters
• 🎨 Highly customizable - height, width, colors, symbols, labels
• 🚀 Zero dependencies - lightweight and fast
• 💪 Type-safe - leverages Rust's type system
• 📝 Well documented - comprehensive examples and API docs
• 🔧 Helper functions - for common use cases
• 🎯 Production ready - proper error handling and edge cases

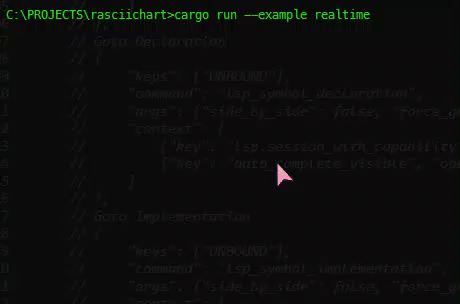

Demo

Installation

Add this to your Cargo.toml:

cargo add rasciichart

or

[dependencies]
rasciichart = "0.2.9"

Quick Start

use rasciichart::plot;

fn main() {
    let data = vec![1.0, 2.0, 3.0, 4.0, 5.0, 4.0, 3.0, 2.0, 1.0];
    println!("{}", plot(&data));
}

Output:

5.00 │   ╭╮
     │   ││
4.20 │   ││
     │  ╭╯╰╮
3.40 │  │  │
     │ ╭╯  ╰╮
2.60 │ │    │
     │ │    │
1.80 │╭╯    ╰╮
     ││      │
1.00 │╯      ╰

Examples

Basic Usage

use rasciichart::plot;

let data = vec![1.0, 2.0, 3.0, 4.0, 5.0];
println!("{}", plot(&data));

Custom Size

use rasciichart::plot_sized;

let data = vec![1.0, 2.0, 3.0, 4.0, 5.0];
println!("{}", plot_sized(&data, 15, 60)); // height: 15, width: 60

Custom Range

use rasciichart::plot_range;

let data = vec![5.0, 6.0, 7.0, 8.0, 9.0];
println!("{}", plot_range(&data, 0.0, 10.0)); // min: 0, max: 10

Without Labels

use rasciichart::plot_no_labels;

let data = vec![1.0, 2.0, 3.0, 4.0, 5.0];
println!("{}", plot_no_labels(&data));

ASCII-only Characters

For better compatibility with terminals that don't support Unicode:

use rasciichart::plot_ascii;

let data = vec![1.0, 2.0, 3.0, 4.0, 5.0];
println!("{}", plot_ascii(&data));

Advanced Configuration

use rasciichart::{plot_with_config, Config};

let data = vec![1.0, 2.0, 3.0, 4.0, 5.0];
let config = Config::new()
    .with_height(20)
    .with_width(80)
    .with_min(0.0)
    .with_max(10.0)
    .with_label_ticks(6)
    .with_label_format("{:.1}".to_string());

match plot_with_config(&data, config) {
    Ok(chart) => println!("{}", chart),
    Err(e) => eprintln!("Error: {}", e),
}

Generate Test Data

use rasciichart::{generate_sine, generate_cosine, plot};

// Sine wave
let sine_data = generate_sine(80, 2.0, 0.0);
println!("Sine wave:\n{}", plot(&sine_data));

// Cosine wave
let cosine_data = generate_cosine(80, 2.0, 0.0);
println!("\nCosine wave:\n{}", plot(&cosine_data));

Multiple Series (Overlaid)

use rasciichart::plot_multiple;

let series1 = vec![1.0, 2.0, 3.0, 4.0, 5.0];
let series2 = vec![5.0, 4.0, 3.0, 2.0, 1.0];
println!("{}", plot_multiple(&[&series1, &series2]));

Configuration Options

Option	Type	Default	Description
height	usize	10	Height of the chart in rows
width	usize	80	Width of the chart in columns
offset	usize	3	Left margin for labels
min	Option<f64>	None	Minimum Y-axis value (auto if None)
max	Option<f64>	None	Maximum Y-axis value (auto if None)
show_labels	bool	true	Show Y-axis labels
label_ticks	usize	5	Number of Y-axis label ticks
label_format	String	"{:.2}"	Format string for labels
symbols	Symbols	Unicode	Characters for drawing

API Reference

Main Functions

• plot(series: &[f64]) -> String - Simple plot with defaults
• plot_sized(series: &[f64], height: usize, width: usize) -> String - Plot with custom size
• plot_range(series: &[f64], min: f64, max: f64) -> String - Plot with custom range
• plot_no_labels(series: &[f64]) -> String - Plot without Y-axis labels
• plot_ascii(series: &[f64]) -> String - Plot with ASCII-only characters
• plot_multiple(series: &[&[f64]]) -> String - Plot multiple series
• plot_with_config(series: &[f64], config: Config) -> Result<String> - Plot with full configuration

Helper Functions

• generate_sine(points: usize, frequency: f64, phase: f64) -> Vec<f64> - Generate sine wave
• generate_cosine(points: usize, frequency: f64, phase: f64) -> Vec<f64> - Generate cosine wave
• generate_random_walk(points: usize, start: f64, volatility: f64) -> Vec<f64> - Generate random walk

Types

• Config - Chart configuration with builder pattern
• Symbols - Custom drawing characters
• ChartError - Error types for the library

Running Examples

The library includes several examples:

# Simple example
cargo run --example simple

# Advanced configuration
cargo run --example advanced

# Multiple series
cargo run --example multiple_series

# Real-time simulation
cargo run --example realtime

# Stock chart simulation
cargo run --example stock_chart

Error Handling

The library provides proper error handling:

use rasciichart::{plot_with_config, Config, ChartError};

let data = vec![];
let config = Config::new();

match plot_with_config(&data, config) {
    Ok(chart) => println!("{}", chart),
    Err(ChartError::EmptyData) => println!("No data to plot"),
    Err(e) => println!("Error: {}", e),
}

Edge Cases Handled

• Empty data sets
• Single data point
• NaN and Infinity values
• Invalid ranges (min >= max)
• Zero dimensions
• Very large or very small numbers

Performance

The library is designed to be fast and memory-efficient:

• No heap allocations in hot paths
• Efficient string building
• Minimal copies of data
• O(n) time complexity where n is the number of data points

Comparison with asciichartpy

Feature	rasciichart	asciichartpy
Language	Rust	Python
Dependencies	0	0
Type Safety	✅ Strong	❌ Dynamic
Performance	⚡ Fast	🐌 Slower
Error Handling	✅ Result	❌ Exceptions
Unicode Support	✅ Yes	✅ Yes
ASCII Fallback	✅ Yes	✅ Yes

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -am 'Add some amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Author

Hadi Cahyadi - cumulus13@gmail.com

Support me on Patreon

Acknowledgments

• Inspired by asciichartpy by Igor Kroitor
• Unicode box-drawing characters from the Unicode Standard

Changelog

see the CHANGELOG

Support

If you find this library useful, please give it a ⭐ on GitHub!
