Adding AccessibleObject for ListViewItem's image by NikitaSemenovAkvelon · Pull Request #7672 · dotnet/winforms

NikitaSemenovAkvelon · 2022-08-26T05:39:57Z

Fixes #4690 Details.Case 2

Proposed changes

Added ListViewItemImageAccessibleObject
Used AO for image inside ListViewItemDetailsAccessibleObject
Added unit tests

Customer Impact

User can see information about ListViewItem's image via accessibility tools

Regression?

No

Risk

Minimal

Screenshots

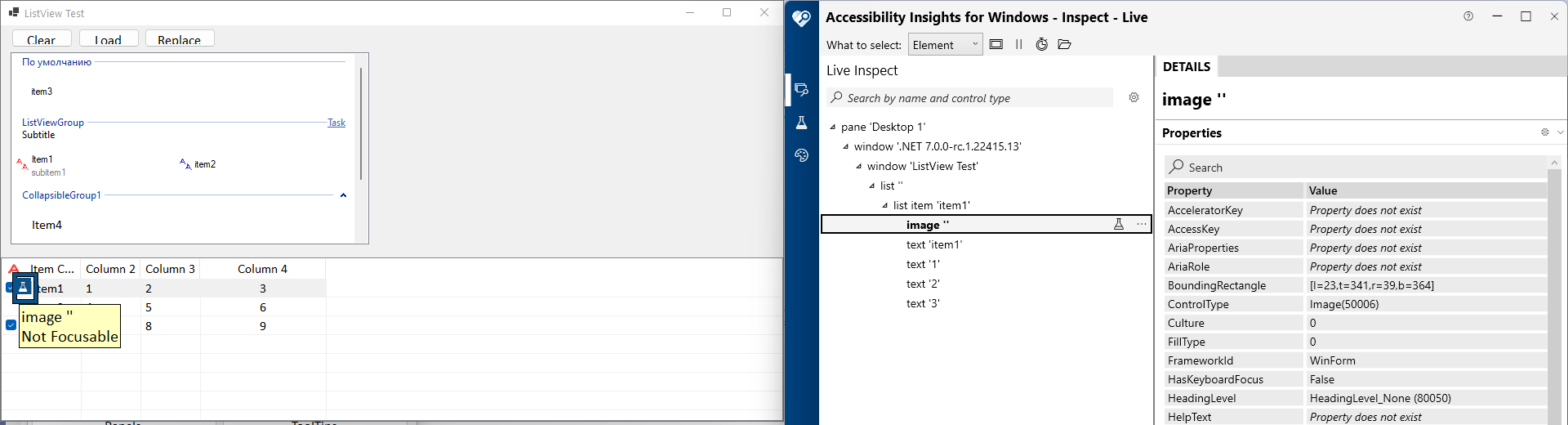

Before

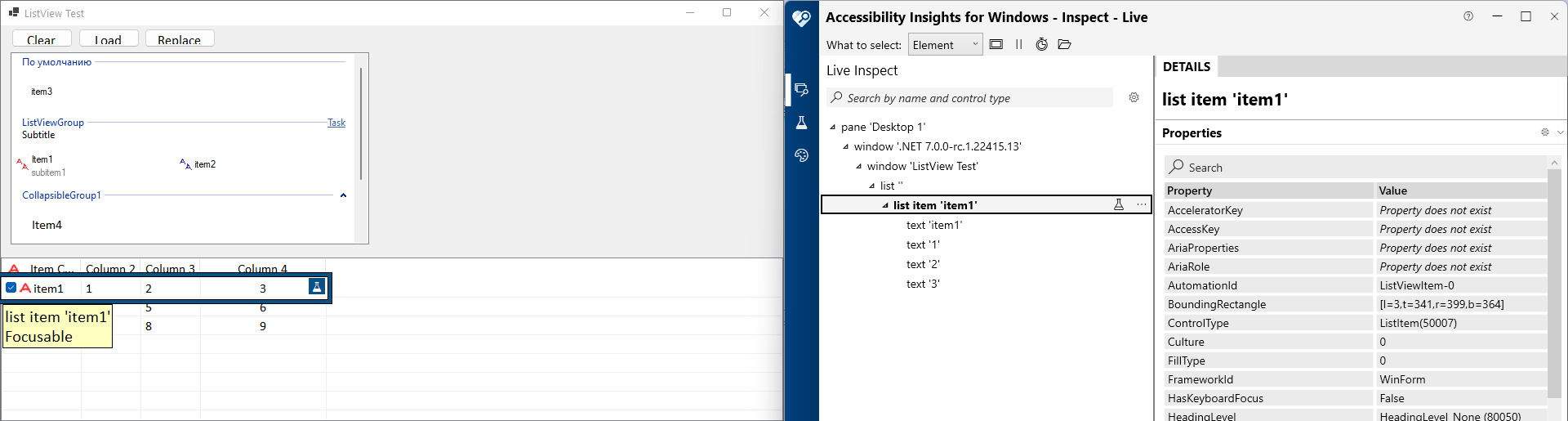

After

Test methodology

Manually
Unit tests
AI

Accessibility testing

AI

Test environment(s)

7.0.100-preview.7.22377.5

Microsoft Reviewers: Open in CodeFlow

Tanya-Solyanik

Looks good, please see my comments.

vladimir-krestov

It looks really complex. I would consider not using any index for the image AO at all. It will allow to keep the code more clear, we will just insert one object. But I will check if it work

Tanya-Solyanik · 2022-08-30T04:26:21Z

    <value>Gets or sets the parameter that is passed to the Command property's object on execution or on execution context request.</value>
  </data>
+  <data name="ListViewItemImageAccessibleObjectDescription" xml:space="preserve">
+    <value>Image of the ListViewItem.</value>


Does WPF have anything similar? I don't think that the current description is useful. Can we use "Image of <Item AccessibleName>" instead? Or even leave it empty?

RussKie · 2022-08-30T06:17:03Z

The resources are out of sync. Please rebase on top of the latest main.

dmitrii-drobotov

LGTM 👍

Tanya-Solyanik · 2022-08-30T19:18:59Z

It looks really complex.

I agree with Vladimir, maybe we can unify to having only one kind of index in the code and convert it right before it's returned to the accessibility tools. I'm not sure if conversion methods are much help ☹️

vladimir-krestov · 2022-08-30T19:42:41Z

I tried to rework it, but GetChild should return the image AO and subItems AO. So subItems start from 0, and there is only one way - to use -1 index for image AO child, but it doesn't looks correct. So we have to implement this converting algorithm. It will help us to insert checkBox AO if we will want.
One more point, @Tanya-Solyanik, may we name the Image AO as "sub item" and put inside GetDetailsSubItemOrFakeInternal? It is not a subitem and should not be here, in my opinion. But I didn't find a fast way to rework this implementation much better.

Tanya-Solyanik · 2022-08-31T18:26:08Z

may we name the Image AO as "sub item" and put inside GetDetailsSubItemOrFakeInternal?

If you think this change makes the code more readable, then sure. I'm concerned that when this code is maintained by somebody else, they would not be able to distinguish one index from the other.

Tanya-Solyanik

Looks good! I added some suggestions for naming.

Tanya-Solyanik · 2022-09-17T07:26:06Z

@dmitrii-drobotov - did you have a chance to re-review the latest?

Used AO for image inside ListViewItemImageAccessibleObject Added unit tests

Tanya-Solyanik · 2022-09-20T00:41:39Z

@dmitrii-drobotov - please re-review this change.

Tanya-Solyanik · 2022-09-20T00:42:25Z

@NikitaSemenovAkvelon - please send this change to testing.

dmitrii-drobotov

Looks good!

NikitaSemenovAkvelon · 2022-09-21T11:55:33Z

CTI detected an error that image bounds don't draw on mouse navigation in AI/Inspect. I've added a fix in a separate commit to clarity. After reviewing I'll squash it with the previous one.

Tanya-Solyanik

Please fix the tests.

Olina-Zhang · 2022-09-26T08:51:13Z

Tested this PR fixing with no new issue found finally.

* Added ListViewItemImageAccessibleObject Used AO for image inside ListViewItemImageAccessibleObject Added unit tests
