Refactored ContentAlignmentEditor. It should work as DockEditor by NikitaSemenovAkvelon · Pull Request #7831 · dotnet/winforms

NikitaSemenovAkvelon · 2022-09-23T10:59:18Z

Fixes #7800

Proposed changes

Refactored ContentAlignmentEditor.ContentUI and DockEditor.DockUI.
Moved common logic to SelectionPanelBase.
Reworked ContentAlignmentEditor.ContentUI, currently it works in the same way as DockEditor.DockUI.

Customer Impact

Narrator announcements will be more transparent for users.

Regression?

No

Risk

Minimal

Screenshots

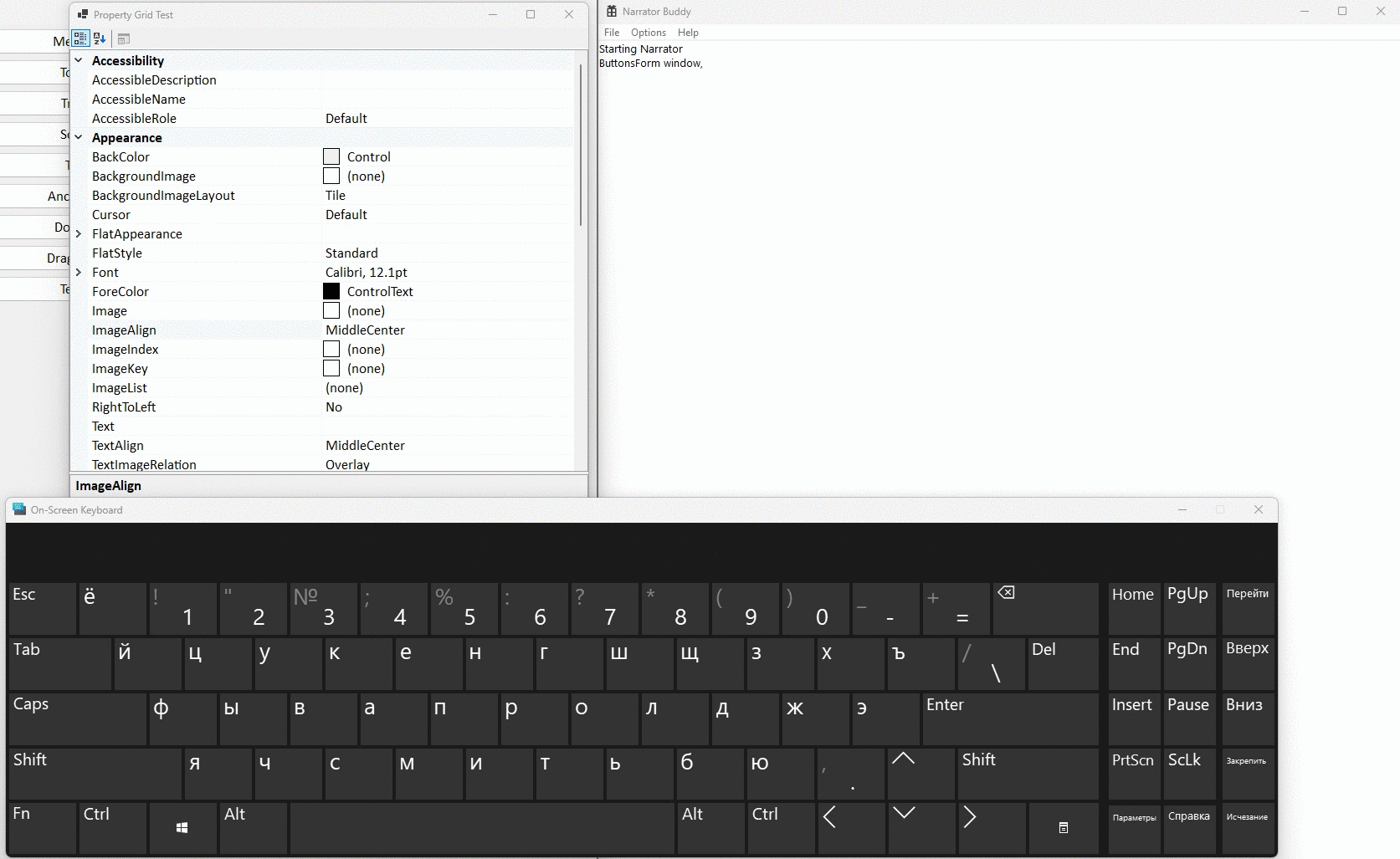

Before

ImageAlign, 10 of 20, expanded,
Expanded
Alignment Picker, Middle Center, radio button, selected,
Middle Center, radio button, non-selected,
Middle Right, radio button, selected,
Middle Right, radio button, non-selected,
Bottom Left, radio button, selected,
Bottom Left, radio button, non-selected,
Bottom Middle, radio button, selected,
Bottom Middle, radio button, non-selected,
Bottom Right, radio button, selected,
Bottom Right, radio button, non-selected,
Middle Right, radio button, selected,
Middle Right, radio button, non-selected,
Middle Center, radio button, selected,
ImageAlign, 10 of 20, collapsed,
MiddleCenter selected.

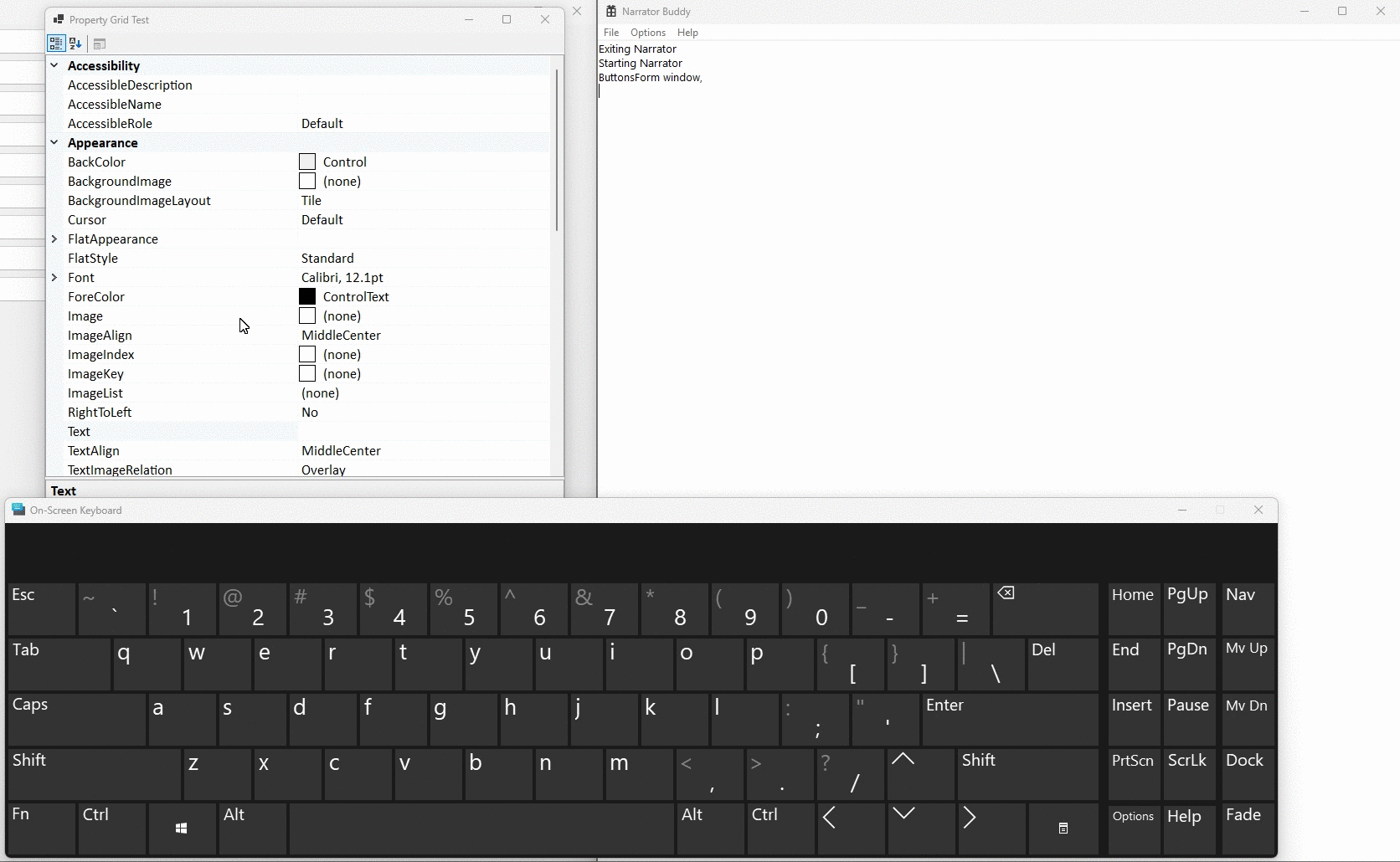

After

ImageAlign, 10 of 20, expanded,
Expanded
Alignment Picker, Middle Center, radio button, selected,
Middle Right, radio button, non-selected,
Bottom Left, radio button, non-selected,
Bottom Middle, radio button, non-selected,
Middle Center, radio button, selected,
Top Center, radio button, non-selected,
ImageAlign, 10 of 20, collapsed,
Open, button,
Open, button,
Expanded
Alignment Picker, Top Center, radio button, selected,
Middle Center, radio button, non-selected,
Bottom Middle, radio button, non-selected,
ImageAlign, 10 of 20, collapsed,

Test methodology

Manually
Accessibility tools
CTI

Accessibility testing

Narrator
Inspect

Test environment(s)

.NET SDK:
Version: 8.0.100-alpha.1.22423.9
Commit: b9635390c8

Runtime Environment:
OS Name: Windows
OS Version: 10.0.22621

Microsoft Reviewers: Open in CodeFlow

dmitrii-drobotov

Nice refactoring!

Tanya-Solyanik · 2022-09-23T19:14:00Z

Build failure:

(NETCORE_ENGINEERING_TELEMETRY=NativeToolsBootstrap) Unable to find directory for cmake 3.21.0; please make sure the tool is installed on this image.

dreddy-work · 2022-09-23T19:22:40Z

It seems X86 machine pools have this problem. From: Tanya Solyanik ***@***.***> Sent: Friday, September 23, 2022 12:14 PM To: dotnet/winforms ***@***.***> Cc: Devendar Reddy A ***@***.***>; Review requested ***@***.***> Subject: Re: [dotnet/winforms] Refactored ContentAlignmentEditor. It should work as DockEditor (PR #7831) Build failure: (NETCORE_ENGINEERING_TELEMETRY=NativeToolsBootstrap) Unable to find directory for cmake 3.21.0; please make sure the tool is installed on this image. - Reply to this email directly, view it on GitHub<https://nam06.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fdotnet%2Fwinforms%2Fpull%2F7831%23issuecomment-1256582166&data=05%7C01%7Cdreddy%40microsoft.com%7C85359506fd014deddd5a08da9d97cc7a%7C72f988bf86f141af91ab2d7cd011db47%7C1%7C0%7C637995572542089383%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=BG4QVI6NLh3H6MkWqkLBFrbvAbcNSKy7f%2FU%2F6jS0%2BEs%3D&reserved=0>, or unsubscribe<https://nam06.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fnotifications%2Funsubscribe-auth%2FAI2BRWYDOP2UWX52EUKG6Z3V7X6QHANCNFSM6AAAAAAQT35HCE&data=05%7C01%7Cdreddy%40microsoft.com%7C85359506fd014deddd5a08da9d97cc7a%7C72f988bf86f141af91ab2d7cd011db47%7C1%7C0%7C637995572542089383%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=Lw3MJ5mPXgUaeCI4W3C6y0tjq1%2BqGkj3OYhtRoWLKek%3D&reserved=0>. You are receiving this because your review was requested.Message ID: ***@***.******@***.***>>

Tanya-Solyanik

Looks good, I added some nits. Please send to testing.

Tanya-Solyanik

Please see my comment to confirm that Focus event is raised.

Tanya-Solyanik

Looks good

elachlan · 2022-09-29T00:41:31Z

        ///  Control we use to provide the content alignment UI.
        /// </summary>
-        private class ContentUI : Control
+        private class ContentUI : SelectionPanelBase


Is this inherited from anywhere internally? Maybe mark it as sealed if not?

I agree with you. It makes sense in this case.

@RussKie Should this have been picked up by the analyzer?

I vaguely remember there were discussions in dotnet/runtime about creating an analyzer for this, but I don't know whether this has been done and whether this analyzer is available now. We can certainly enable the analyzer, if it's now available.

I believe its CA1852
https://devblogs.microsoft.com/dotnet/performance_improvements_in_net_7/#analyzers

Nice, thank you.

We can certainly turn it on, though it doesn't appear to be documented yet. https://learn.microsoft.com/dotnet/fundamentals/code-analysis/quality-rules/ca1812 is another one to consider turning on.
It could be great to turn these on before the change to confirm.

The configs are stored here: https://github.com/dotnet/winforms/blob/main/eng/CodeAnalysis.src.globalconfig.

Created at #7879

Awesome, thank you!

elachlan · 2022-09-29T00:43:52Z

        ///  User Interface for the DockEditor.
        /// </summary>
-        private class DockUI : Control
+        private class DockUI : SelectionPanelBase


Same here, not inherited mark as sealed.

Olina-Zhang · 2022-09-29T06:45:19Z

Tested this PR fixing with no new issue found.

…et#7831) Changes: Refactored ContentAlignmentEditor.ContentUI and DockEditor.DockUI. Moved common logic to SelectionPanelBase. Reworked ContentAlignmentEditor.ContentUI, currently it works in the same way as DockEditor.DockUI. Customer Impact: Narrator announcements will be more transparent for users.
